Product Description
Built for precision work in confined spaces, this 2020 Hitachi ZX80 mini excavator delivers 39 kW of reliable Isuzu power with exceptional operator control. Weighing 7,215 kg with a 0.28 m³ bucket capacity, it combines maneuverability with serious digging capability—reaching 4,170 mm maximum depth and 6,170 mm excavation radius. Operators benefit from superior cabin visibility across 360-degree rotations at 11.3 rpm, while the compact 2,200 mm transport width ensures easy site access. Ground-specific pressure of just 25 kPa protects sensitive surfaces without sacrificing stability.

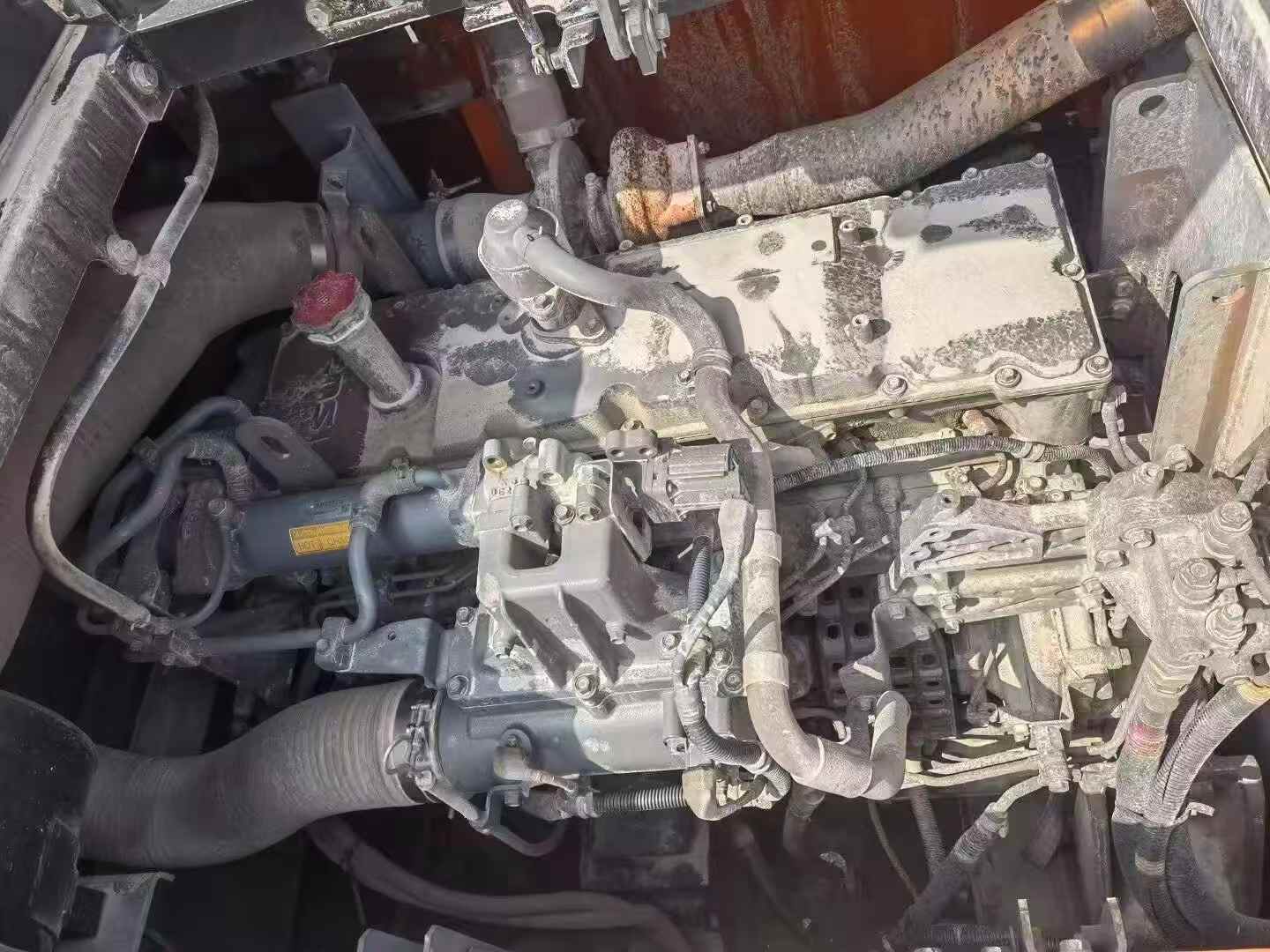

- Isuzu CC-4JG1 engine: 39 kW at 2,100 rpm, 3.1L displacement

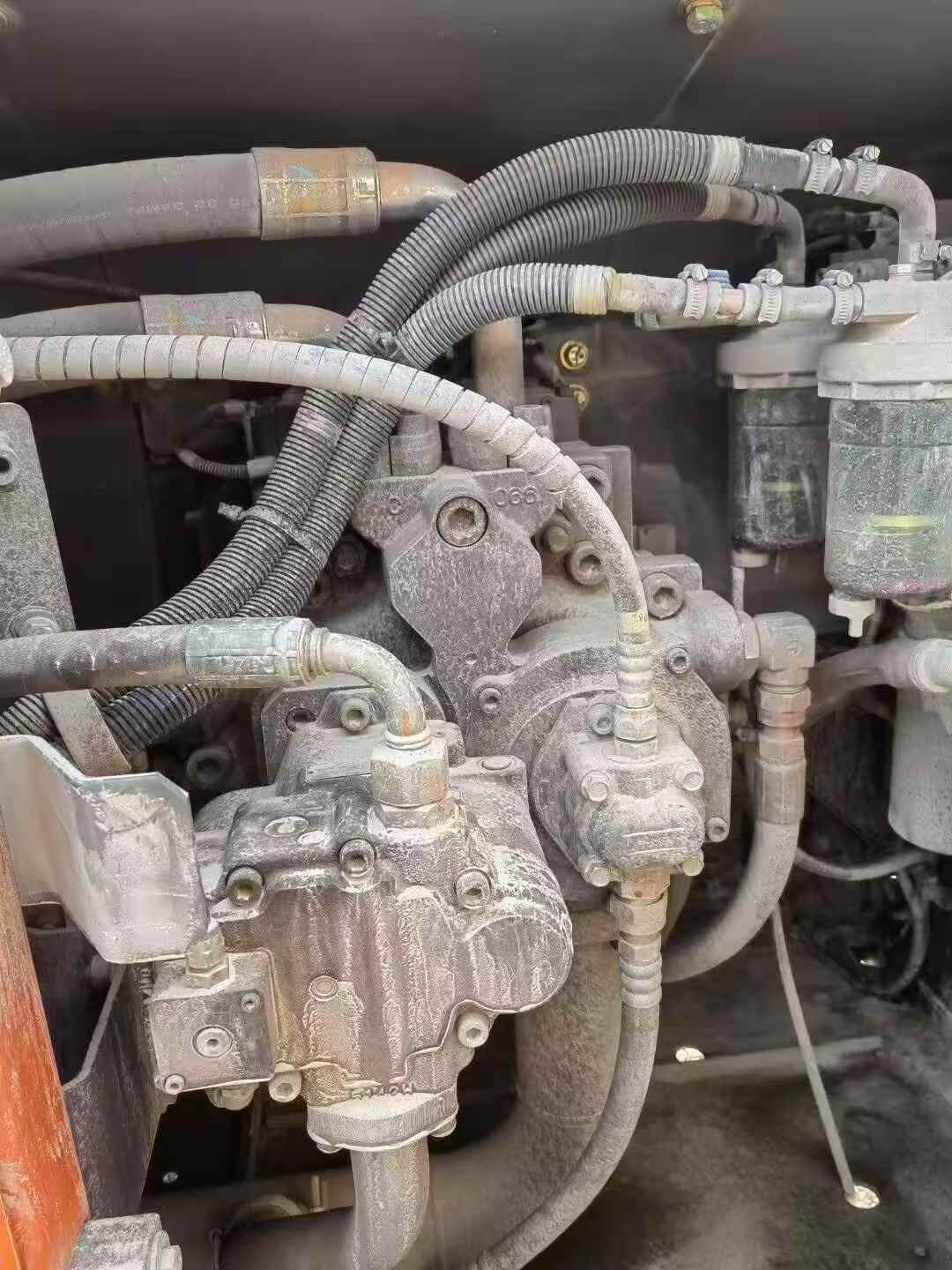

- Precise hydraulics: 126 L/min main pump flow for smooth operation
- Compact dimensions: 6,080 mm length, 2,600 mm height
- Enhanced stability: 1,600 mm track gauge, 2,140 mm ground contact
- Generous reach: 7,150 mm max excavation height, 5,060 mm unloading height
- Currently located in Guizhou, China—ready for immediate inspection
Japanese engineering meets practical job site demands. Contact Fair Trade Machinery today for detailed specifications and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1025591 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7215 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1620 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1 |
| Rated power (kw/rpm) | 39/2100 |
| Displacement (L) | 3.1 |
| Ground specific pressure (Kpa) | 25 |
| Rotation speed (rpm) | 11.3 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 126 |
| Fuel Tank (L) | 135 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 9.5 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 750 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Maximum excavation radius of stop surface (mm) | 6170 |
