Product Description

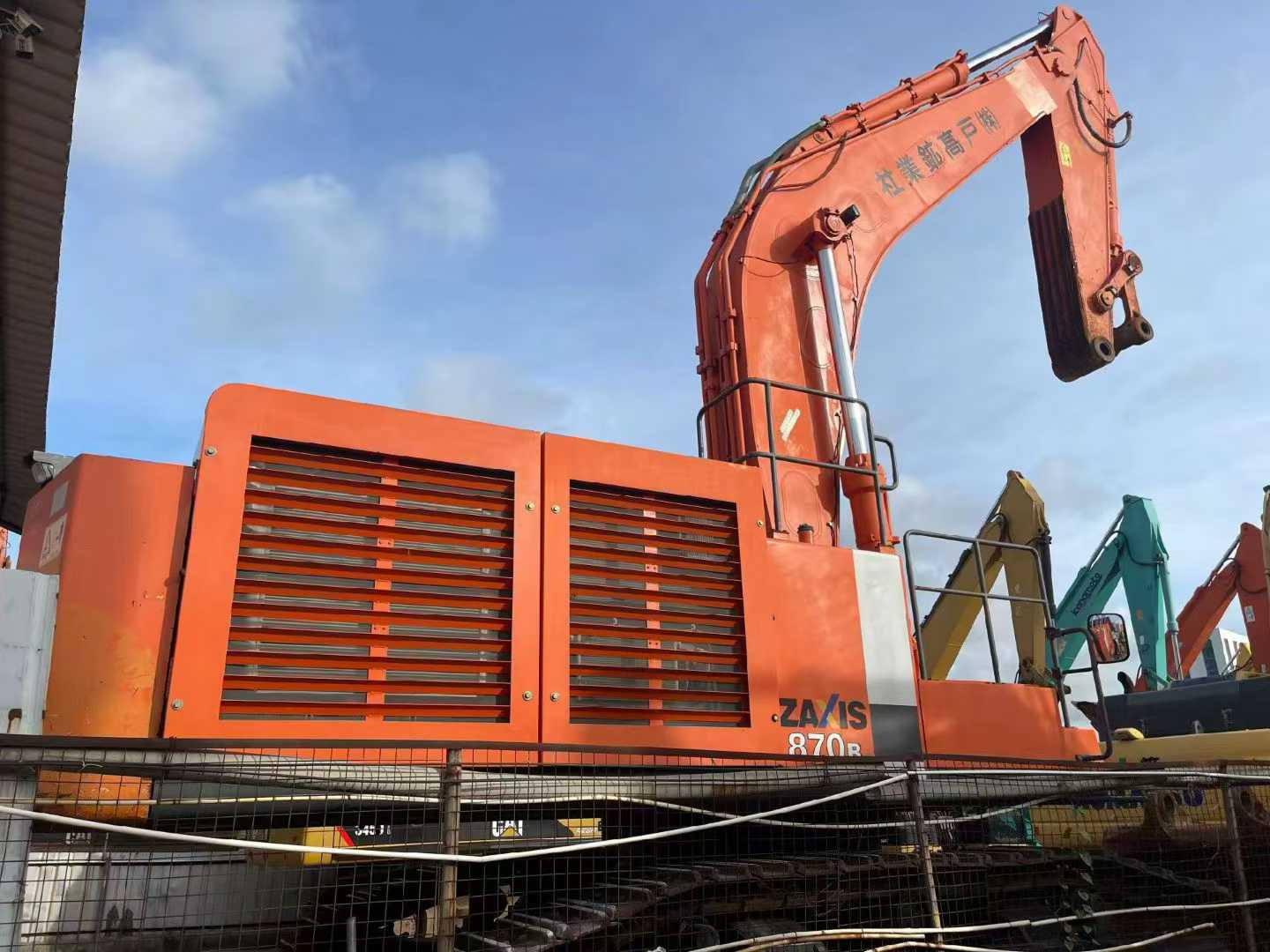

Expand your fleet capacity with this 2016 Hitachi ZX870R-3 excavator, a proven 87-ton workhorse engineered for high-volume earthmoving and quarry operations. Powered by a robust ISUZU 6-cylinder engine delivering 397 kW at 1800 rpm, this machine provides consistent performance across extended shifts. Currently located in Shenzhen, Guangdong, it's ready for immediate deployment on demanding projects requiring serious digging power.
- Operating Weight: 83,600 kg with 3.5 m³ rock bucket
- Digging Performance: 14,100 mm maximum reach, 8,870 mm maximum depth

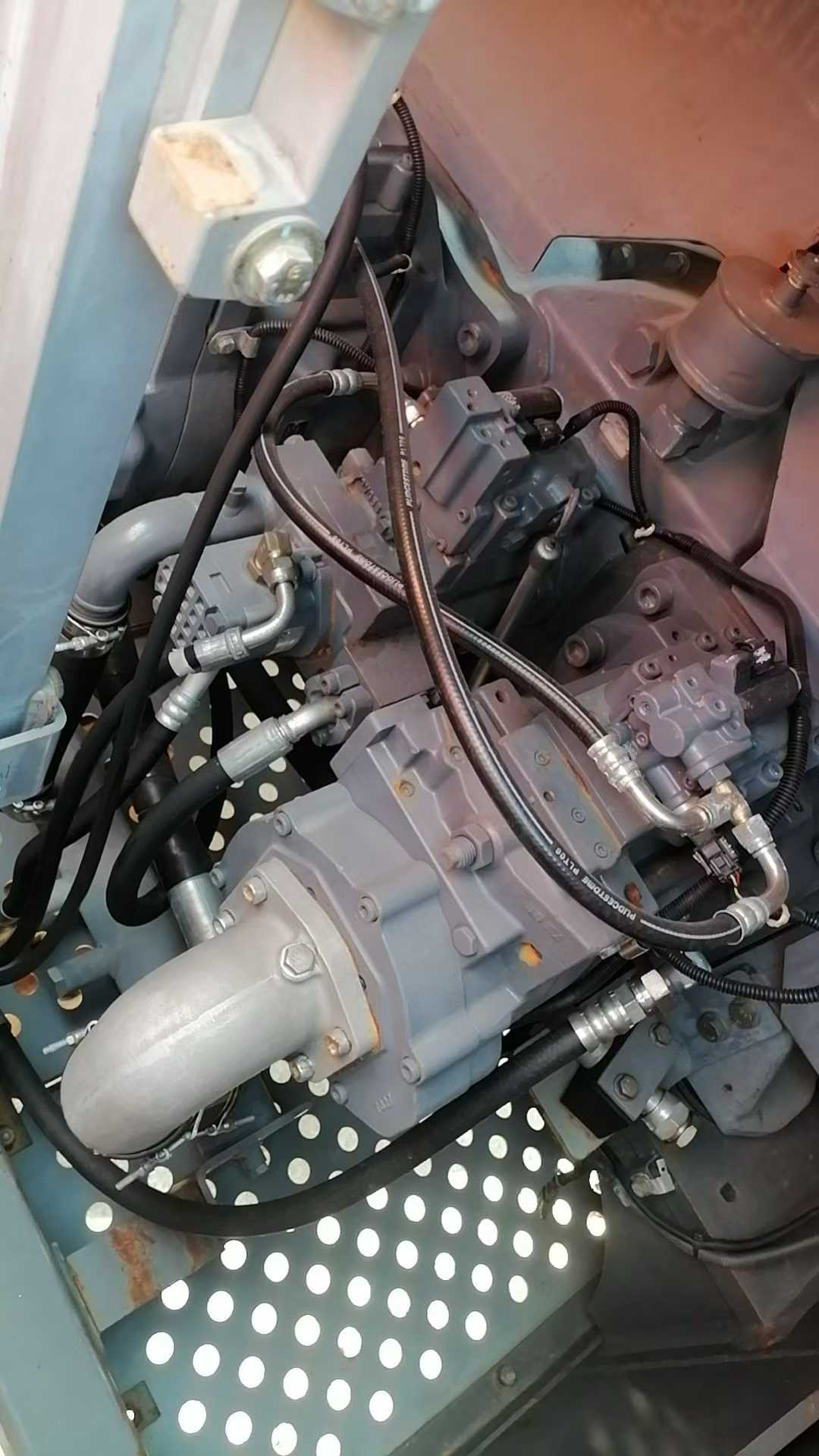

- Hydraulic System: Dual variable piston pumps (528 L/min each) for responsive cycle times
- Bucket Force: 402 kN digging force handles consolidated materials efficiently
- Fuel Capacity: 1,120 L tank minimizes refueling interruptions
Ideal as a backup unit during peak season or to complement existing heavy excavators in mining and large-scale civil projects. Water-cooled turbocharged engine ensures reliable operation in demanding environments. Contact us for detailed inspection reports and shipping arrangements worldwide.
| Specifications | Value |
|---|---|
| No. | 1029731 |
| Tonnage (tons) | 87 |
| Working weight (kg) | 83600 |
| Bucket capacity (m³) | 3.5(Rock Bucket) |
| Boom length (mm) | 8.4R |
| Rod length (mm) | 3.7R |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-6WG1XYSA-03 |
| Rated power (kw/rpm) | 397/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 15.691 |
| Working form | Direct injection, water cooled, turbocharged |
| Ground specific pressure (Kpa) | 125 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 402 |
| Rod digging force (kN) | 359 |
| Travel speed (km/h) | 3.1/4.1 |
| Rotary hydraulic motor type | Axial piston motor x 2 |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 528 * 2 + 30 * 1 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 200 x 140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 225 x 160 |
| Boom cylinders - Number × diameter × stroke (mm) | 215 x 150 |
| Fuel Tank (L) | 1120 |
| Hydraulic Tank (L) | 500 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 116 |
| Total transport length (mm) | 14770 |
| Total transport width (mm) | 4430 |
| Total transport height (mm) | 4570 |
| Full cab height (mm) | 3780 |
| Counterweight ground clearance (mm) | 1680 |
| Minimum ground clearance (mm) | 890 |
| Back end turning radius (mm) | 4600 |
| Total track length (mm) | 5840 |
| Track gauge (mm) | 3450 |
| Track plate width (mm) | 650 |
| Total track width (mm) | 4100 |
| Track ground length (mm) | 4590 |
| Maximum digging radius (mm) | 14100 |
| Maximum digging depth (mm) | 8870 |
| Maximum excavation height (mm) | 13000 |
| Maximum unloading height (mm) | 9080 |
| Maximum vertical digging depth (mm) | 6840 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 13820 |
| Maximum effective digging depth (mm) | 8740 |
