Product Description
Built for extreme-duty applications, this 2016 Hitachi ZX890LCH-5A excavator delivers proven reliability across eight years of continuous operation. Operating at 89 tons with an 85,000 kg working weight, this crawler excavator combines raw power with precision control through its Isuzu GH-6WG1XKSA-01 engine generating 377 kW at 1800 rpm. Currently located in Sichuan, this workhorse demonstrates the exceptional build quality Hitachi joint venture manufacturing is known for worldwide.
- Massive 5.0 m³ backhoe bucket capacity with 472 kN digging force
- Extended reach configuration: 7,100 mm boom, 12,340 mm maximum digging radius
- High-capacity hydraulics: dual 556 l/min variable pumps, 1,042 L system volume
- Water-cooled 15.681 L turbocharged engine with 2,138 N·m maximum torque

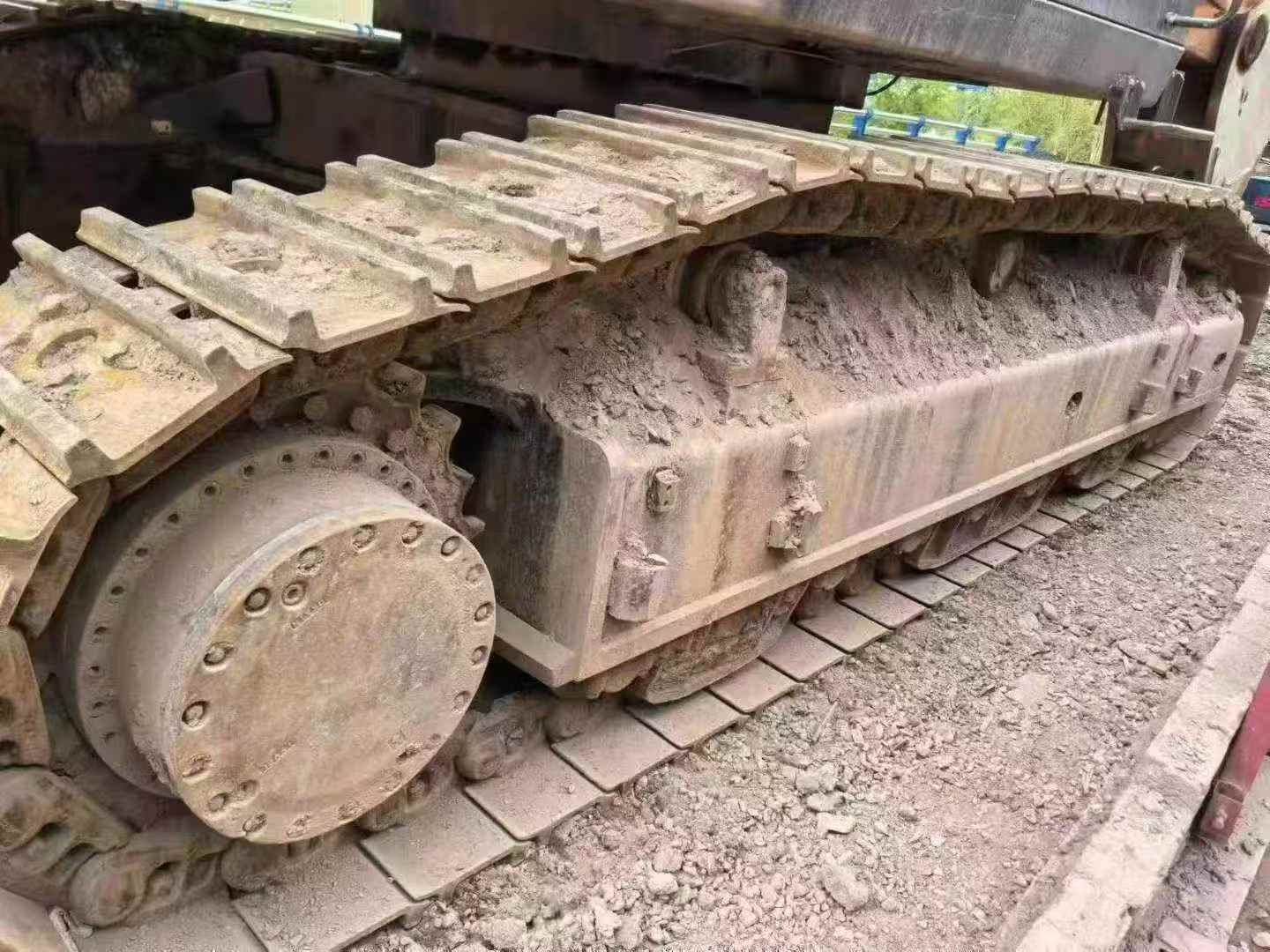

- Robust undercarriage: 6,360 mm track length, 650 mm plates, 70% gradeability
- Dual swashplate variable piston motors with integrated parking brake
Engineered for mining, quarrying, and large-scale earthmoving projects, this machine's longevity confirms its durability in demanding environments. Comprehensive hydraulic systems and substantial fuel capacity ensure extended operational
| Specifications | Value |
|---|---|
| No. | 1045586 |
| Tonnage (tons) | 89 |
| Working weight (kg) | 85000 |
| Bucket capacity (m³) | 5.0 |
| Boom length (mm) | 7100 |
| Rod length (mm) | 2950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

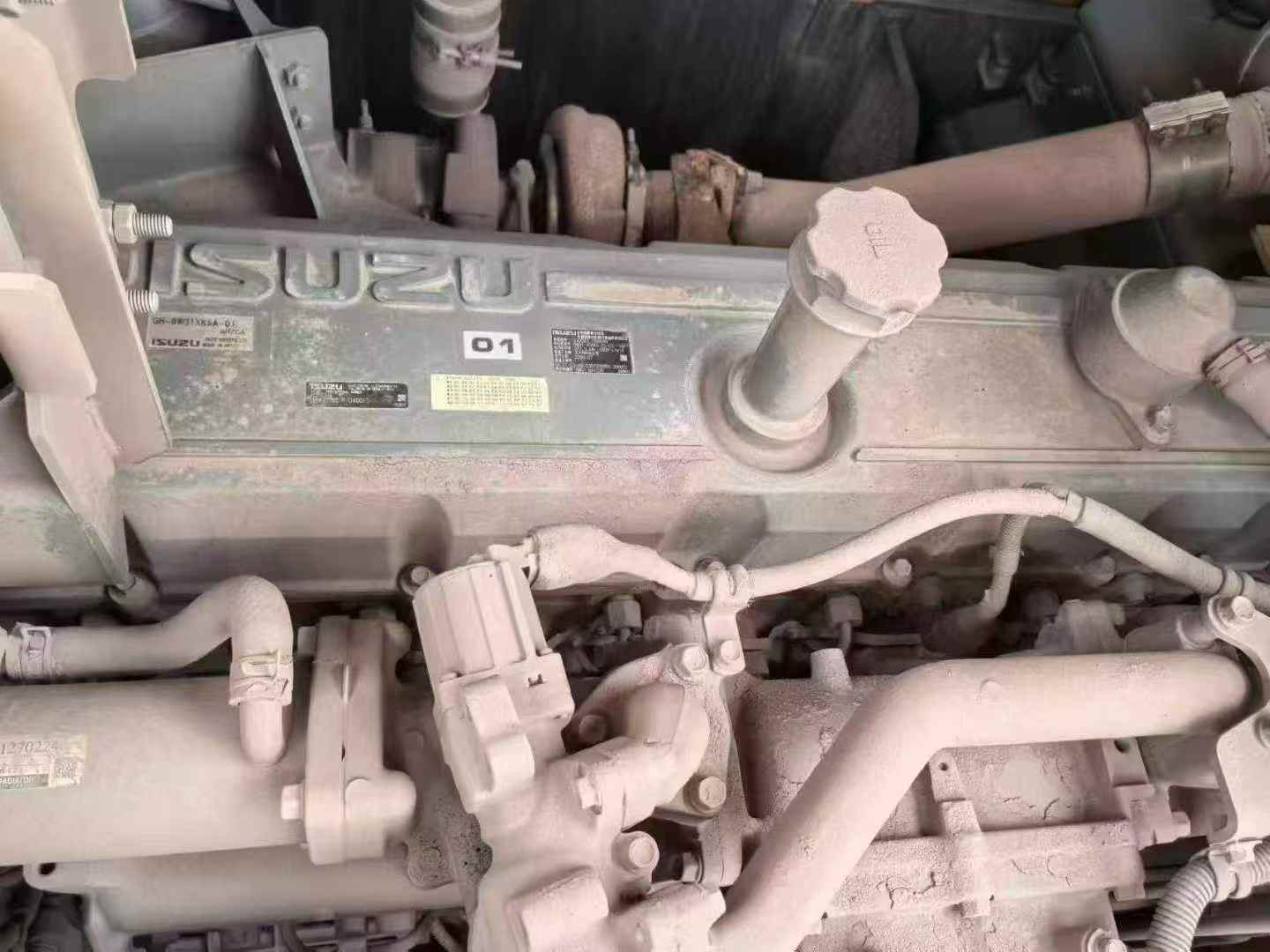

| Engine type | Isuzu GH-6WG1XKSA-01 |
| Rated power (kw/rpm) | 377/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Maximum torque (N.m) | 2138/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 116 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 472 |
| Rod digging force (kN) | 394 |
| Maximum tractive force (kN) | 560 |
| Travel speed (km/h) | 4.7/3.2 |
| Turning torque (Nm) | 267 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 556 + 50 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |

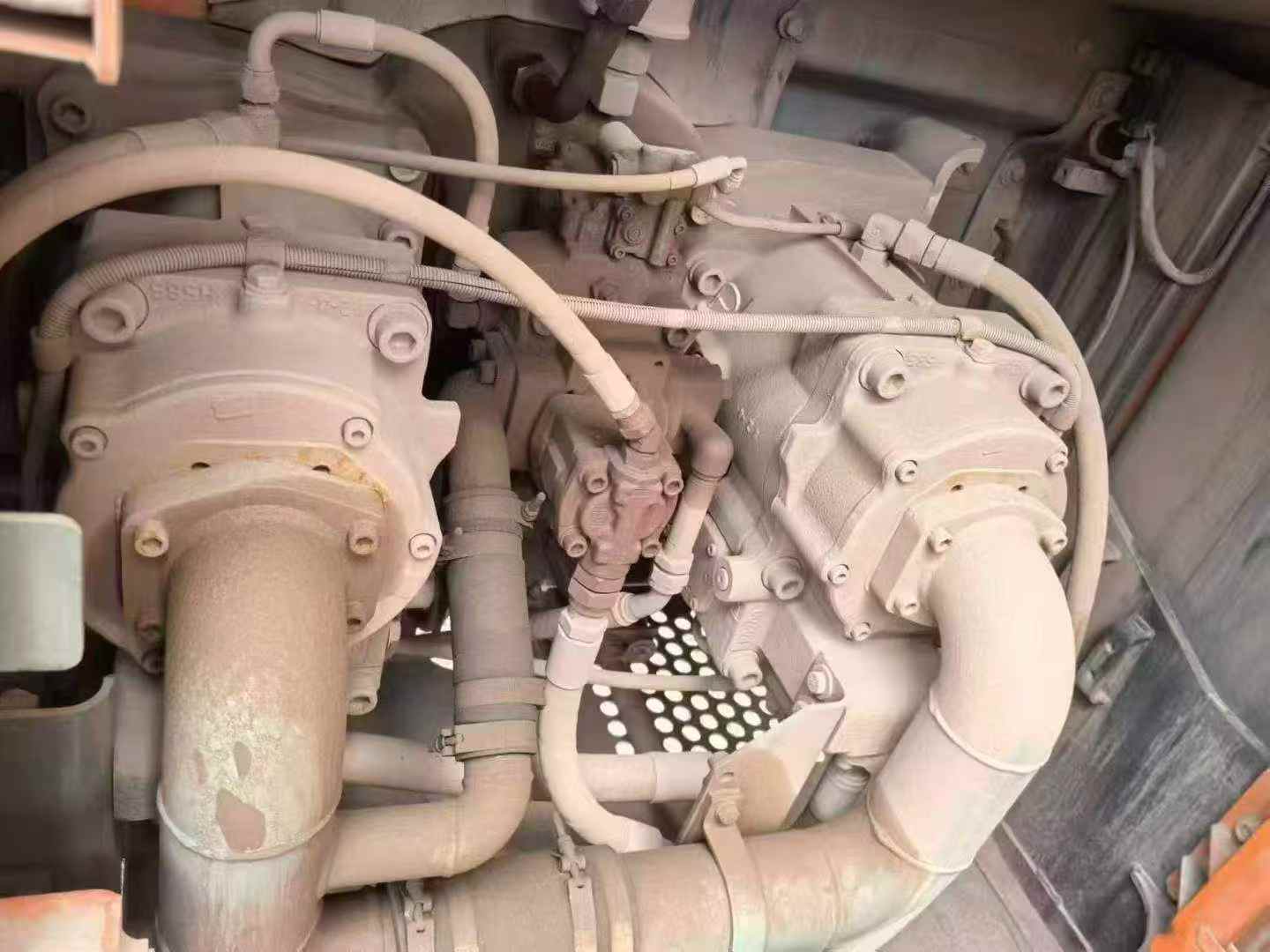

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 215 x 150 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 225 x 160 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 215 x 150 |
| Fuel Tank (L) | 1110 |
| Hydraulic Tank (L) | 500 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 123 |
| Hydraulic System (L) | 1042 |
| Total transport length (mm) | 13550 |
| Total transport width (mm) | 4450 |
| Total transport height (mm) | 5200 |
| Full cab height (mm) | 3800 |
| Counterweight ground clearance (mm) | 1680 |
| Minimum ground clearance (mm) | 890 |
| Minimum turning radius of front working device (mm) | 5210 |
| Back end turning radius (mm) | 4600 |
| Total track length (mm) | 6360 |
| Track gauge (mm) | 3450/2830 |
| Track plate width (mm) | 650 |
| Total track width (mm) | 4100 |
| Track ground length (mm) | 5110 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 12340 |
| Maximum digging depth (mm) | 7140 |
| Maximum excavation height (mm) | 12010 |
| Maximum unloading height (mm) | 8130 |
| Maximum vertical digging depth (mm) | 4100 |
| Maximum excavation radius of stop surface (mm) | 12020 |
Overview
No.1045586
Brand Name：
HitachiModel Number：
ZX890LCH-5AYear：
2016
Location：
Sichuan China
