Product Description

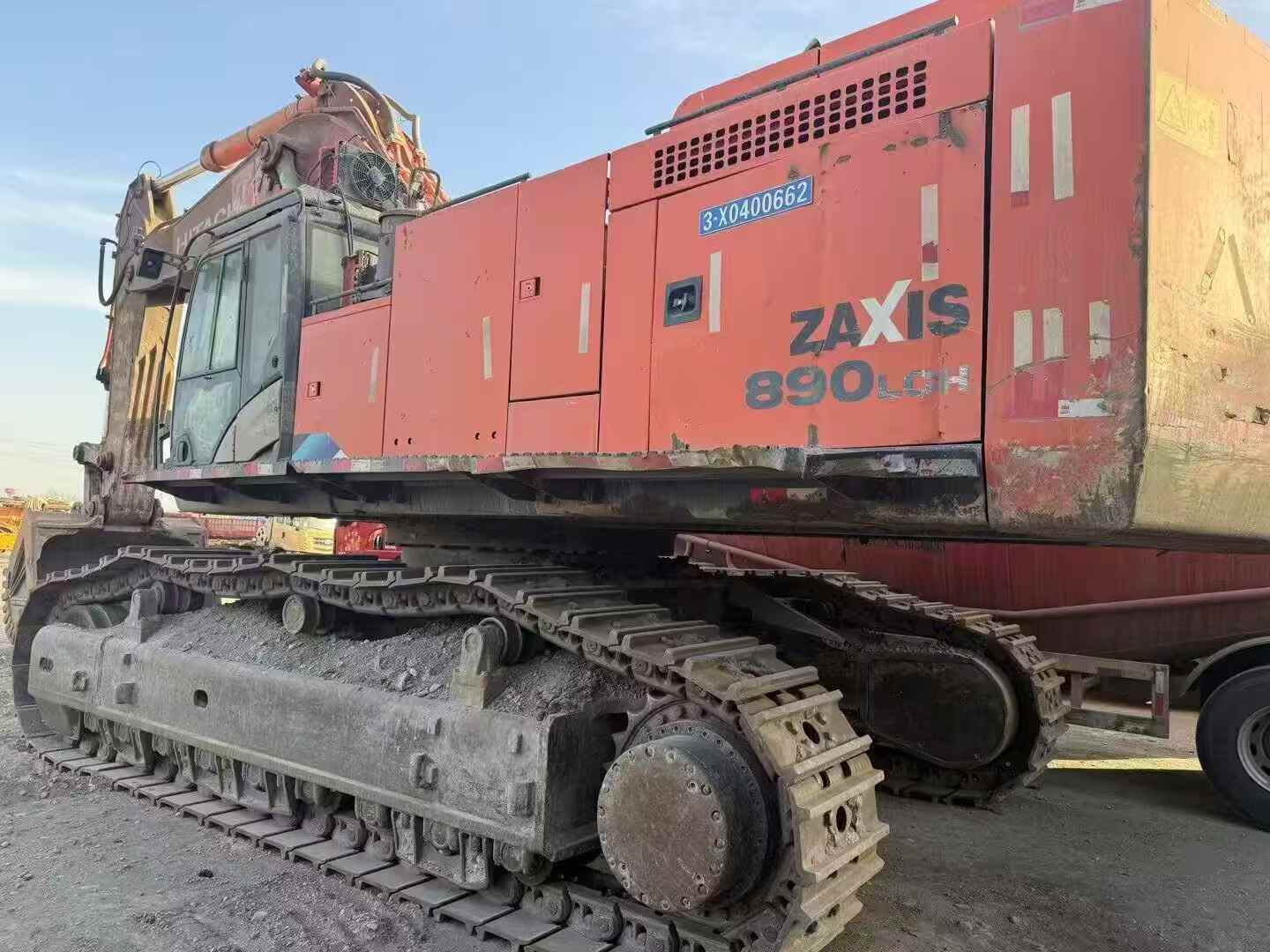

With a powerful Isuzu GH-6WG1XKSA-01 engine, the 2019 Hitachi ZX890LCH-5A excavator delivers 377 kW of rated power, ensuring robust performance on any job site. Located in 贵州, this machine boasts an 89-ton working weight and a 5.0 m³ bucket capacity, making it ideal for heavy-duty applications.
- Equipped with a 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, and intercooled engine, providing reliable and efficient operation.
- Features a full cab height of 3800 mm, offering excellent visibility to enhance operator control and safety.
- The spacious and ergonomically designed cabin ensures comfort during long hours of operation, with easy access to all controls.
- Boasting a maximum digging depth of 7140 mm and a maximum digging radius of 12340 mm, this excavator handles large-scale projects with ease.
- Enhanced stability and handling are provided by a wide track gauge of 3450/2830 mm and a total track width of 4100 mm, allowing for smooth and precise movements.
| Specifications | Value |
|---|---|
| No. | 1045705 |
| Tonnage (tons) | 89 |
| Working weight (kg) | 85000 |
| Bucket capacity (m³) | 5.0 |
| Boom length (mm) | 7100 |
| Rod length (mm) | 2950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6WG1XKSA-01 |
| Rated power (kw/rpm) | 377/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Maximum torque (N.m) | 2138/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 116 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 472 |
| Rod digging force (kN) | 394 |
| Maximum tractive force (kN) | 560 |
| Travel speed (km/h) | 4.7/3.2 |
| Turning torque (Nm) | 267 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 556 + 50 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 215 x 150 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 225 x 160 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 215 x 150 |
| Fuel Tank (L) | 1110 |
| Hydraulic Tank (L) | 500 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 123 |
| Hydraulic System (L) | 1042 |
| Total transport length (mm) | 13550 |
| Total transport width (mm) | 4450 |
| Total transport height (mm) | 5200 |
| Full cab height (mm) | 3800 |
| Counterweight ground clearance (mm) | 1680 |
| Minimum ground clearance (mm) | 890 |
| Minimum turning radius of front working device (mm) | 5210 |
| Back end turning radius (mm) | 4600 |
| Total track length (mm) | 6360 |
| Track gauge (mm) | 3450/2830 |
| Track plate width (mm) | 650 |
| Total track width (mm) | 4100 |
| Track ground length (mm) | 5110 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 12340 |
| Maximum digging depth (mm) | 7140 |
| Maximum excavation height (mm) | 12010 |
| Maximum unloading height (mm) | 8130 |
| Maximum vertical digging depth (mm) | 4100 |
| Maximum excavation radius of stop surface (mm) | 12020 |
see more
Overview
No.1045705
Brand Name：
HitachiModel Number：
ZX890LCH-5AYear：
2019
Location：
Guizhou China
