Product Description

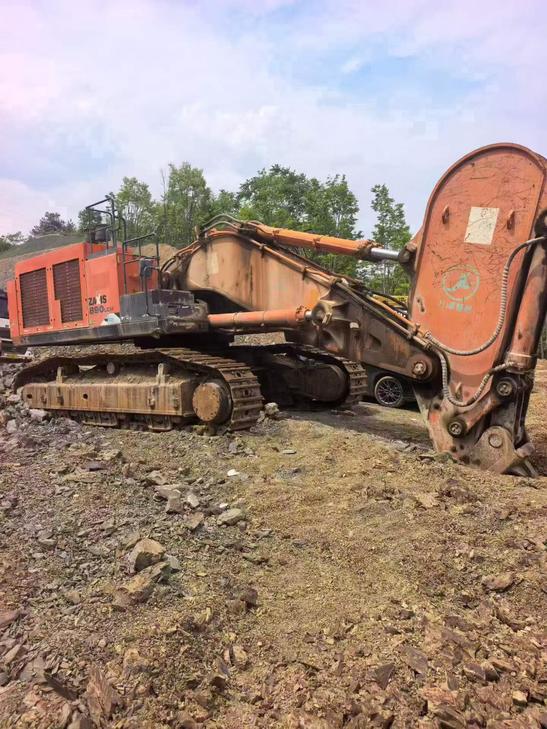

Available for immediate inspection in Zhejiang, China, this 2020 Hitachi ZX890LCH-5A hydraulic excavator is field-ready and priced competitively for serious buyers. The machine features factory-installed heavy-duty ripper arm configuration, ideal for demanding rock and demolition applications.
This crawler excavator has been maintained to operational standards with verified performance systems requiring no immediate mechanical attention. The seller is on-site and available to facilitate direct inspection and equipment demonstration for qualified purchasers.
- Year: 2020
- Make: Hitachi
- Model: ZX890LCH-5A
- Configuration: Ripper arm attachment
- Location: Zhejiang Province, China
- Condition: Performance-verified, inspection-ready
Suitable for mining, quarry, and heavy construction operations. Direct sale by owner with flexible negotiation for serious inquiries.
| Specifications | Value |
|---|---|
| No. | 1082248 |
| Tonnage (tons) | 89 |
| Working weight (kg) | 85000 |
| Bucket capacity (m³) | 5.0 |
| Boom length (mm) | 7100 |
| Rod length (mm) | 2950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6WG1XKSA-01 |
| Rated power (kw/rpm) | 377/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Maximum torque (N.m) | 2138/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 116 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 472 |
| Rod digging force (kN) | 394 |
| Maximum tractive force (kN) | 560 |
| Travel speed (km/h) | 4.7/3.2 |
| Turning torque (Nm) | 267 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 556 + 50 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 215 x 150 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 225 x 160 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 215 x 150 |
| Fuel Tank (L) | 1110 |
| Hydraulic Tank (L) | 500 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 123 |
| Hydraulic System (L) | 1042 |
| Total transport length (mm) | 13550 |
| Total transport width (mm) | 4450 |
| Total transport height (mm) | 5200 |
| Full cab height (mm) | 3800 |
| Counterweight ground clearance (mm) | 1680 |
| Minimum ground clearance (mm) | 890 |
| Minimum turning radius of front working device (mm) | 5210 |
| Back end turning radius (mm) | 4600 |
| Total track length (mm) | 6360 |
| Track gauge (mm) | 3450/2830 |
| Track plate width (mm) | 650 |
| Total track width (mm) | 4100 |
| Track ground length (mm) | 5110 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 12340 |
| Maximum digging depth (mm) | 7140 |
| Maximum excavation height (mm) | 12010 |
| Maximum unloading height (mm) | 8130 |
| Maximum vertical digging depth (mm) | 4100 |
| Maximum excavation radius of stop surface (mm) | 12020 |
