Product Description

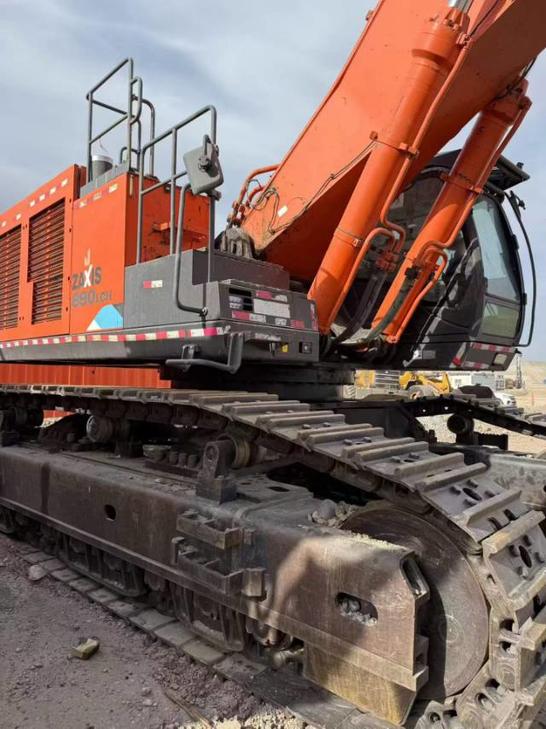

Discover the 2021 Hitachi ZX890LCH-5A, a premium excavator designed for demanding construction environments. This used heavy machine, located in Henan, China, is an excellent choice for contractors seeking reliability and performance. Built to handle tough jobs with ease, the ZX890LCH-5A offers robust construction, ensuring it can tackle any site without hesitation.
- Year: 2021
- Brand: Hitachi
- Model: ZX890LCH-5A
- Location: Henan, China
Known for its durability and efficiency, this excavator is ready to be deployed directly into your worksite, providing you with the confidence to meet project deadlines and maintain high productivity levels. Trust in the quality of Hitachi to deliver the performance you need for your next big job.
| Specifications | Value |
|---|---|
| No. | 1088206 |
| Tonnage (tons) | 89 |
| Working weight (kg) | 85000 |
| Bucket capacity (m³) | 5.0 |
| Boom length (mm) | 7100 |
| Rod length (mm) | 2950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6WG1XKSA-01 |
| Rated power (kw/rpm) | 377/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Maximum torque (N.m) | 2138/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 116 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 472 |
| Rod digging force (kN) | 394 |
| Maximum tractive force (kN) | 560 |
| Travel speed (km/h) | 4.7/3.2 |
| Turning torque (Nm) | 267 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 556 + 50 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 215 x 150 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 225 x 160 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 215 x 150 |
| Fuel Tank (L) | 1110 |
| Hydraulic Tank (L) | 500 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 123 |
| Hydraulic System (L) | 1042 |
| Total transport length (mm) | 13550 |
| Total transport width (mm) | 4450 |
| Total transport height (mm) | 5200 |
| Full cab height (mm) | 3800 |
| Counterweight ground clearance (mm) | 1680 |
| Minimum ground clearance (mm) | 890 |
| Minimum turning radius of front working device (mm) | 5210 |
| Back end turning radius (mm) | 4600 |
| Total track length (mm) | 6360 |
| Track gauge (mm) | 3450/2830 |
| Track plate width (mm) | 650 |
| Total track width (mm) | 4100 |
| Track ground length (mm) | 5110 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 12340 |
| Maximum digging depth (mm) | 7140 |
| Maximum excavation height (mm) | 12010 |
| Maximum unloading height (mm) | 8130 |
| Maximum vertical digging depth (mm) | 4100 |
| Maximum excavation radius of stop surface (mm) | 12020 |
see more
Overview
No.1088206
Brand Name：
HitachiModel Number：
ZX890LCH-5AYear：
2021
Hour：
4000h
Location：
Henan China
