Product Description
Built for productivity, this 2016 Hyundai 110LVS excavator delivers 11 tons of digging power with a proven MITSUBISHI 4FRC engine generating 74kW at 2000 rpm. The 4.3-meter boom and 2.26-meter arm provide a maximum digging depth of 5,090mm and reach of 7,740mm—ideal for trenching, foundation work, and site preparation. With a 0.45m³ bucket capacity and dual variable plunger pumps flowing 2×112 l/min, this machine maintains consistent hydraulic performance across digging, grading, and loading operations.
- Maximum digging depth: 5,090mm for deep excavation tasks
- 7,740mm working radius covers substantial ground per cycle

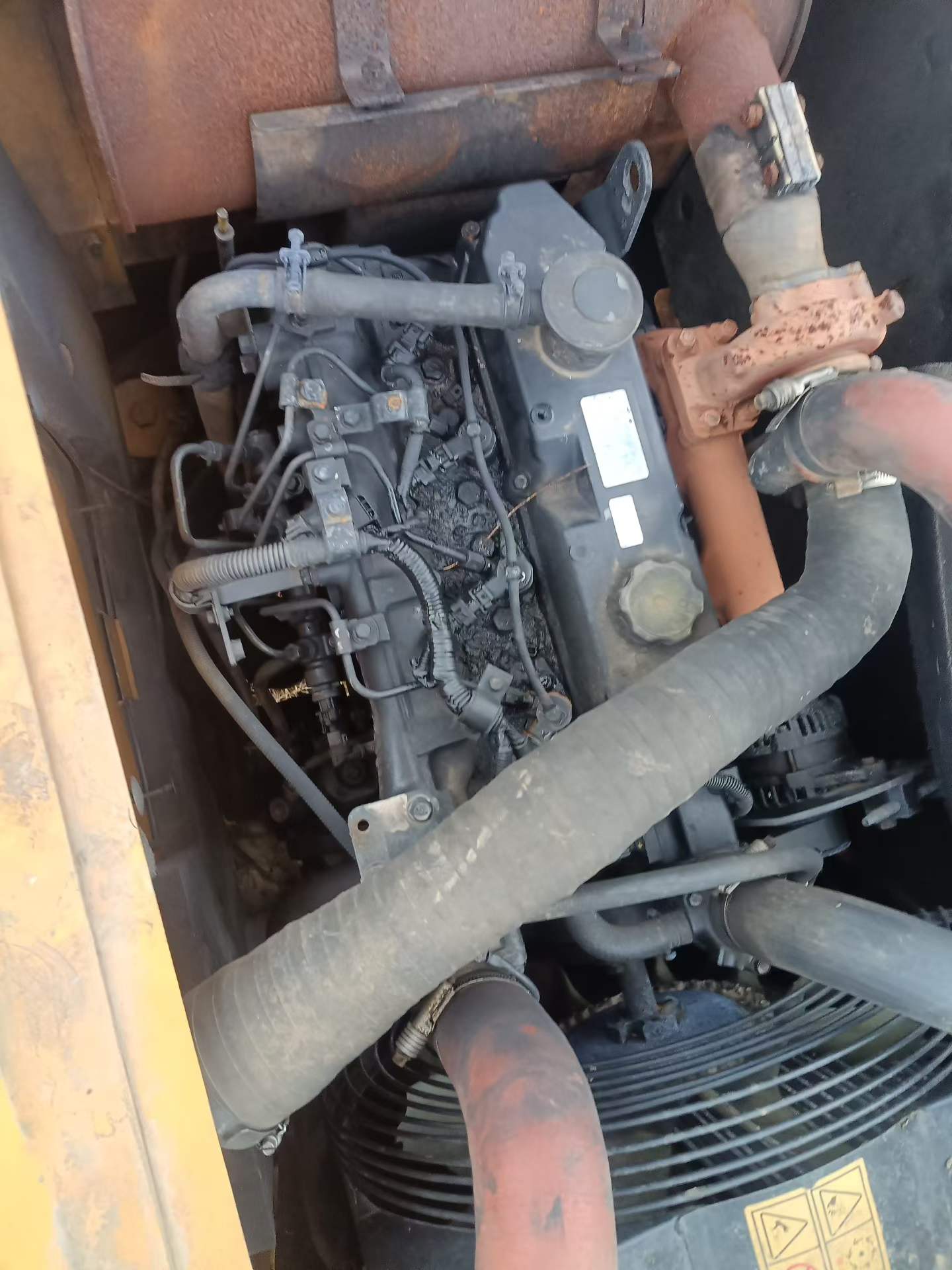

- MITSUBISHI 4.2L engine: reliable power with 315 N·m torque at 1,350 rpm
- 330 MPa working hydraulic pressure for responsive bucket control
- 70% grading ability handles challenging terrain
- 250L fuel tank supports extended shifts without refueling

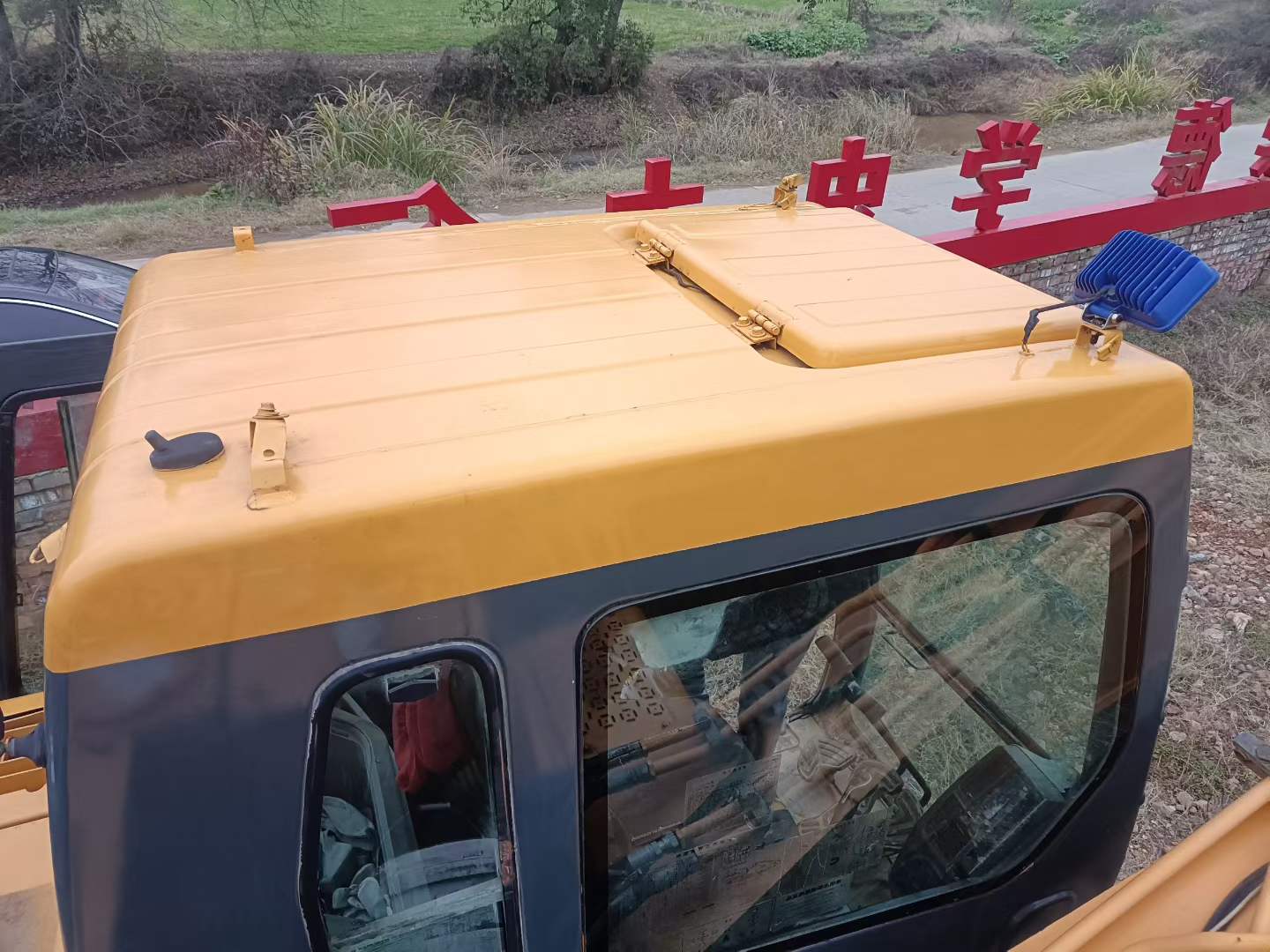

- Full cab with 2,800mm height provides operator visibility and comfort
Currently located in Jiangxi Ji'an, this joint-venture manufactured excavator is site-ready for demolition, earthmoving, or utility installation projects requiring precision and dependable performance.
| Specifications | Value |
|---|---|
| No. | 1011567 |
| Tonnage (tons) | 11 |
| Bucket capacity (m³) | 0.45m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 99(74) / 2000 |
| Cylinder diameter × stroke (mm) | 102 (4.02) x 130 (5.12) |
| Maximum torque (N.m) | 43.5(315) / 1350 |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph) |
| Maximum flow of main pump (l/min) | 2×112 (2×29.6) |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |

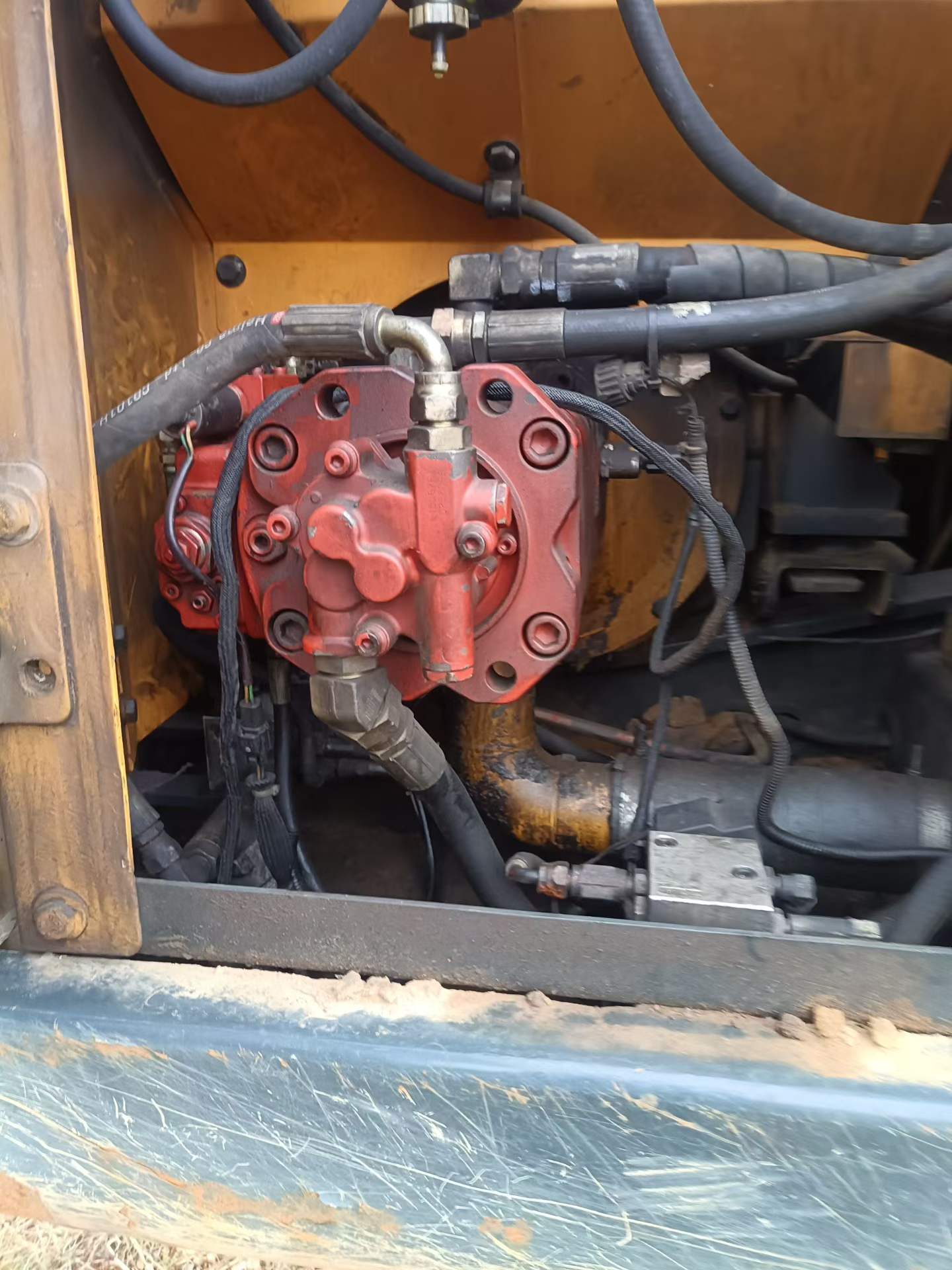

| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-95 x 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-110 x 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-95 x 70 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Back end turning radius (mm) | 2380mm |
| Total track length (mm) | 7270 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 7740mm |
| Maximum digging depth (mm) | 5090mm |
| Maximum excavation height (mm) | 8070mm |
| Maximum unloading height (mm) | 5710mm |
| Maximum vertical digging depth (mm) | 4430mm |
| Maximum excavation radius of stop surface (mm) | 7610mm |
