Product Description

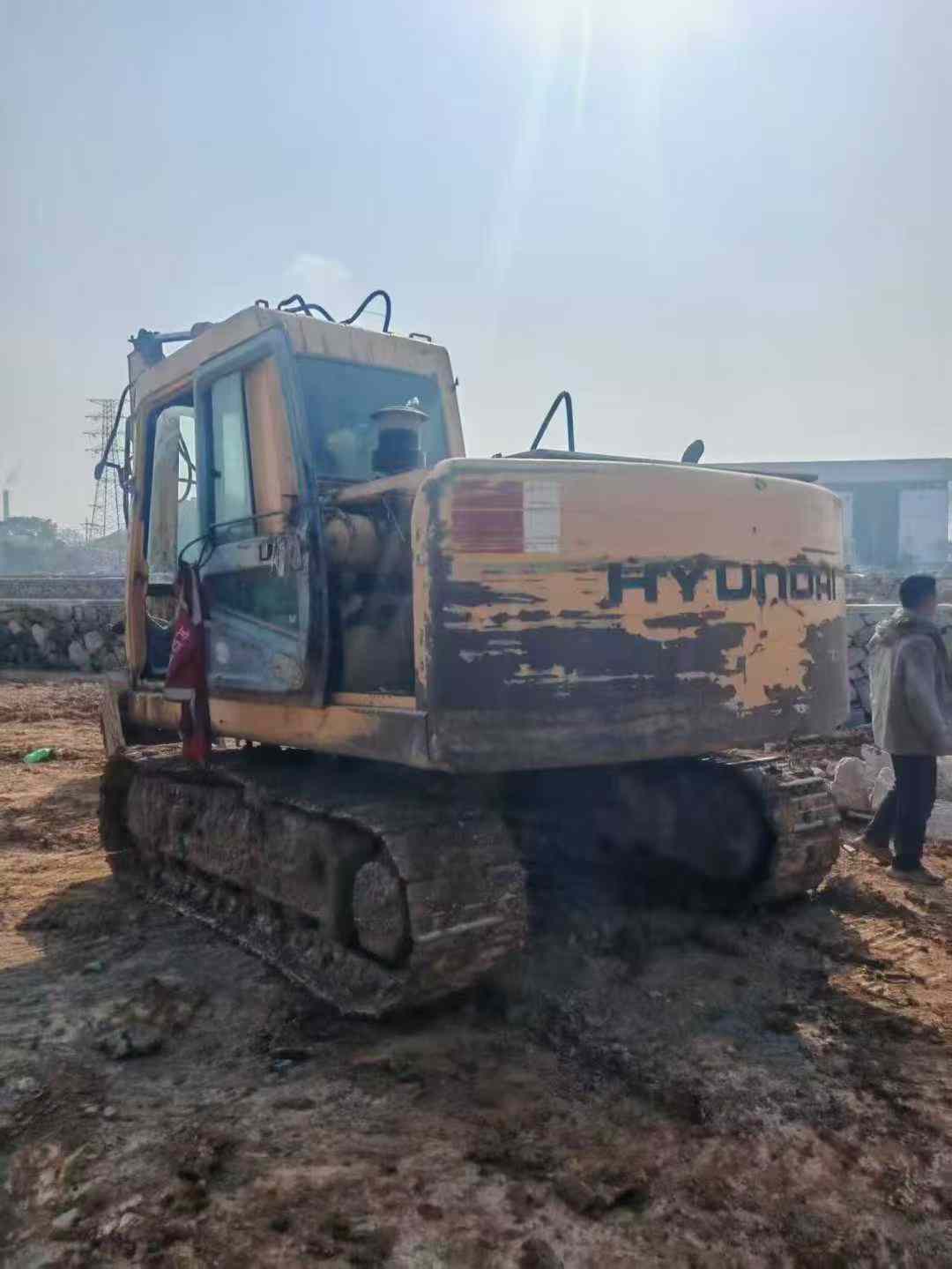

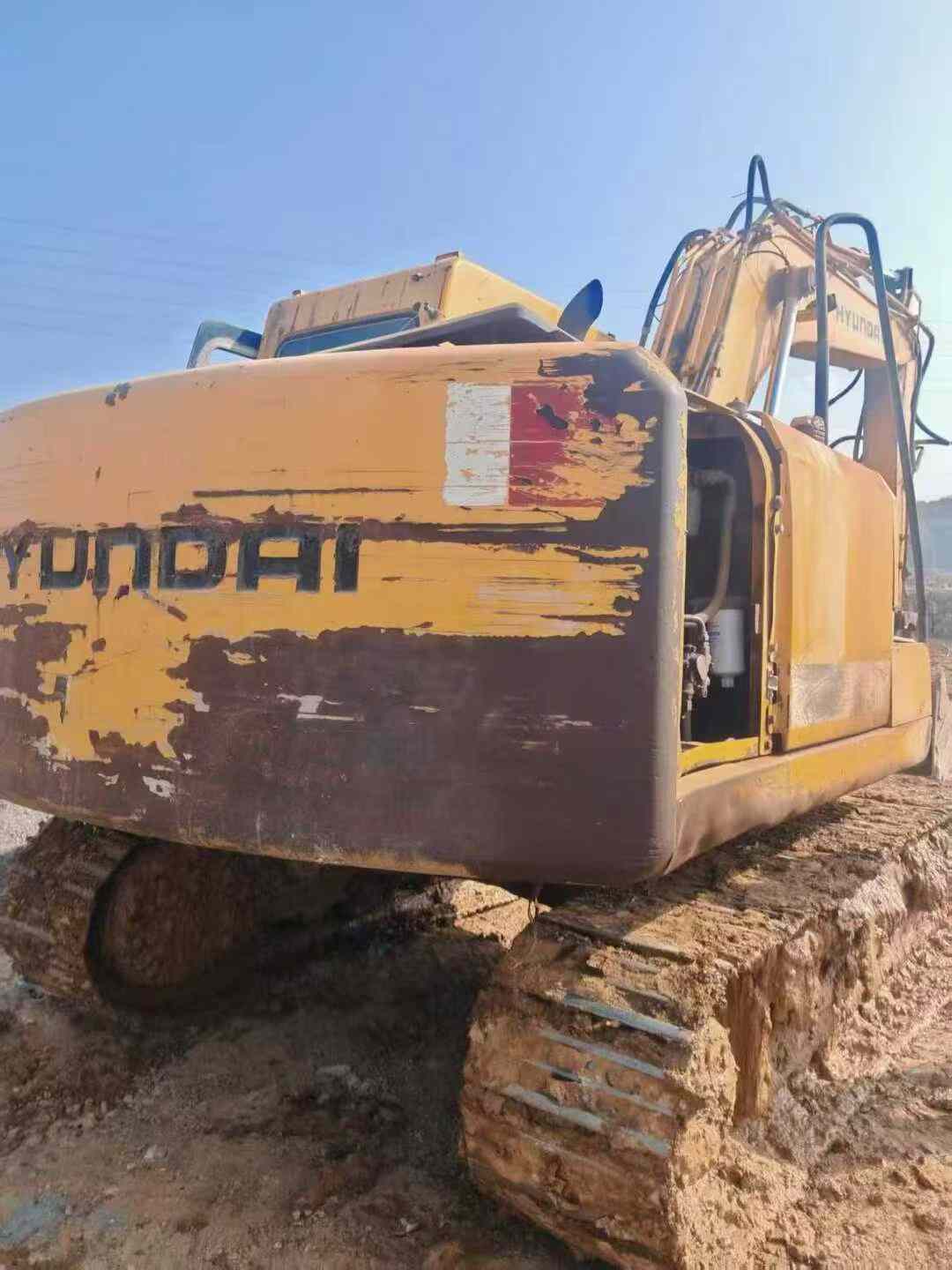

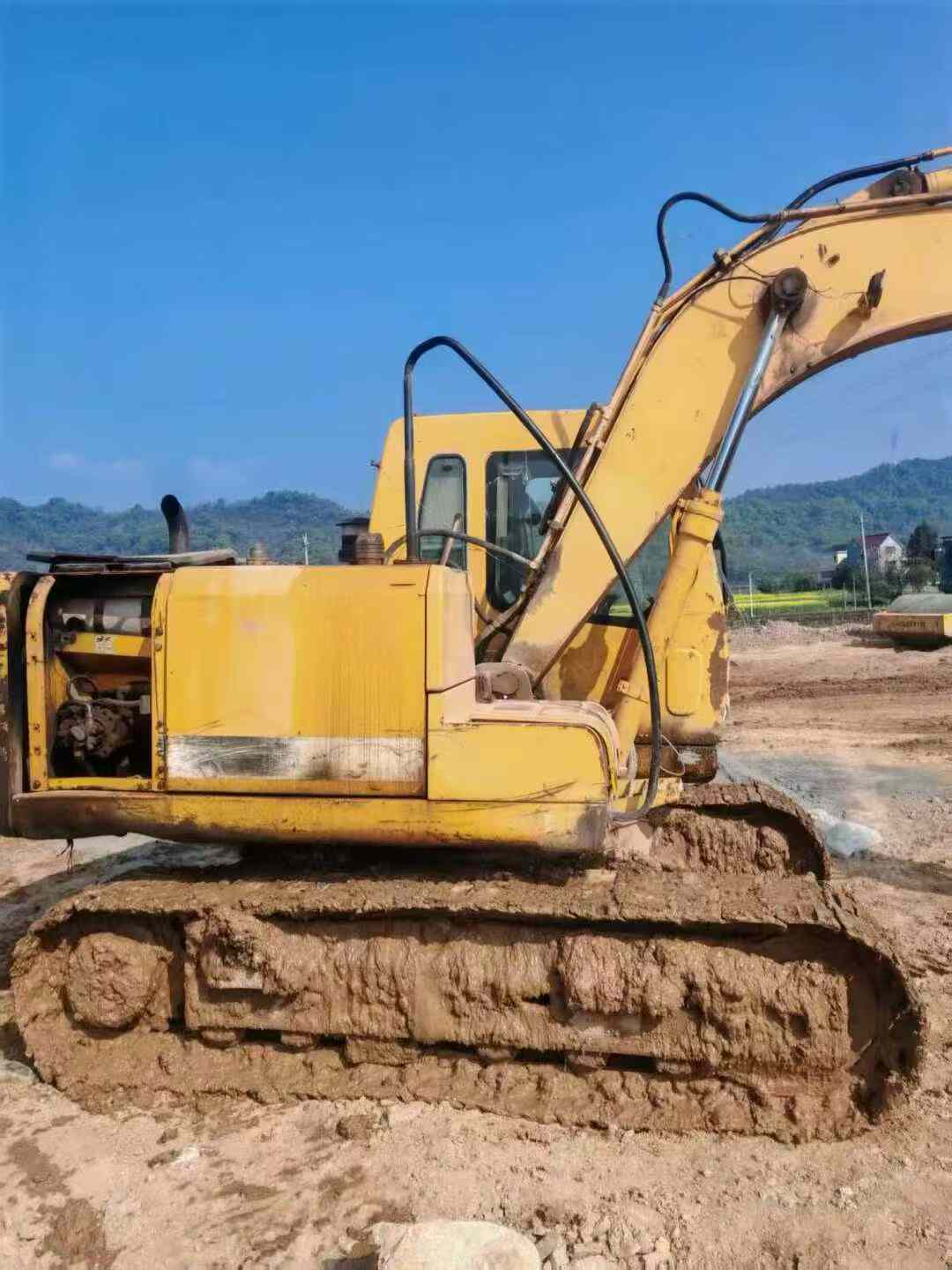

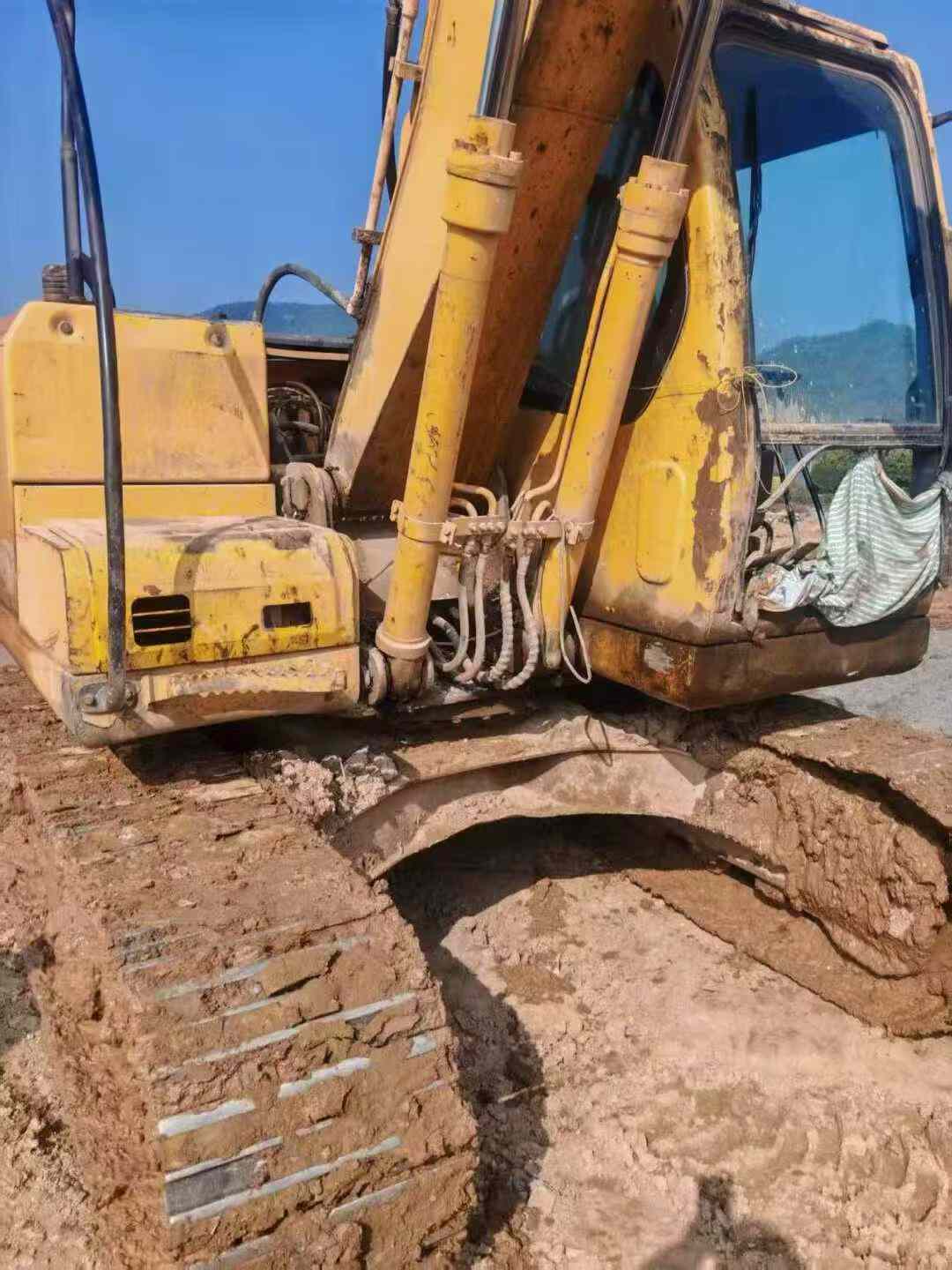

Built in 2016, this Hyundai 110LVS excavator delivers proven performance backed by one of the industry's most reliable manufacturers. Operating at 11 tons with a 0.45m³ bucket capacity, this joint-venture machine combines Mitsubishi 4FRC power (99kw at 2000 rpm) with Hyundai's robust hydraulic architecture—dual 112 l/min variable plunger pumps and 330 Mpa working circuits ensure consistent digging force across a 7740mm maximum reach and 5090mm depth.
Why Hyundai holds value in the used market:
- Global parts network: OEM and aftermarket components readily available across Asia, reducing downtime and repair costs
- Proven resale demand: Hyundai's reputation for durability maintains strong secondary market pricing compared to lesser-known brands
- Service familiarity: Technicians worldwide recognize Hyundai systems, minimizing diagnostic time and labor expenses
- Cross-compatible engineering: Shares engine technology (Mitsubishi) and hydraulic standards common to premium Japanese manufacturers
Currently located in Zhejiang Lishui, this cab-equipped unit features 70% gradeability, 5.5 km/h travel s
| Specifications | Value |
|---|---|
| No. | 1029626 |
| Tonnage (tons) | 11 |
| Bucket capacity (m³) | 0.45m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

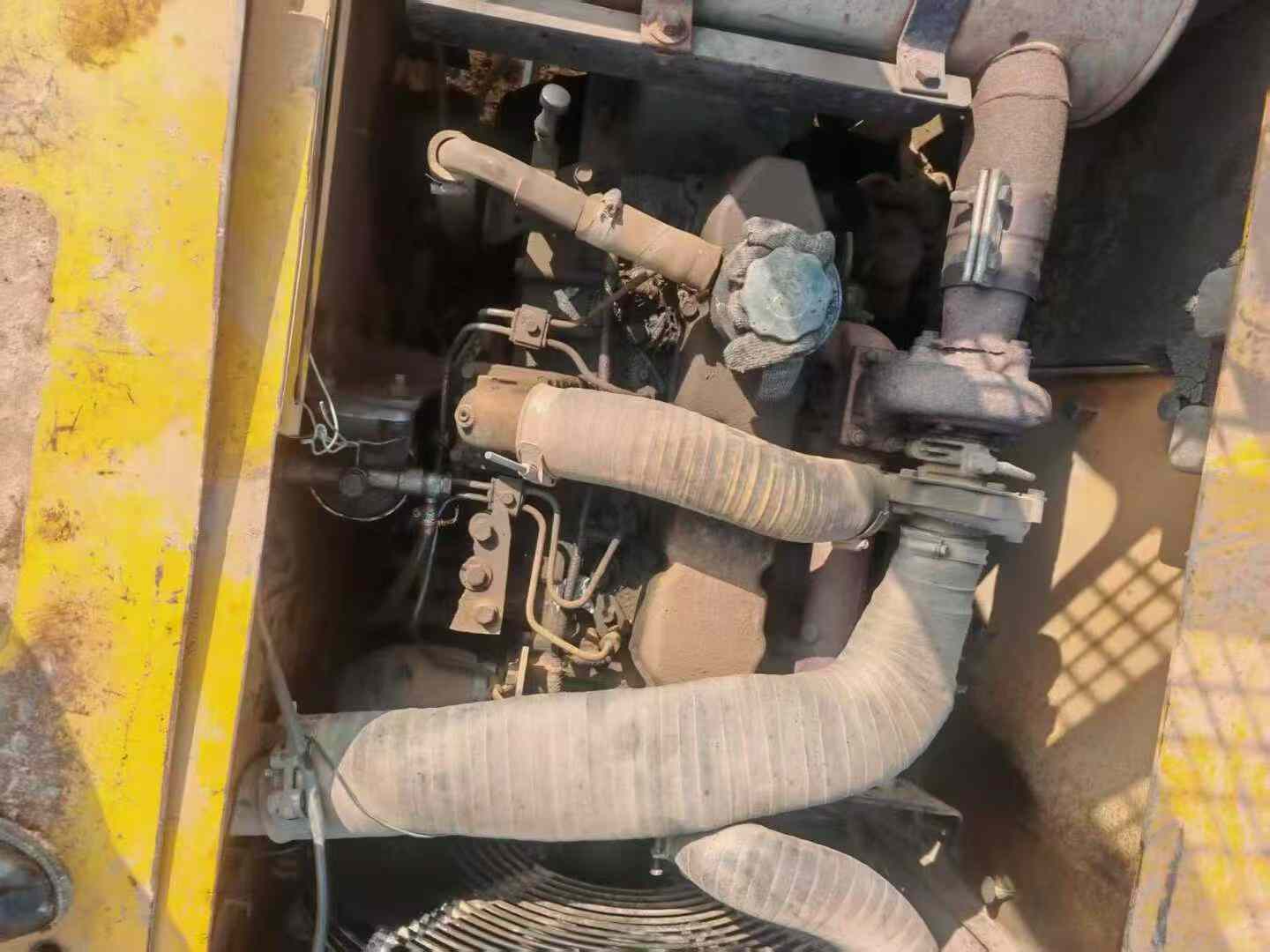

| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 99(74) / 2000 |
| Cylinder diameter × stroke (mm) | 102 (4.02) x 130 (5.12) |
| Maximum torque (N.m) | 43.5(315) / 1350 |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph) |
| Maximum flow of main pump (l/min) | 2×112 (2×29.6) |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-95 x 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-110 x 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-95 x 70 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Back end turning radius (mm) | 2380mm |
| Total track length (mm) | 7270 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 7740mm |
| Maximum digging depth (mm) | 5090mm |
| Maximum excavation height (mm) | 8070mm |
| Maximum unloading height (mm) | 5710mm |
| Maximum vertical digging depth (mm) | 4430mm |
| Maximum excavation radius of stop surface (mm) | 7610mm |
