Product Description

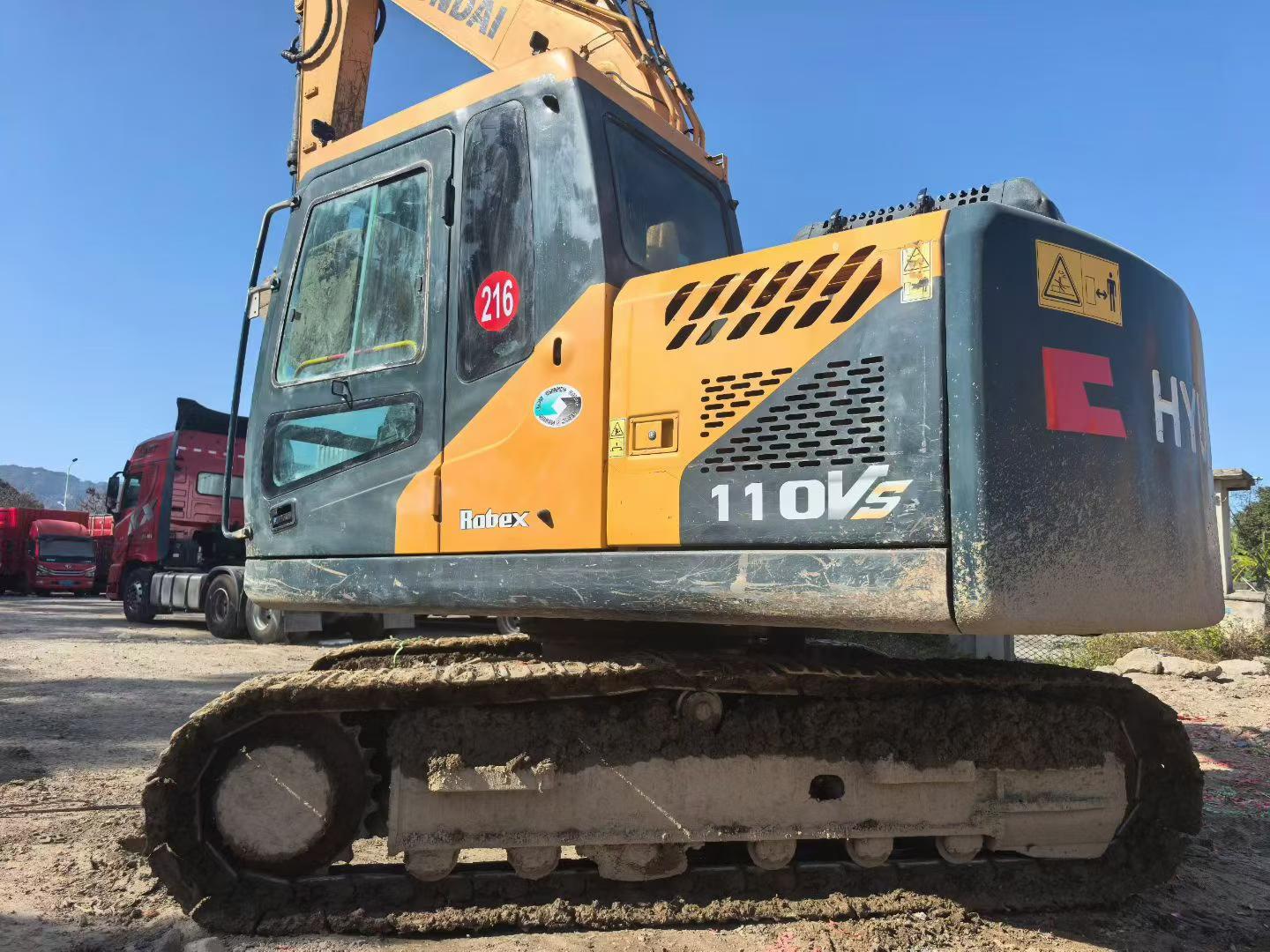

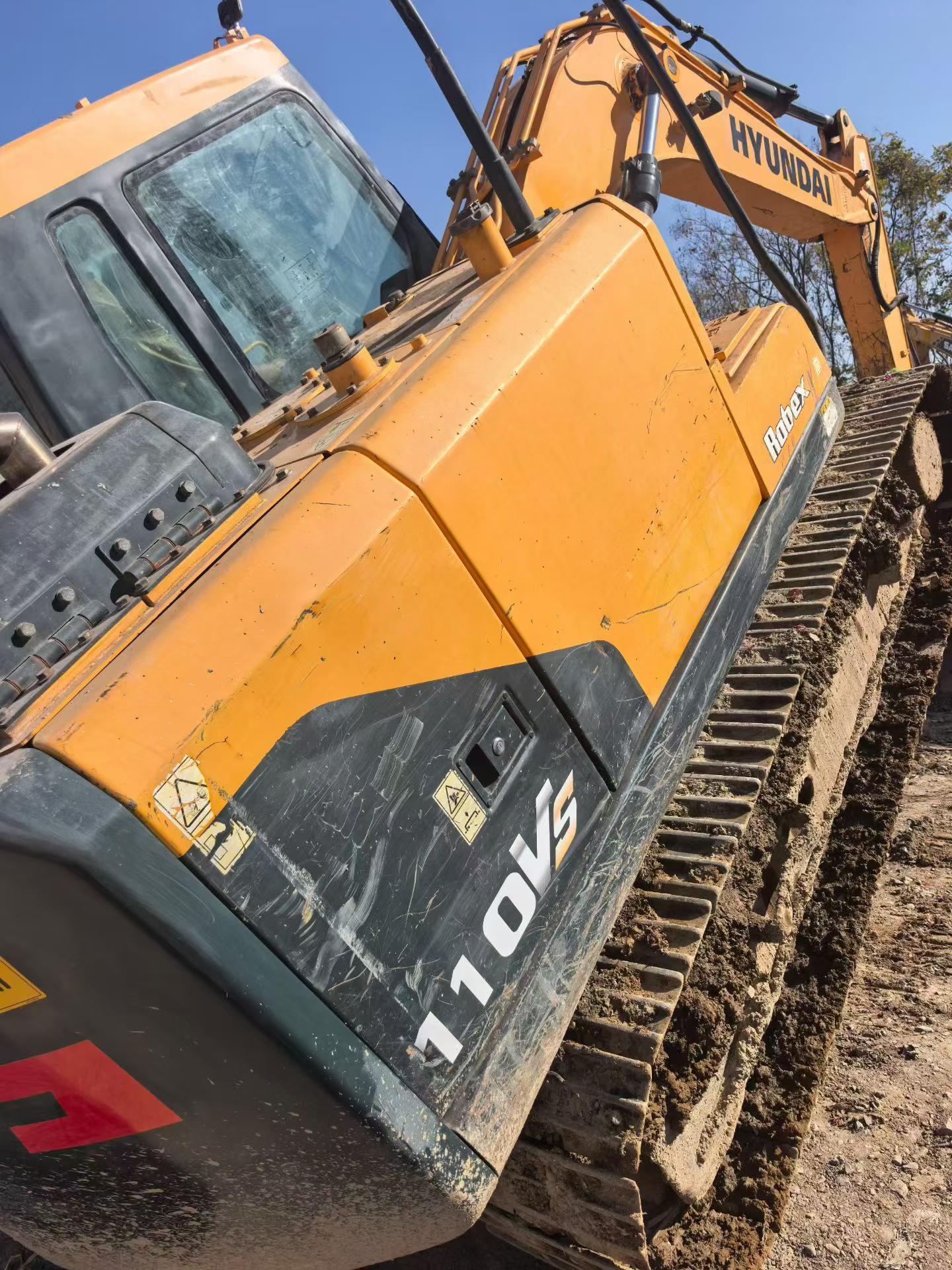

Built for demanding jobsites, this 2016 Hyundai 110LVS delivers 11 tons of proven excavation power with a MITSUBISHI 4FRC engine producing 74kW at 2000 rpm. Equipped with a 0.45m³ backhoe bucket, 4300mm boom, and 2260mm stick, this machine tackles digging, grading, and material handling with precision. Maximum digging depth reaches 5090mm while the 7740mm working radius covers substantial ground without repositioning.
Hydraulic performance drives productivity through dual variable plunger pumps flowing 2×112 l/min at 330 Mpa working pressure. Climb grades up to 70% and travel at 5.5 km/h between tasks. The full cab configuration provides operator comfort during extended shifts, while the 2380mm rear swing radius enables work in confined spaces.
- Maximum digging height: 8070mm for loading high-sided trucks
- 250L fuel capacity minimizes refueling downtime
- 210L hydraulic system supports continuous operation
- 2490mm track width ensures stability on uneven terrain
Currently located in Wenzhou, Zhejiang, this joint venture-manufactured excavator arrives site-ready for immediate deployment on construction, utility, or demolition projects.
| Specifications | Value |
|---|---|
| No. | 998223 |
| Tonnage (tons) | 11 |
| Bucket capacity (m³) | 0.45m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 99(74) / 2000 |
| Cylinder diameter × stroke (mm) | 102 (4.02) x 130 (5.12) |
| Maximum torque (N.m) | 43.5(315) / 1350 |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph) |
| Maximum flow of main pump (l/min) | 2×112 (2×29.6) |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-95 x 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-110 x 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-95 x 70 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Back end turning radius (mm) | 2380mm |
| Total track length (mm) | 7270 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 7740mm |
| Maximum digging depth (mm) | 5090mm |
| Maximum excavation height (mm) | 8070mm |
| Maximum unloading height (mm) | 5710mm |
| Maximum vertical digging depth (mm) | 4430mm |
| Maximum excavation radius of stop surface (mm) | 7610mm |
