Product Description
With a robust MITSUBISHI 4FRC engine, the 2017 Hyundai 110LVS excavator delivers reliable performance and efficiency. Boasting 99 kW of power at 2000 rpm, this machine is designed for demanding tasks in Zhejiang, China. The 4-cylinder, 4-stroke water-cooled direct injection engine ensures smooth operation and minimal downtime.
- Equipped with a 0.45 m³ bucket capacity and a 4300 mm boom, it handles heavy loads with ease.
- The full cab height of 2800 mm and well-designed cabin provide excellent visibility, enhancing operator comfort and safety.
- Stability is ensured with a maximum torque of 43.5 N.m at 1350 rpm, and a counterweight ground clearance of 900 mm.
- Travel speed options of 5.5 km/h and 3.4 km/h, along with a climbing ability of 70%, make it versatile on various terrains.

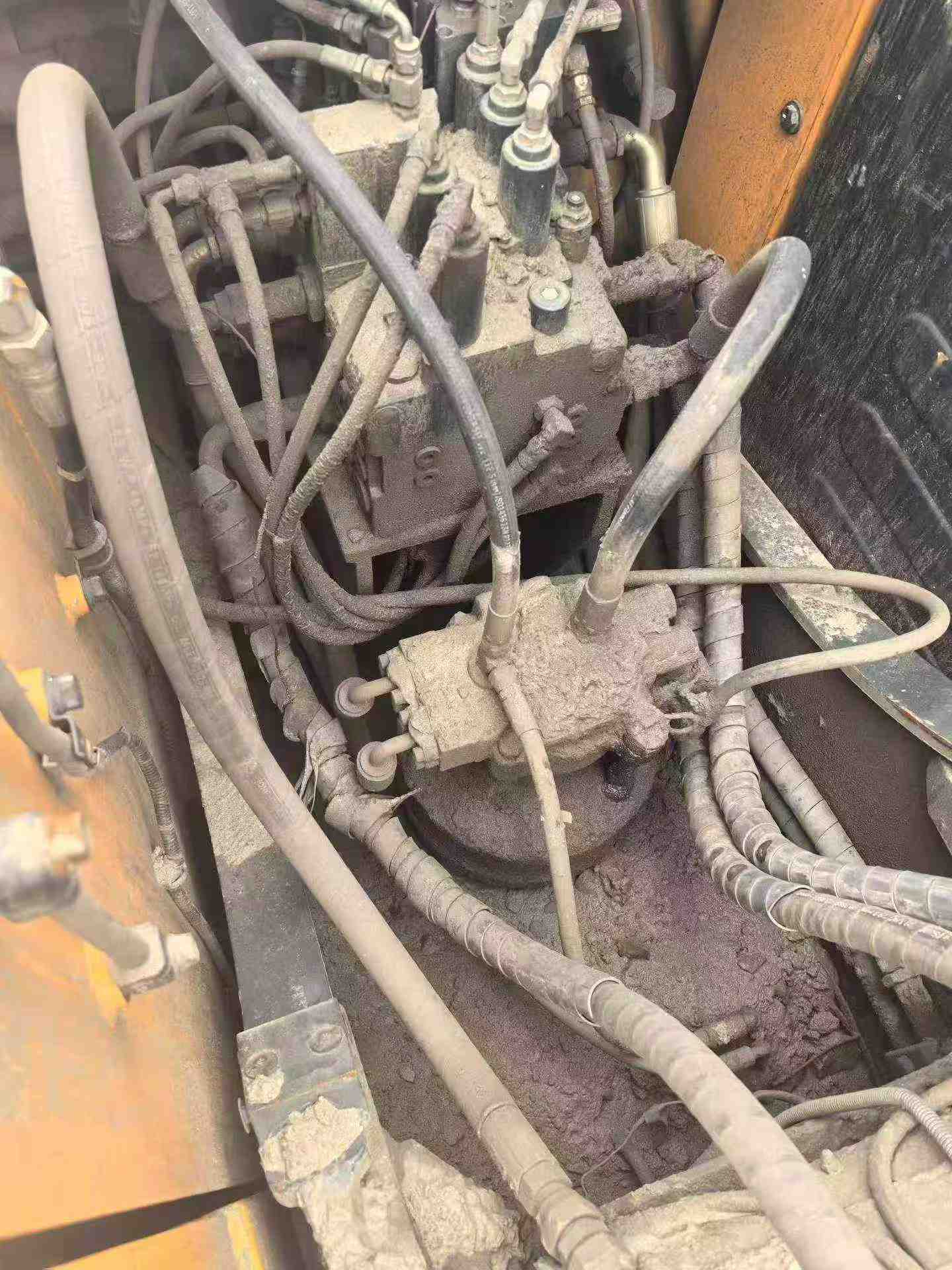

- Hydraulic systems, including a two-variable plunger pump, offer precise control and efficient operation.
| Specifications | Value |
|---|---|
| No. | 1057153 |
| Tonnage (tons) | 11 |
| Bucket capacity (m³) | 0.45m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

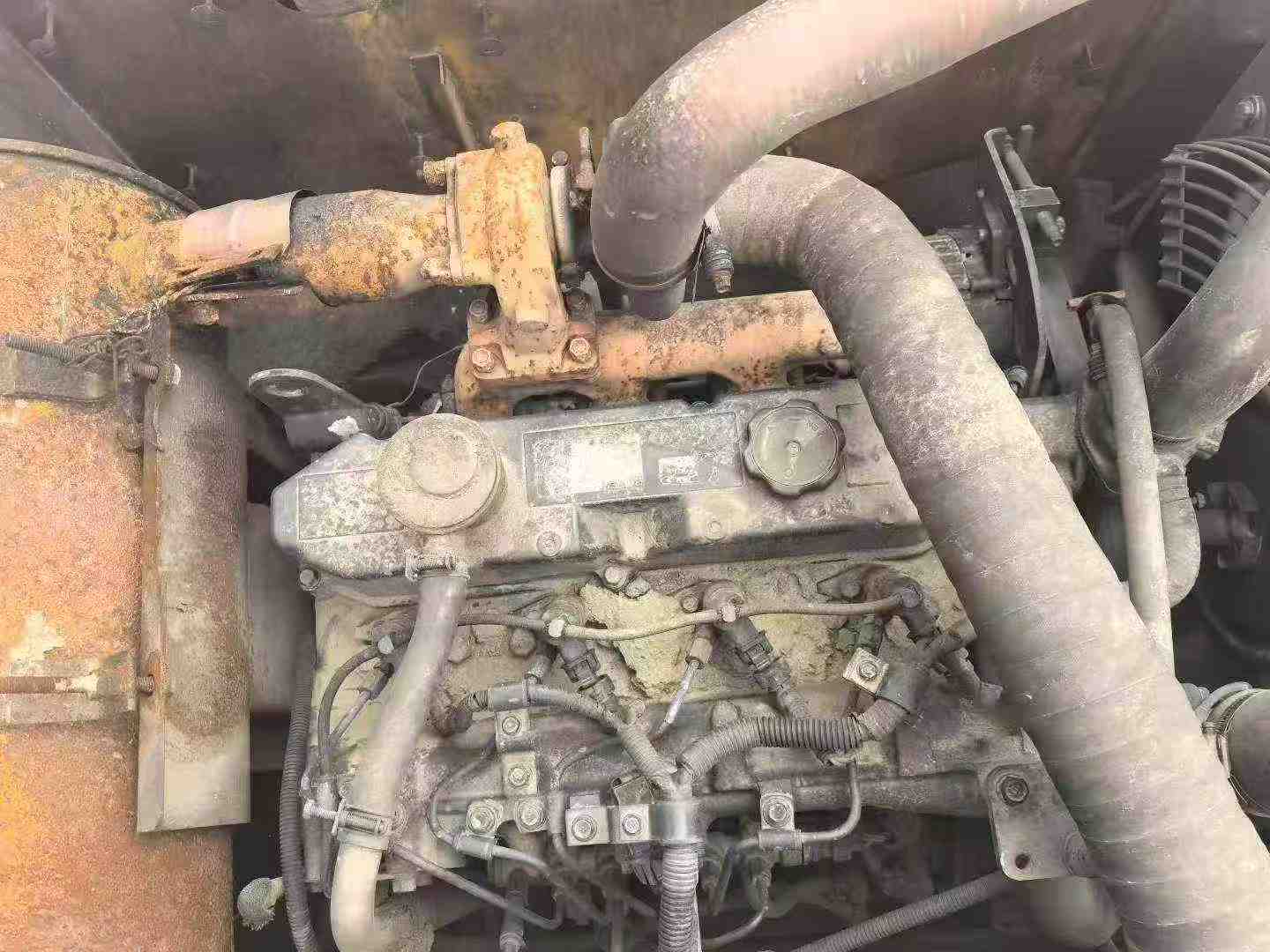

| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 99(74) / 2000 |
| Cylinder diameter × stroke (mm) | 102 (4.02) x 130 (5.12) |
| Maximum torque (N.m) | 43.5(315) / 1350 |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph) |
| Maximum flow of main pump (l/min) | 2×112 (2×29.6) |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-95 x 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-110 x 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-95 x 70 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Back end turning radius (mm) | 2380mm |
| Total track length (mm) | 7270 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 7740mm |
| Maximum digging depth (mm) | 5090mm |
| Maximum excavation height (mm) | 8070mm |
| Maximum unloading height (mm) | 5710mm |
| Maximum vertical digging depth (mm) | 4430mm |
| Maximum excavation radius of stop surface (mm) | 7610mm |
