Product Description

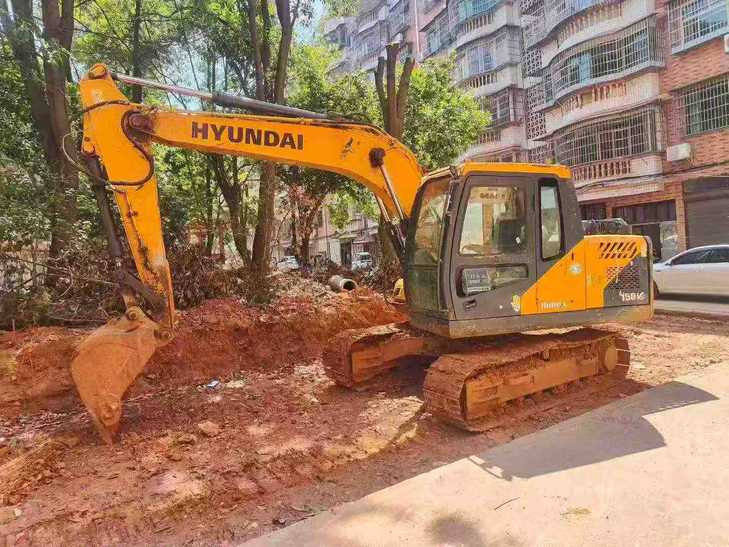

With a robust MITSUBISHI 4FRC engine, this 2018 Hyundai 110LVS excavator, located in 四川泸州, is primed for immediate deployment. Featuring a 11-ton capacity and a 0.45m³ bucket, it excels in digging, grading, and demolition tasks. The machine's 4300mm boom and 2260mm rod lengths provide extensive reach and versatility. Equipped with a two-variable plunger pump, the 110LVS delivers a maximum flow of 2×112 l/min, ensuring efficient hydraulic performance. Travel at speeds up to 5.5 km/h, and navigate challenging terrains with a 70% climbing ability. The 250L fuel tank and 100L hydraulic tank ensure long operational hours without frequent refueling. This excavator is ready to tackle any site, offering a maximum digging depth of 5090mm and a maximum unloading height of 5710mm, making it an indispensable asset for your construction projects.
| Specifications | Value |
|---|---|
| No. | 1020438 |
| Tonnage (tons) | 11 |
| Bucket capacity (m³) | 0.45m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 99(74) / 2000 |
| Cylinder diameter × stroke (mm) | 102 (4.02) x 130 (5.12) |
| Maximum torque (N.m) | 43.5(315) / 1350 |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph) |
| Maximum flow of main pump (l/min) | 2×112 (2×29.6) |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-95 x 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-110 x 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-95 x 70 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Back end turning radius (mm) | 2380mm |
| Total track length (mm) | 7270 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 7740mm |
| Maximum digging depth (mm) | 5090mm |
| Maximum excavation height (mm) | 8070mm |
| Maximum unloading height (mm) | 5710mm |
| Maximum vertical digging depth (mm) | 4430mm |
| Maximum excavation radius of stop surface (mm) | 7610mm |
