2019 Hyundai 110LVS

1/9

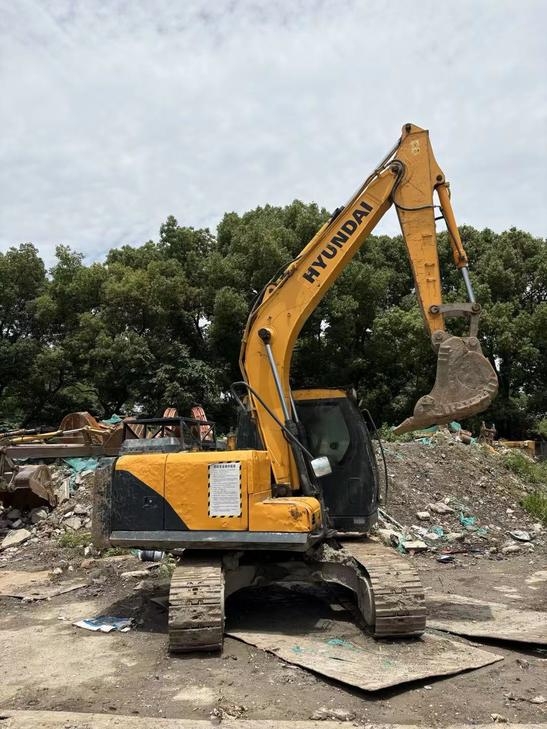

Buy Hyundai 110LVS Used Excavator / 1
Buy Hyundai 110LVS Used Excavator / 2
Buy Hyundai 110LVS Used Excavator / 3
Buy Hyundai 110LVS Used Excavator / 4
Buy Hyundai 110LVS Used Excavator / 5
Buy Hyundai 110LVS Used Excavator / 6
Buy Hyundai 110LVS Used Excavator / 7
Buy Hyundai 110LVS Used Excavator / 8
Buy Hyundai 110LVS Used Excavator / 9

Product Description

Discover the 2019 Hyundai 110LVS, a robust and reliable heavy machine, now available in Shanghai, China. With over 100,000 operational hours, this unit has proven its durability and efficiency in various demanding applications. Ideal for construction, mining, and large-scale industrial projects, the 110LVS model is known for its powerful performance and ease of maintenance. This machine is ready to be integrated into your fleet, offering a cost-effective solution without compromising on quality or capability.

  • Year: 2019
  • Brand: Hyundai
  • Model: 110LVS
  • Location: Shanghai, China
  • Operational Hours: Over 100,000
SpecificationsValue
No.1086322
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
see more

Overview

No.1086322

Brand Name:

Hyundai

Model Number:

110LVS

Year:

2019

Location:

Shanghai China
