2020 Hyundai 110LVS

1/9

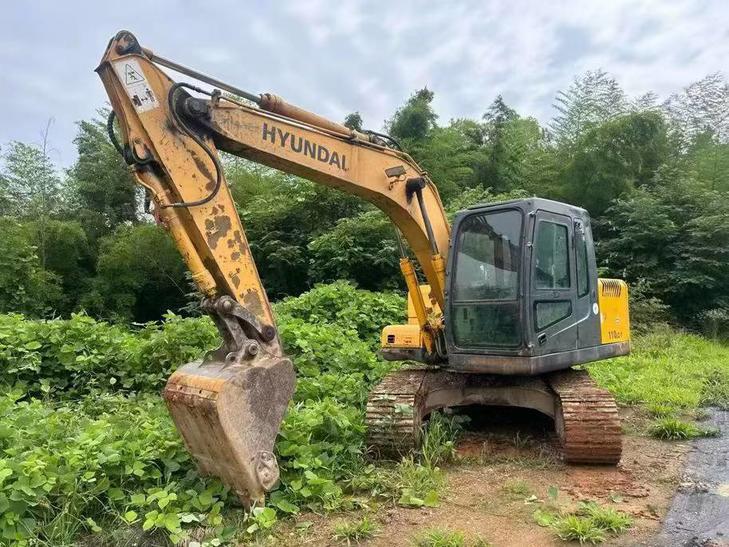

Buy Hyundai 110LVS Used Excavator / 1
Buy Hyundai 110LVS Used Excavator / 2
Buy Hyundai 110LVS Used Excavator / 3
Buy Hyundai 110LVS Used Excavator / 4
Buy Hyundai 110LVS Used Excavator / 5
Buy Hyundai 110LVS Used Excavator / 6
Buy Hyundai 110LVS Used Excavator / 7
Buy Hyundai 110LVS Used Excavator / 8
Buy Hyundai 110LVS Used Excavator / 9

Product Description

This 2020 Hyundai 110LVS excavator represents excellent value in the used equipment market. Currently located in Hunan, China, this machine features a recently replaced undercarriage assembly, ensuring extended operational life and reduced near-term maintenance costs.

The unit has been maintained to high standards with verified performance across all systems. Hydraulic functions, engine operation, and structural integrity have been confirmed through comprehensive inspection.

  • Year: 2020
  • Model: Hyundai 110LVS
  • New undercarriage components installed
  • All systems operationally verified
  • Location: Hunan Province, China
  • Available for on-site inspection

Suitable for construction, earthmoving, and general excavation applications. Inspection appointments welcome for qualified buyers.

SpecificationsValue
No.1081355
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
see more

Overview

No.1081355

Brand Name:

Hyundai

Model Number:

110LVS

Year:

2020

Location:

Hunan China

Pub Date
