Product Description

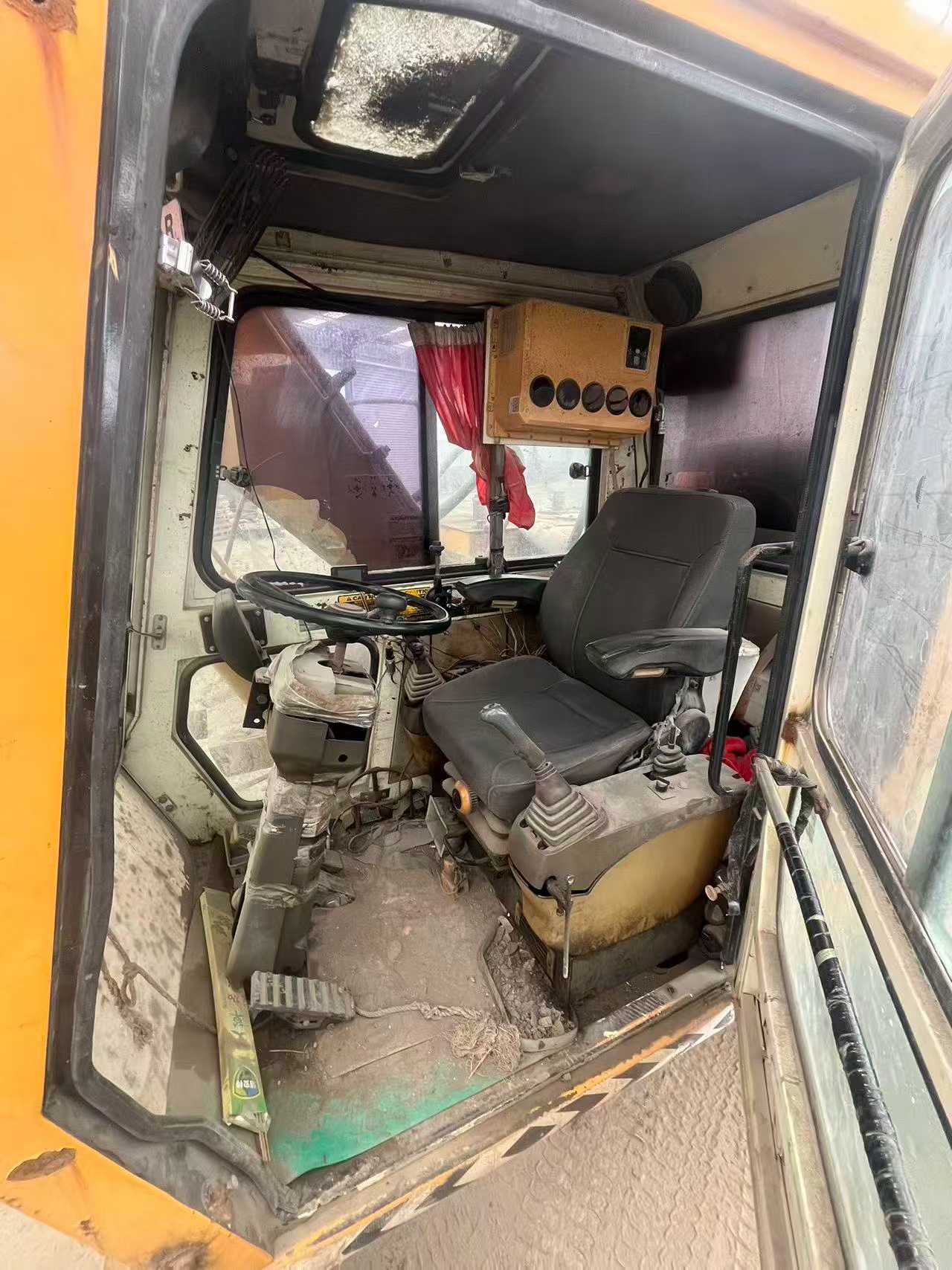

Engineered with precision, this 2016 Hyundai 130LVS delivers 13-ton performance through a robust MITSUBISHI 4FRC engine generating 98kW at 2200rpm. Dual variable plunger pumps supply 2×124 L/min flow, driving a 350 MPa working hydraulic circuit that powers an impressive 8330mm maximum digging radius and 5550mm depth capability. Water-cooled 4.2L displacement ensures consistent thermal management during extended operations.
Technical advantages include:
- Advanced hydraulic architecture with separate circuits: 365 MPa traveling, 285 MPa rotary, 350 MPa working
- Optimized geometry: 4300mm boom, 2260mm arm for superior reach and breakout force
- 70% grading ability with dual-speed travel (5.5/3.2 km/h) for versatile terrain handling
- Generous fluid capacities: 270L fuel, 210L hydraulic system for prolonged duty cycles
- Compact 2310mm rear turning radius despite 8500mm maximum dig height
Currently located in Qingdao, Shandong, this joint-venture manufactured excavator represents proven Hyundai-Mitsubishi collaboration in the 13-ton class.
| Specifications | Value |
|---|---|
| No. | 1018528 |
| Tonnage (tons) | 13 |
| Bucket capacity (m³) | 0.3-0.59m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 131(98) / 2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 (4.0) x 120 (4.7) |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.2 km/h (2.0 mph) |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Traveling Hydraulic Circuit (Mpa) | 365 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 350 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 75 x 1075 |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 17.5 |
| Hydraulic System (L) | 210 |
| Total transport height (mm) | 8330 |
| Counterweight ground clearance (mm) | 935 |
| Back end turning radius (mm) | 2310 |
| Onboard width (mm) | 2476 |
| Total track length (mm) | 4300 |
| Total track width (mm) | 2500 |
| Maximum digging radius (mm) | 8330mm |
| Maximum digging depth (mm) | 5550mm |
| Maximum excavation height (mm) | 8500mm |
| Maximum unloading height (mm) | 6060mm |
| Maximum vertical digging depth (mm) | 5330mm |
| Maximum excavation radius of stop surface (mm) | 8180mm |
