Product Description

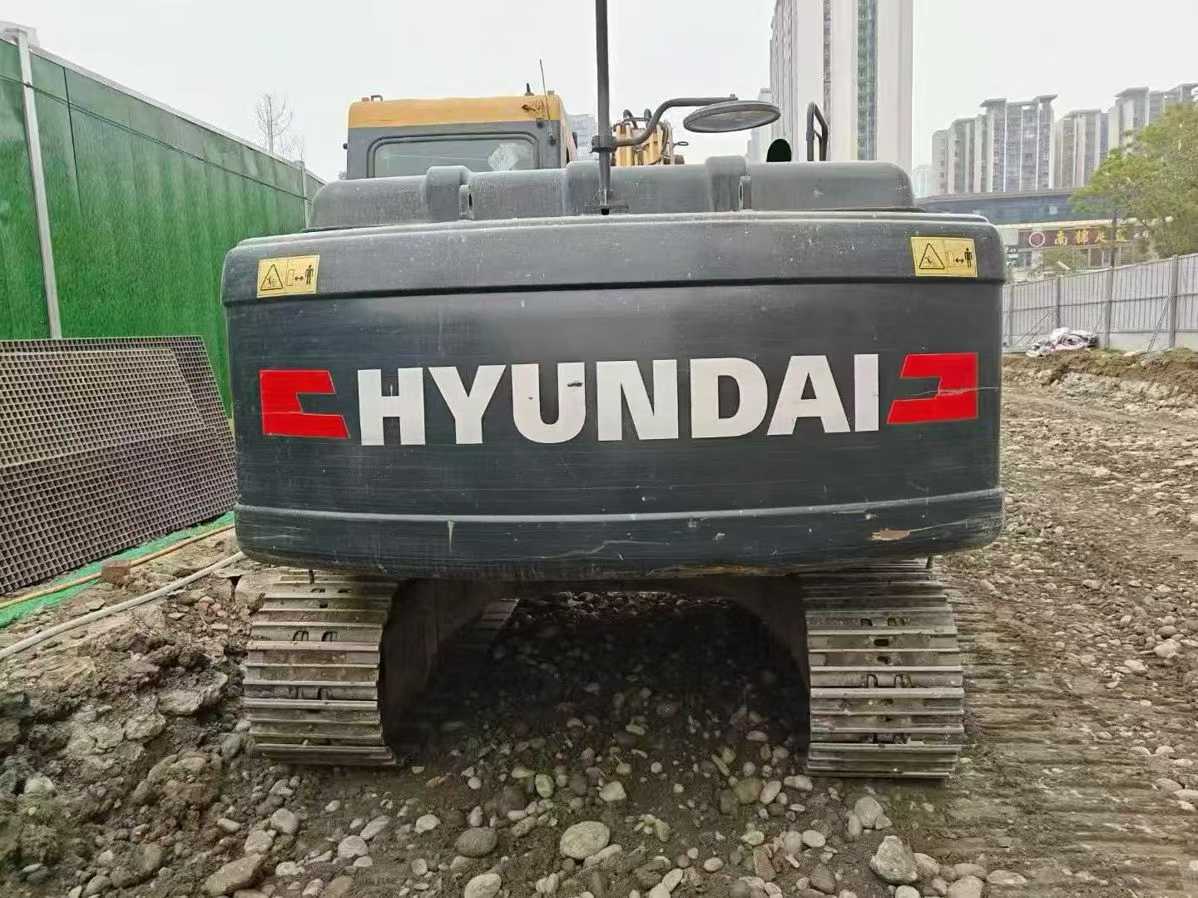

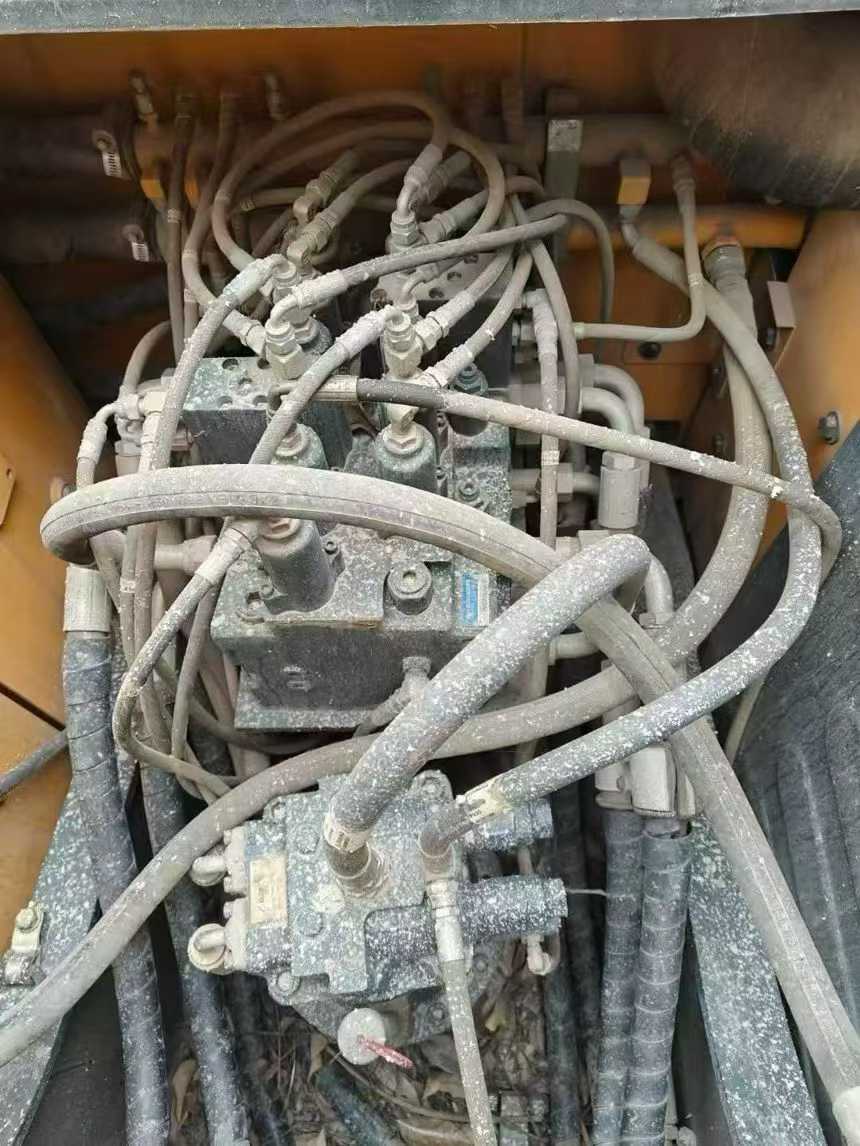

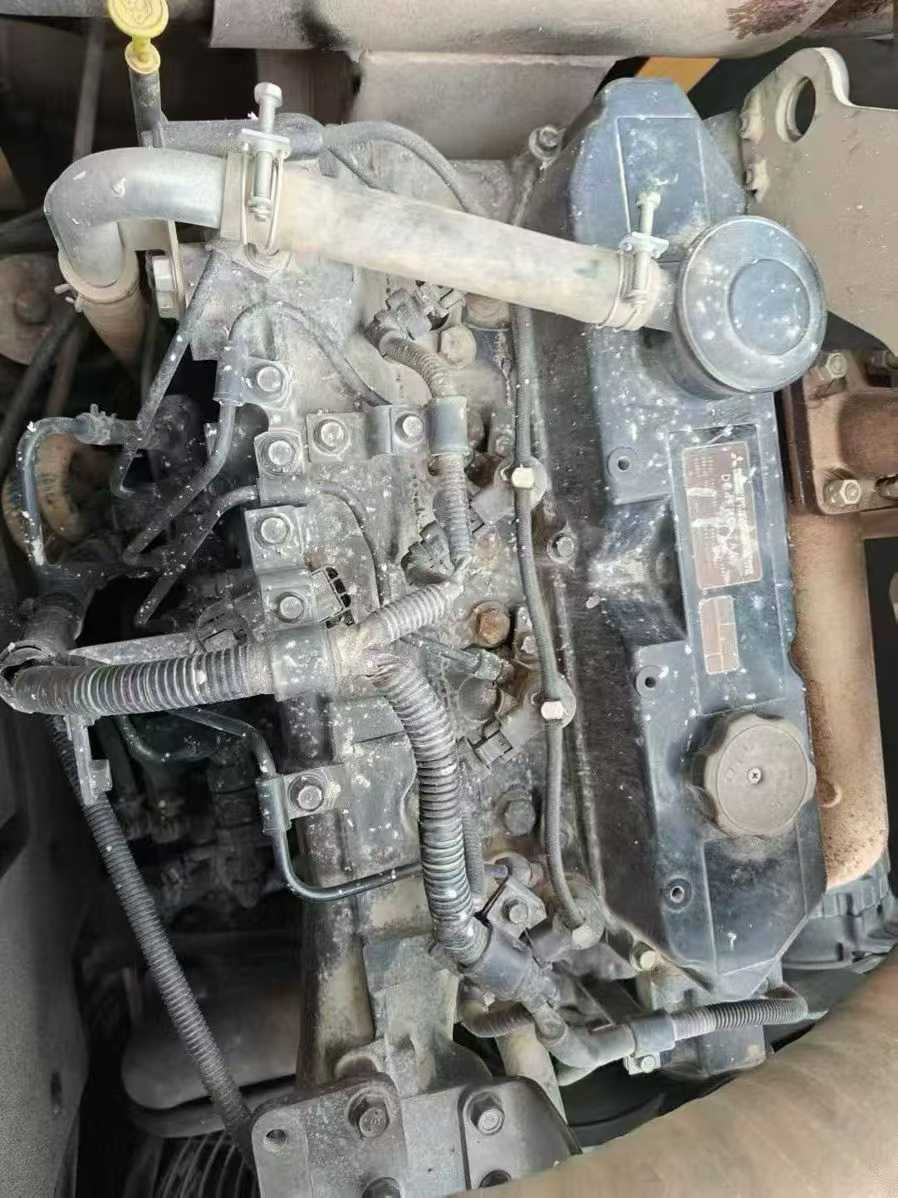

Powered by a robust MITSUBISHI 4FRC engine delivering 98 kW at 2200 rpm, this 2020 Hyundai 130LVS excavator combines proven Japanese powerplant technology with advanced hydraulic engineering. Dual variable plunger pumps supply 2 × 124 L/min flow at 350 Mpa working pressure, ensuring precise control across all functions. The 13-ton platform features a 4300mm boom and 2260mm arm configuration, achieving an impressive 8330mm maximum digging radius and 5550mm excavation depth.
Engineered for demanding job sites, this machine offers exceptional performance metrics:
- Water-cooled 4.2L displacement engine with direct injection efficiency
- 70% climbing ability for challenging terrain navigation
- 8500mm maximum excavation height with 6060mm unloading clearance
- 270L fuel capacity for extended operational shifts
- Compact 2310mm rear turning radius despite substantial reach
Currently located in Sichuan, this joint venture-manufactured unit represents Hyundai's commitment to hydraulic precision and mechanical reliability. The comprehensive cylinder configuration—including dual 105×75×1075mm boom cylinders—delivers consistent breakout force throughout the working envelope. Ideal
| Specifications | Value |
|---|---|
| No. | 1015400 |
| Tonnage (tons) | 13 |
| Bucket capacity (m³) | 0.3-0.59m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 131(98) / 2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 (4.0) x 120 (4.7) |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.2 km/h (2.0 mph) |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Traveling Hydraulic Circuit (Mpa) | 365 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 350 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 75 x 1075 |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 17.5 |
| Hydraulic System (L) | 210 |
| Total transport height (mm) | 8330 |
| Counterweight ground clearance (mm) | 935 |
| Back end turning radius (mm) | 2310 |
| Onboard width (mm) | 2476 |
| Total track length (mm) | 4300 |
| Total track width (mm) | 2500 |
| Maximum digging radius (mm) | 8330mm |
| Maximum digging depth (mm) | 5550mm |
| Maximum excavation height (mm) | 8500mm |
| Maximum unloading height (mm) | 6060mm |
| Maximum vertical digging depth (mm) | 5330mm |
| Maximum excavation radius of stop surface (mm) | 8180mm |
