Product Description
Built for demanding jobsites, this 2021 Hyundai 130LVS excavator delivers 13 tons of proven performance across construction, grading, and demolition applications. Powered by a reliable MITSUBISHI 4FRC engine producing 98kW at 2200 rpm, this machine combines robust hydraulic power with precision control for maximum productivity in Guizhou's diverse terrain.
Equipped with dual variable plunger pumps delivering 2 x 124 L/min flow capacity, the 130LVS handles intensive digging operations with ease. The 4300mm boom and 2260mm arm provide an impressive 8330mm maximum digging radius and 5550mm digging depth, making it ideal for foundation work, trenching, and material handling. Water-cooled efficiency ensures consistent performance during extended shifts.
- Maximum excavation height: 8500mm for elevated loading operations
- 0.3-0.59m³ bucket capacity optimized for versatile material handling
- 70% climbing ability tackles challenging grade conditions
- 350 MPa working hydraulic circuit for powerful breakout force
- 270L fuel tank supports full-day operation without refueling delays
Ready to mobilize immediately with all systems operational. This joint venture-manufactured excav
| Specifications | Value |
|---|---|
| No. | 999842 |
| Tonnage (tons) | 13 |
| Bucket capacity (m³) | 0.3-0.59m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

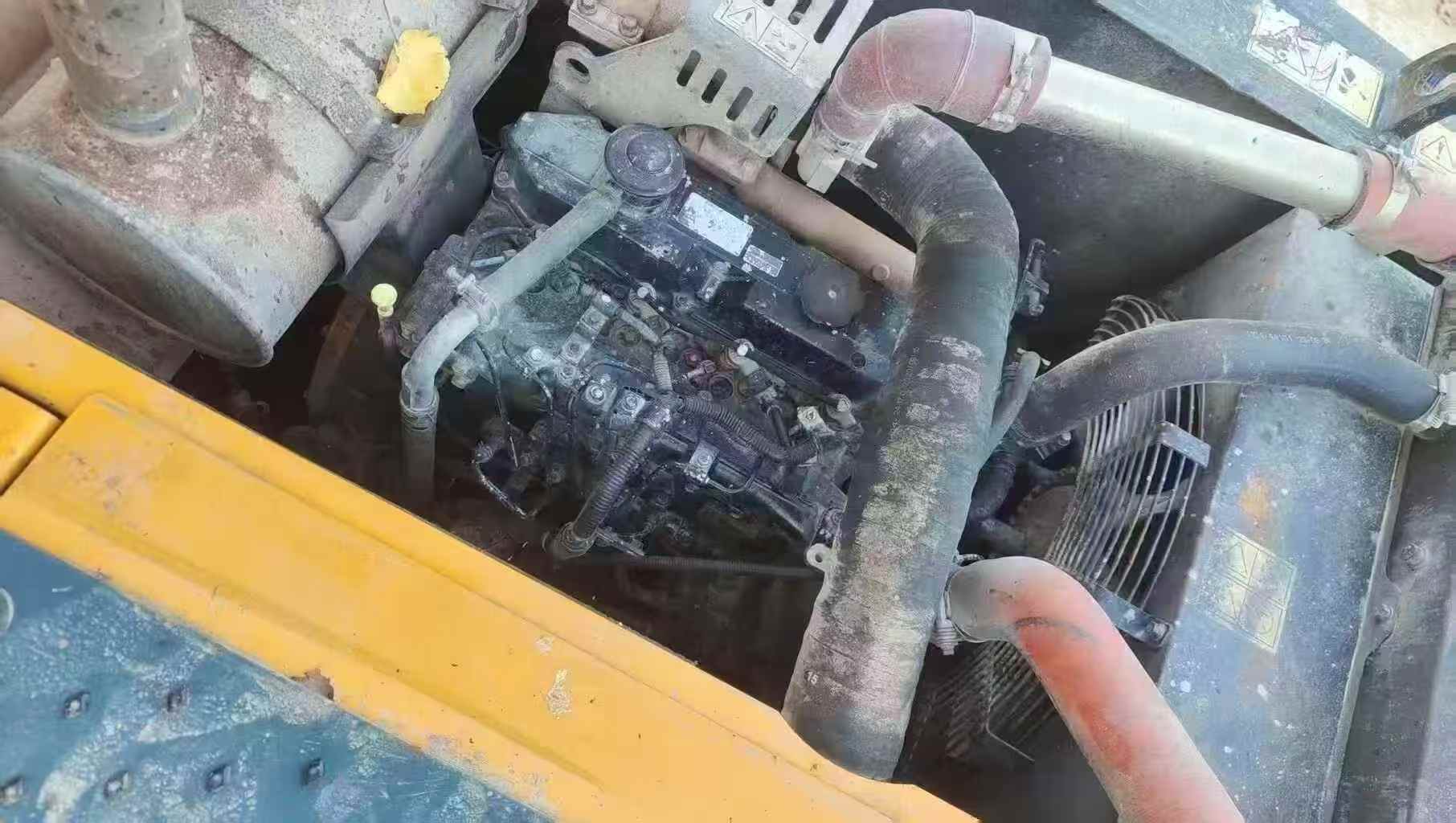

| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 131(98) / 2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 (4.0) x 120 (4.7) |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.2 km/h (2.0 mph) |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Traveling Hydraulic Circuit (Mpa) | 365 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 350 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 75 x 1075 |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 17.5 |
| Hydraulic System (L) | 210 |
| Total transport height (mm) | 8330 |
| Counterweight ground clearance (mm) | 935 |
| Back end turning radius (mm) | 2310 |
| Onboard width (mm) | 2476 |
| Total track length (mm) | 4300 |
| Total track width (mm) | 2500 |
| Maximum digging radius (mm) | 8330mm |
| Maximum digging depth (mm) | 5550mm |
| Maximum excavation height (mm) | 8500mm |
| Maximum unloading height (mm) | 6060mm |
| Maximum vertical digging depth (mm) | 5330mm |
| Maximum excavation radius of stop surface (mm) | 8180mm |
