Product Description
Engineered for precision and operator confidence, this 2023 Hyundai 130LVS excavator delivers exceptional control across demanding jobsites in Sichuan. Powered by a robust MITSUBISHI 4FRC engine generating 98kW at 2200 rpm, this 13-ton machine combines reliable joint venture manufacturing with proven hydraulic performance. Dual variable plunger pumps supply 2 x 124 l/min flow, ensuring responsive bucket and boom movements through a 350 Mpa working circuit.

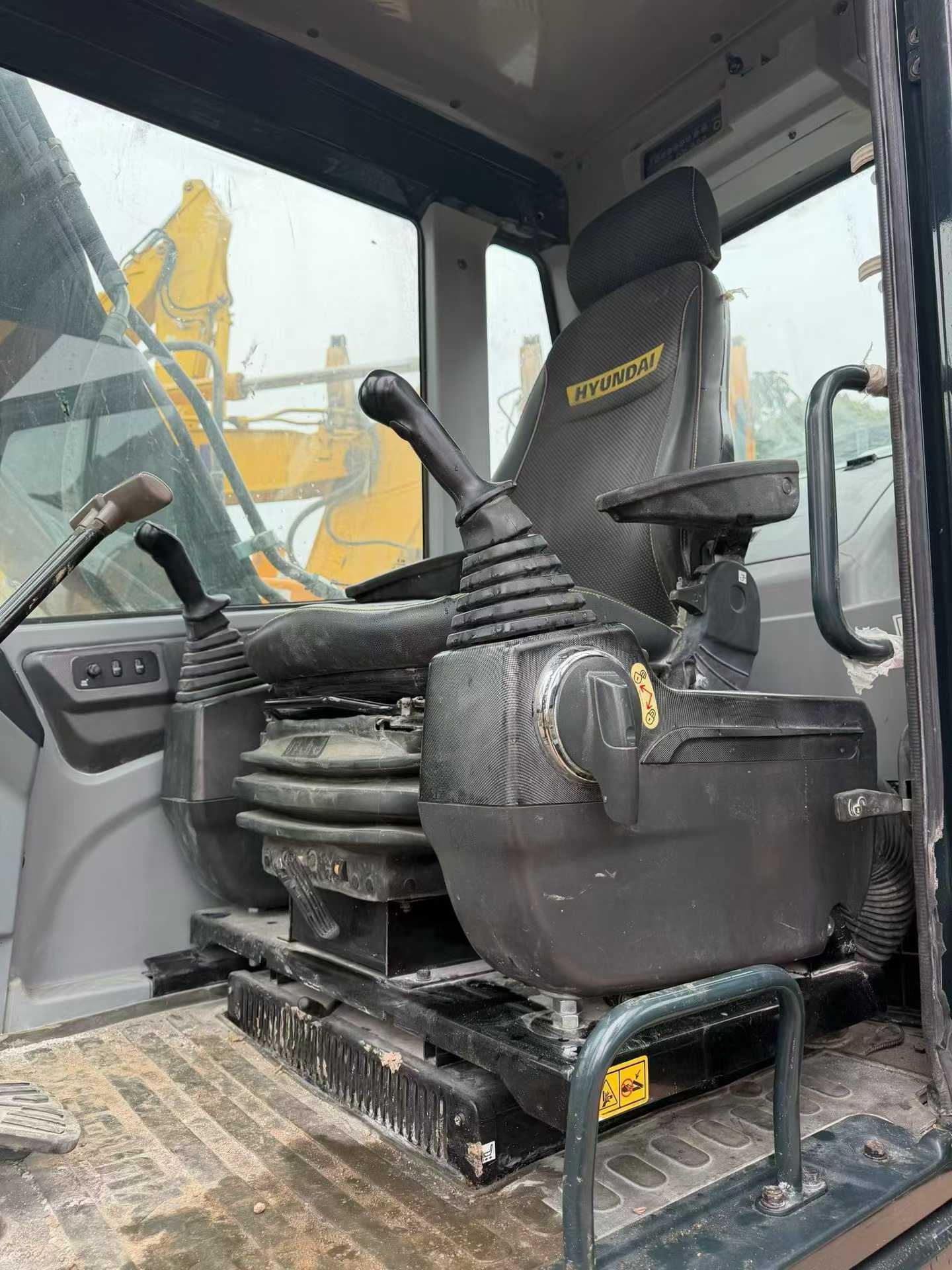

Operator-focused design prioritizes comfort and productivity during extended shifts. The spacious cabin provides commanding visibility across the 8330mm maximum digging radius, while intuitive controls manage the 4300mm boom and 2260mm arm with precision. Stability remains uncompromised thanks to a 2500mm track width and optimized 935mm counterweight clearance, enabling confident operation on slopes up to 70% grade.
- Maximum digging depth: 5550mm with 0.3-0.59m³ bucket capacity
- Superior reach: 8500mm maximum excavation height
- Efficient hydraulics: 270L fuel tank, 124L hydraulic reservoir
- Reliable water-cooled 4.2L displacement engine
- Compact 2310mm rear turning radius for confined spaces
| Specifications | Value |
|---|---|
| No. | 996123 |
| Tonnage (tons) | 13 |
| Bucket capacity (m³) | 0.3-0.59m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 131(98) / 2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 (4.0) x 120 (4.7) |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.2 km/h (2.0 mph) |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Traveling Hydraulic Circuit (Mpa) | 365 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 350 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 75 x 1075 |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 17.5 |
| Hydraulic System (L) | 210 |
| Total transport height (mm) | 8330 |
| Counterweight ground clearance (mm) | 935 |
| Back end turning radius (mm) | 2310 |
| Onboard width (mm) | 2476 |
| Total track length (mm) | 4300 |
| Total track width (mm) | 2500 |
| Maximum digging radius (mm) | 8330mm |
| Maximum digging depth (mm) | 5550mm |
| Maximum excavation height (mm) | 8500mm |
| Maximum unloading height (mm) | 6060mm |
| Maximum vertical digging depth (mm) | 5330mm |
| Maximum excavation radius of stop surface (mm) | 8180mm |
