2021 Hyundai 215LC-7

1/9
Buy Hyundai 215LC-7 Used Excavator / 1

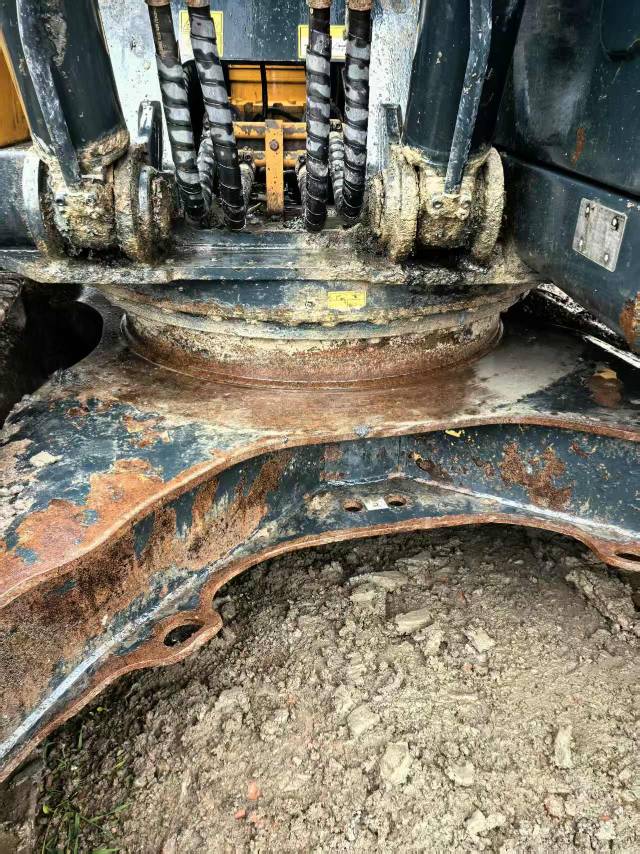

Buy Hyundai 215LC-7 Used Excavator / 2

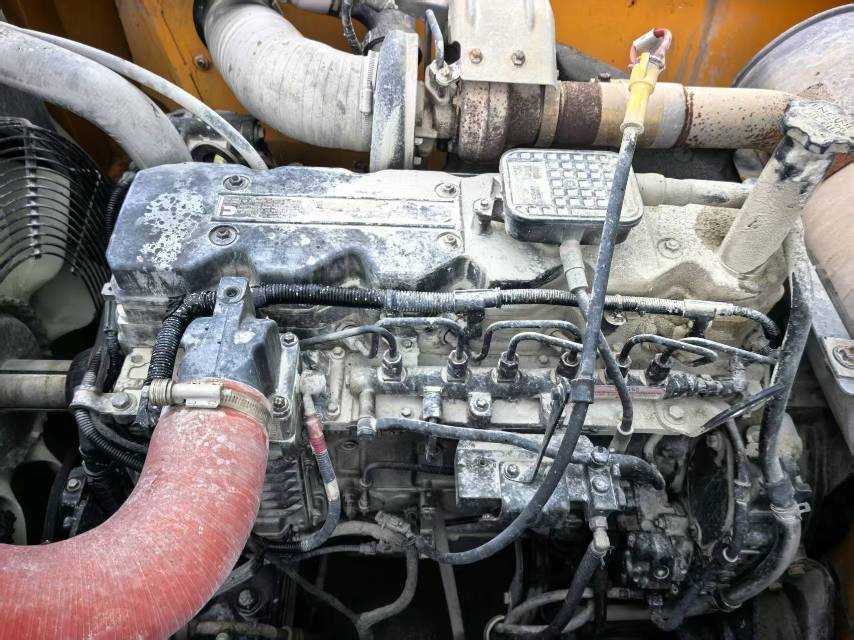

Buy Hyundai 215LC-7 Used Excavator / 3

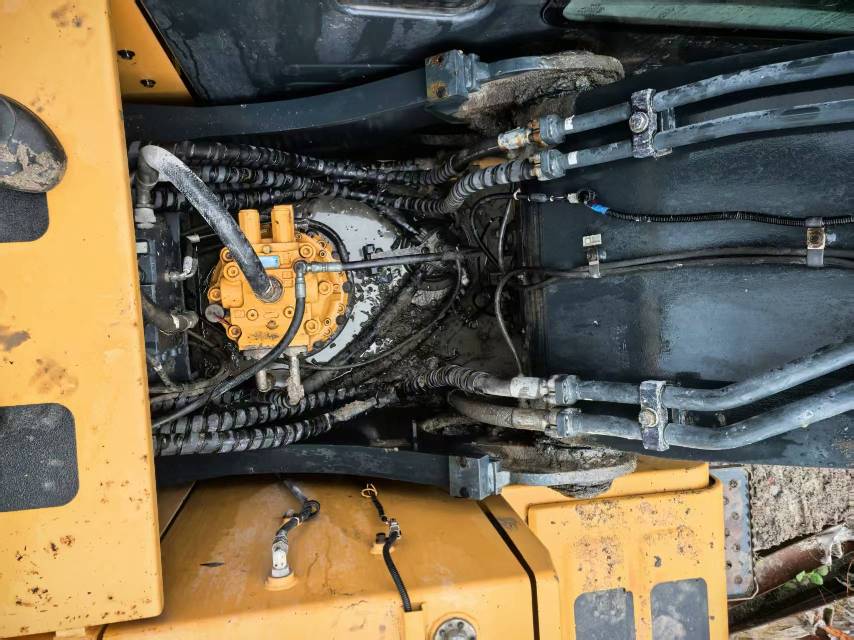

Buy Hyundai 215LC-7 Used Excavator / 4

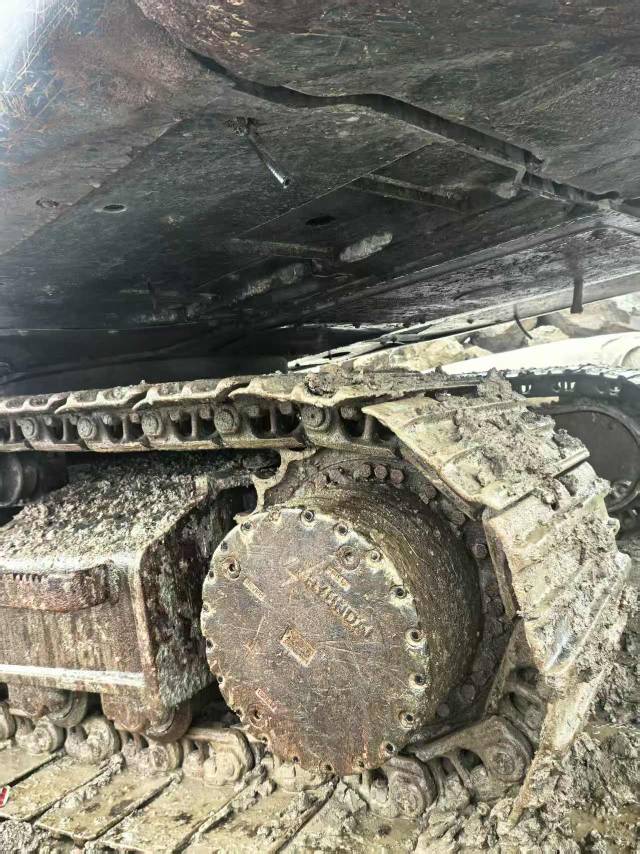

Buy Hyundai 215LC-7 Used Excavator / 5

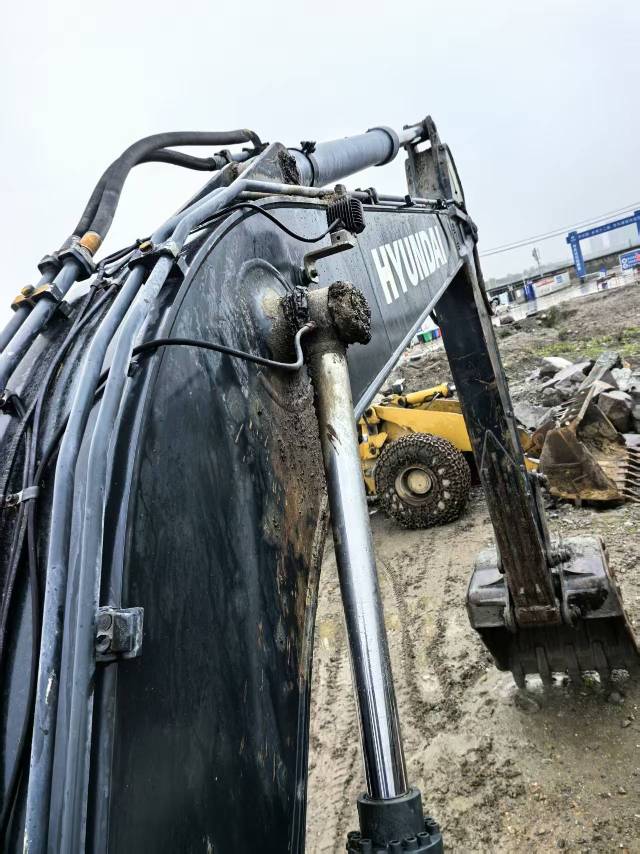

Buy Hyundai 215LC-7 Used Excavator / 6

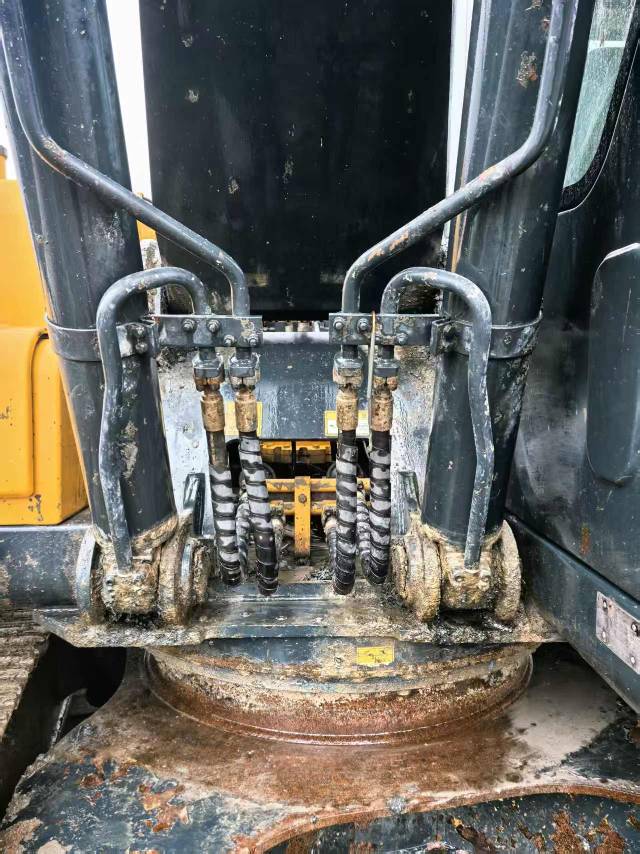

Buy Hyundai 215LC-7 Used Excavator / 7

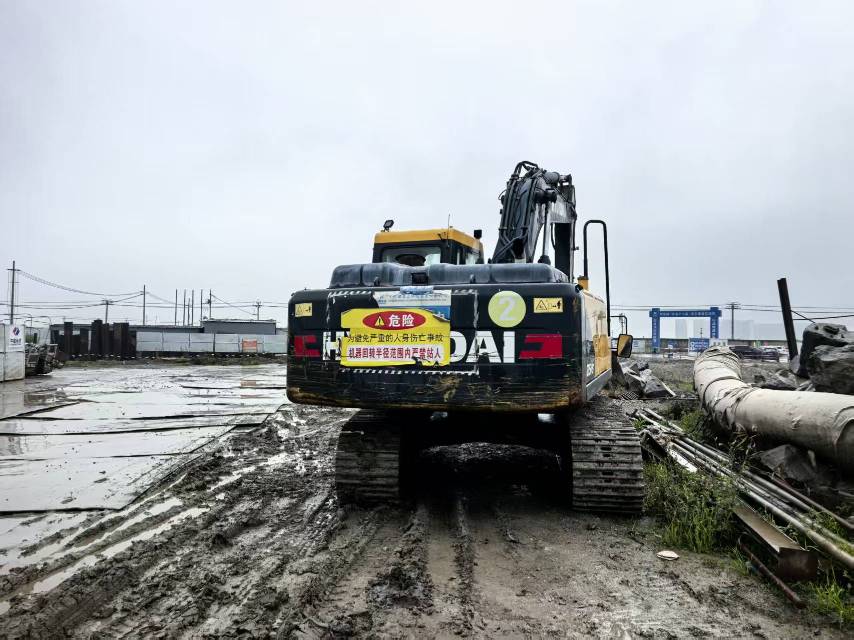

Buy Hyundai 215LC-7 Used Excavator / 8

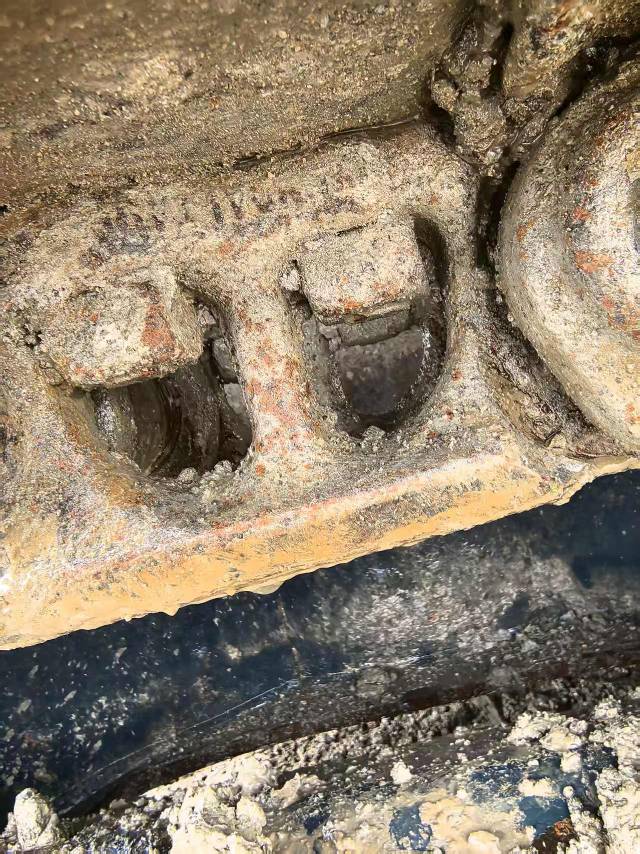

Buy Hyundai 215LC-7 Used Excavator / 9

Product Description

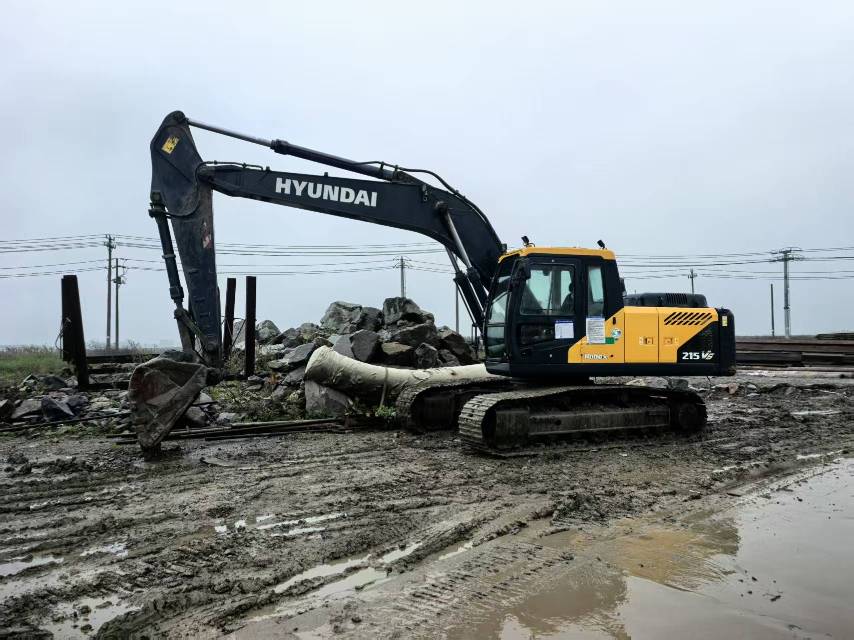

Discover the reliability and performance of the 2021 Hyundai 215LC-7 excavator, available for immediate purchase in Zhejiang, China. This machine has clocked over 4,000 operational hours, demonstrating its durability and efficiency in various construction environments. Known for its robust design and advanced technology, this model is a preferred choice for professionals seeking a balance between power and precision. We welcome on-site inspections and test drives to ensure your complete satisfaction with the equipment's condition and capabilities.

  • Year: 2021
  • Brand: Hyundai
  • Model: 215LC-7
  • Operational Hours: Over 4,000
  • Location: Zhejiang, China
SpecificationsValue
No.1054379
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.1054379

Brand Name:

Hyundai

Model Number:

215LC-7

Year:

2021

Location:

Zhejiang China

Pub Date

Are you interested in this machine?

Please contact us
