2022 Hyundai 215LC-7

1/9

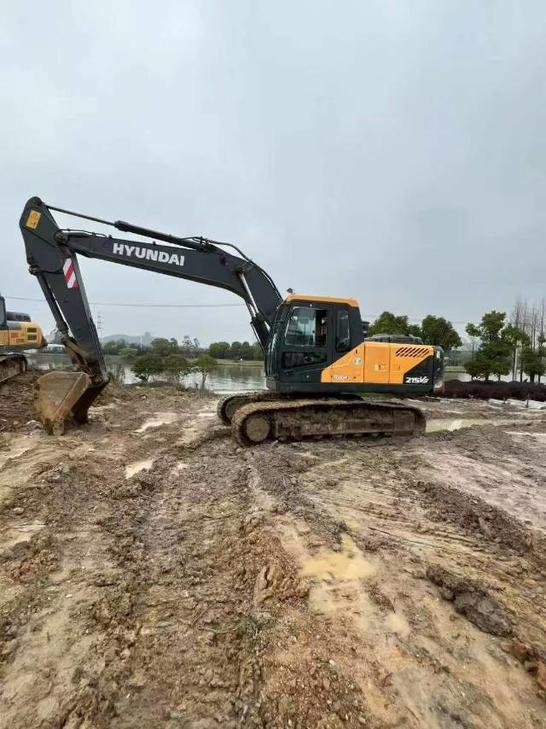

Buy Hyundai 215LC-7 Used Excavator / 1
Buy Hyundai 215LC-7 Used Excavator / 2
Buy Hyundai 215LC-7 Used Excavator / 3
Buy Hyundai 215LC-7 Used Excavator / 4
Buy Hyundai 215LC-7 Used Excavator / 5
Buy Hyundai 215LC-7 Used Excavator / 6
Buy Hyundai 215LC-7 Used Excavator / 7
Buy Hyundai 215LC-7 Used Excavator / 8
Buy Hyundai 215LC-7 Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Hyundai 215LC-7, available for inspection and testing in Zhejiang, China. This robust excavator is part of a selection of machines that have been well-maintained and are ready to meet your project demands. Ideal for construction, mining, and infrastructure development, the 215LC-7 offers a powerful performance with its advanced hydraulic system and durable design. We welcome on-site visits for a detailed assessment and operational demonstration. Pricing is negotiable, making this an excellent opportunity to acquire a high-quality, used machine at a competitive cost.

  • Year: 2020
  • Brand: Hyundai
  • Model: 215LC-7
  • Location: Zhejiang, China
SpecificationsValue
No.1091715
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.1091715

Brand Name:

Hyundai

Model Number:

215LC-7

Year:

2022

Location:

Zhejiang China
