Product Description

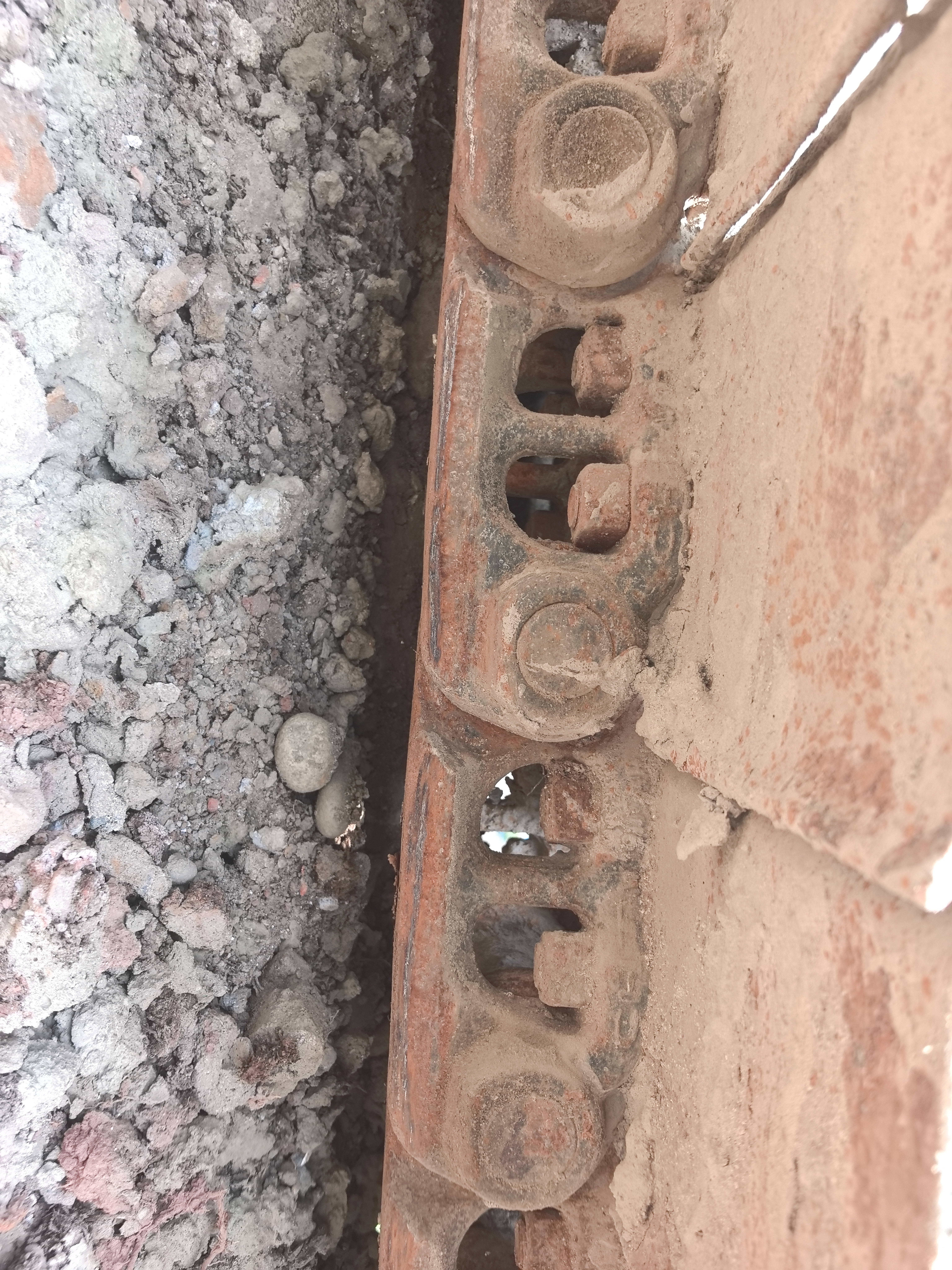

This 2018 Hyundai 275LC-9V excavator offers reliable performance for heavy-duty construction and earthmoving operations. Currently located in Sichuan, China, this machine represents solid value in the mid-size excavator category. The unit features a rebuilt undercarriage assembly, providing extended operational life and reduced near-term maintenance costs.
Key attributes:
- Year: 2018
- Model: Hyundai 275LC-9V
- Location: Sichuan, China
- Condition: Good working order with new undercarriage components
- Competitive pricing for the model year and specification
The Hyundai 275LC-9V series is known for fuel efficiency and operator comfort in demanding site conditions. This unit is available for immediate inspection and purchase. Contact us for detailed specifications, operating hours, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1138315 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins 6c8.3 |
| Rated power (kw/rpm) | 255(188) / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 (4.49) x 135 (5.32) |
| Maximum torque (N.m) | 124.3(899) / 1300 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.5 |
| Working form | Direct injection vortex supercharged engine |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° (70%). |
| Maximum tractive force (kN) | 21600 |
| Travel speed (km/h) | 5.3 km/hr (3.3 mph) / 3.3 km/hr (2.1 mph) |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial piston motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2×222(58.6/48.8) |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 2.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130*90*1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-145*105*1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135*95*1380 |
| Fuel Tank (L) | 440 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 25.5 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 285 |
| Total transport length (mm) | 9990 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3096 |
| Onboard width (mm) | 2840 |
| Total track width (mm) | 3180 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6900 |
