Product Description

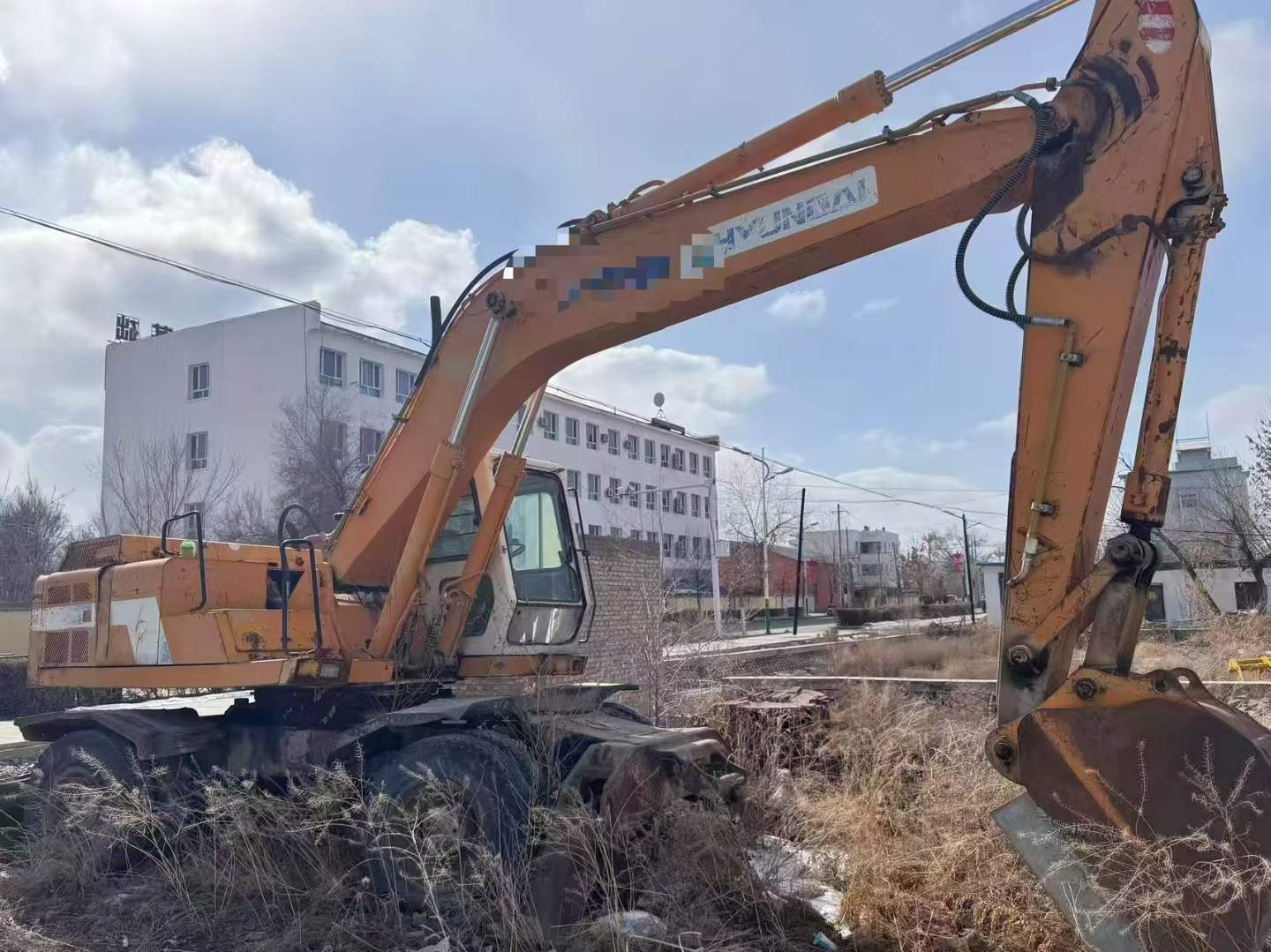

Maximize your excavation budget with this 2016 Hyundai HX200, delivering 20-ton performance at a fraction of new equipment costs. Powered by a robust Cummins F4.5 engine producing 125kW at 2200rpm, this machine offers exceptional value without compromising capability. Currently located in Heze, Shandong, this joint-venture excavator combines proven reliability with cost-effective operation.
- Powerful Digging Performance: 0.9m³ bucket capacity with 154kN bucket digging force and 9600mm maximum excavation radius handles demanding jobsite requirements
- Productive Work Envelope: 6520mm maximum digging depth and 9450mm excavation height provide versatile reach for diverse applications
- Efficient Operation: 395L fuel tank and 280L hydraulic system capacity minimize downtime while maximizing daily productivity
- Stable Platform: 19,900kg operating weight with 48kPa ground pressure ensures stability across varied terrain conditions
- Proven Drivetrain: Cummins engine delivers 670N·m maximum torque with excellent fuel efficiency for lower operating costs
Invest smart in pre-owned heavy equipment that
| Specifications | Value |
|---|---|
| No. | 1030932 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2700 |
| power | Fuel oil |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

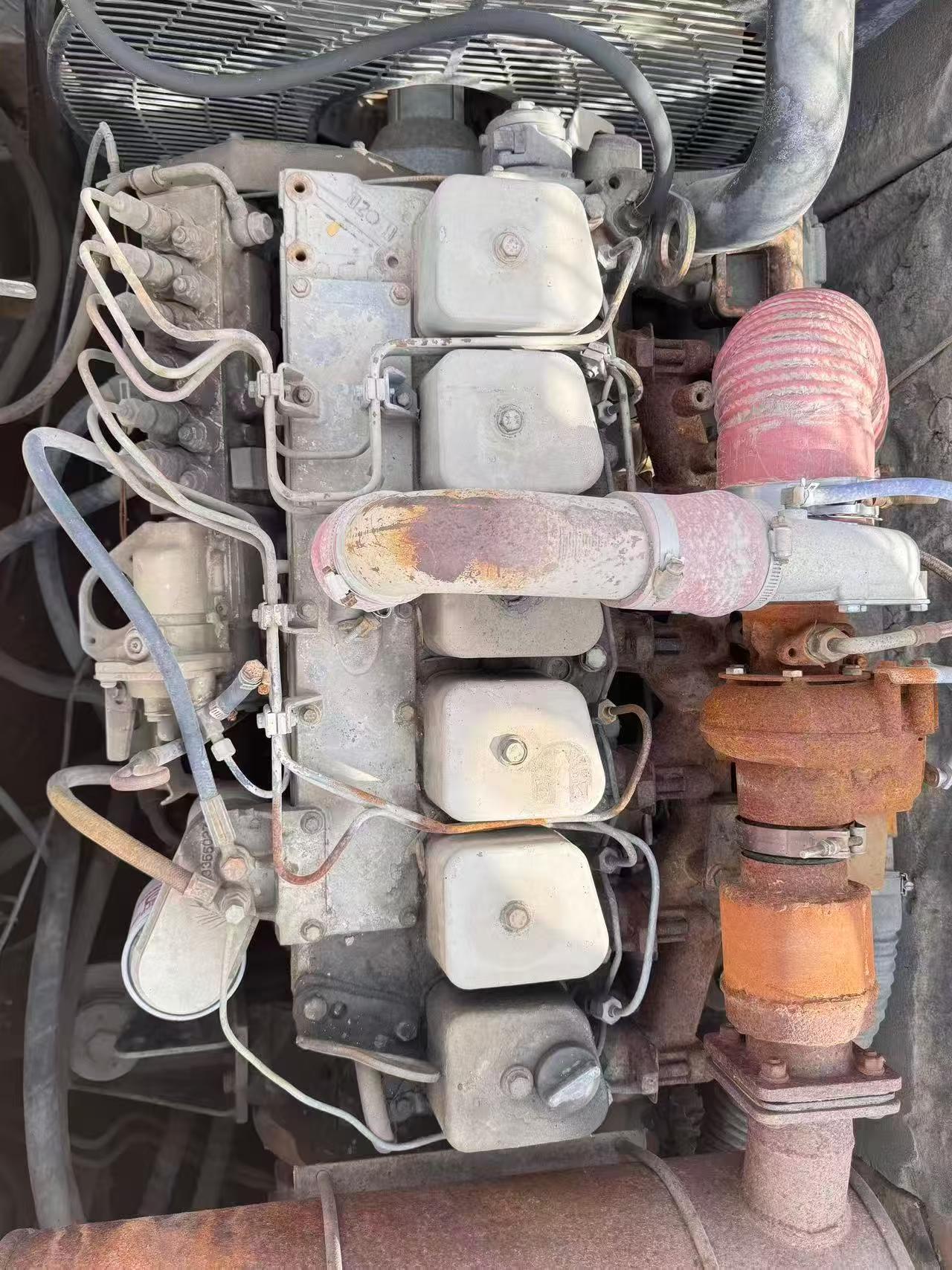

| Engine type | Cummins F4.5 |
| Rated power (kw/rpm) | 125/2200 |
| Maximum torque (N.m) | 670/1300 |
| Ground specific pressure (Kpa) | 0.48 |
| Rotation speed (rpm) | 10.54 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 15.4 |
| Rod digging force (kN) | 11.6 |
| Maximum tractive force (kN) | 22.6 |
| Travel speed (km/h) | 5.1/3.3 |
| Turning torque (Nm) | 65.3 |
| Fuel Tank (L) | 395 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 13 |
| Coolant (L) | 34 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 9525 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 3030 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2750 |
| Total track length (mm) | 4165 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging depth (mm) | 6520 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6640 |
| Maximum vertical digging depth (mm) | 5960 |
| Maximum excavation radius of stop surface (mm) | 9600 |
| Maximum effective digging depth (mm) | 6330 |
