Product Description

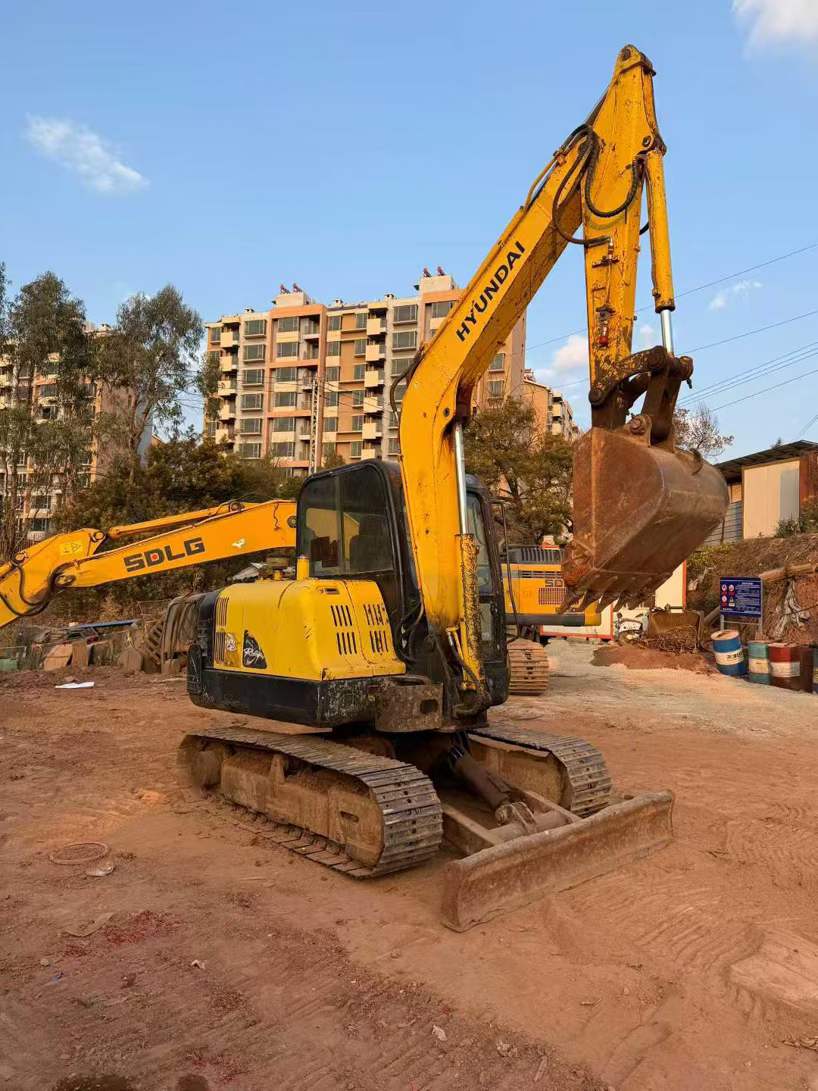

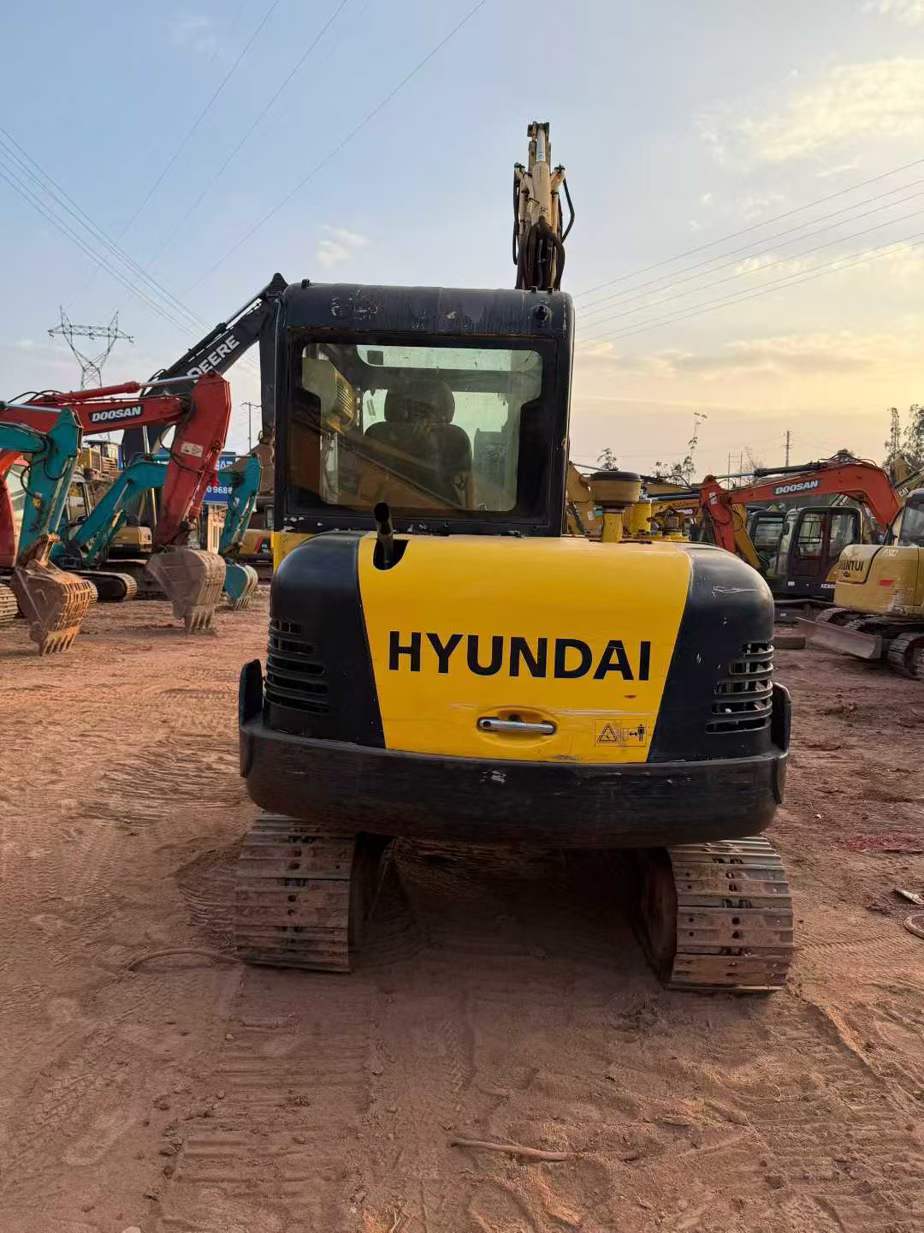

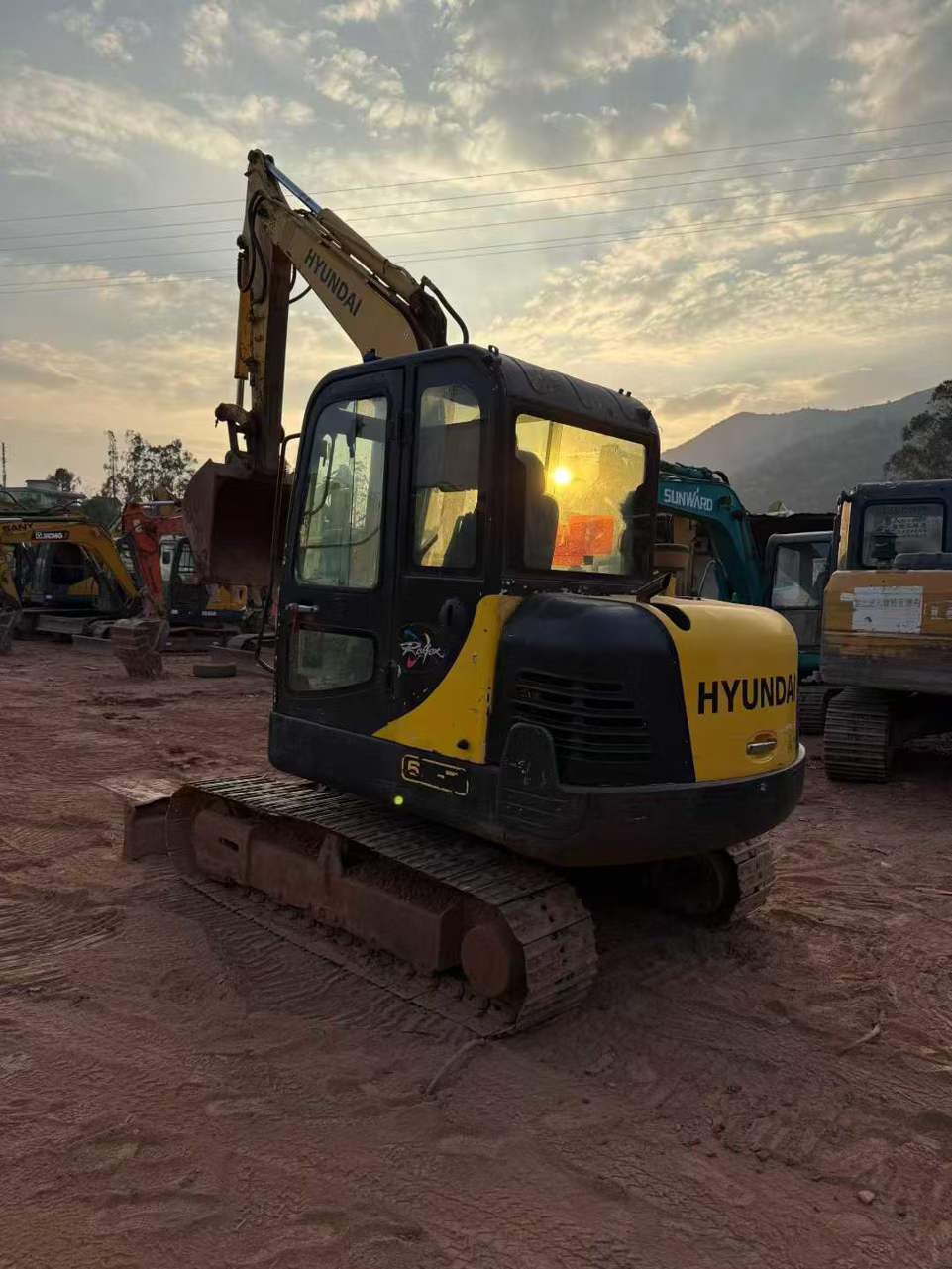

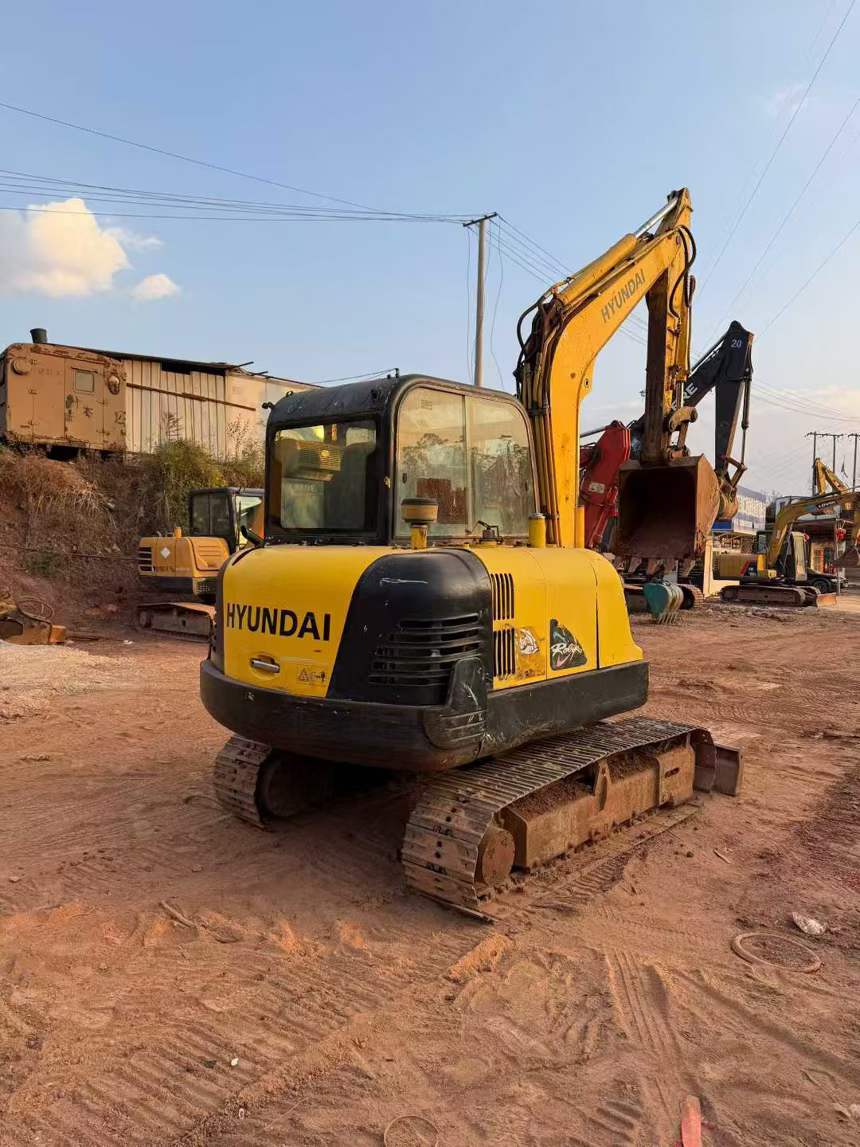

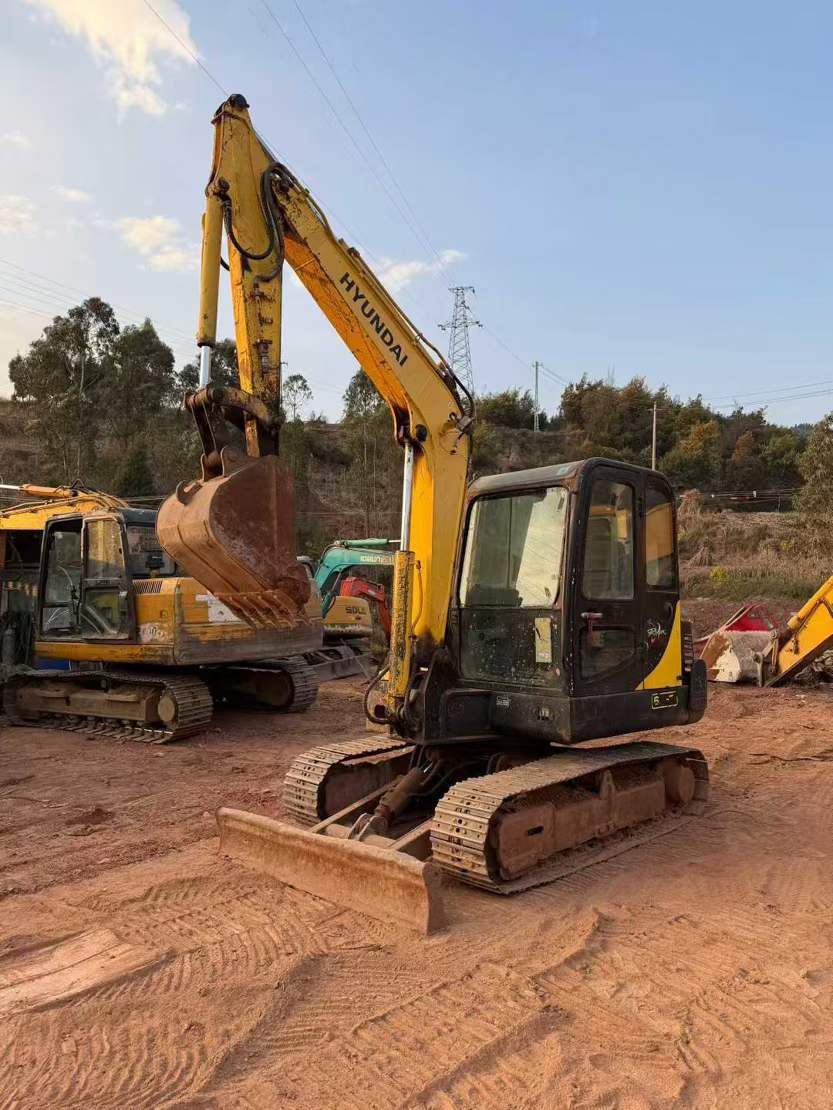

Proven performance meets lasting value in this 2013 Hyundai HX60 mini excavator, now available from Yunnan. Built for reliability, this 6-ton workhorse delivers consistent results across construction, landscaping, and utility projects where compact dimensions and serious digging power matter most.

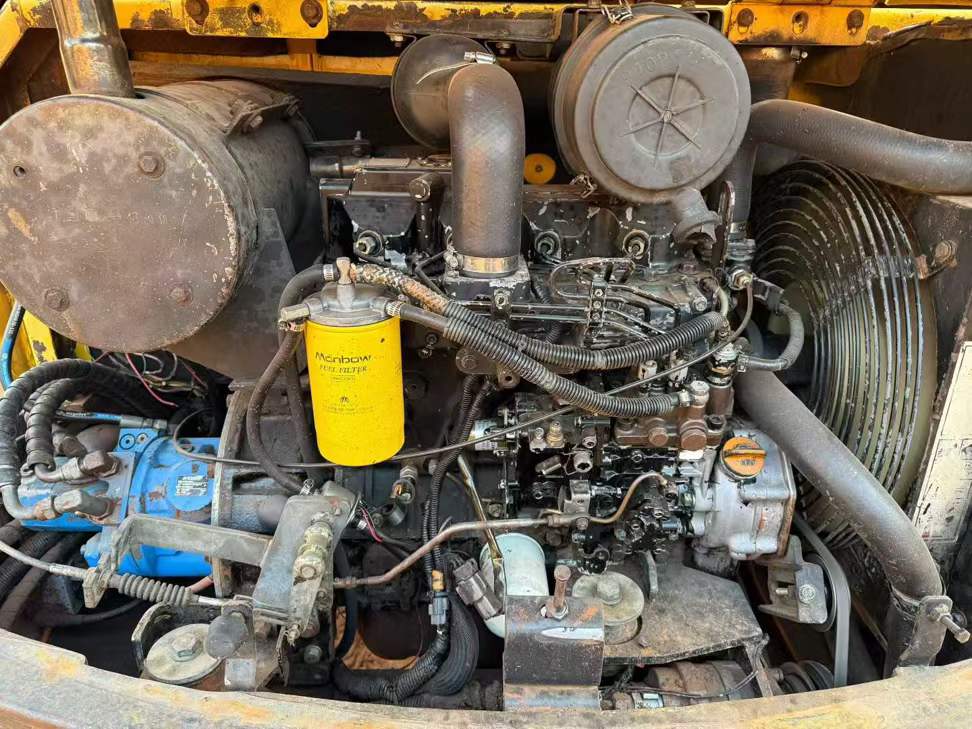

Powered by a robust Yanmar 4TNV94L engine producing 36.2 kW at 2200 rpm, this machine combines 46.7 kN bucket digging force with a maximum digging depth of 3,760 mm. Hyundai's reputation for dependable engineering ensures parts availability remains strong throughout global markets, protecting your investment and minimizing downtime. With a 0.21 m³ bucket capacity and 5,720 kg working weight, the HX60 tackles demanding tasks while maintaining excellent maneuverability in confined spaces.
- Yanmar water-cooled diesel engine with proven durability
- Variable piston pump hydraulic system for precise control
- Maximum digging radius: 6,127 mm
- Two-speed travel: 4.6/2.4 km/h for optimal site mobility
- Compact transport dimensions: 5,900 × 1,920 × 2,550 mm
- Strong resale value backed by Hyundai's global dealer network
Contact Fair Trade Machinery today for complete inspectio
| Specifications | Value |
|---|---|
| No. | 1020905 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |

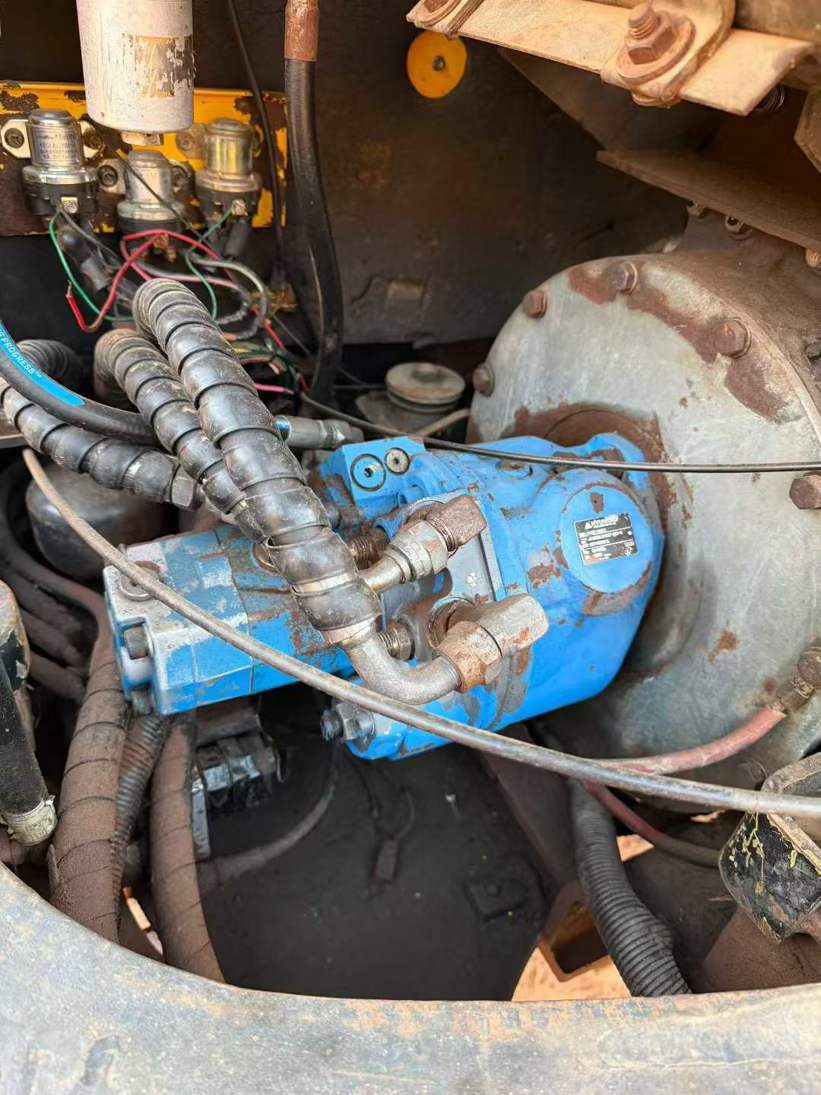

| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |
| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
