Product Description

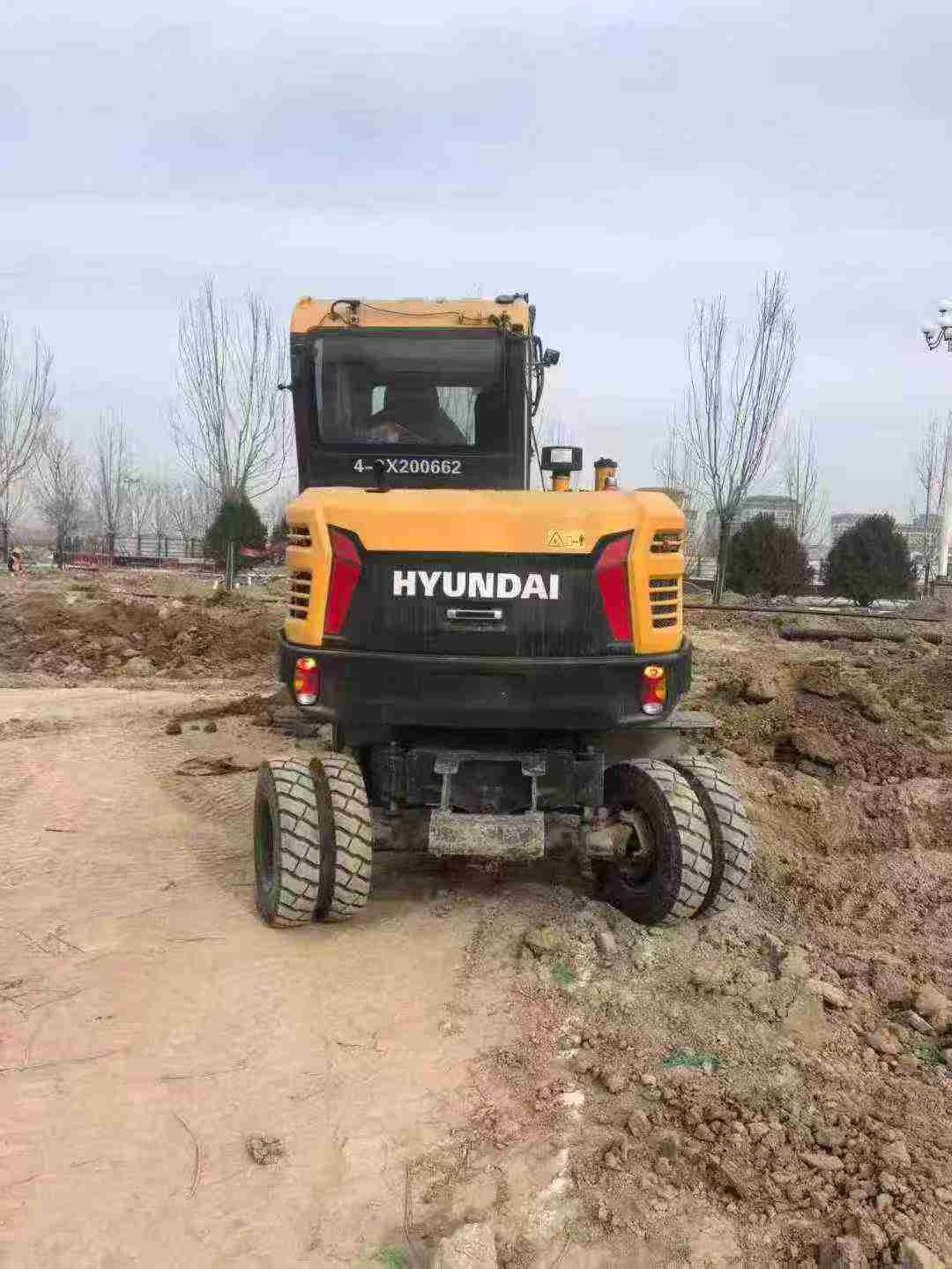

Built for demanding jobsites, this 2016 Hyundai HX60 mini excavator delivers proven performance backed by a brand recognized for long-term reliability. Operating at 5,720 kg with a 0.21 m³ bucket capacity, this 6-ton machine combines the precision of a Yanmar 4TNV94L engine (36.2 kW at 2200 rpm) with robust hydraulic systems designed for consistent productivity. Currently located in Qinhuangdao, Hebei, this unit represents exceptional value in the used equipment market.
Hyundai's reputation for parts availability and dealer support makes this excavator a smart investment. Key specifications include:
- Maximum digging depth of 3,760 mm with 6,127 mm reach
- Powerful digging forces: 46.7 kN bucket, 27.5 kN arm

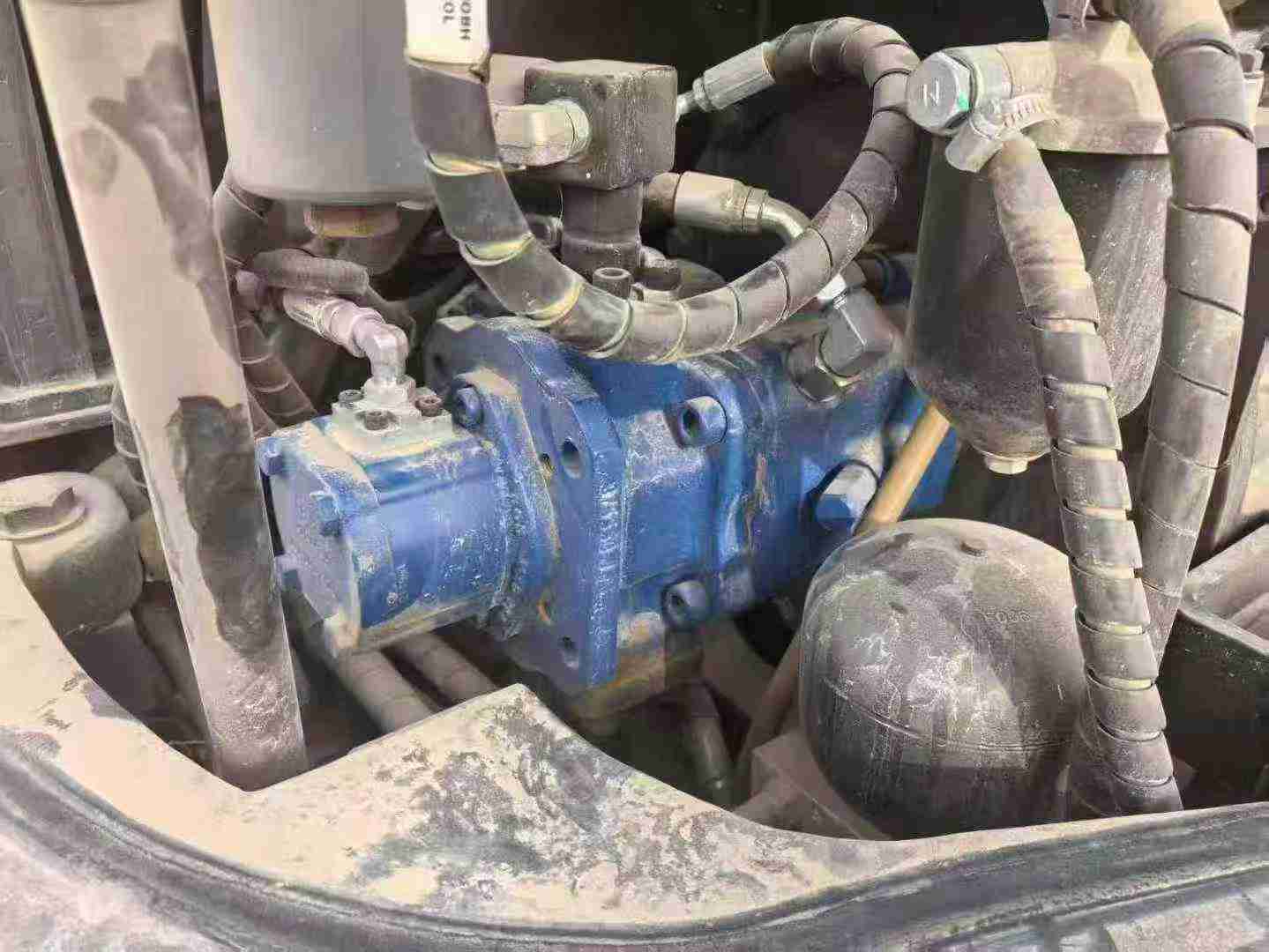

- Variable piston pump delivering 138 l/min flow
- Standard hydraulic breaker pipeline for versatility
- Compact transport dimensions: 5,900 mm × 1,920 mm × 2,550 mm
With strong resale values and widespread service network support, Hyundai equipment minimizes downtime and protects your investment. This HX60 offers the dependability contractors demand for utility work, landscaping, and light construction applications.
| Specifications | Value |
|---|---|
| No. | 1007541 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |
| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
