Product Description

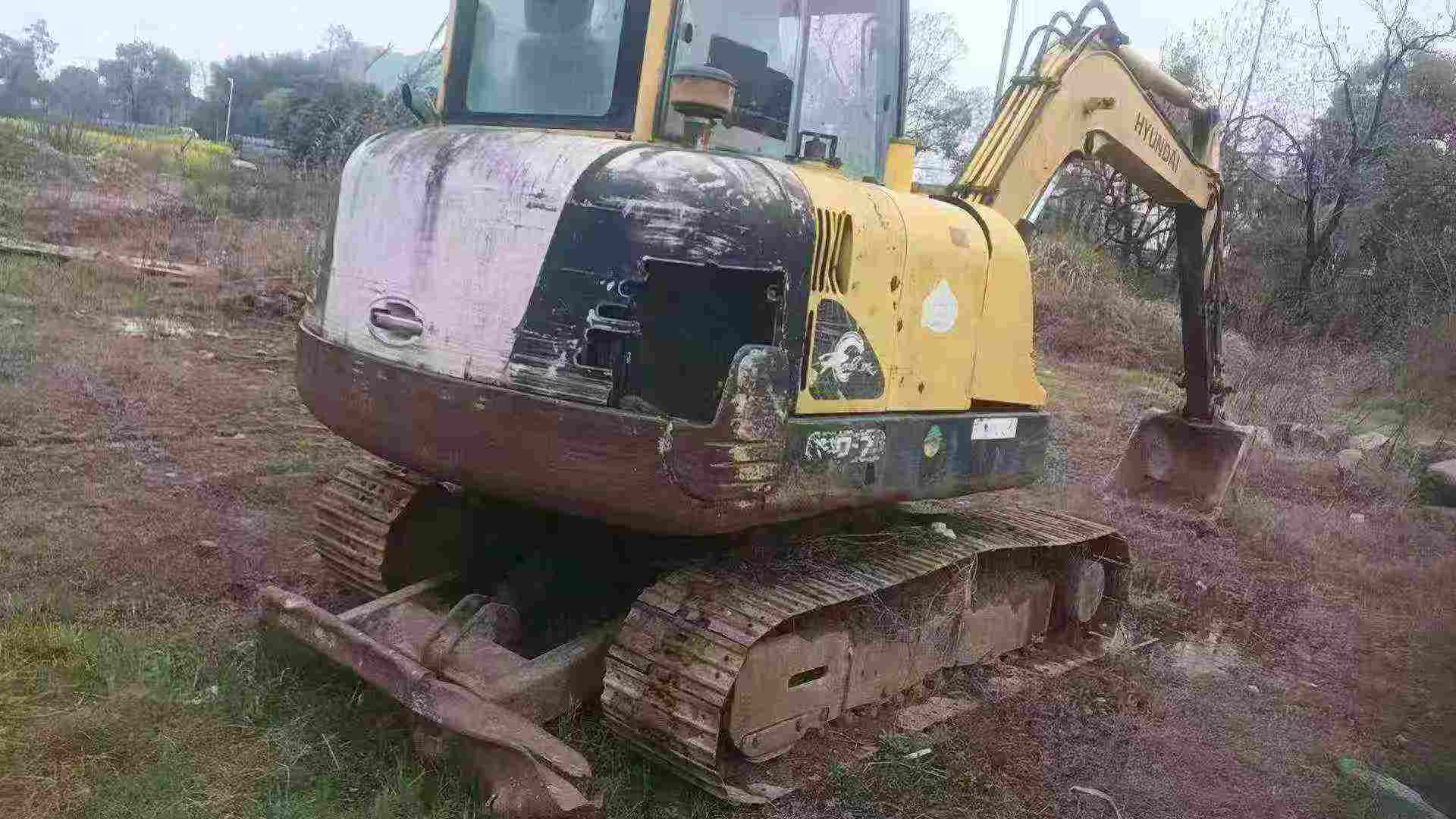

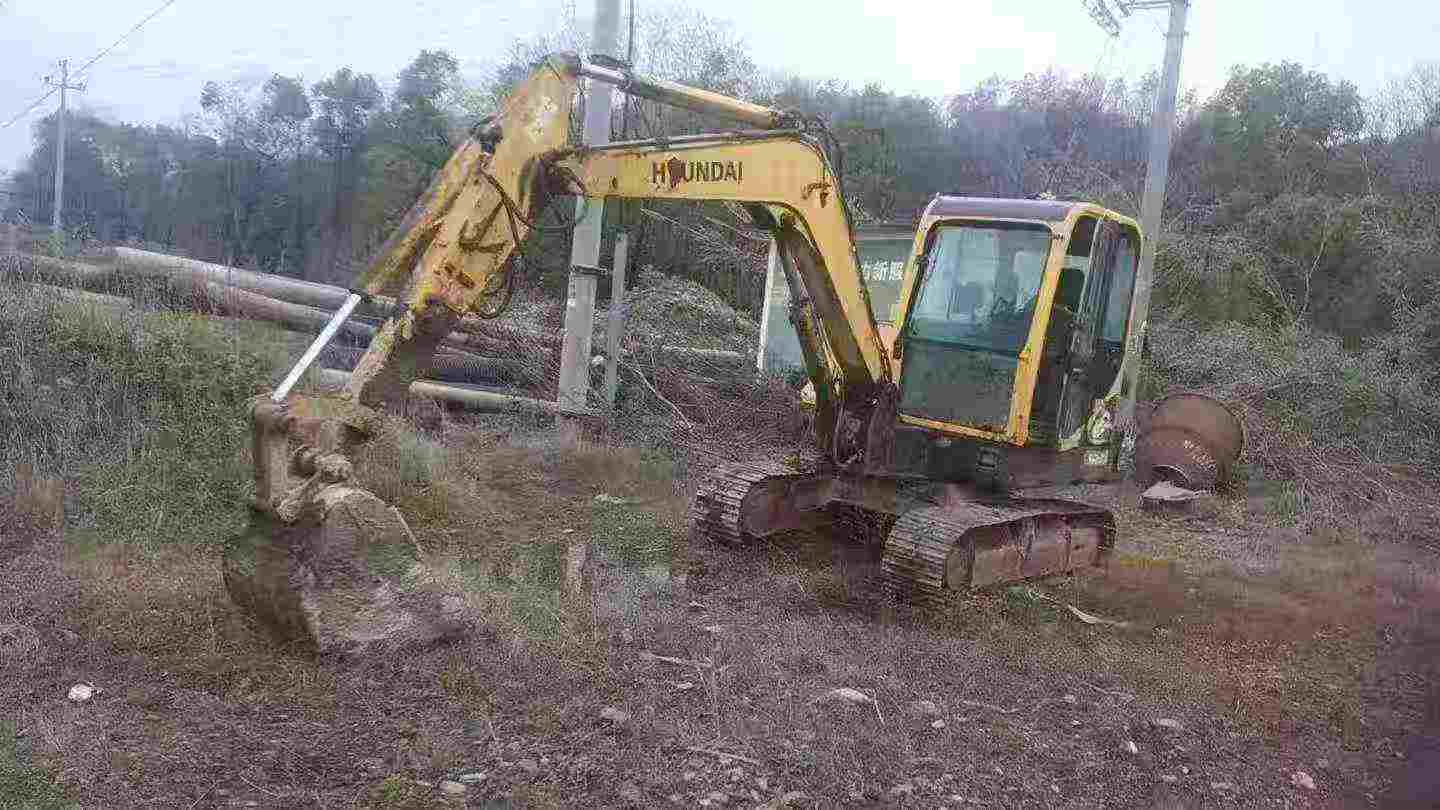

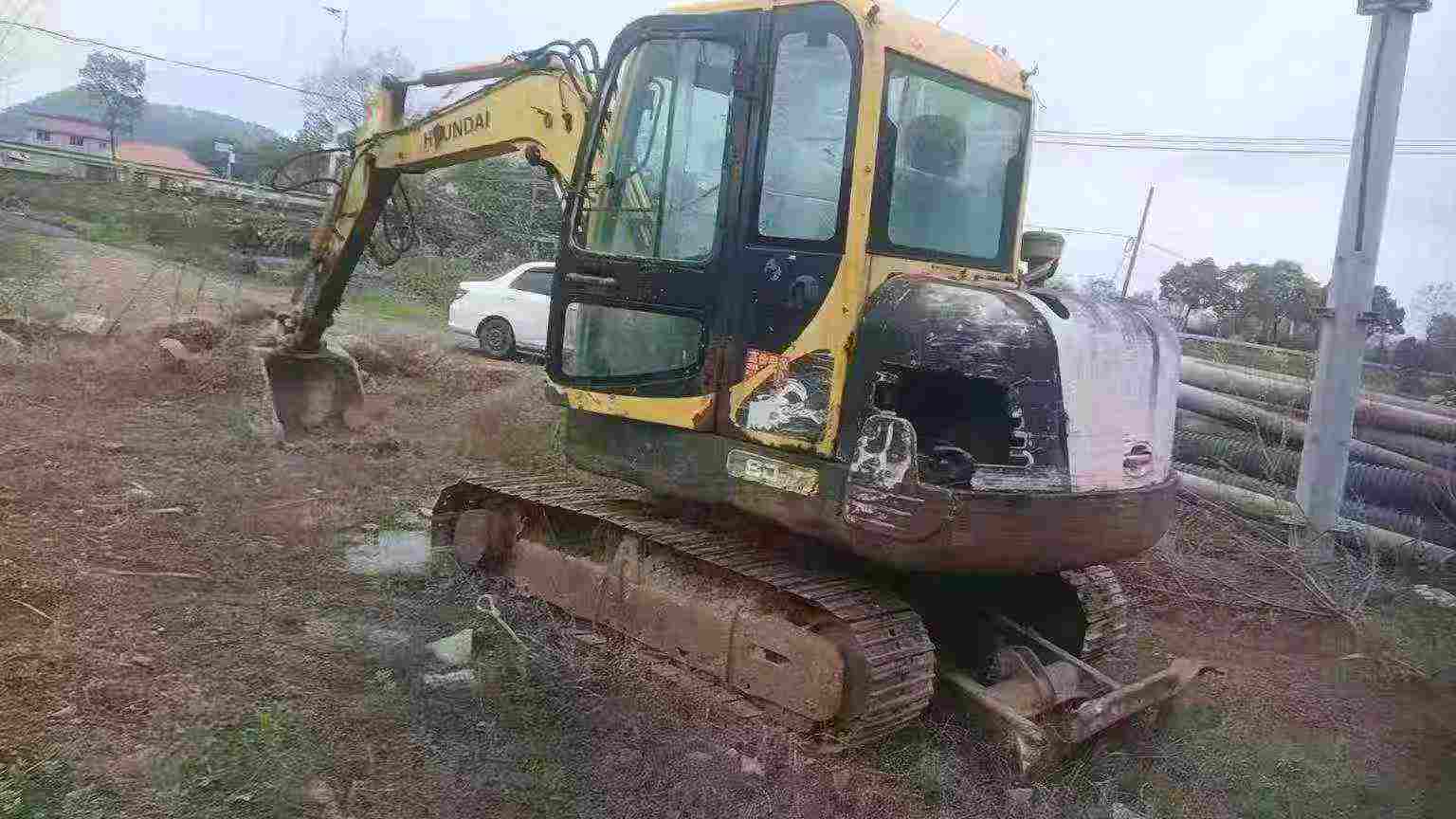

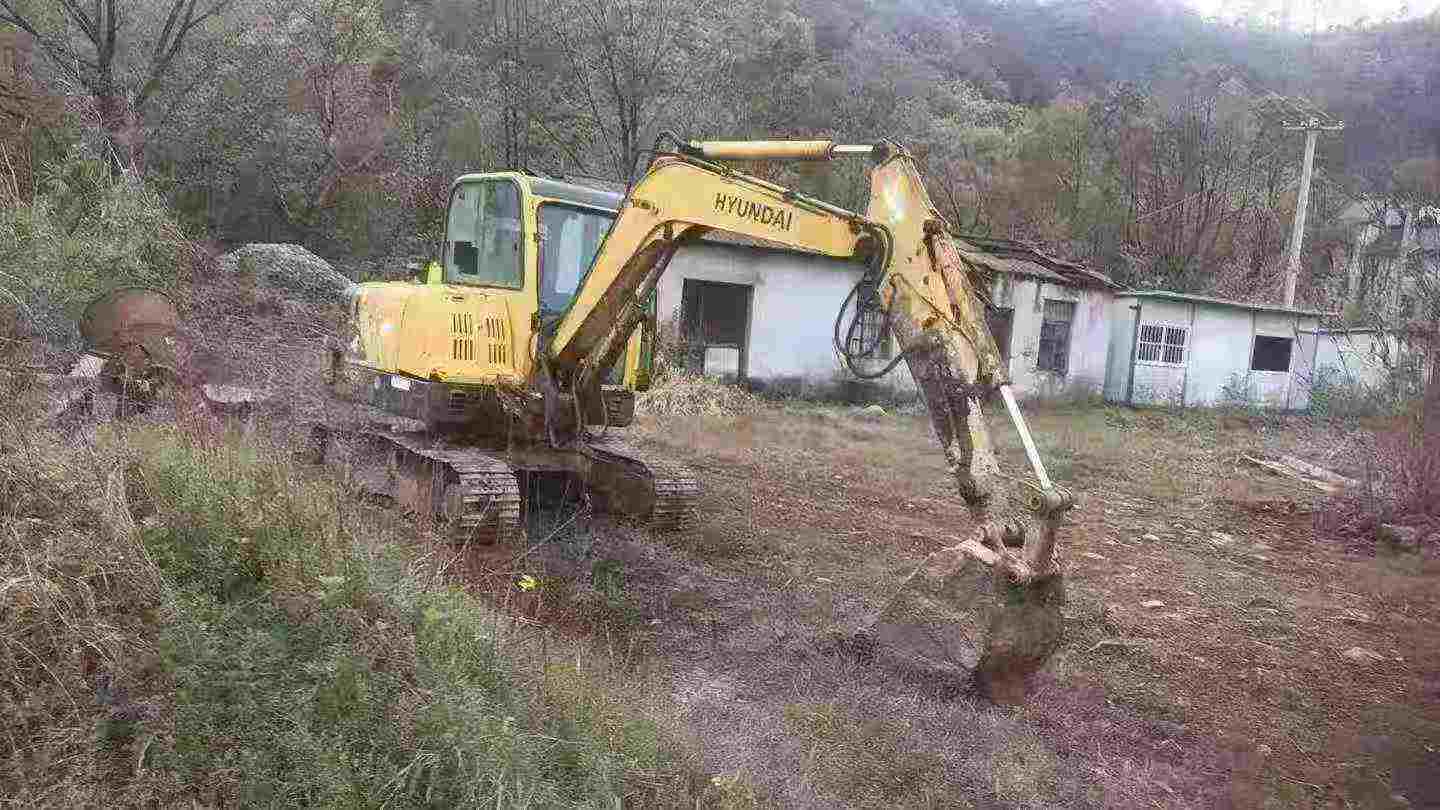

Strengthen your operational capacity with this 2016 Hyundai HX60, a proven 6-ton compact excavator engineered for fleet reliability. Powered by a robust Yanmar 4TNV94L engine delivering 36.2 kW at 2200 rpm, this machine combines efficient fuel consumption with consistent performance across demanding job sites. Currently located in Hangzhou, Zhejiang, it offers immediate availability for contractors requiring dependable backup equipment or expanding their rental fleet.
Built for versatility, the HX60 delivers where compact footprints meet serious capability:
- Maximum digging depth of 3,760 mm with 6,127 mm reach handles trenching and utility work efficiently
- 46.7 kN bucket digging force tackles dense materials without hesitation
- Compact transport dimensions (5,900 mm length, 1,920 mm width) simplify logistics between sites

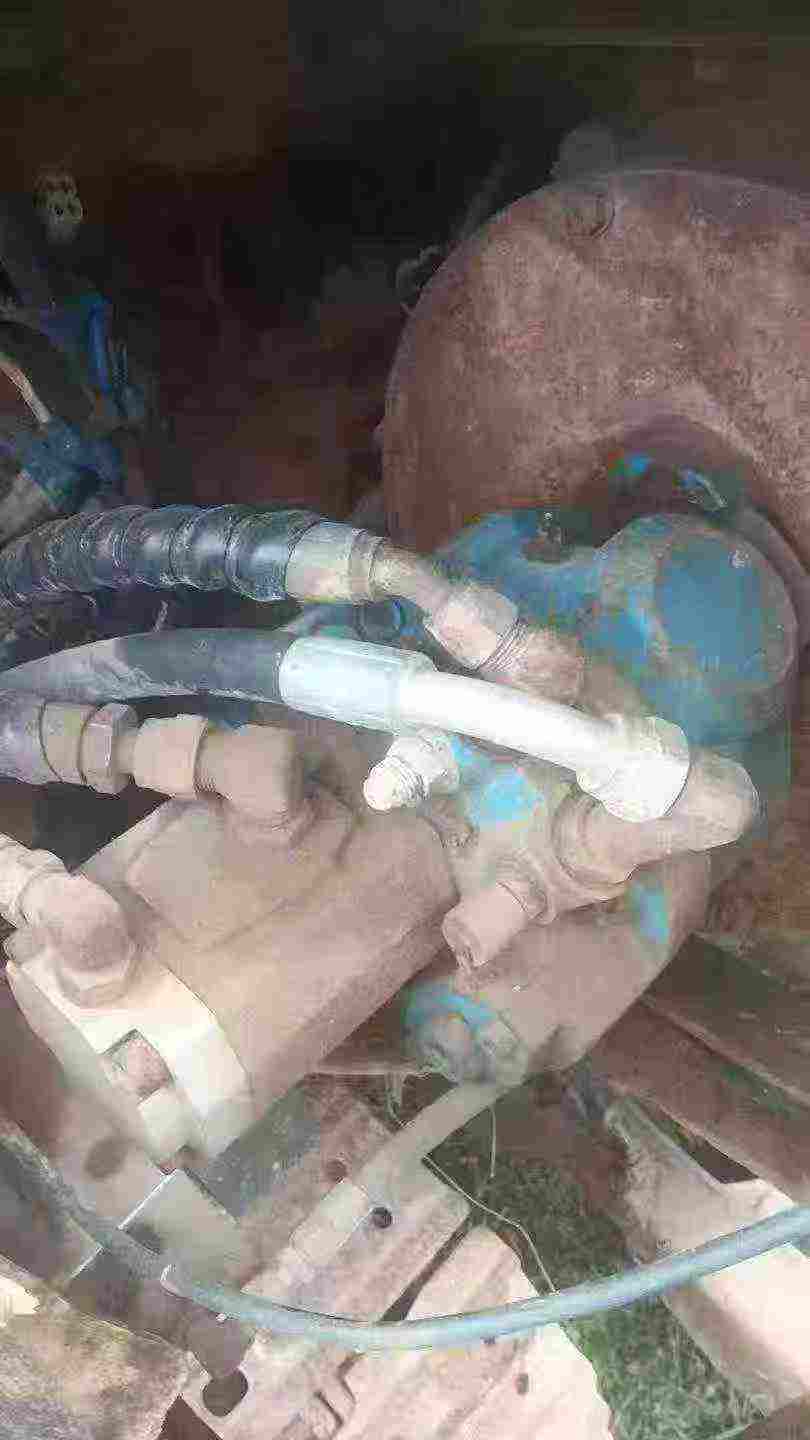

- Variable piston pump and dual-speed travel motor optimize hydraulic performance and fuel economy
- Factory-equipped hydraulic breaker lines eliminate costly retrofitting for demolition tasks
With 5,720 kg working weight and 70% gradeability, this Hyundai integrates seamlessly into existing fleets requiring dependable supplementary capacity. Ready
| Specifications | Value |
|---|---|
| No. | 1046753 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |

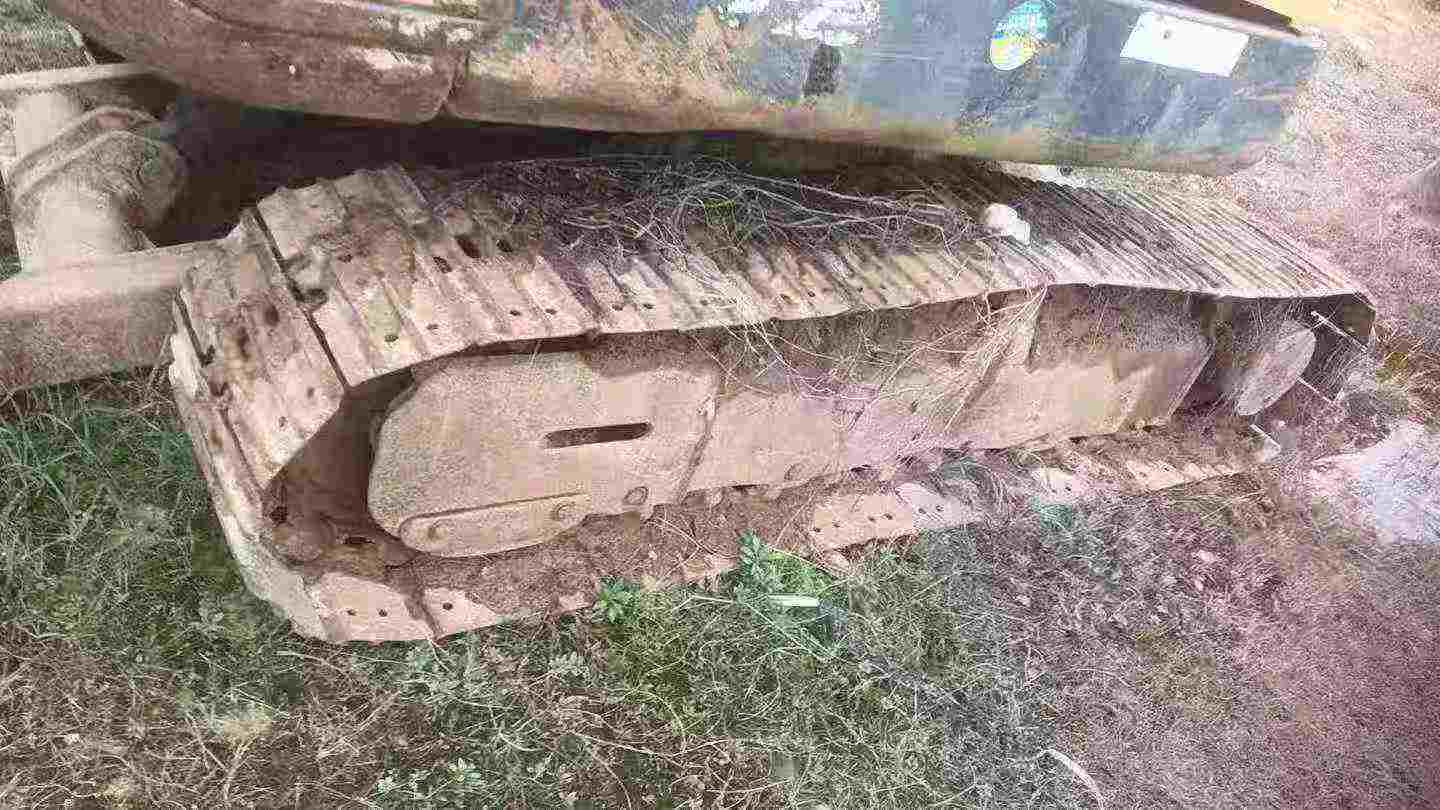

| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
