Product Description

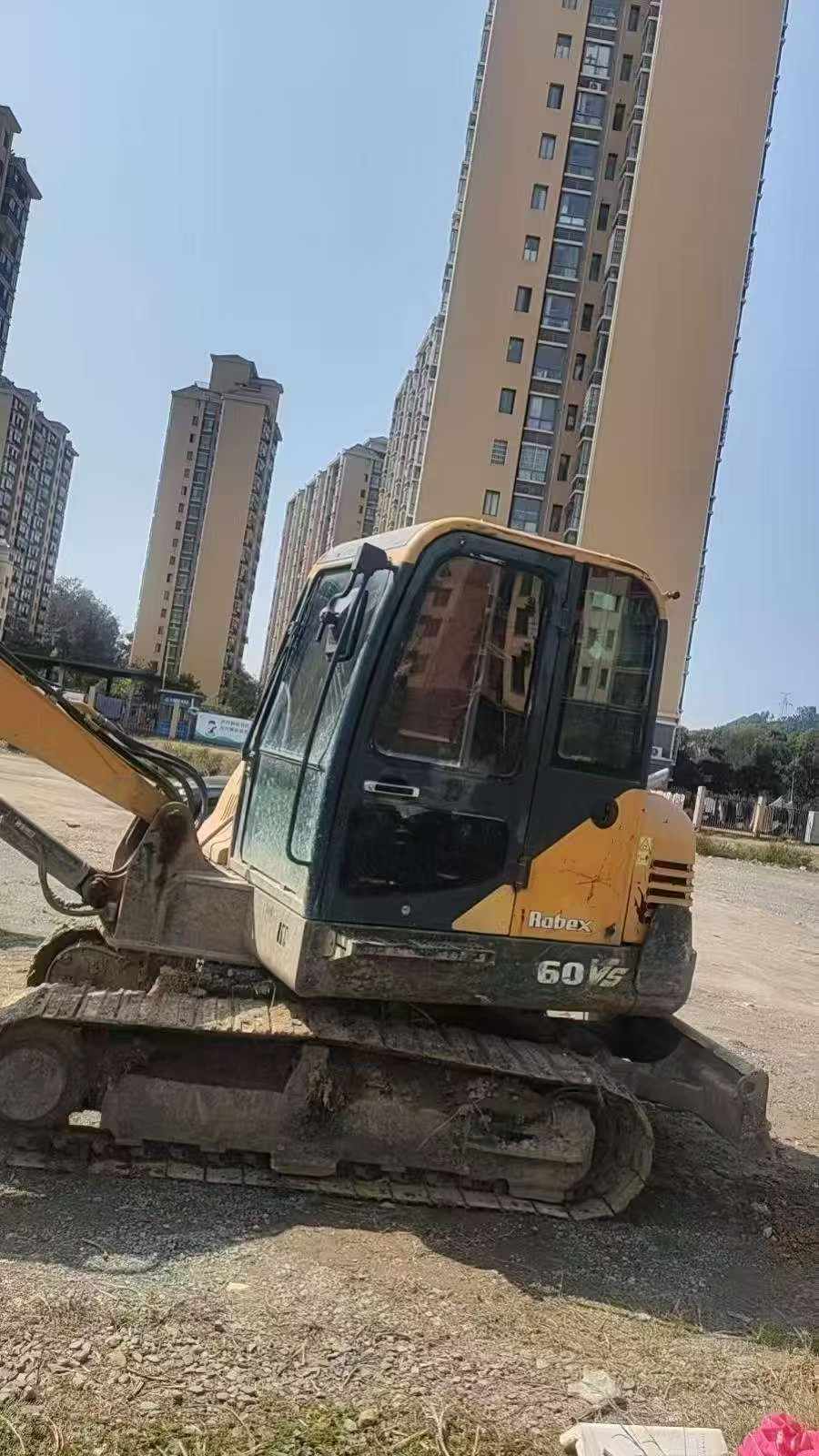

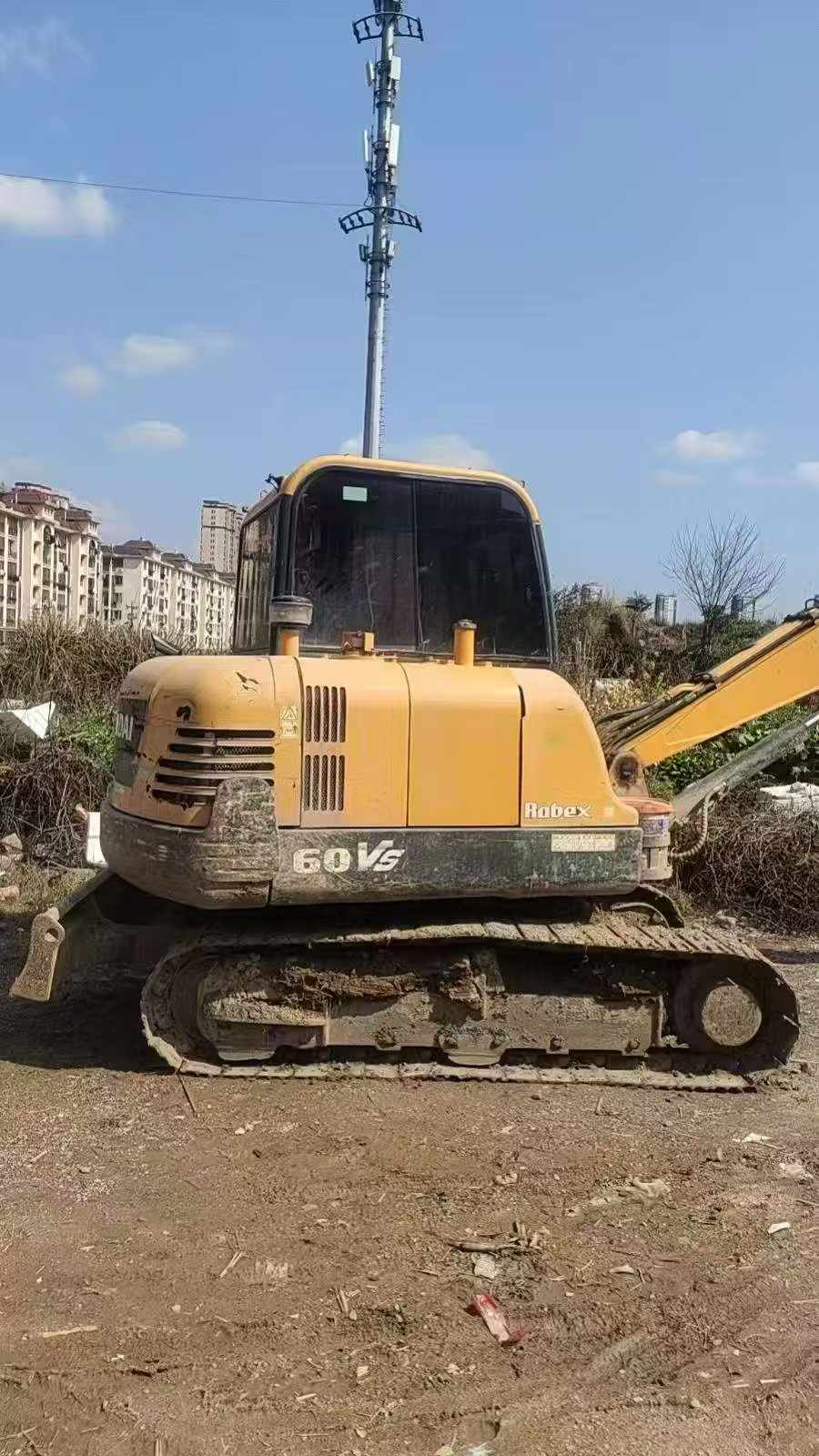

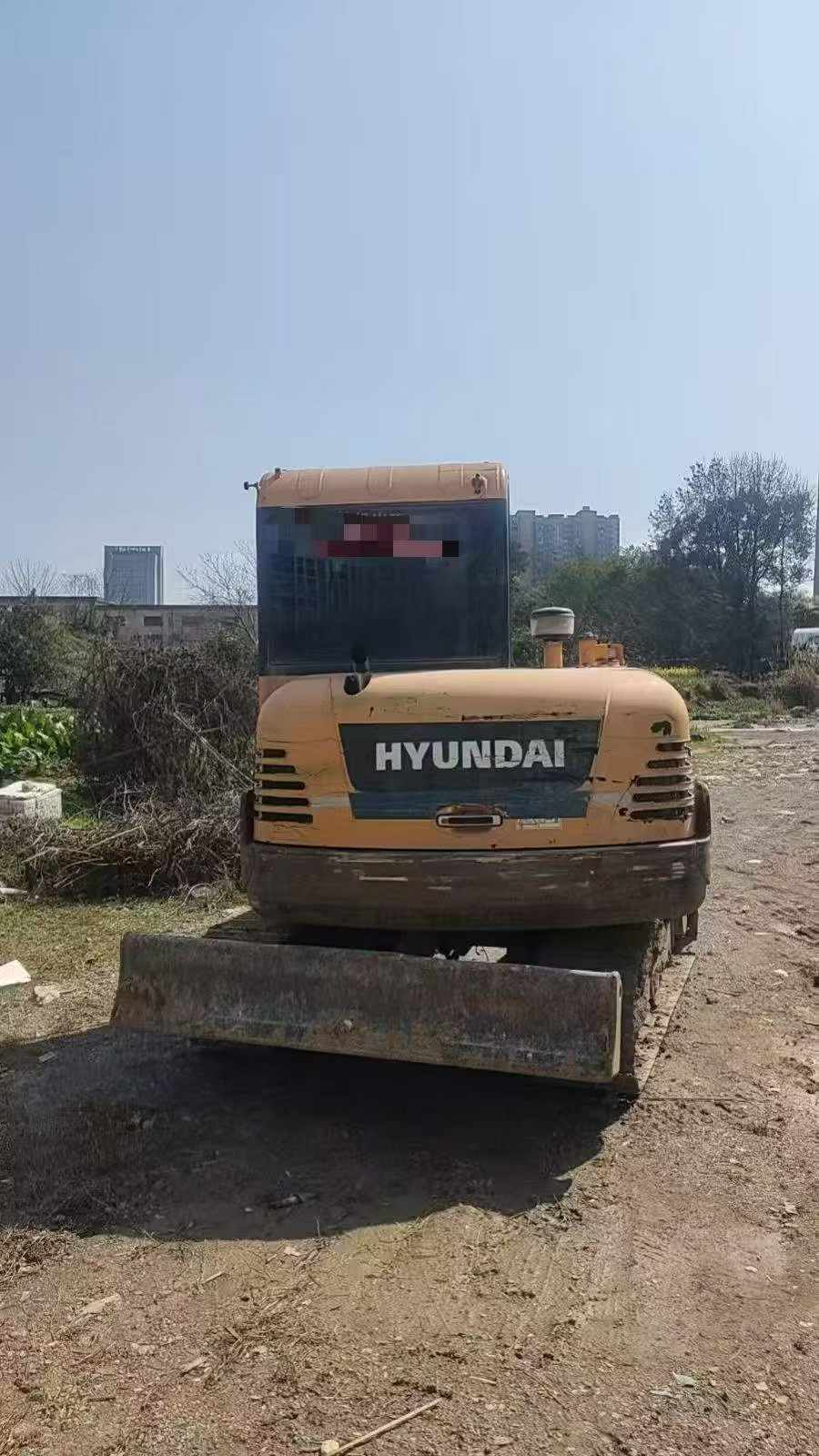

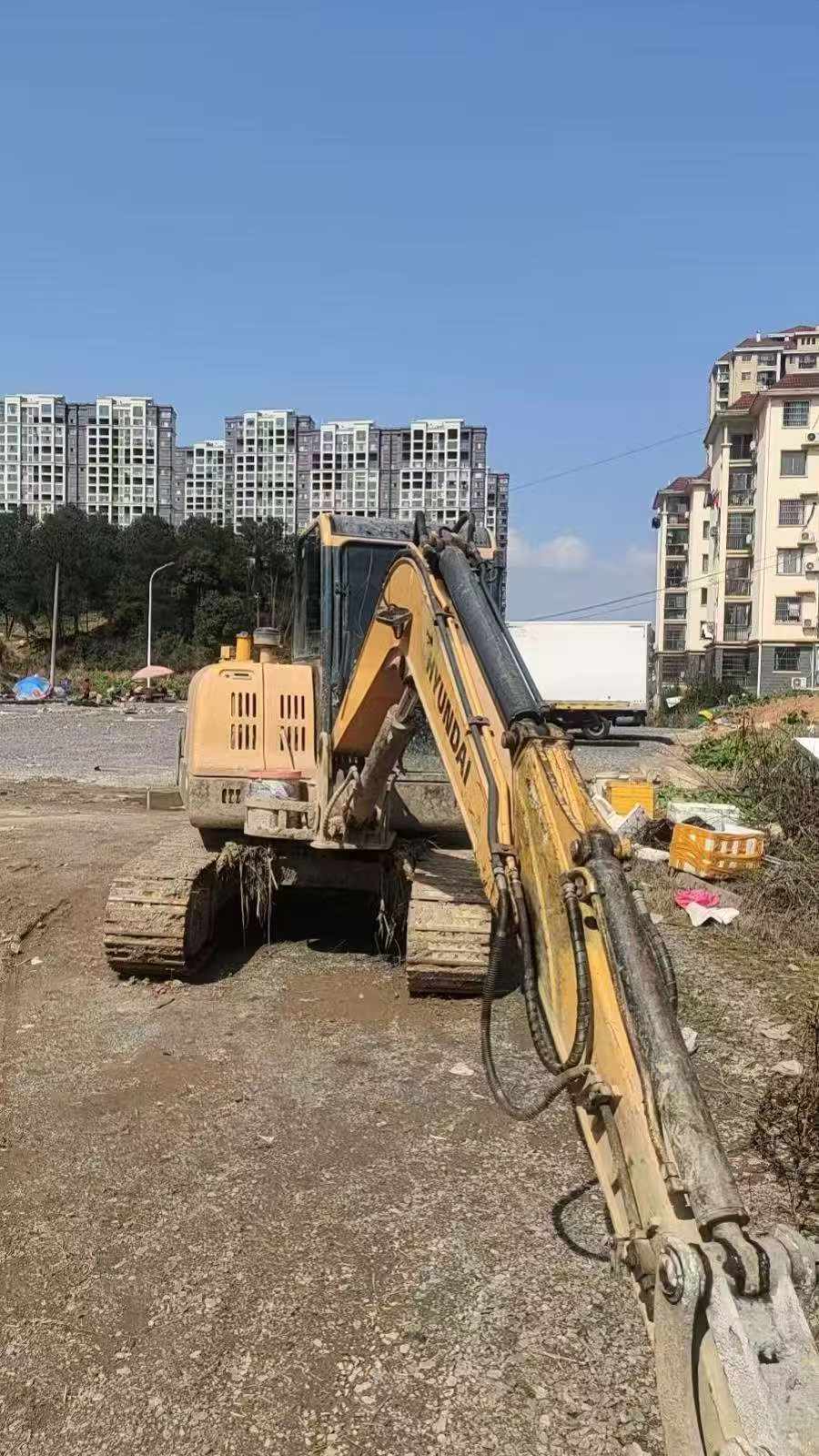

Maximize your equipment budget with this 2018 Hyundai HX60 mini excavator—delivering professional-grade performance at a fraction of new machine costs. Built for versatility in tight spaces, this 6-ton workhorse combines a proven Yanmar 4TNV94L engine (36.2 kW) with robust hydraulic systems engineered for demanding job sites. Compact dimensions (5900mm transport length) ensure easy mobilization, while impressive digging specs—3760mm maximum depth and 6127mm reach—tackle substantial excavation tasks efficiently.
- Operating weight: 5,720 kg with 0.21 m³ bucket capacity
- Powerful digging forces: 46.7 kN bucket, 27.5 kN arm
- Variable piston pump delivering 138 l/min flow for responsive control
- Factory-equipped hydraulic breaker line for attachment flexibility
- Two-speed travel (4.6/2.4 km/h) and 70% grading capability
- Water-cooled 4-cylinder engine with proven reliability
Currently located in Jiangxi, this well-maintained unit offers immediate ROI through reduced capital outlay while maintaining the productivity standards contractors demand. Smart buyers recognize premium value when uptime meets affordability.
| Specifications | Value |
|---|---|
| No. | 1023424 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

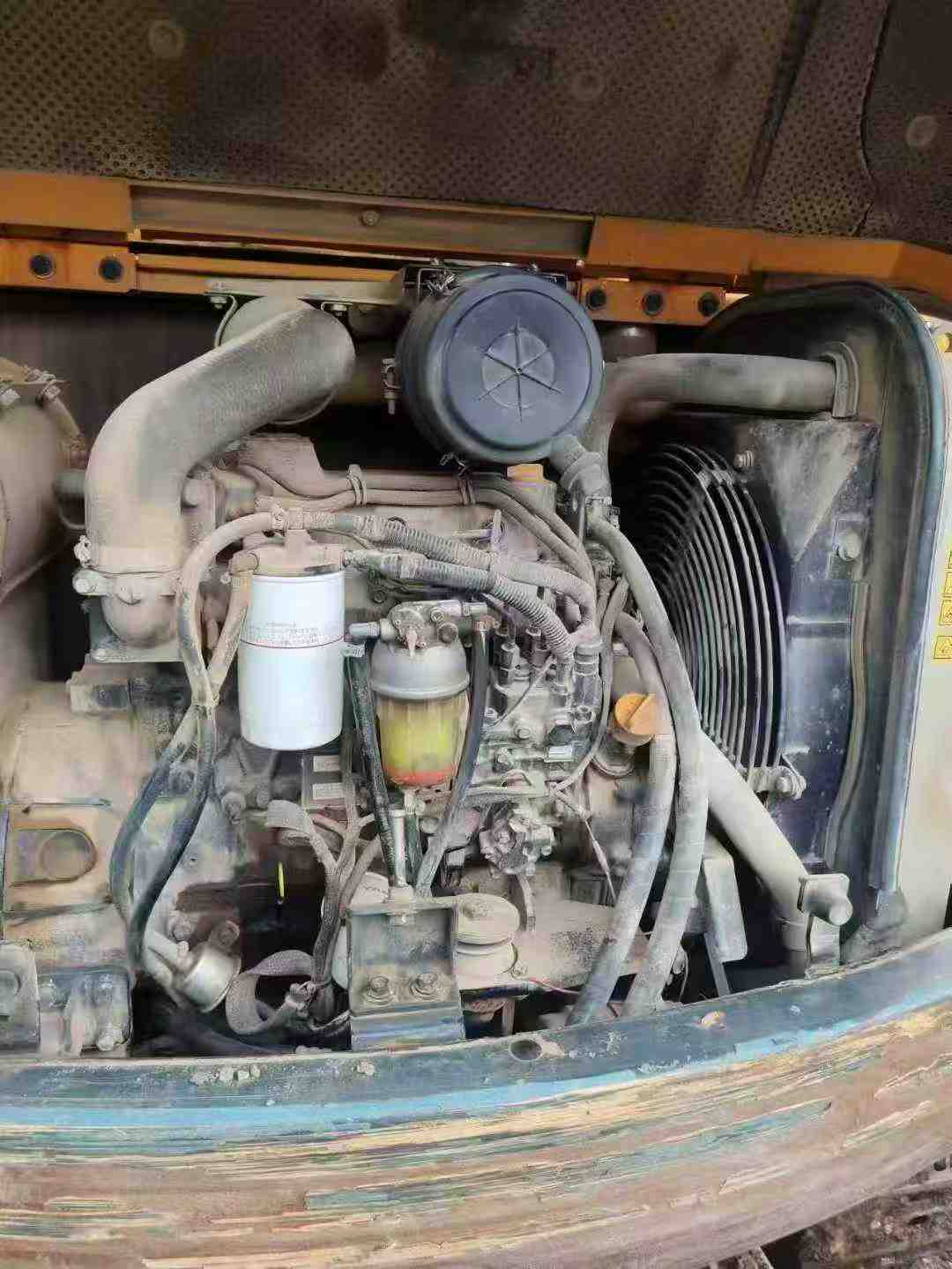

| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |

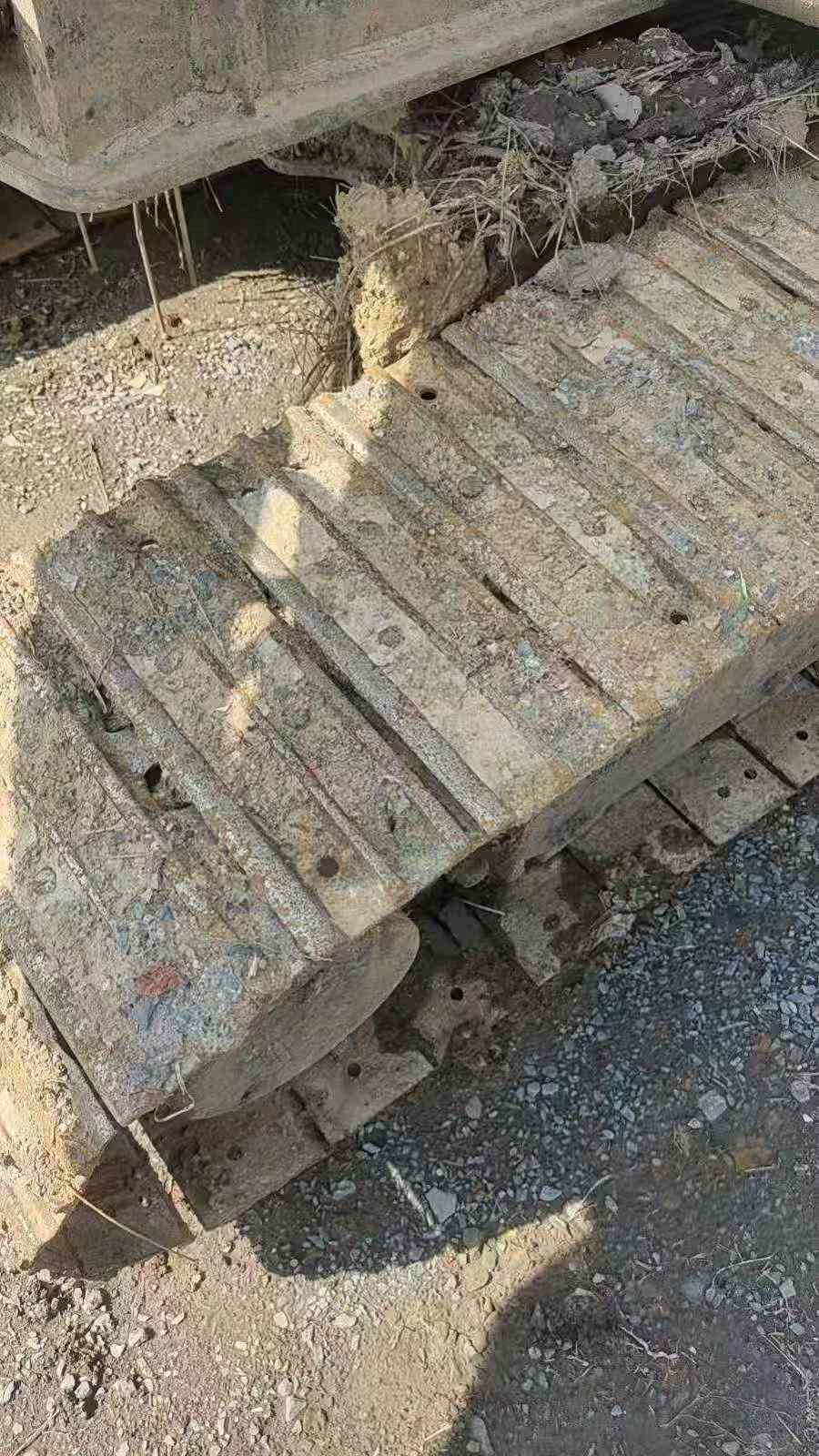

| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
