2018 Hyundai HX60

1/4

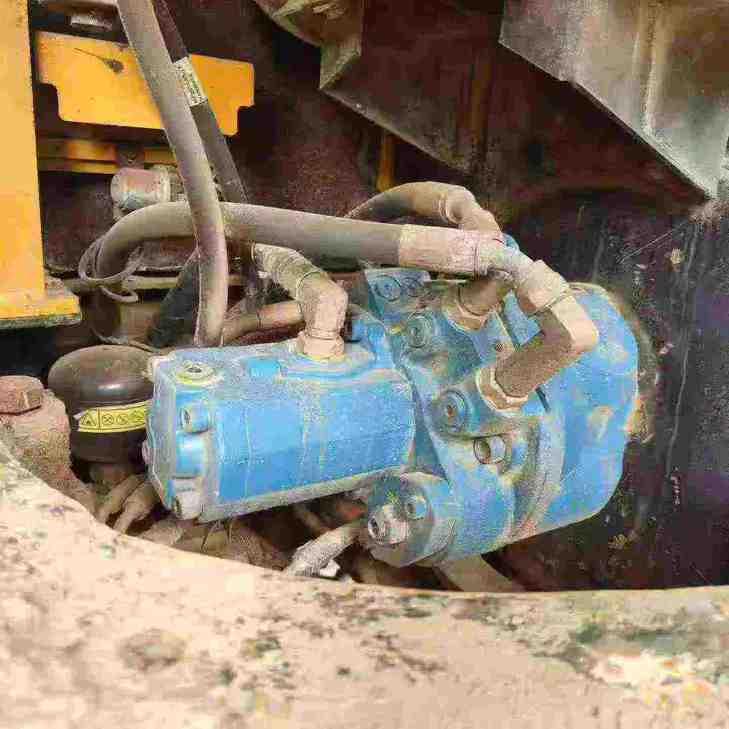

Buy Hyundai HX60 Used Excavator / 1
Buy Hyundai HX60 Used Excavator / 2
Buy Hyundai HX60 Used Excavator / 3
Buy Hyundai HX60 Used Excavator / 4

Product Description

This 2018 Hyundai HX60 excavator represents a valuable opportunity for contractors seeking reliable performance in a compact platform. As a first-owner machine with documented history, this unit has been consistently maintained and operated in Sichuan, China. The HX60 series is recognized for its balance of power and fuel efficiency in the 6-ton class, making it ideal for urban construction, landscaping, and utility work.

Key features of this excavator include:

  • 6-ton operating weight for versatile job site applications
  • Compact design suitable for confined spaces and urban projects
  • Hyundai's proven hydraulic system for smooth operation
  • Low operational hours reflecting careful single-owner maintenance
  • Currently located in Sichuan, China with export assistance available

This competitively priced unit offers an excellent entry point for businesses expanding their equipment fleet or contractors requiring dependable excavation capabilities.

SpecificationsValue
No.1089213
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
