Product Description

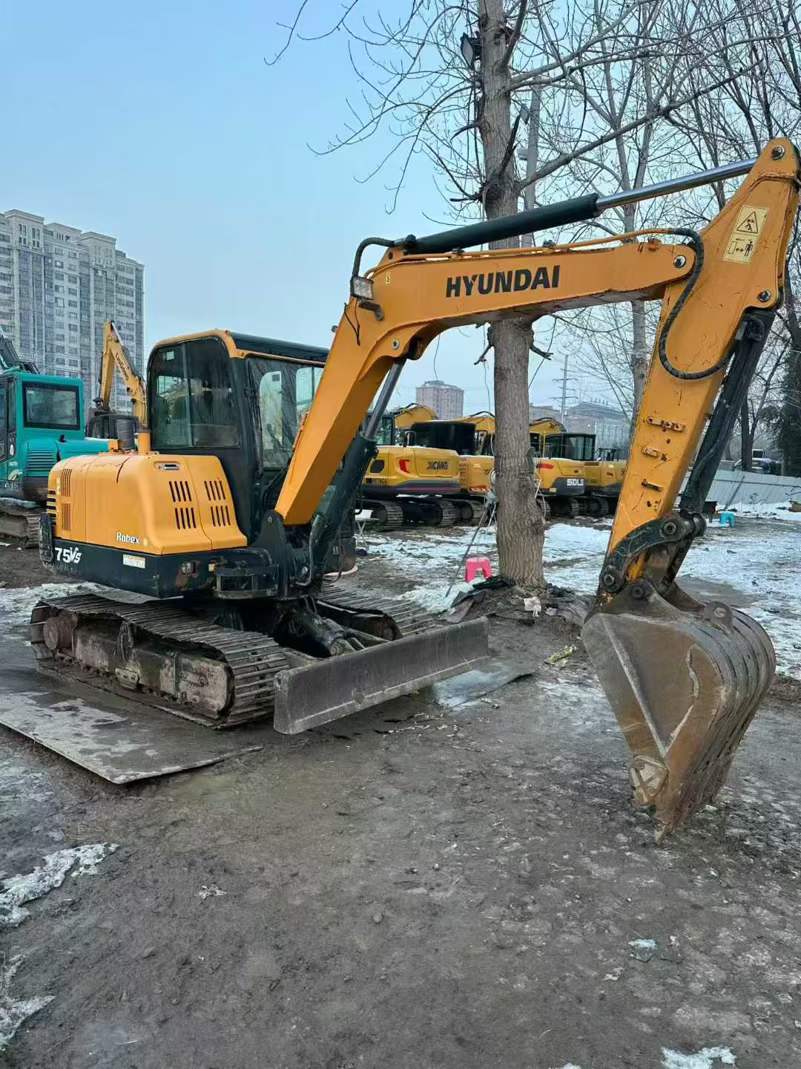

Built for immediate deployment on demanding jobsites, this 2018 Hyundai HX60 compact excavator delivers reliable performance across digging, grading, and demolition applications. Operating at 5,720 kg working weight with a 0.21 m³ bucket capacity, this machine combines maneuverability with serious digging power. The Yanmar 4TNV94L engine produces 36.2 kW at 2,200 rpm, driving a variable piston pump that delivers 138 l/min maximum flow for responsive hydraulic performance.
Key operational specifications include:
- Bucket digging force: 46.7 kN with 27.5 kN rod digging force
- Maximum digging depth: 3,760 mm; maximum reach: 6,127 mm
- Compact transport dimensions: 5,900 mm length × 1,920 mm width
- 70% climbing ability for challenging terrain navigation
- Standard hydraulic crushing pipeline for attachment versatility
- Two-speed travel: 4.6/2.4 km/h for efficient site mobility
Currently located in Xuzhou, Jiangsu, this water-cooled, four-cylinder machine features axial piston motors with automatic braking and arrives ready for your next project. Direct injection engine technology ensures fuel efficiency while maintaining consistent torque delivery throughout the wor
| Specifications | Value |
|---|---|
| No. | 995820 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

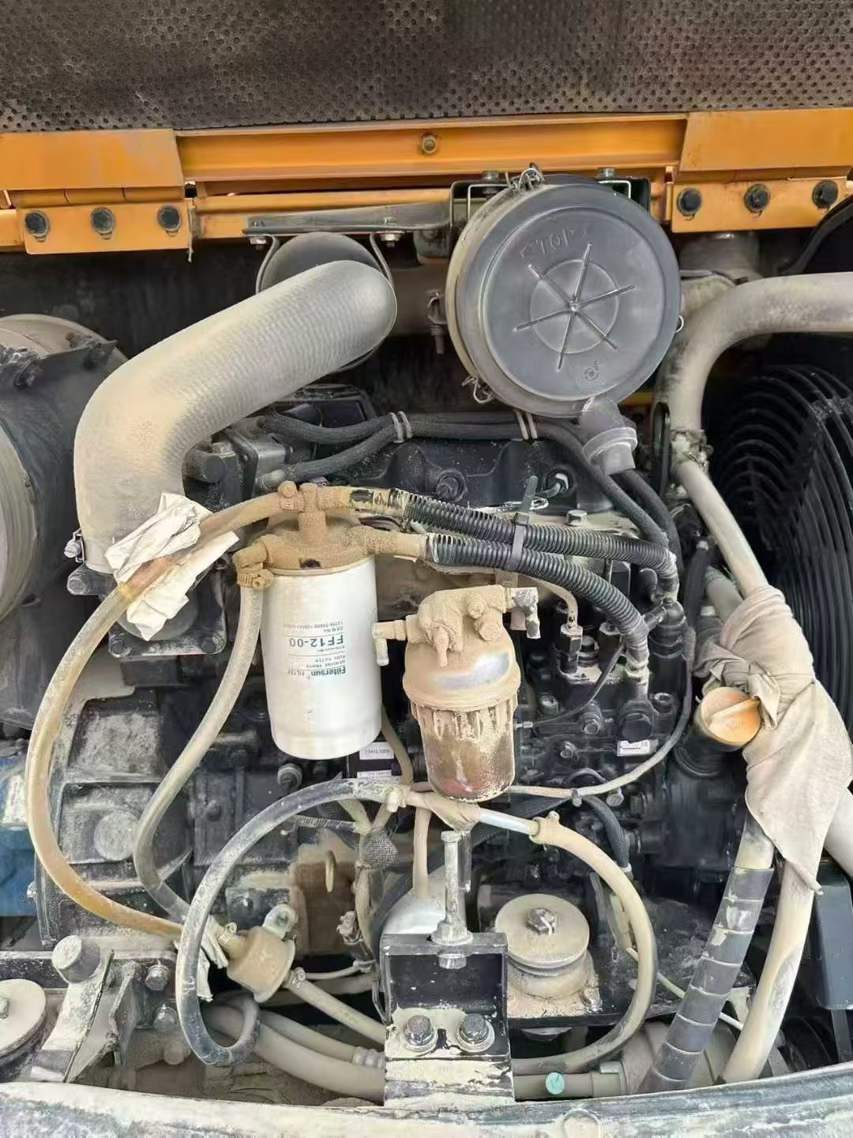

| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |
| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
