Product Description

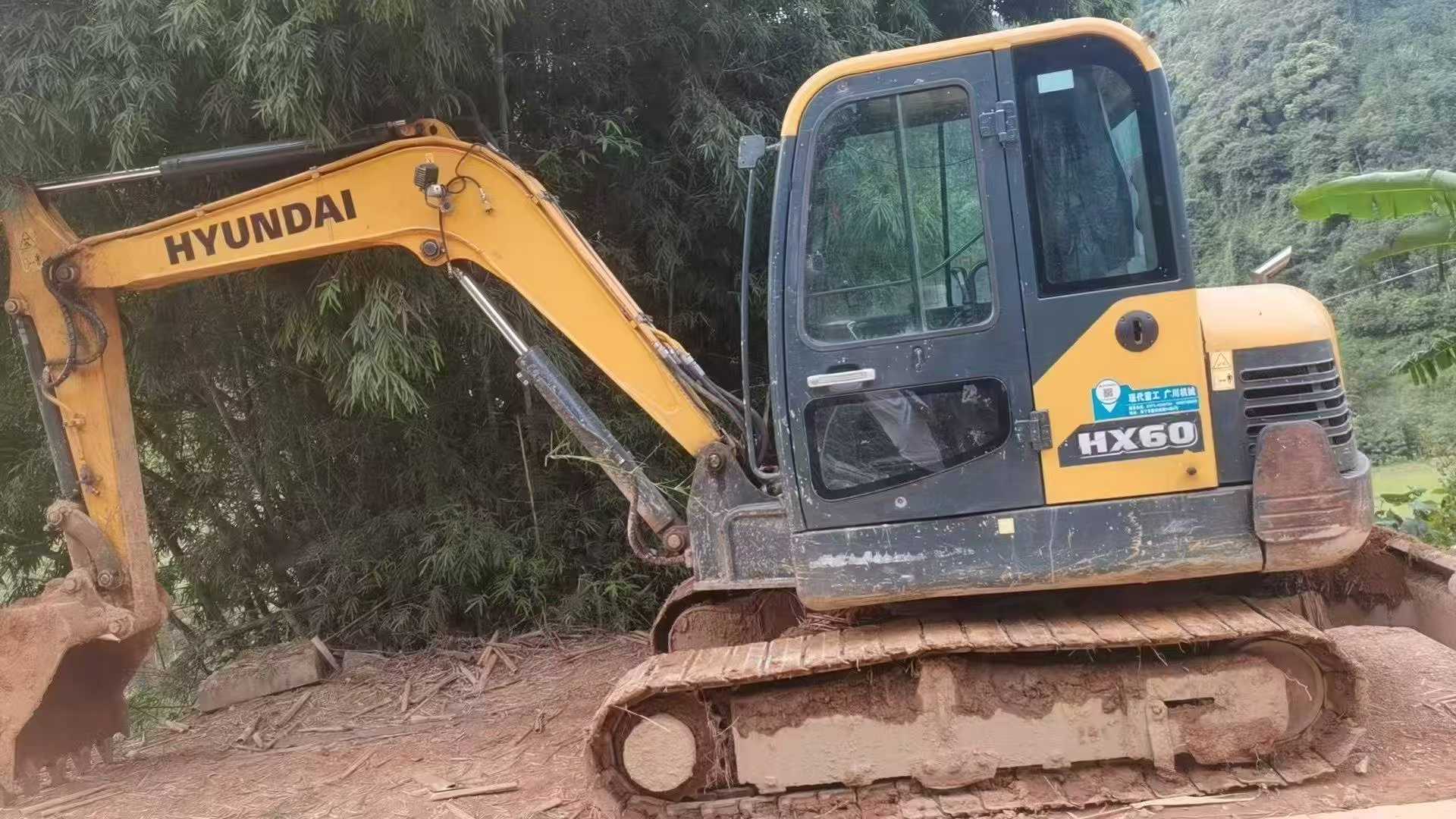

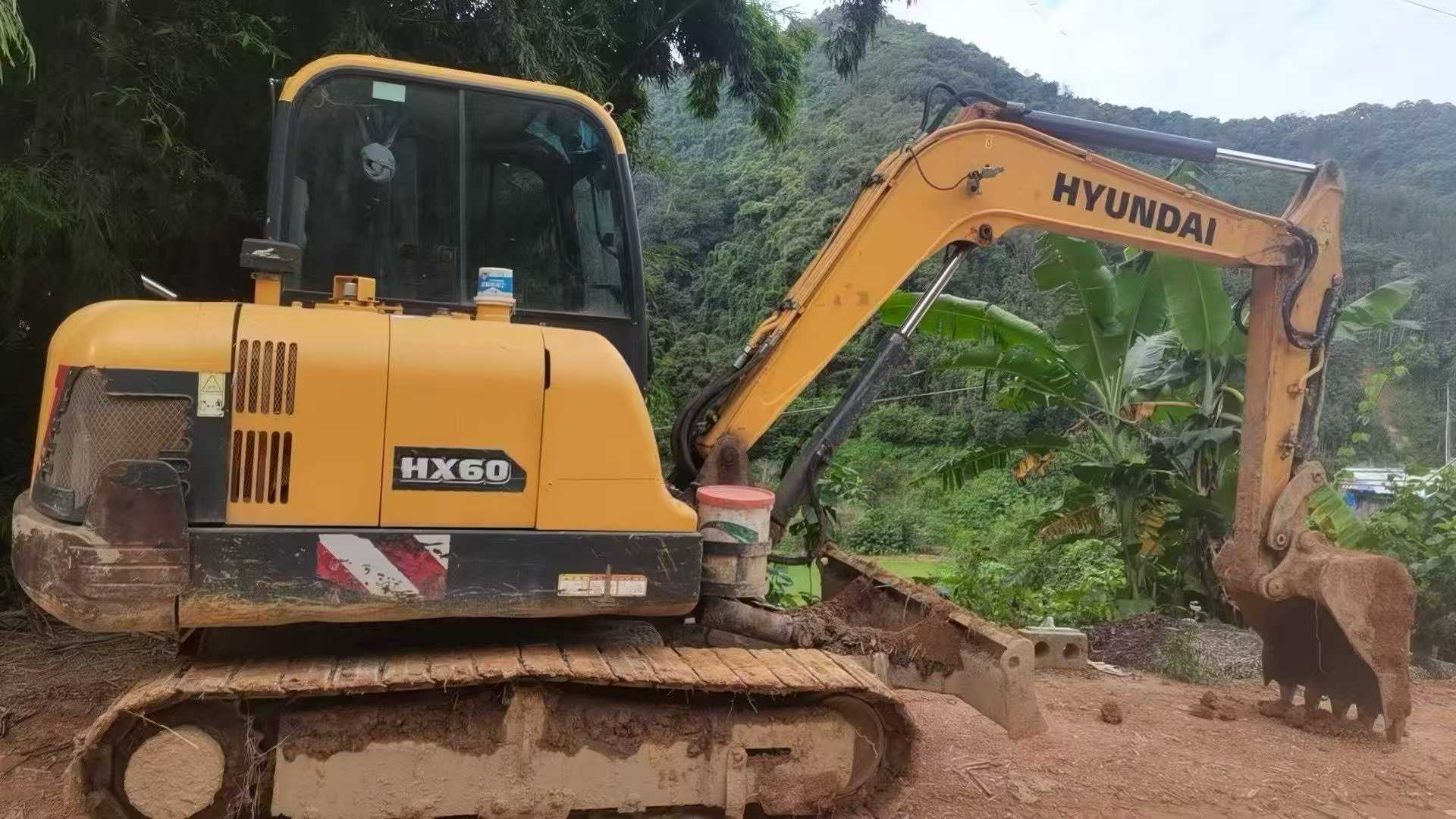

Available now in Guangxi, this 2020 Hyundai HX60 mini excavator eliminates factory wait times and gets your project moving immediately. Powered by a reliable Yanmar 4TNV94L engine delivering 36.2 kW at 2200 rpm, this 6-ton machine combines compact dimensions (5900mm transport length) with serious capability—3760mm maximum digging depth and 6127mm working radius handle demanding site conditions. Fast deployment means you're operational within days, not months.
- Operating Weight: 5,720 kg with 0.21 m³ bucket capacity
- Digging Performance: 46.7 kN bucket force, 27.5 kN arm force
- Hydraulics: 138 l/min variable piston pump with standard breaker lines
- Mobility: 4.6/2.4 km/h travel speed, 70% grading ability
- Dimensions: 1920mm width, 2550mm height—ideal for confined spaces

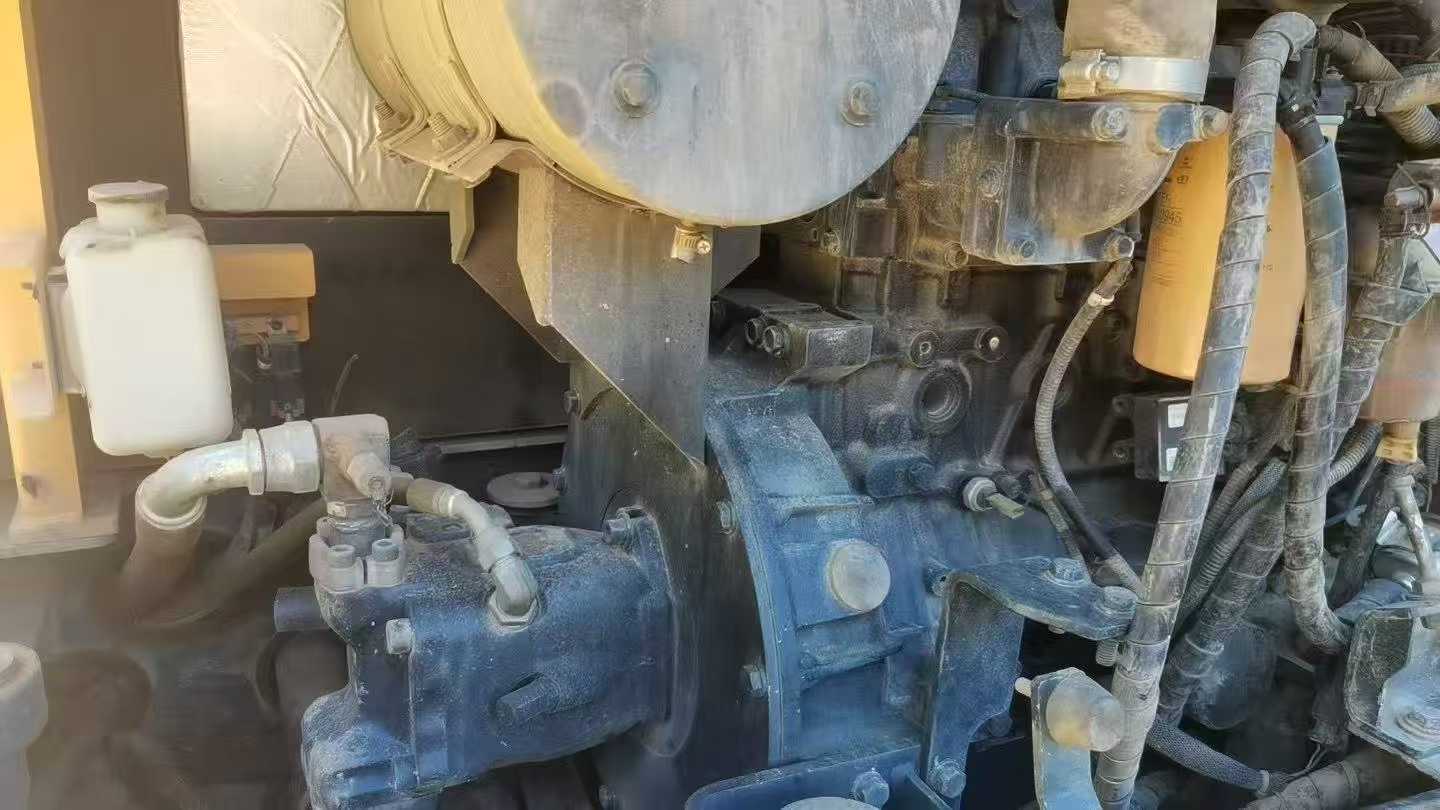

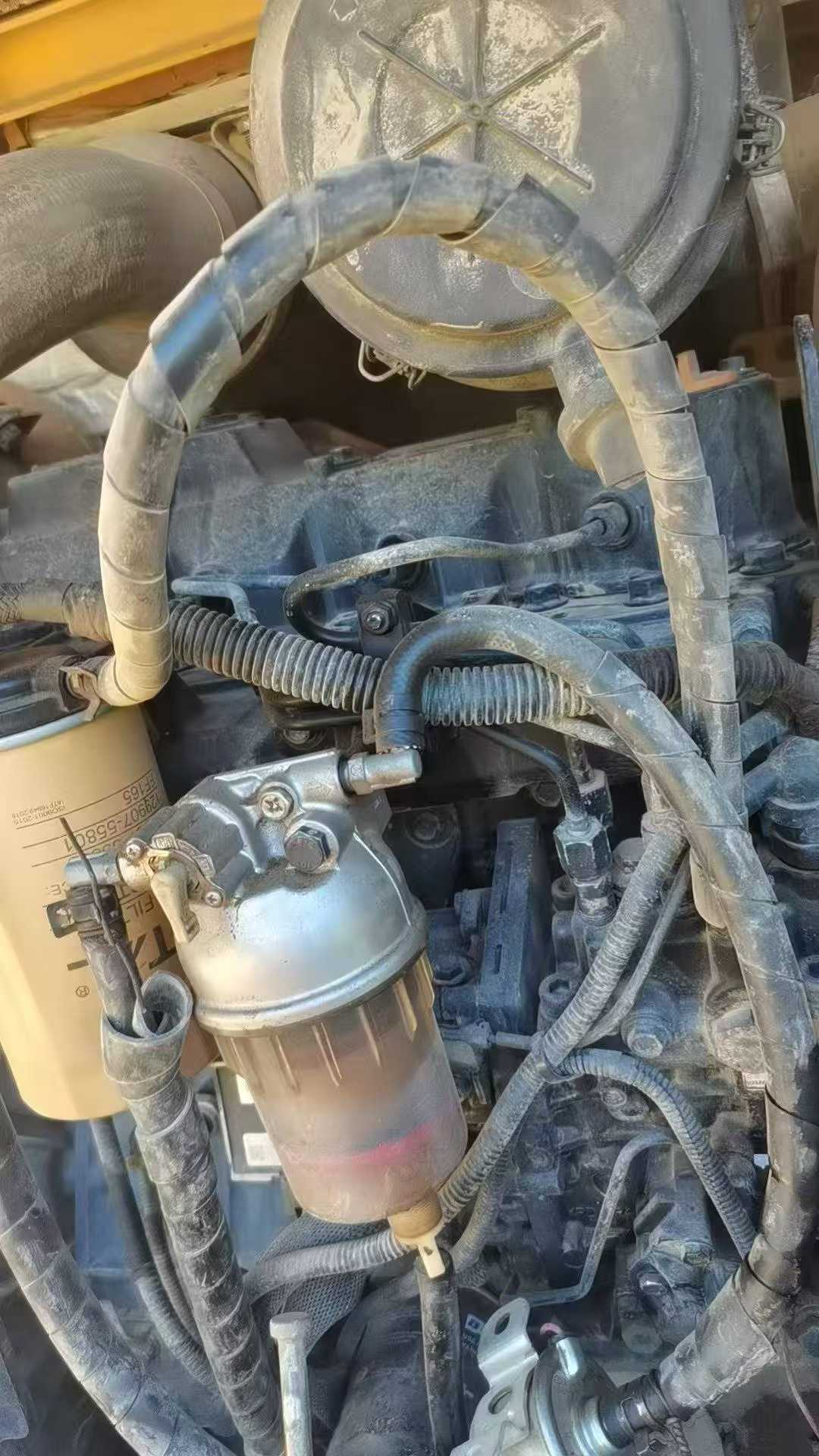

- Engine: Water-cooled 4-cylinder, 3.053L displacement, 201.1 N.m torque
Skip the procurement delays. This joint-venture quality machine ships directly from Guangxi to your worksite, ready for immediate productivity in utility work, landscaping, or light construction applications.
| Specifications | Value |
|---|---|
| No. | 1032991 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |
| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
