Product Description

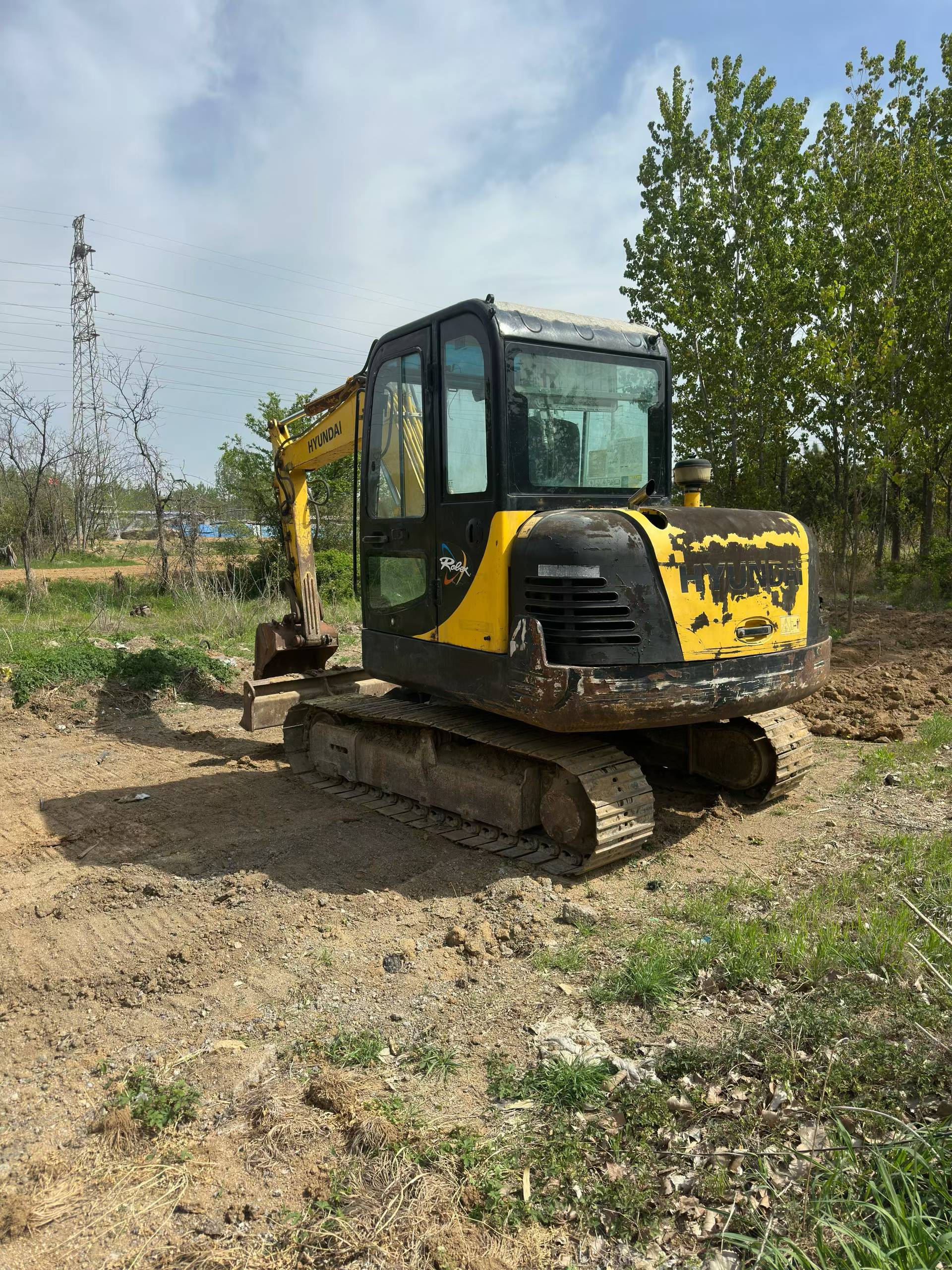

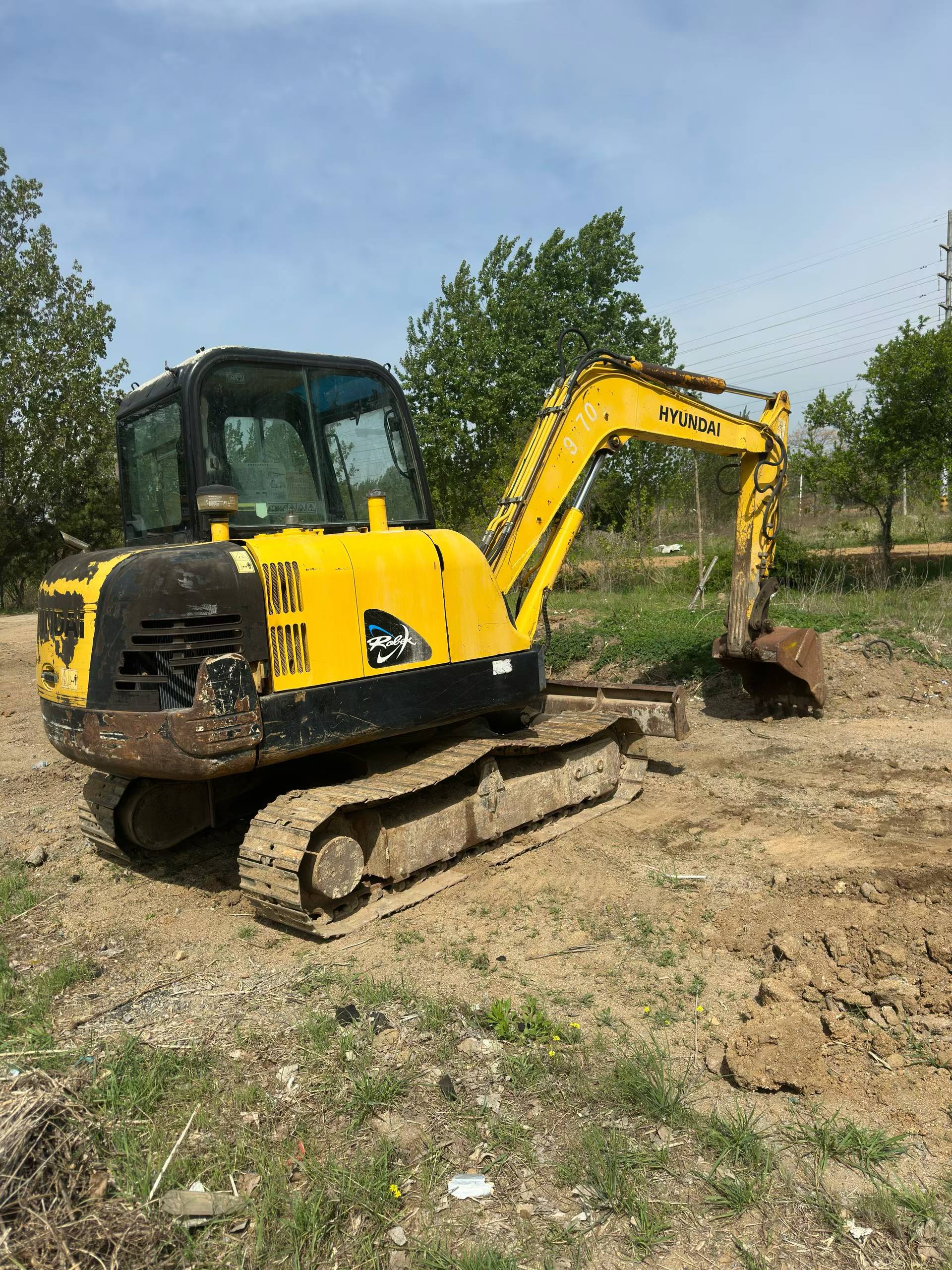

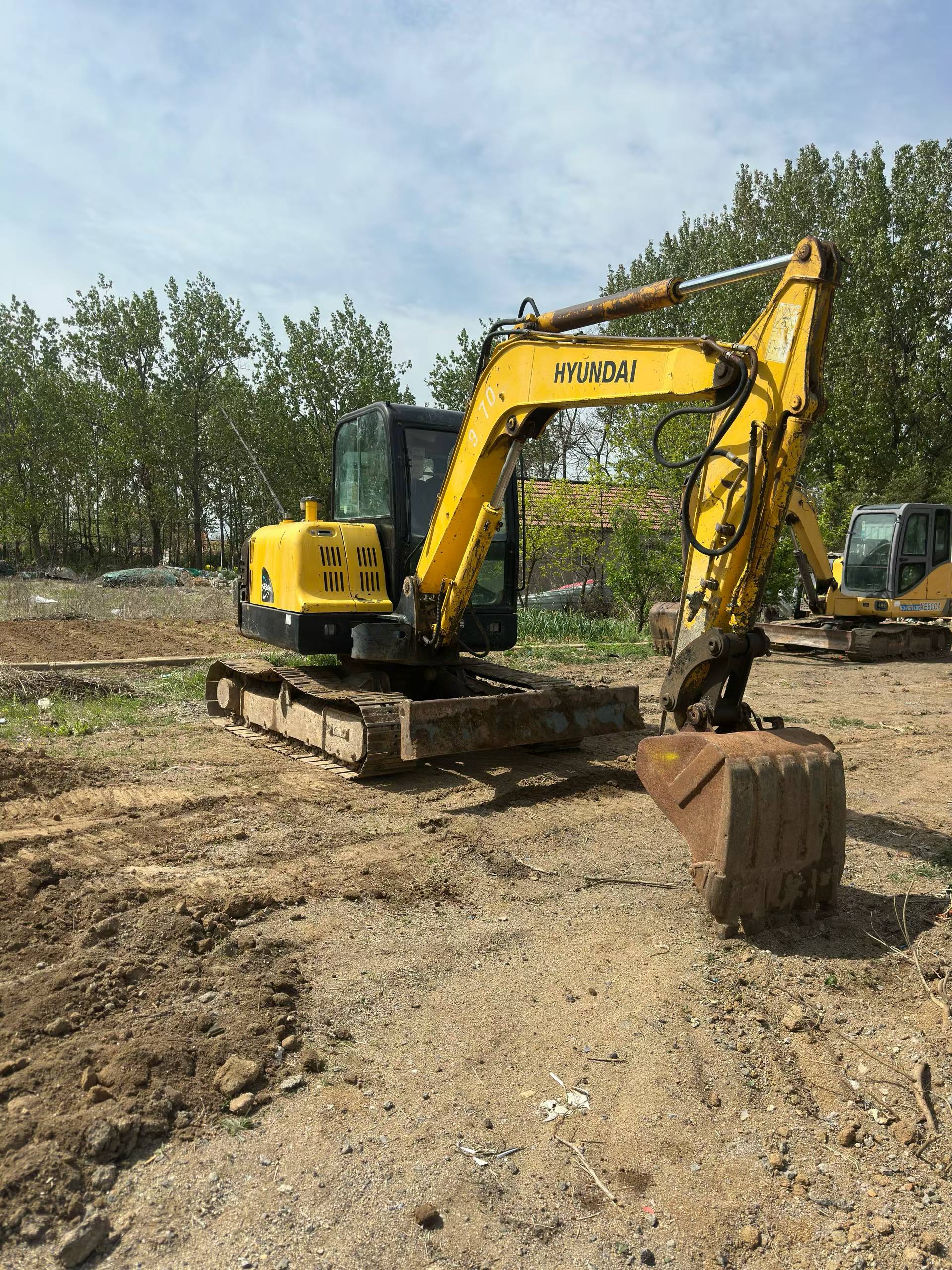

With a working weight of 5720 kg and a bucket capacity of 0.21 m³, the 2020 Hyundai HX60 excavator is an ideal addition to any contractor's fleet. Located in Shandong, China, this robust machine offers a powerful Yanmar 4TNV94L-ZXSHYB(XSNSRE) engine, delivering 36.2 kW at 2200 rpm. Equipped with a backhoe bucket, it provides impressive digging forces: 46.7 kN for the bucket and 27.5 kN for the rod. The HX60 features a variable piston pump and two-speed axial plunger motor, ensuring efficient operation and maneuverability. Its compact design, with a total transport length of 5900 mm and width of 1920 mm, makes it easy to transport and operate in tight spaces. Ideal as a backup or primary unit, the HX60 ensures your projects stay on schedule with its reliable performance and versatility.
- Working weight: 5720 kg
- Bucket capacity: 0.21 m³
- Engine: Yanmar 4TNV94L-ZXSHYB(XSNSRE), 36.2 kW at 2200 rpm
- Digging force: 46.7 kN (bucket), 27.5 kN (rod)
- Total transport dimensions: 5900 mm (length) x 1920 mm (width)
| Specifications | Value |
|---|---|
| No. | 1056665 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

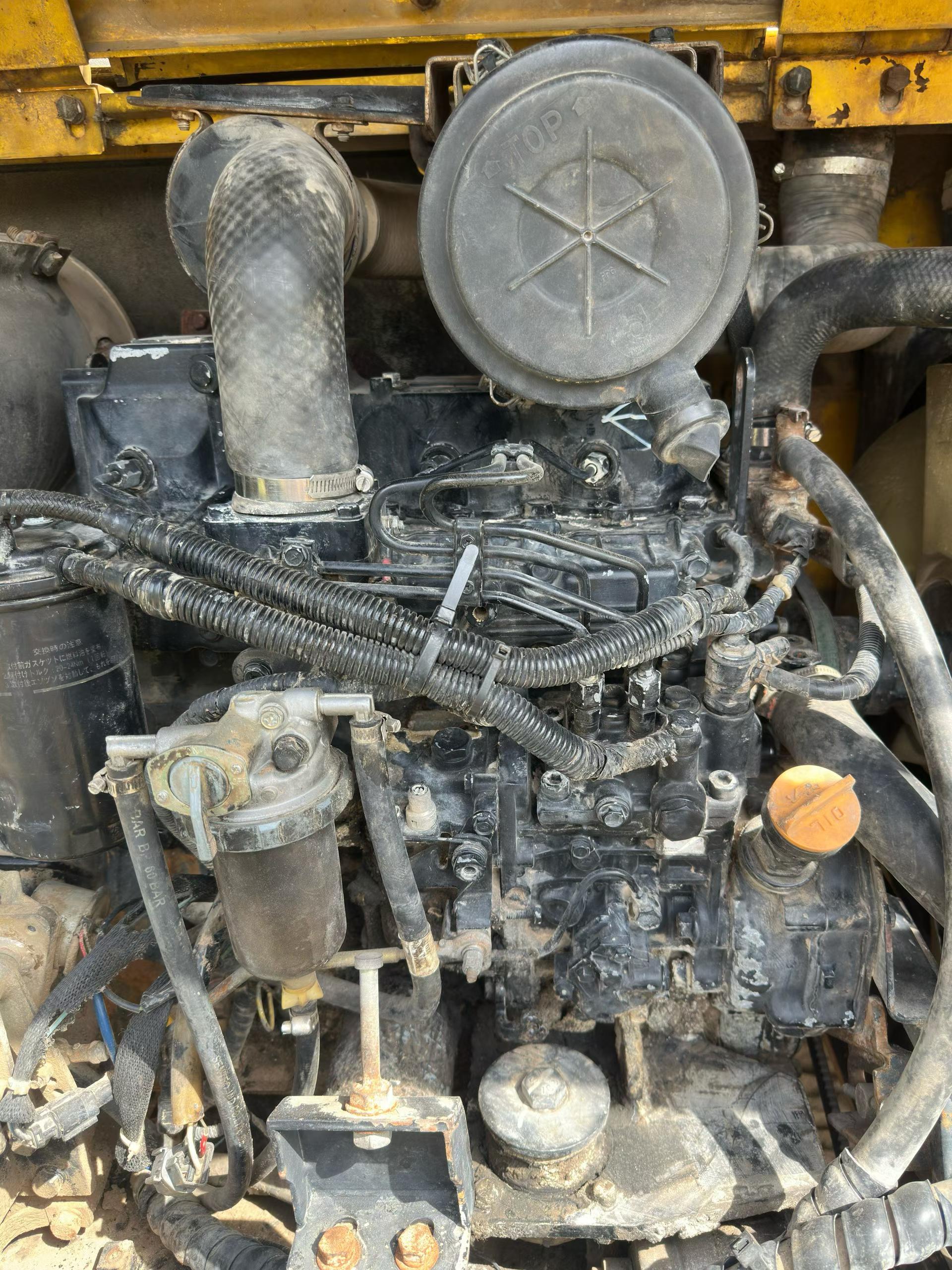

| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |

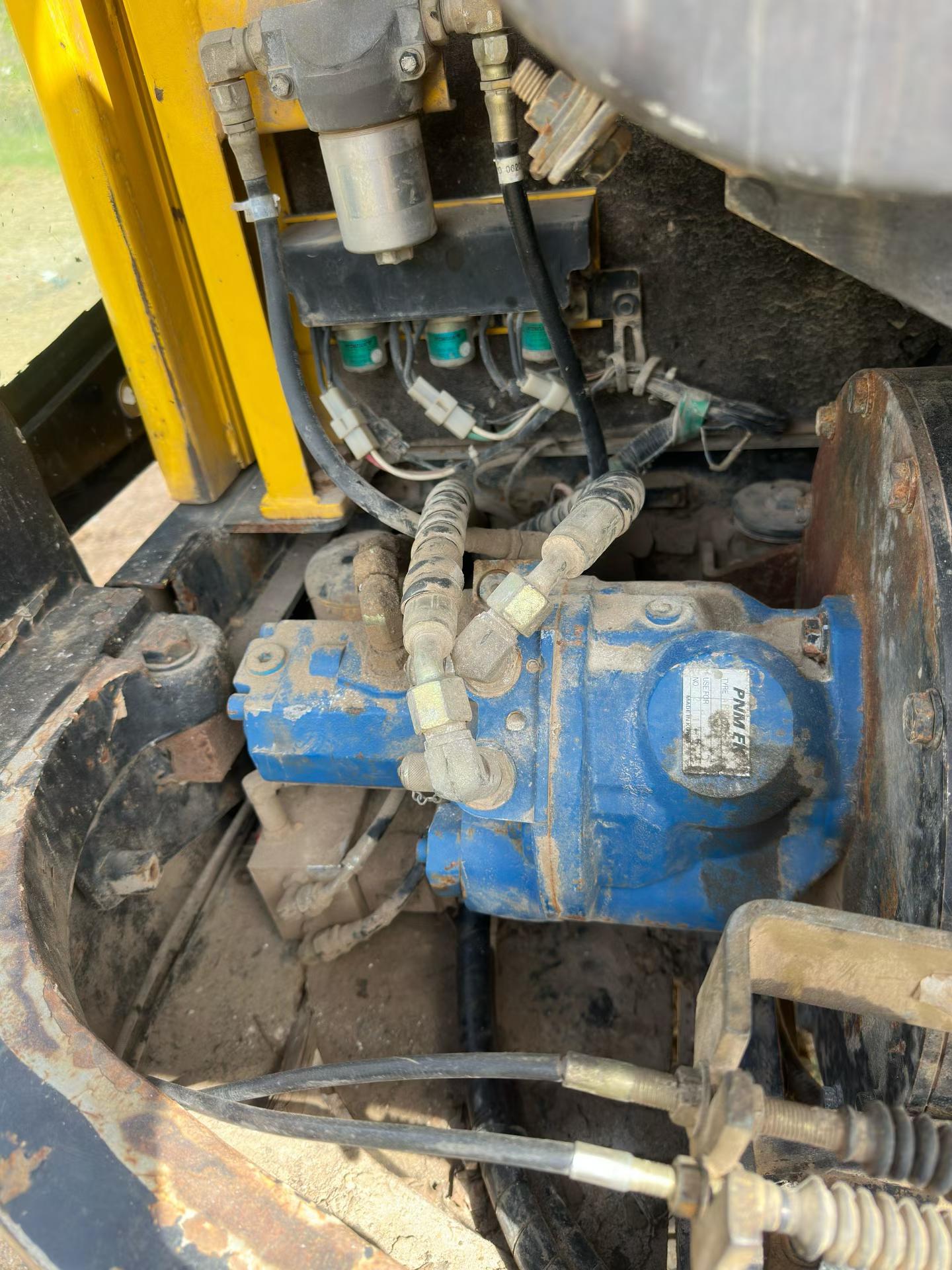

| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |

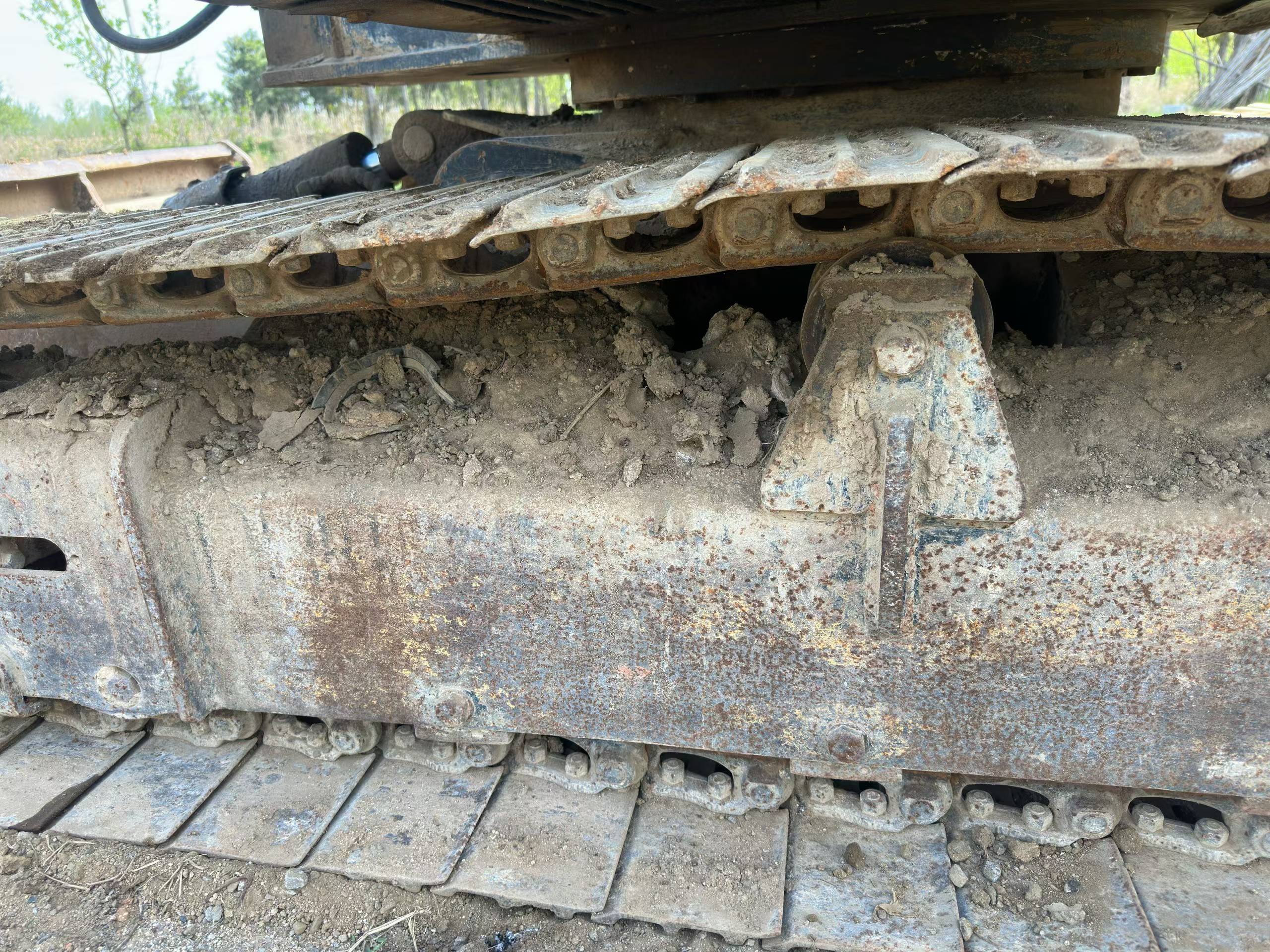

| Track ground length (mm) | 1990 |

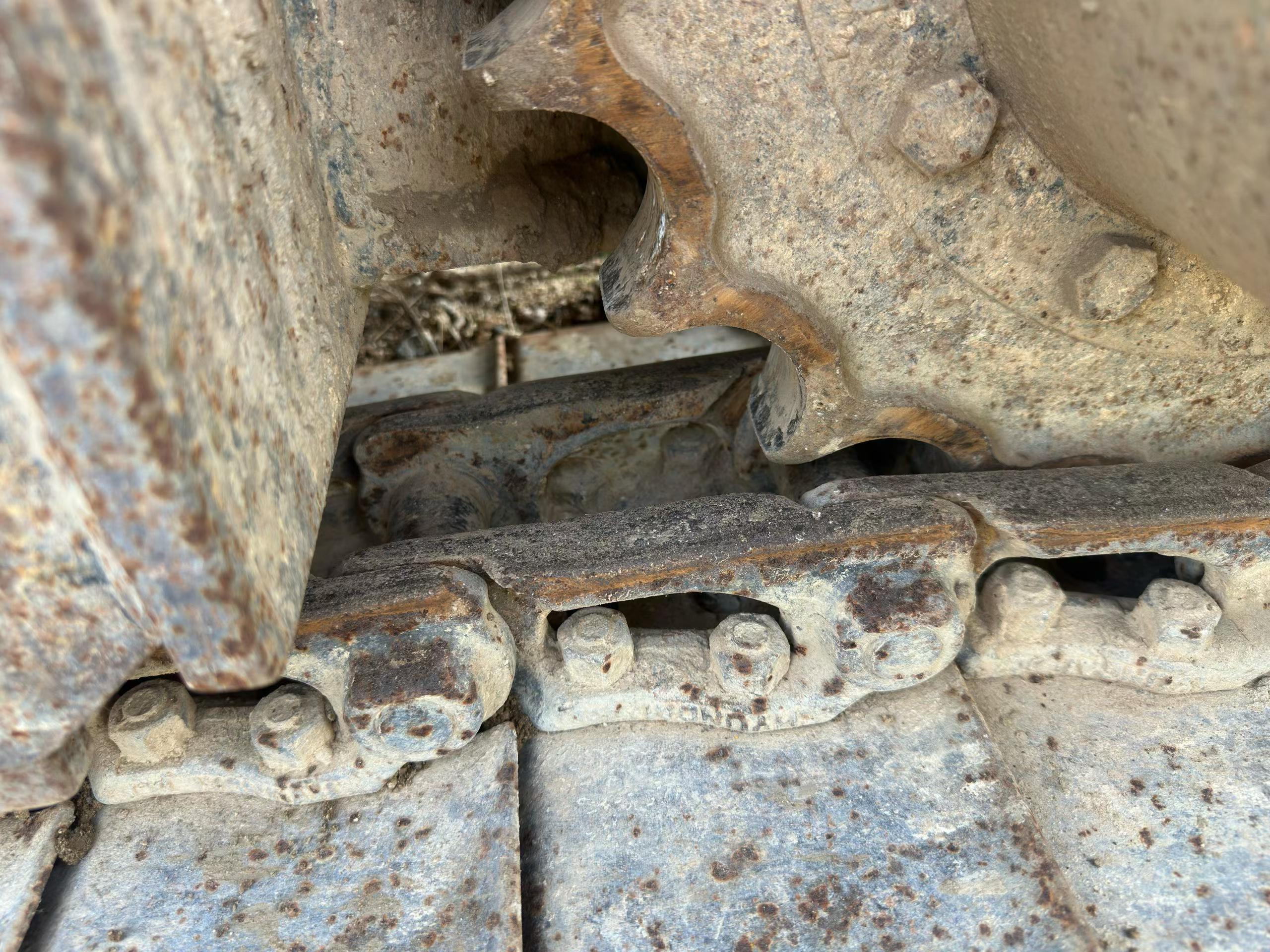

| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
