Product Description

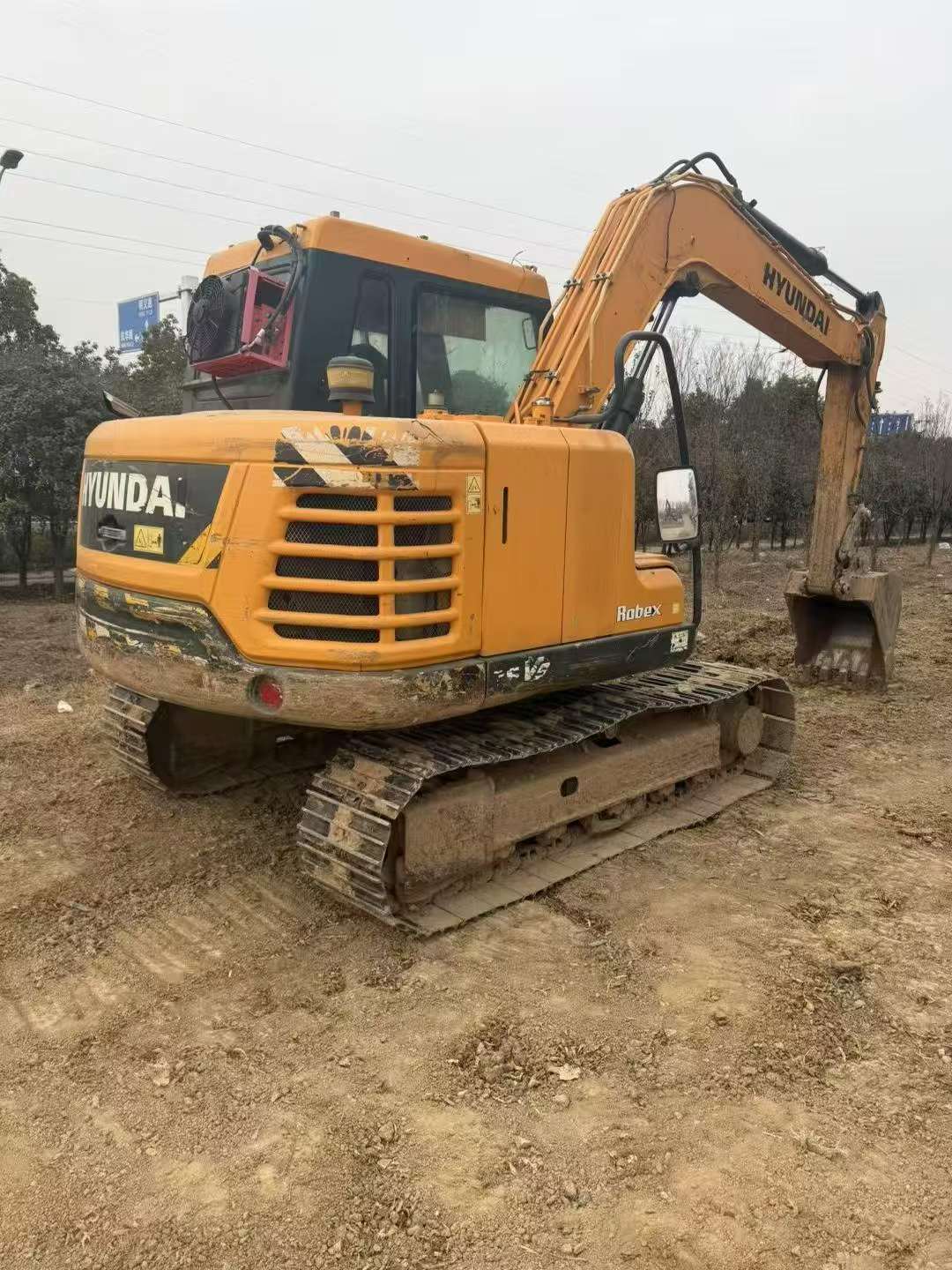

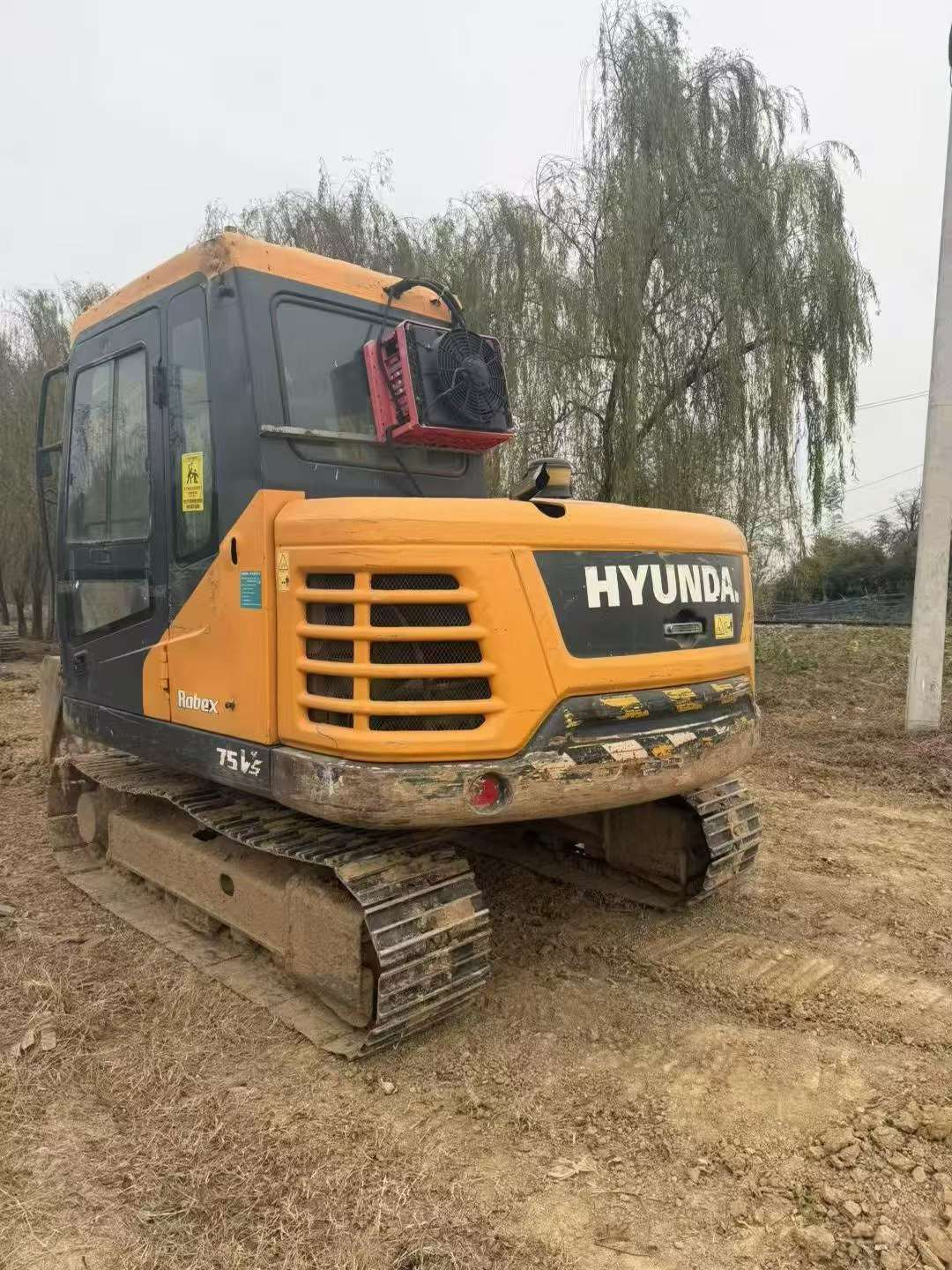

Built in 2017, this Hyundai HX75 mini excavator delivers proven performance in the 7-ton class with the backing of a globally recognized manufacturer. Powered by a reliable Yanmar 4TNV98-Z engine producing 44.4 kW at 2100 rpm, this machine combines Japanese engine durability with Hyundai's robust hydraulic architecture. Operating weight of 7,000 kg and a 0.32 m³ bucket capacity make it ideal for urban construction, utility work, and confined site applications.
Hyundai's joint venture manufacturing ensures consistent parts availability across international markets—a critical advantage when purchasing used equipment. With maximum digging depth of 4,015 mm and reach extending to 6,335 mm, the HX75 handles demanding tasks while maintaining compact transport dimensions of 6,080 × 2,260 × 2,550 mm.
Key specifications:
- Bucket digging force: 55.9 kN
- Variable piston pump: 158 L/min flow
- Water-cooled 4-cylinder engine
- 12.5 rpm swing speed for efficient operation
- Currently located in Jiangsu, China
Strong resale value retention and widespread dealer networks make Hyundai excavators a financially sound choice in the secondary market.
| Specifications | Value |
|---|---|
| No. | 1014580 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
