Product Description

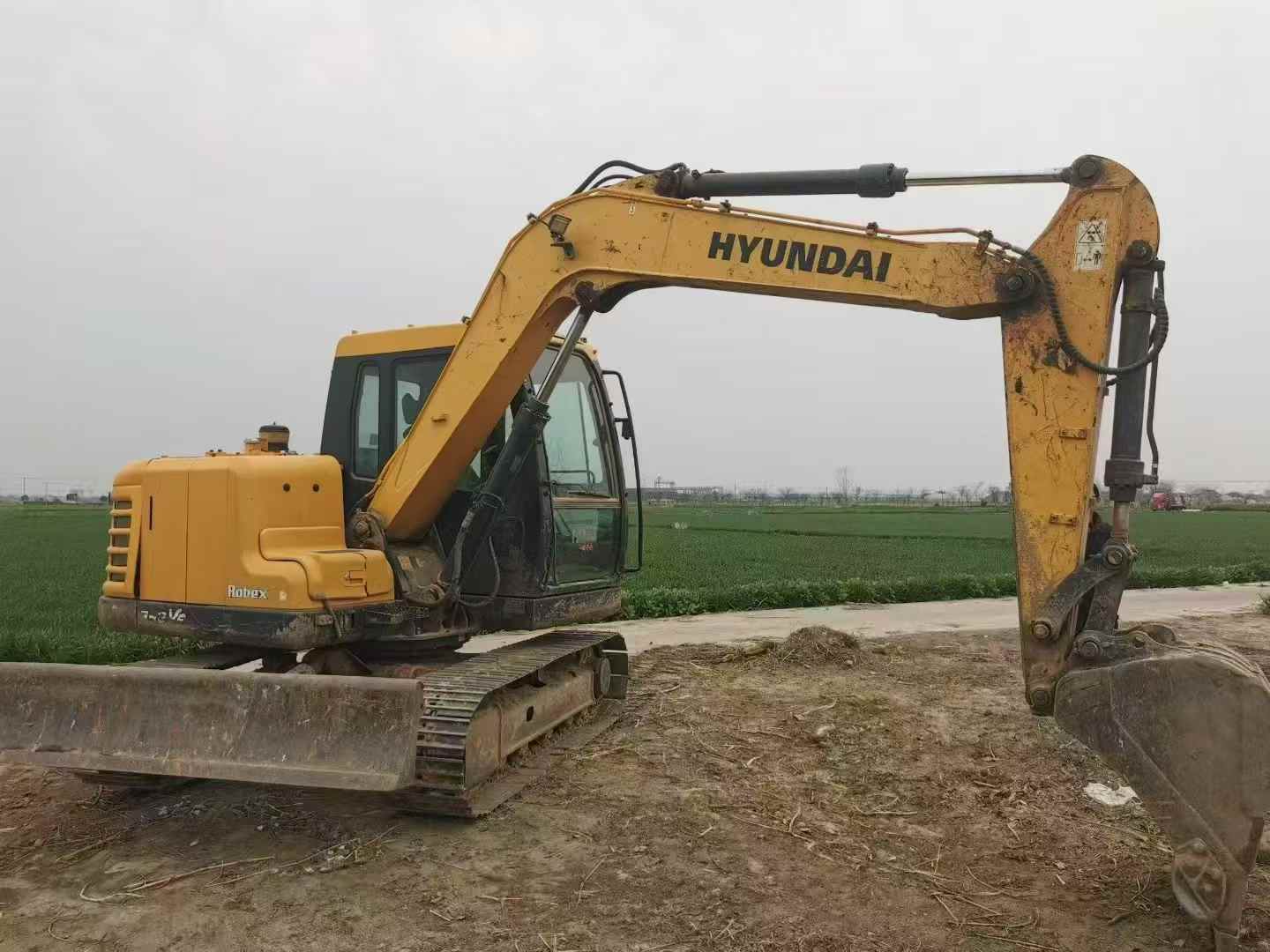

Maximize your ROI with this 2019 Hyundai HX75 compact excavator—delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable Yanmar 4TNV98-Z engine producing 44.4 kW at 2100 rpm, this 7-ton machine combines efficiency with proven durability. Currently located in Jiangsu Changzhou, this joint venture-manufactured unit offers exceptional value for contractors seeking dependable productivity without the premium price tag.
Engineered for versatility, the HX75 features a 3700mm boom and 1670mm arm, achieving a maximum digging depth of 4015mm and reach of 6335mm. With 55.9 kN bucket digging force and 43.9 kN arm force, it tackles demanding excavation tasks with confidence. The water-cooled system, variable piston pump delivering 158 l/min flow, and 70% climbing ability ensure consistent performance across challenging jobsites. Compact dimensions (6080mm length, 2260mm width) enable maneuverability in tight spaces while maintaining stability.
Invest smarter—acquire near-new capability, proven Hyundai quality, and immediate deployment readiness while preserving capital for other business priorities. Contact Fair Trade Machinery today for competitive pricing on this cost-effective exca
| Specifications | Value |
|---|---|
| No. | 1030391 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

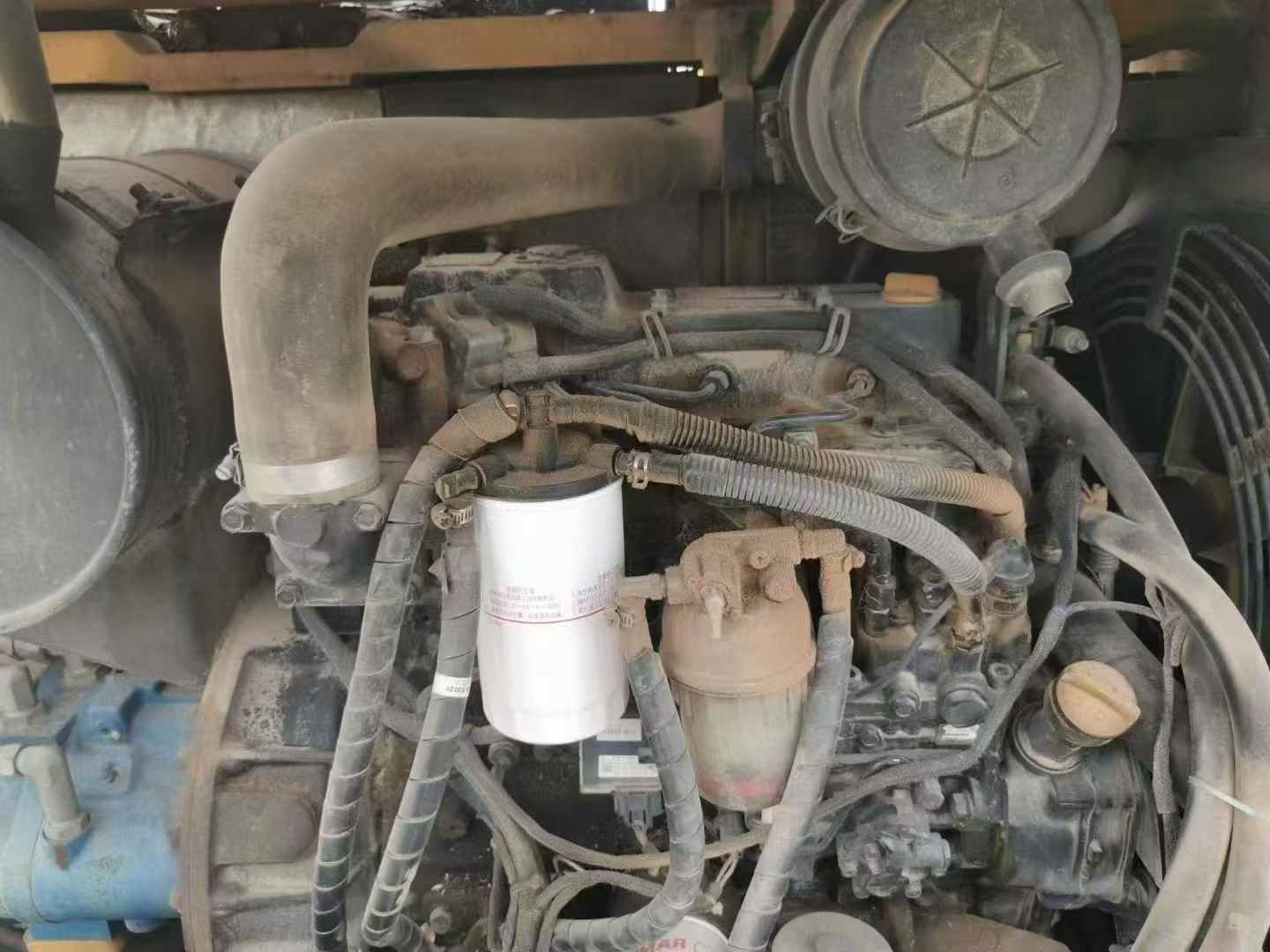

| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |

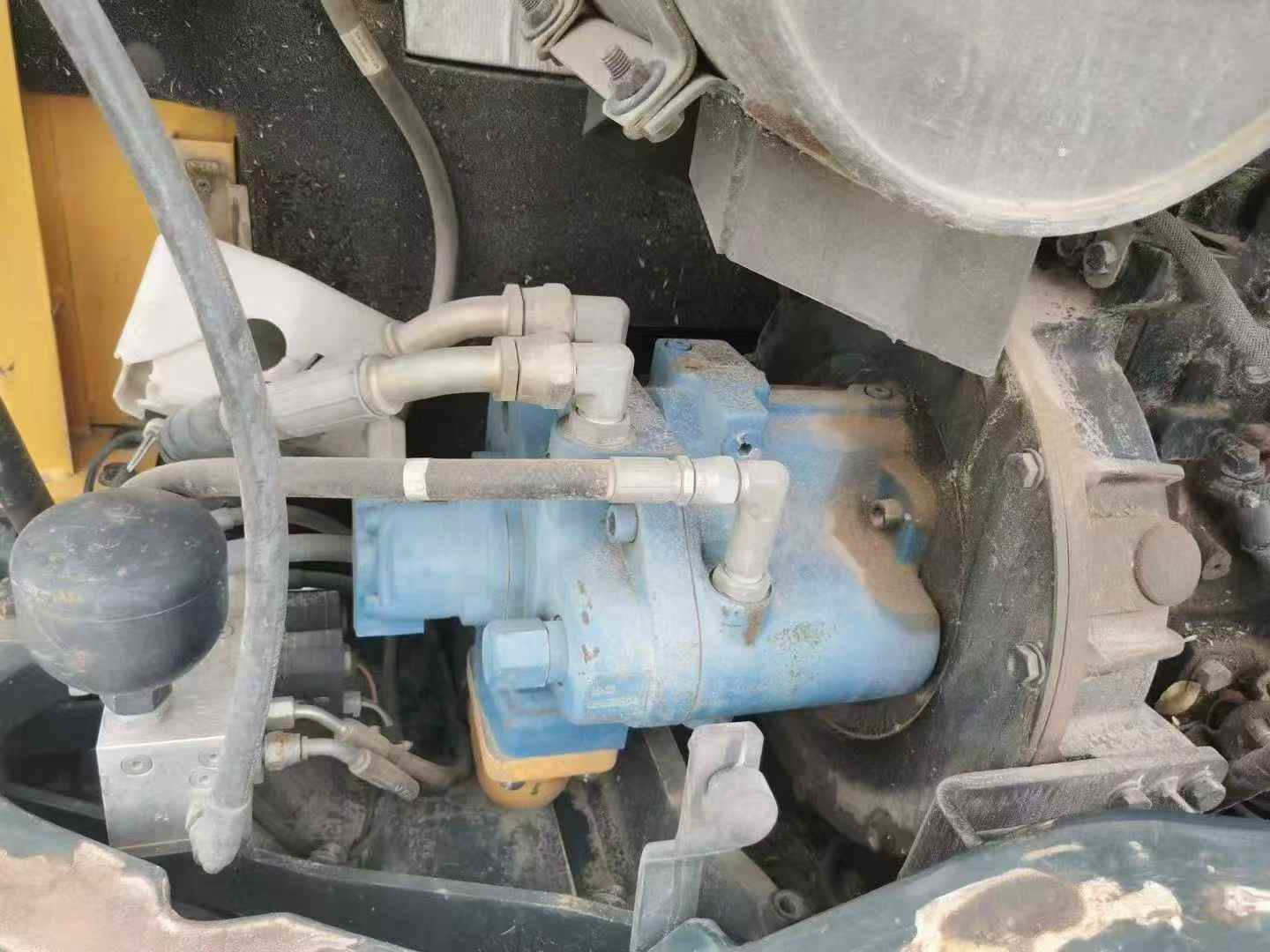

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
