2019 Hyundai HX75

1/9

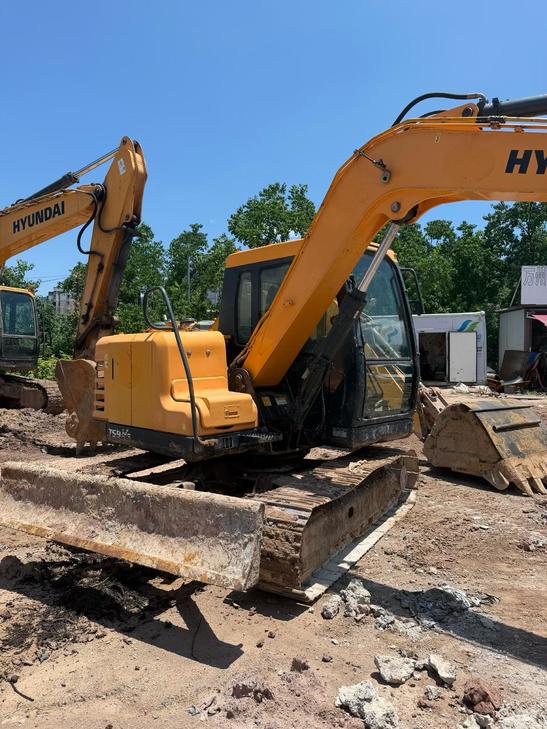

Buy Hyundai HX75 Used Excavator / 1

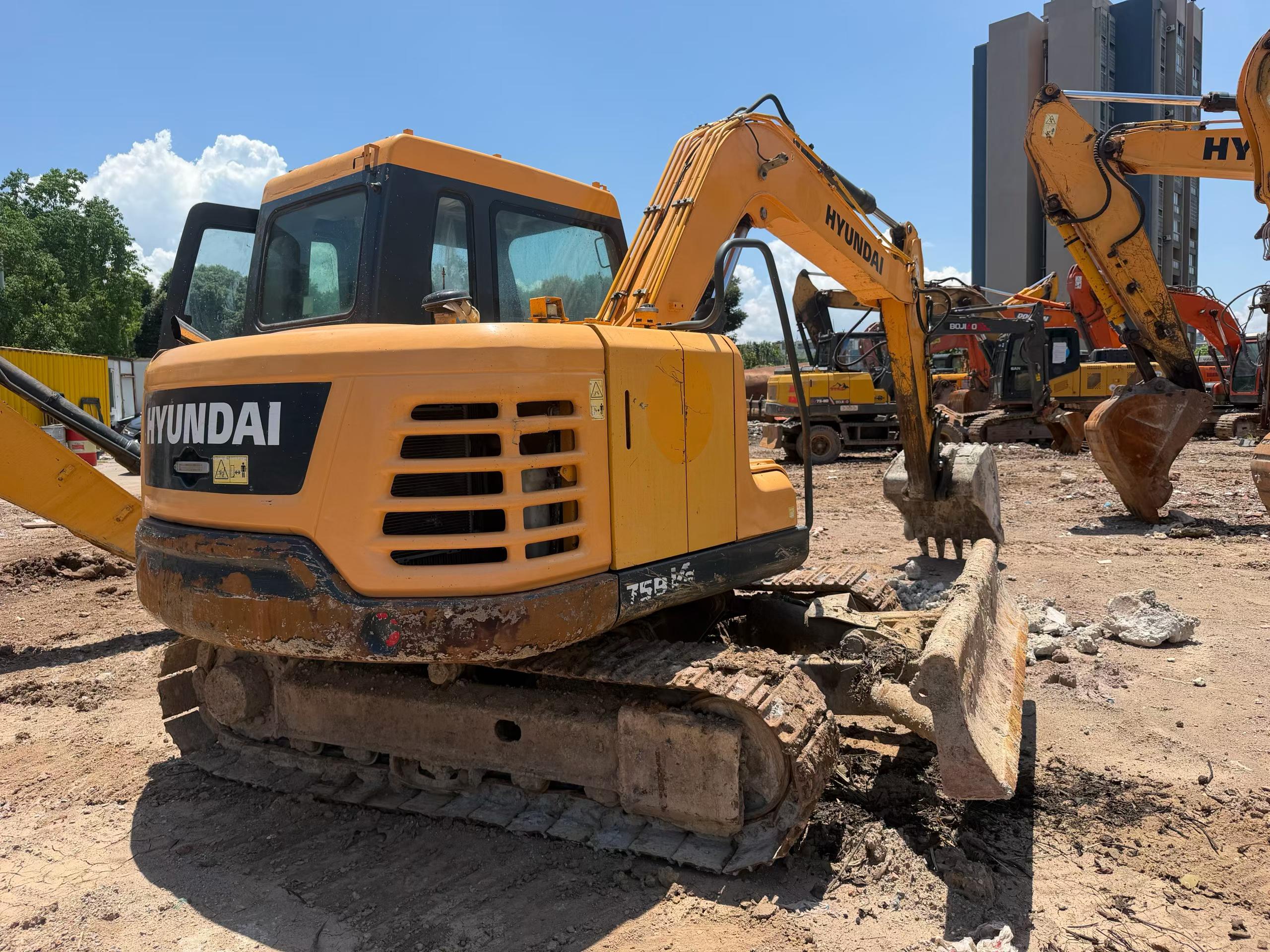

Buy Hyundai HX75 Used Excavator / 2

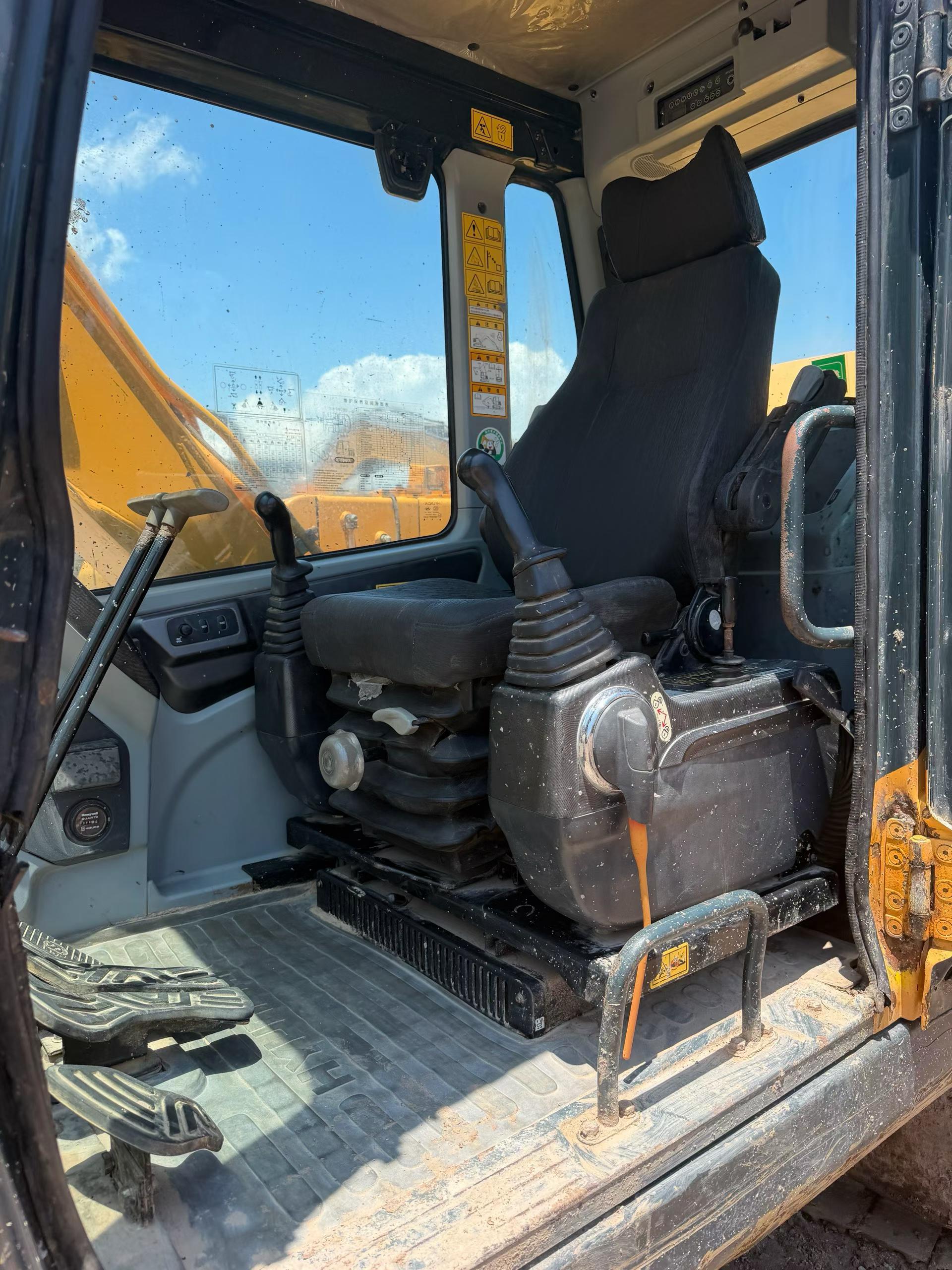

Buy Hyundai HX75 Used Excavator / 3

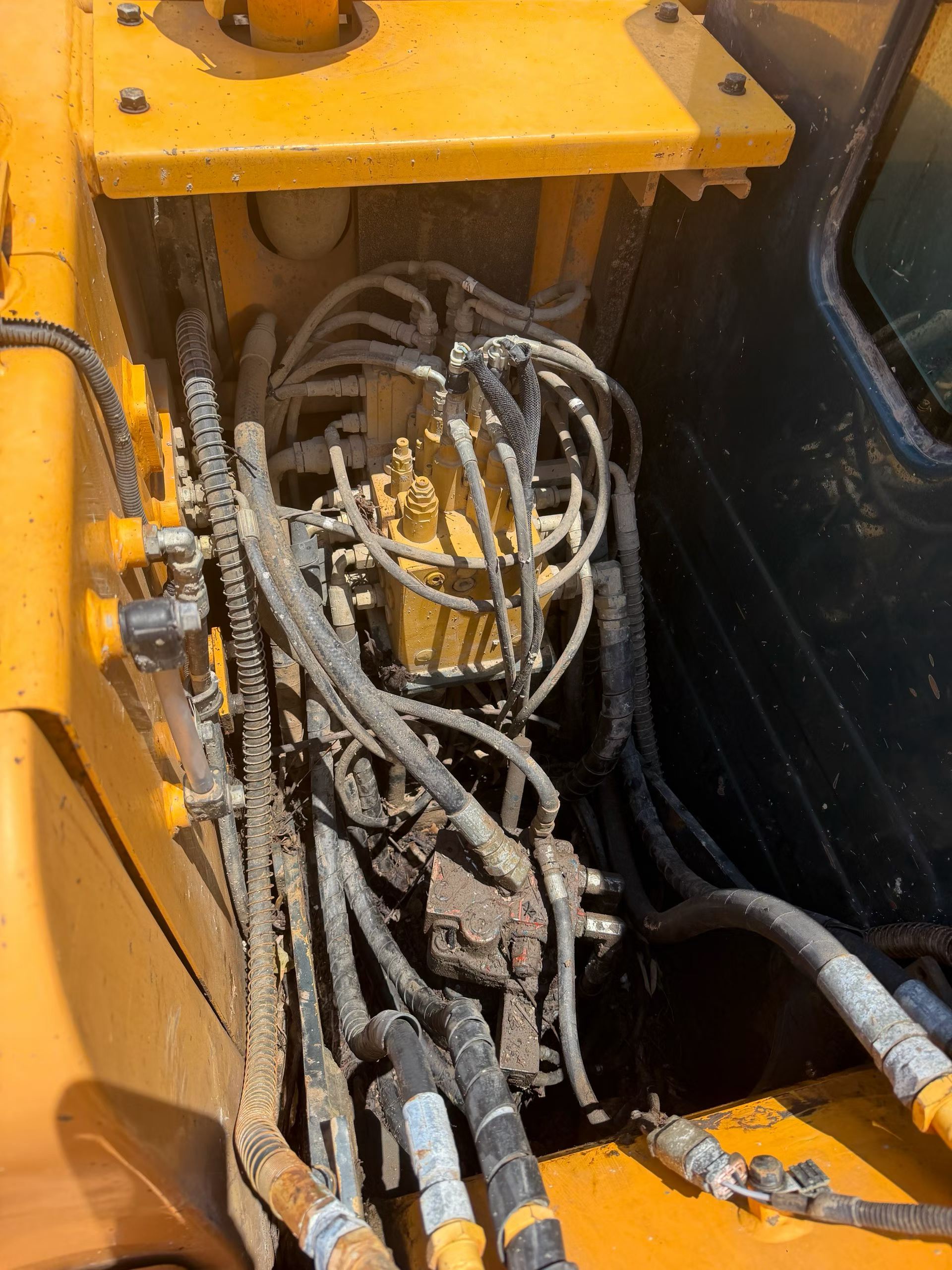

Buy Hyundai HX75 Used Excavator / 4

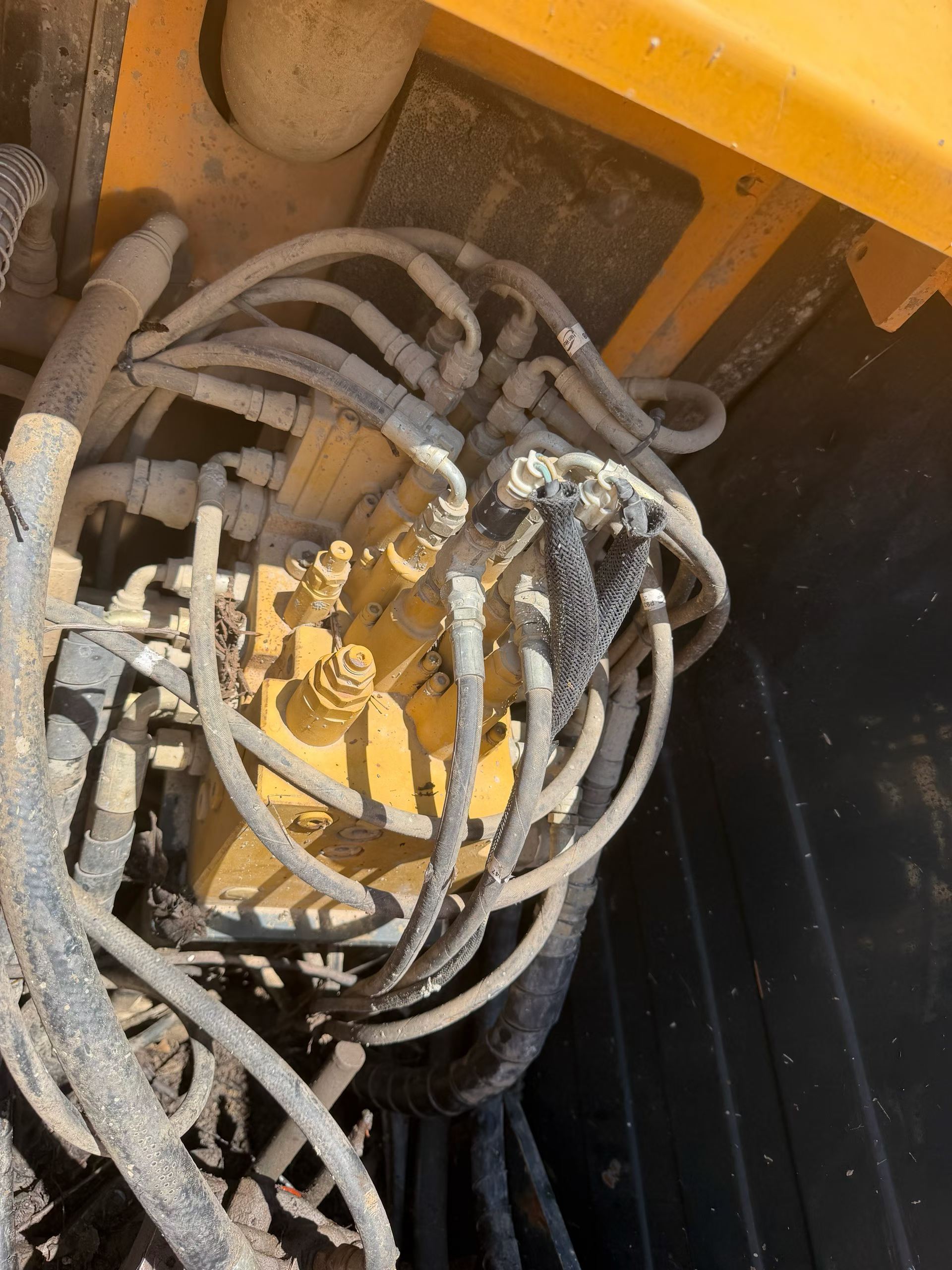

Buy Hyundai HX75 Used Excavator / 5

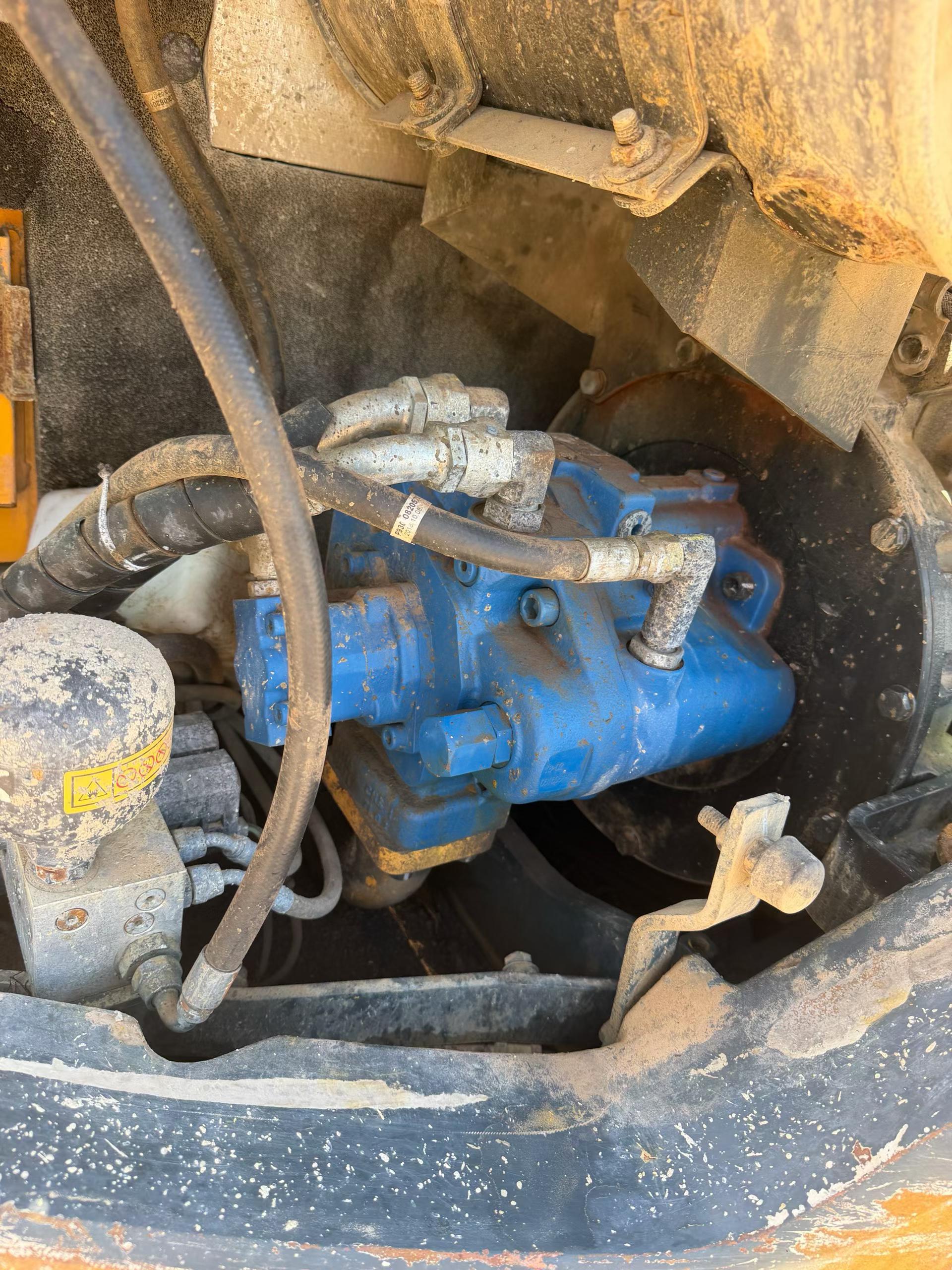

Buy Hyundai HX75 Used Excavator / 6

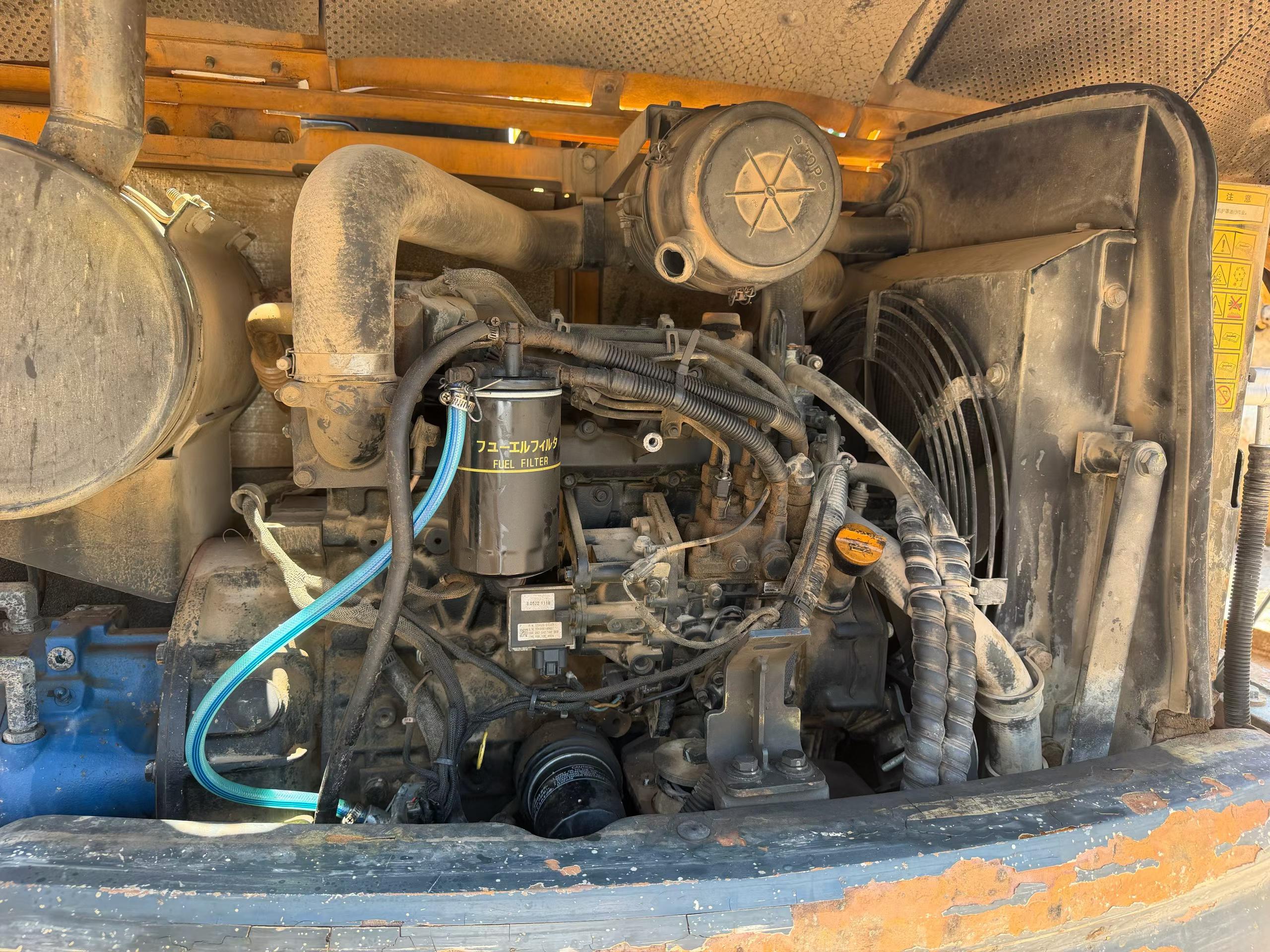

Buy Hyundai HX75 Used Excavator / 7

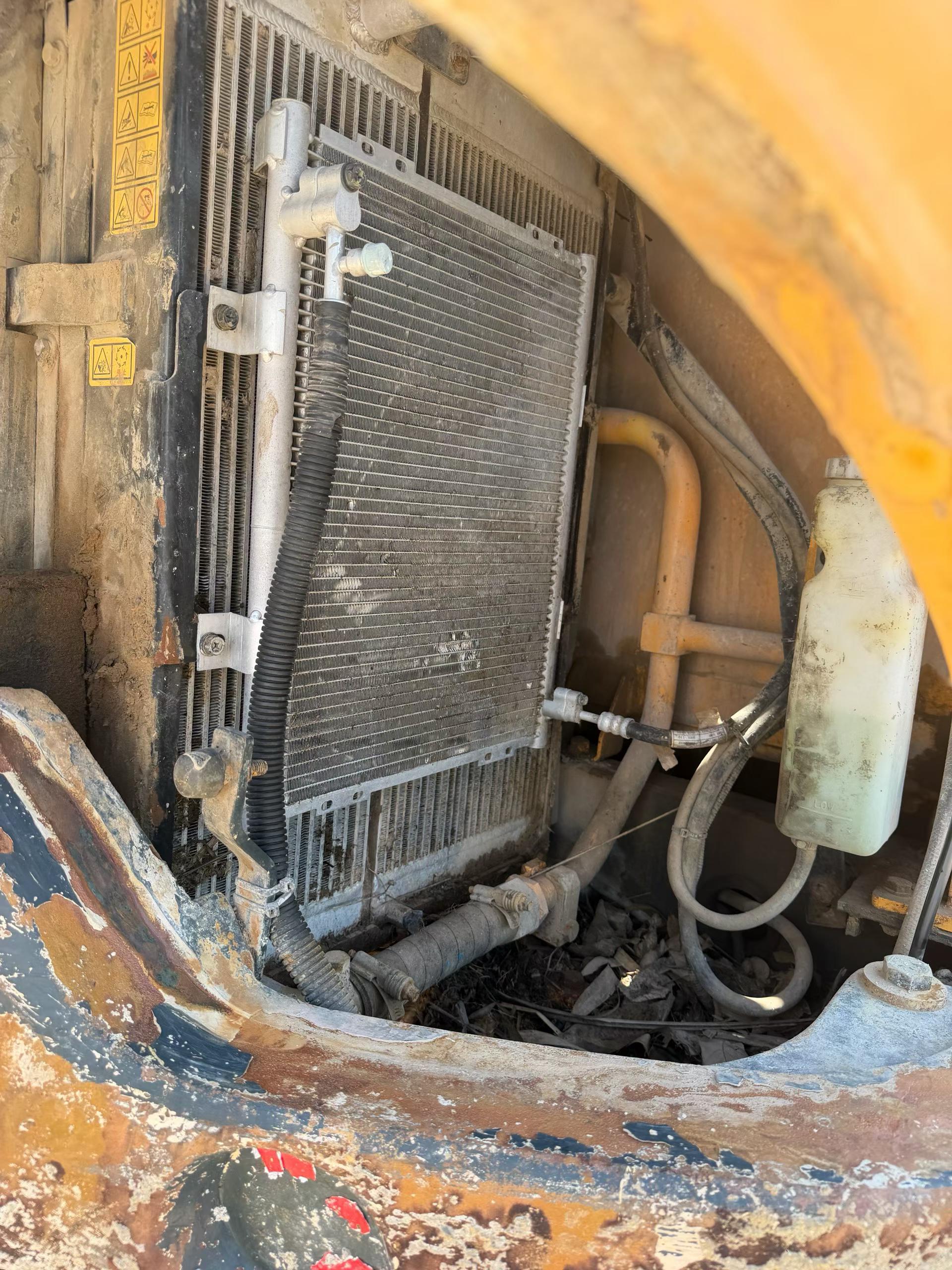

Buy Hyundai HX75 Used Excavator / 8

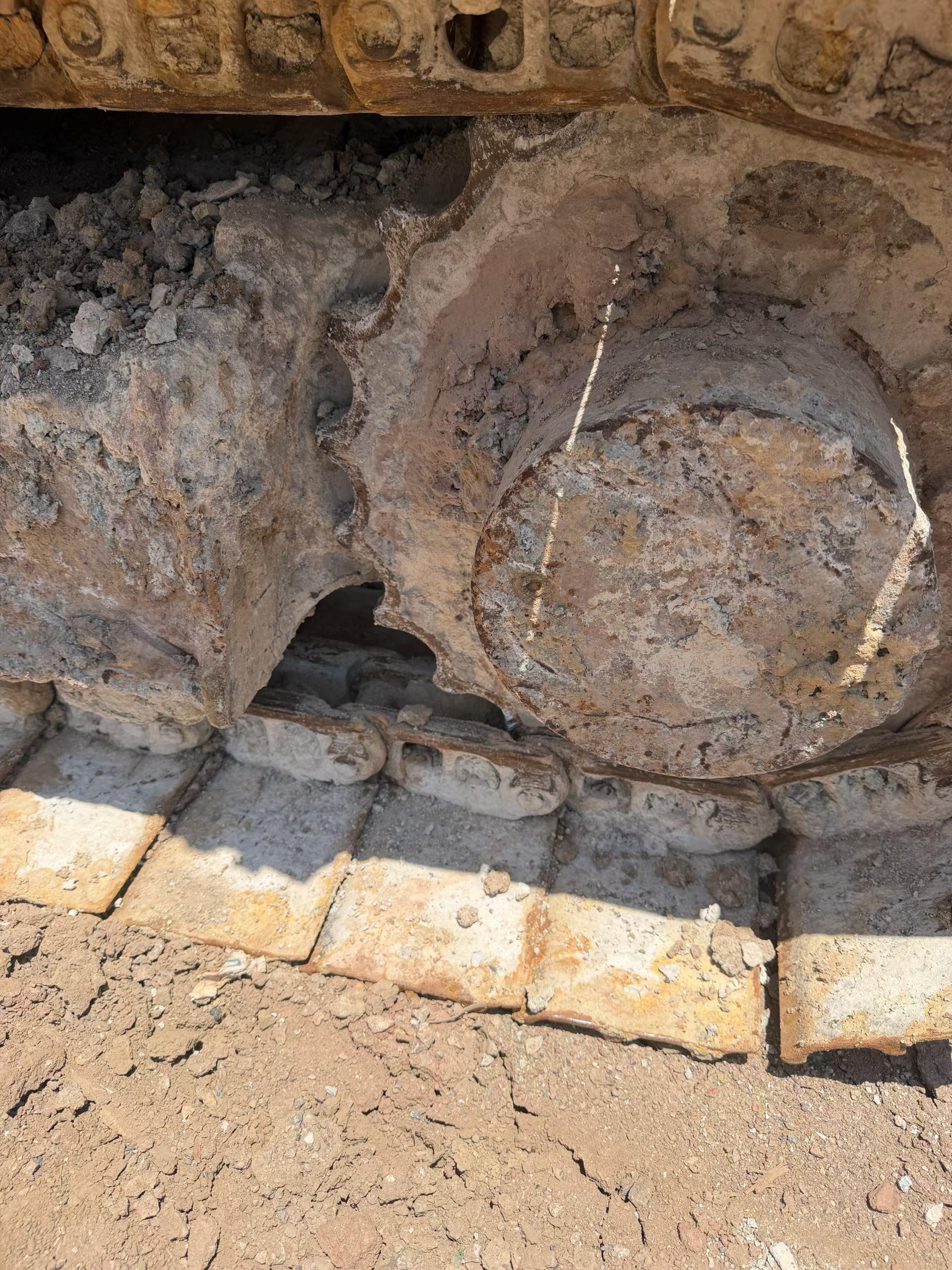

Buy Hyundai HX75 Used Excavator / 9

Product Description

This 2019 Hyundai HX75 excavator is now available from our Chongqing, China location. With approximately 5 years in service, this mid-size crawler excavator offers reliable performance for construction, earthmoving, and material handling applications.

The machine has been maintained in operational condition with major components showing no significant leaks. The HX75 is known for its 7.5-ton operating weight class, fuel-efficient engine, and versatile digging capabilities suitable for urban construction and infrastructure projects.

  • Year: 2019
  • Model: Hyundai HX75
  • Location: Chongqing, China
  • Condition: Operational, major components intact
  • Price: RMB 96,000

Interested buyers are welcome to inspect the equipment on-site. Contact us to schedule a viewing or request additional documentation.

SpecificationsValue
No.1104798
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
see more

Overview

No.1104798

Brand Name:

Hyundai

Model Number:

HX75

Year:

2019

Location:

Chongqing China

Pub Date
