2019 Hyundai HX75

1/7

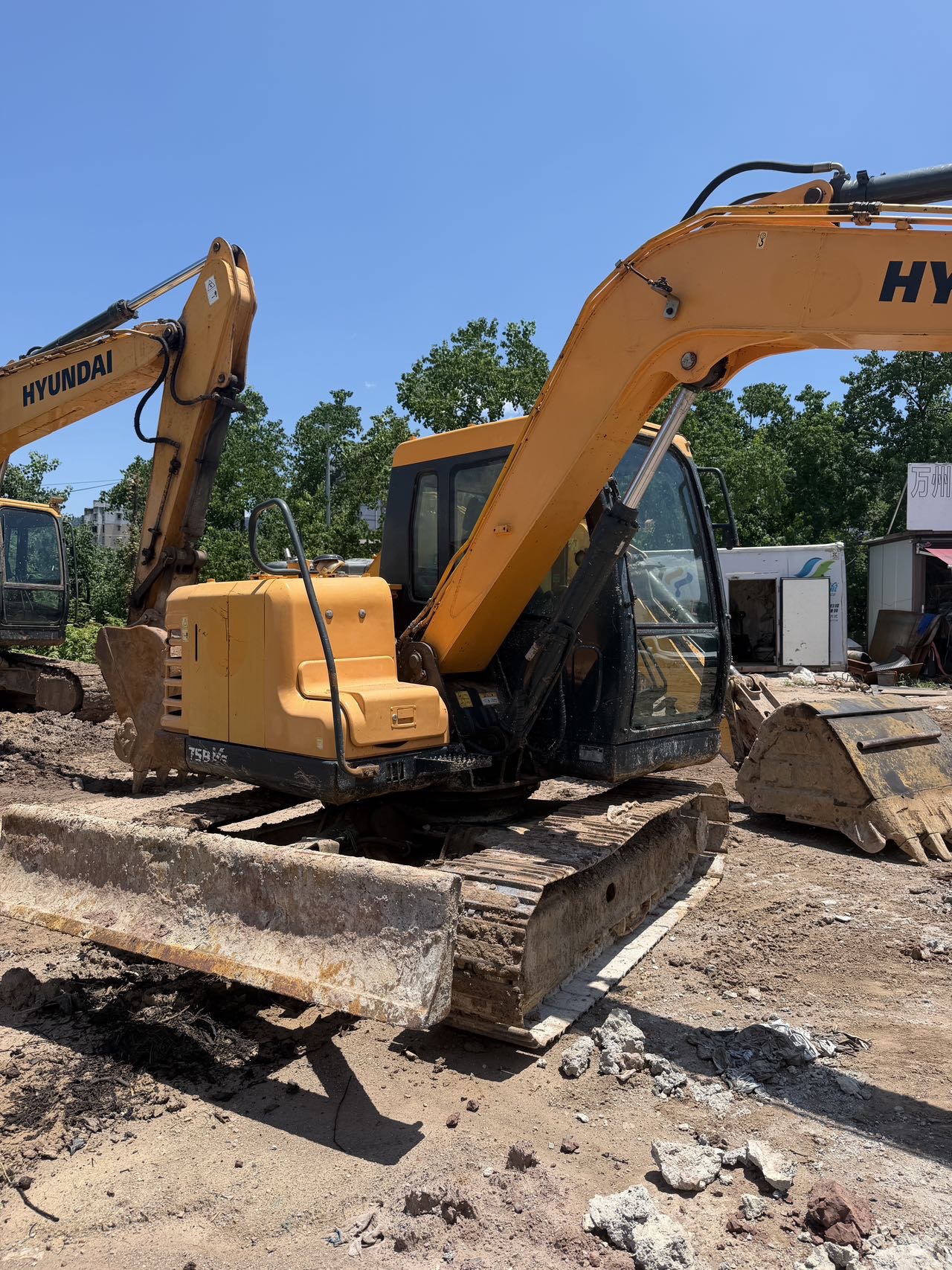

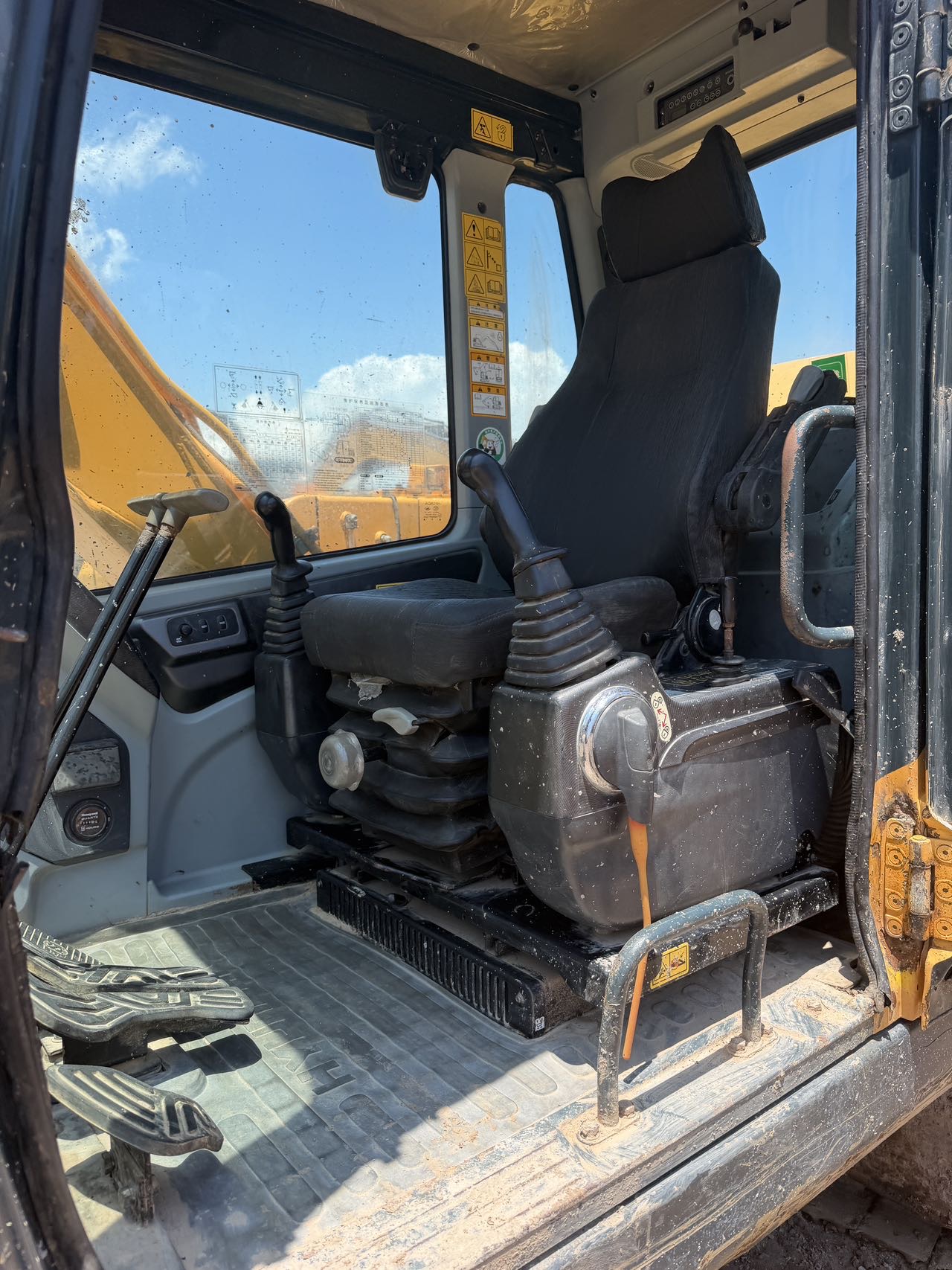

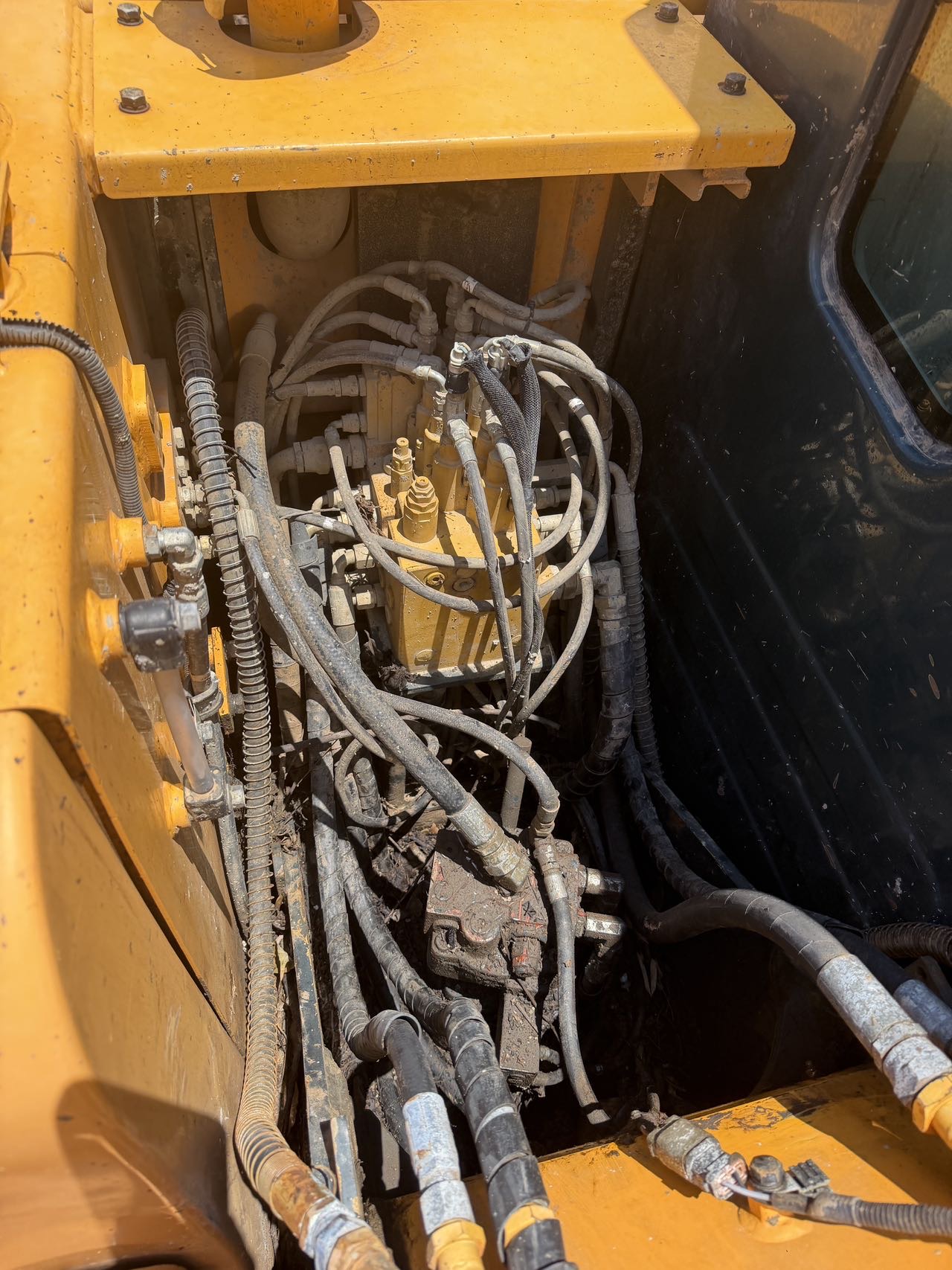

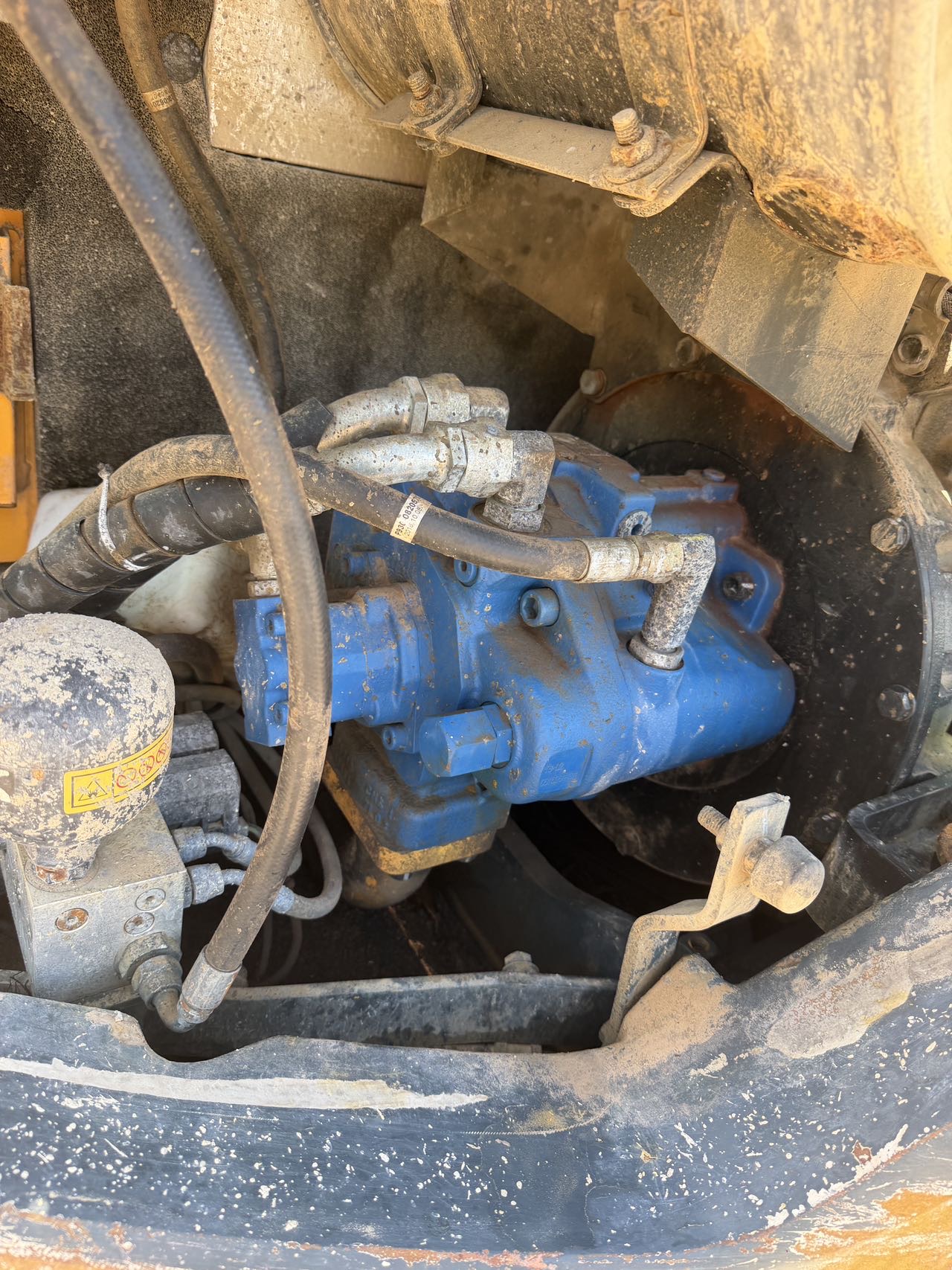

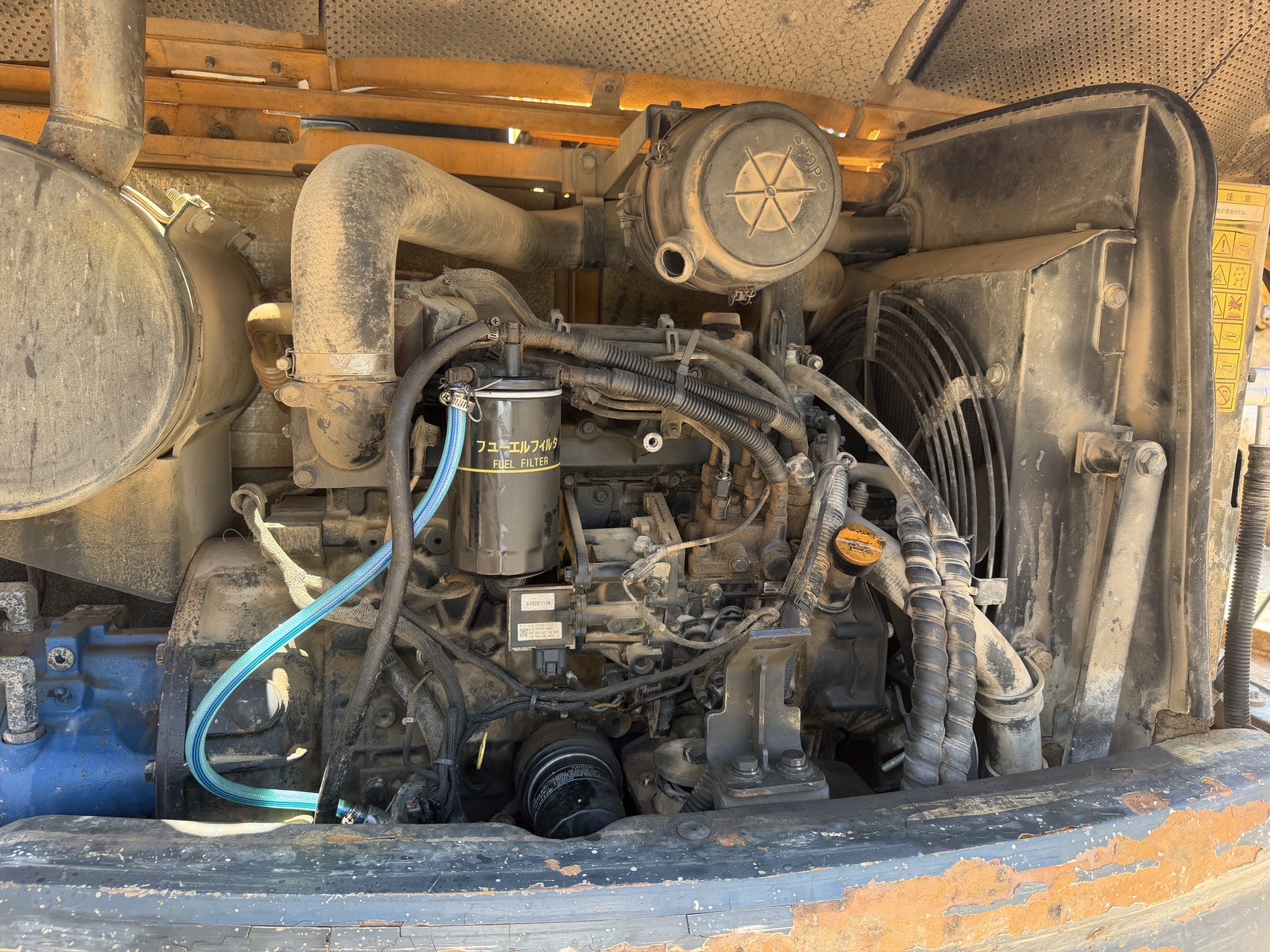

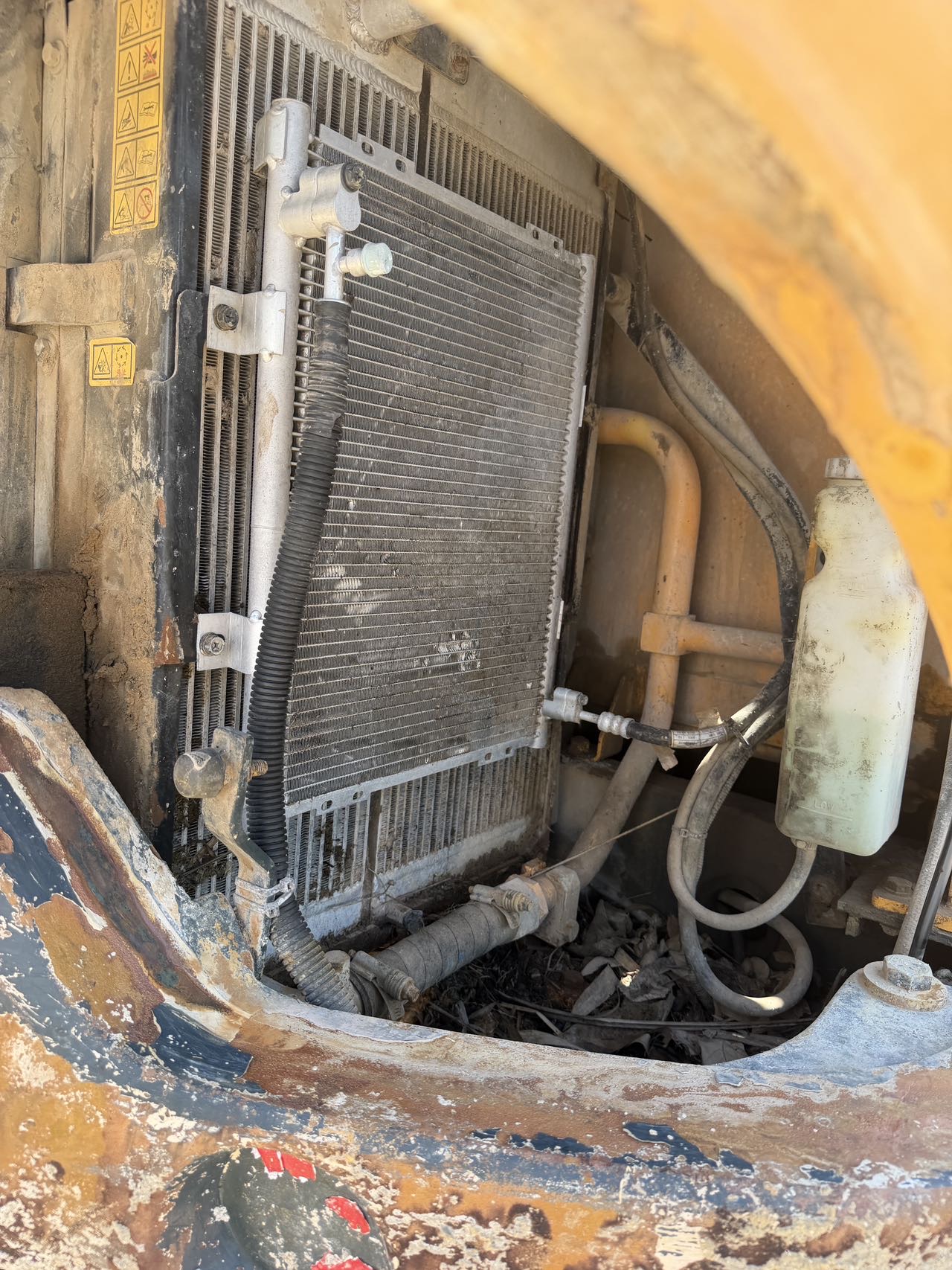

Buy Hyundai HX75 Used Excavator / 1
Buy Hyundai HX75 Used Excavator / 2
Buy Hyundai HX75 Used Excavator / 3
Buy Hyundai HX75 Used Excavator / 4
Buy Hyundai HX75 Used Excavator / 5
Buy Hyundai HX75 Used Excavator / 6
Buy Hyundai HX75 Used Excavator / 7

Product Description

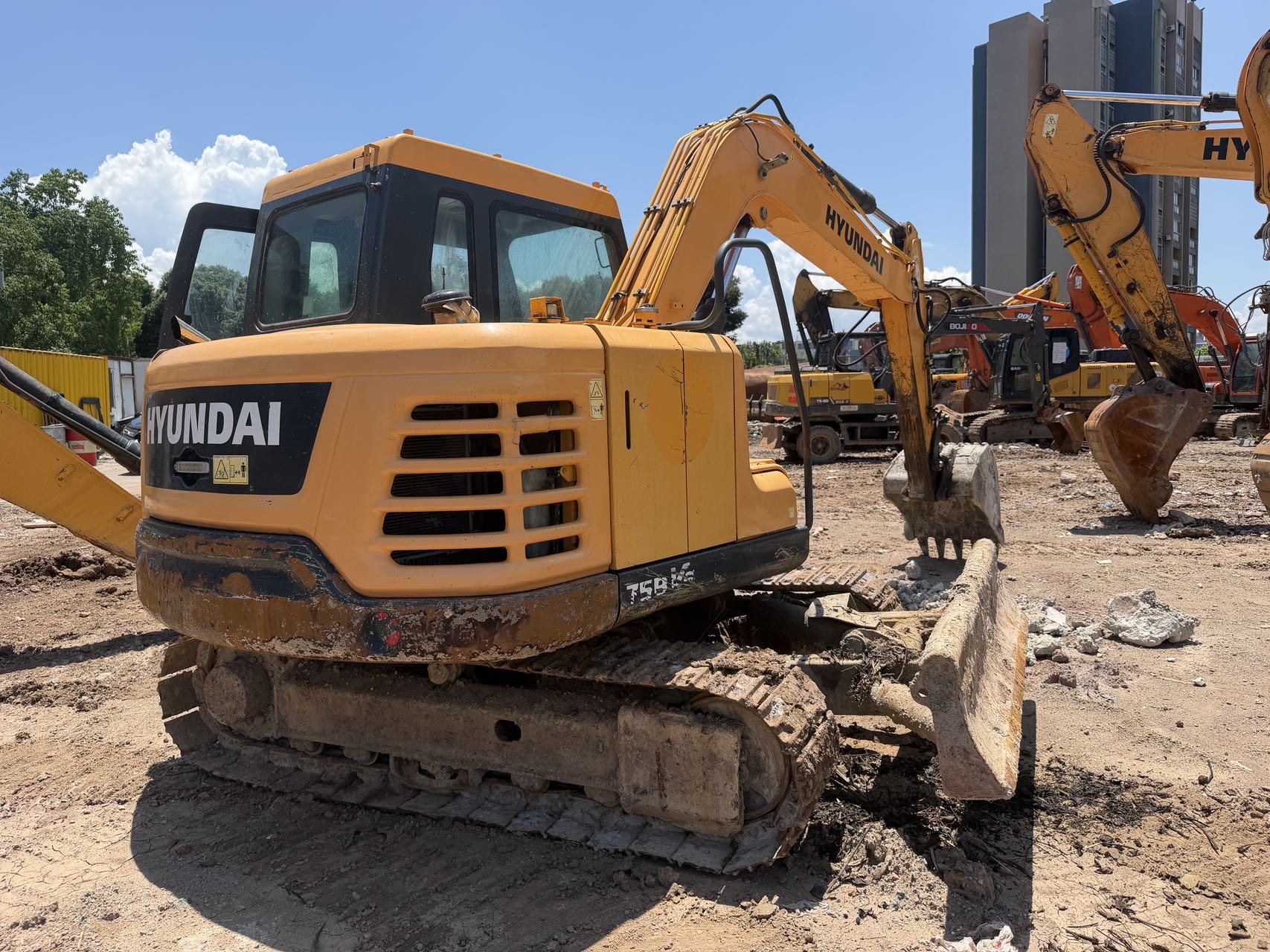

This 2019 Hyundai HX75 excavator is currently located in Chongqing, China and available for immediate purchase. The machine comes equipped with a dozer blade for enhanced grading and backfilling capabilities on job sites.

Key features include:

  • Year of manufacture: 2019
  • Model: Hyundai HX75
  • Equipped with dozer blade attachment
  • Currently located in Chongqing, China

The HX75 is a compact excavator suitable for construction, landscaping, and utility work. This unit is being sold in as-is condition. Prospective buyers should conduct their own inspection and assessment of the machine's current operational status and mechanical condition prior to purchase.

For detailed specifications, current photos, and pricing information, please contact our sales team directly.

SpecificationsValue
No.1115452
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
see more

Overview

No.1115452

Brand Name:

Hyundai

Model Number:

HX75

Year:

2019

Hour:

7600h

Location:

Chongqing China

Pub Date
