2019 Hyundai HX75

1/7
Buy Hyundai HX75 Used Excavator / 1

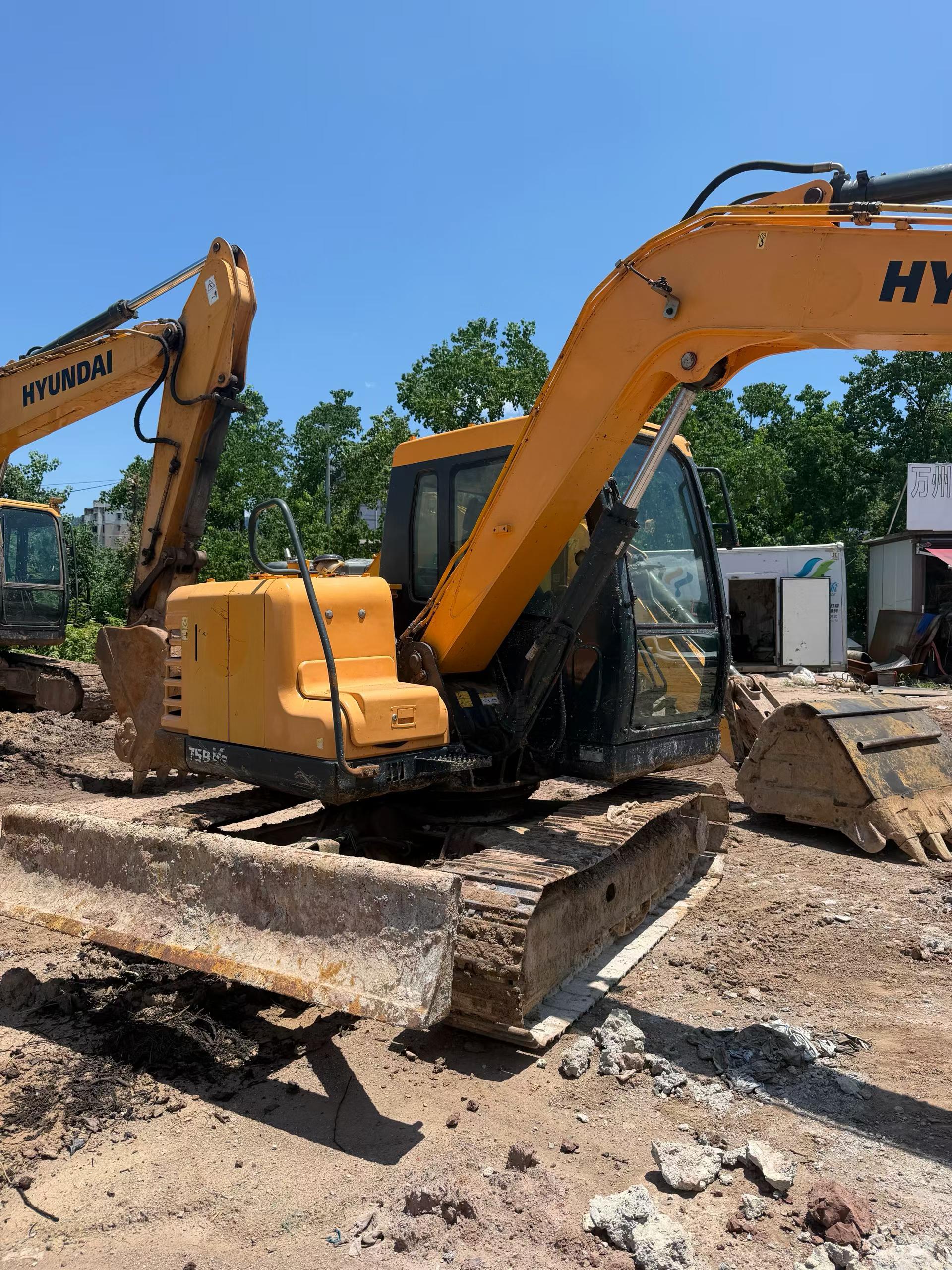

Buy Hyundai HX75 Used Excavator / 2

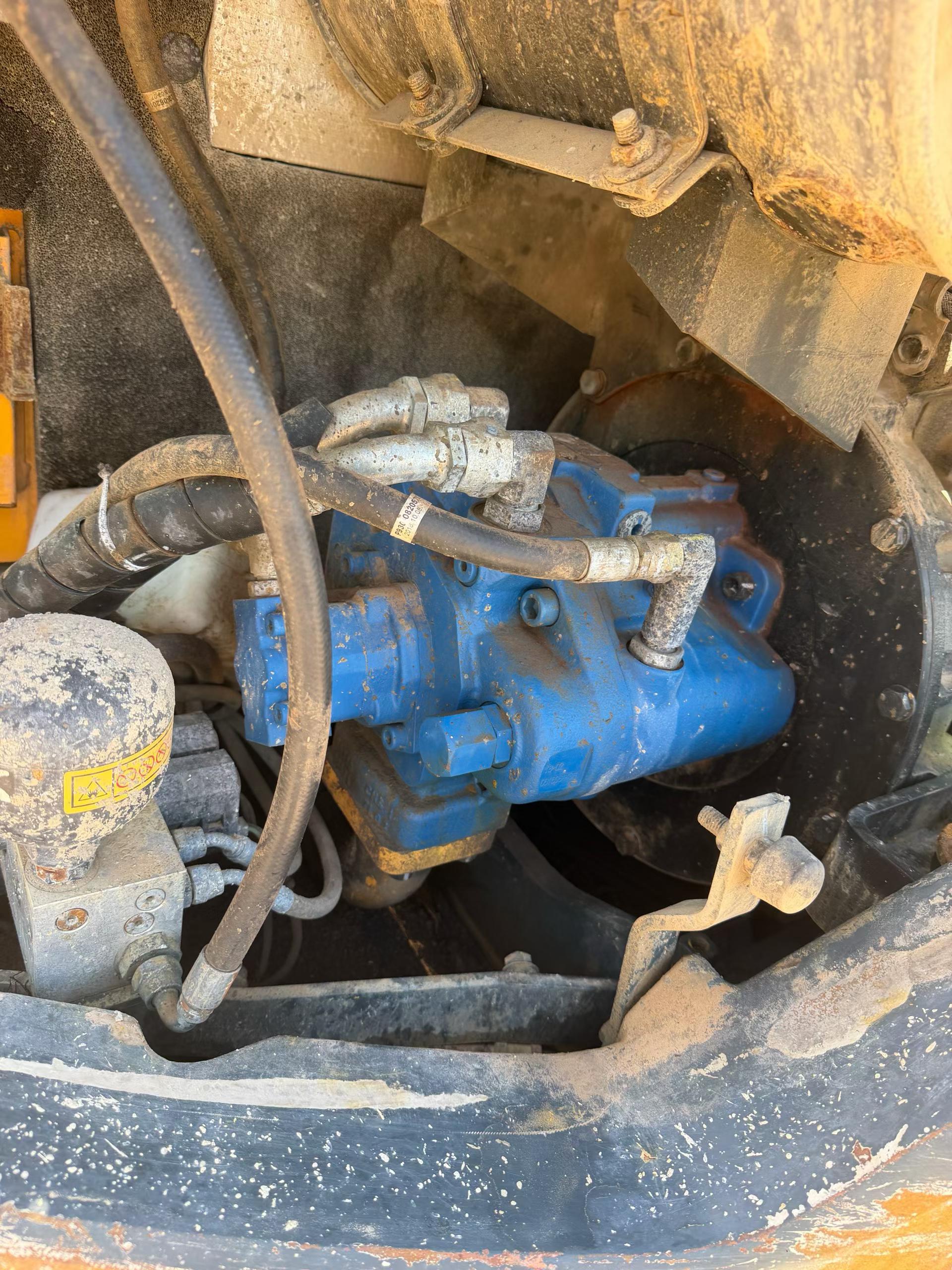

Buy Hyundai HX75 Used Excavator / 3

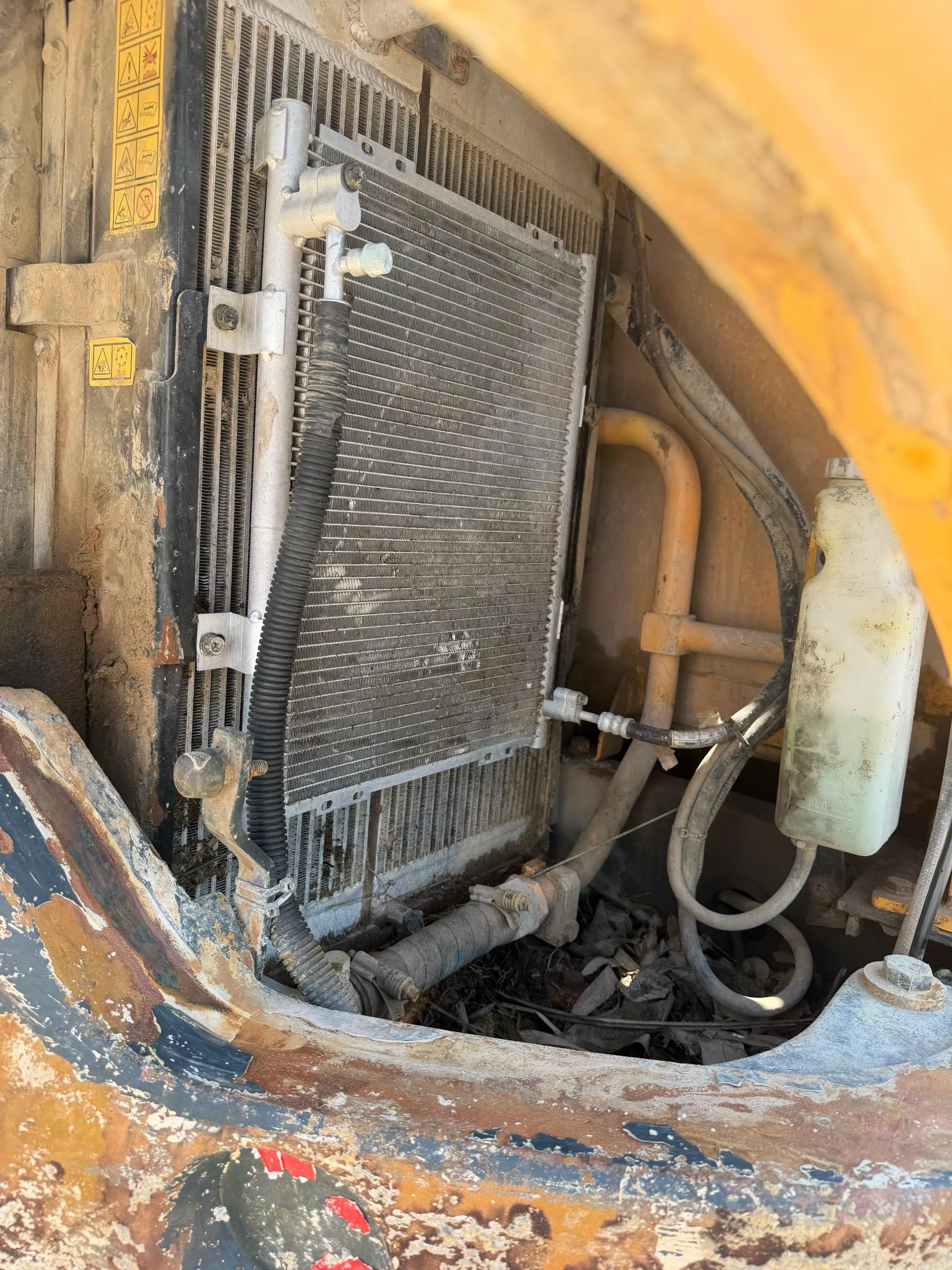

Buy Hyundai HX75 Used Excavator / 4

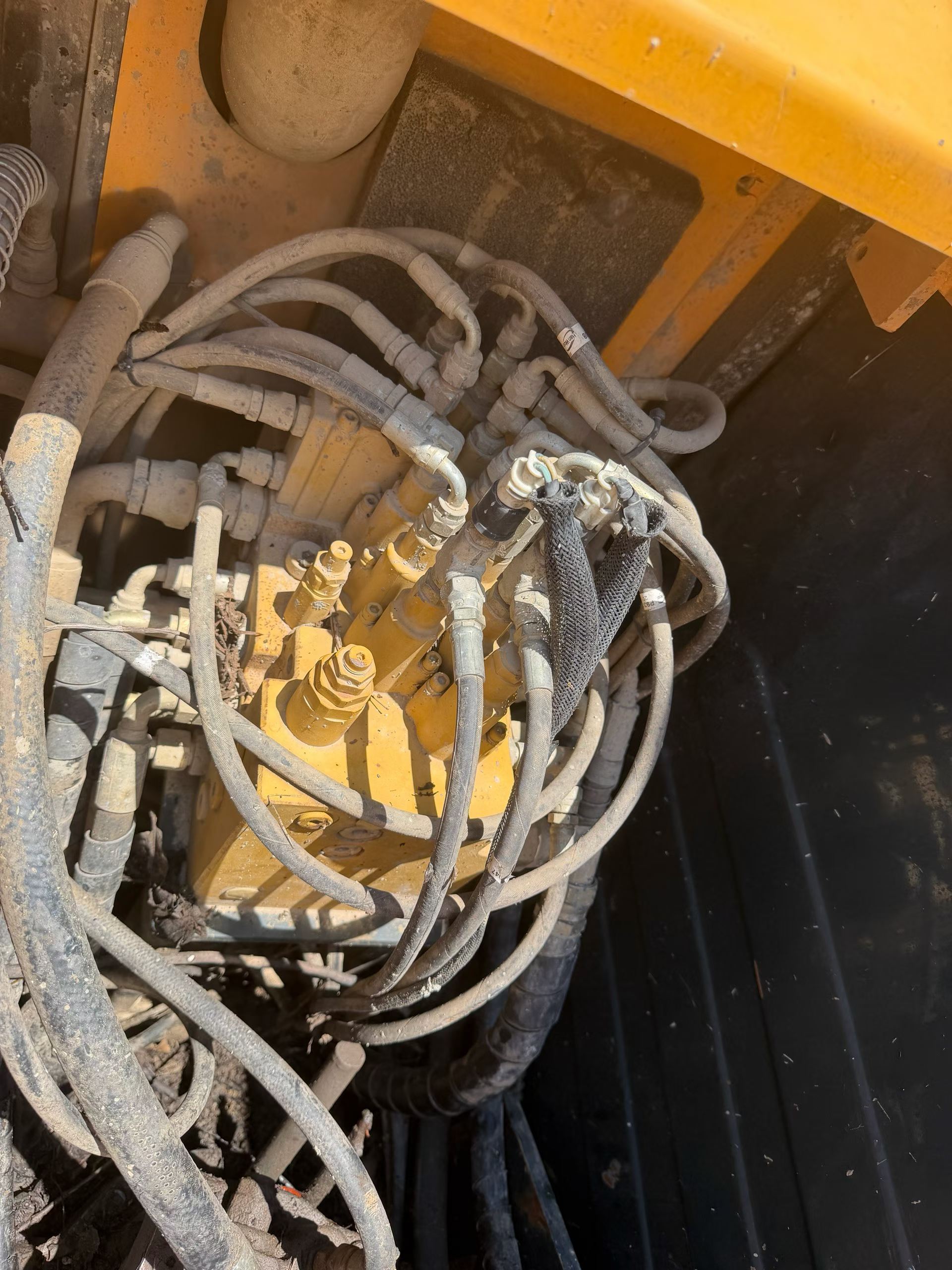

Buy Hyundai HX75 Used Excavator / 5

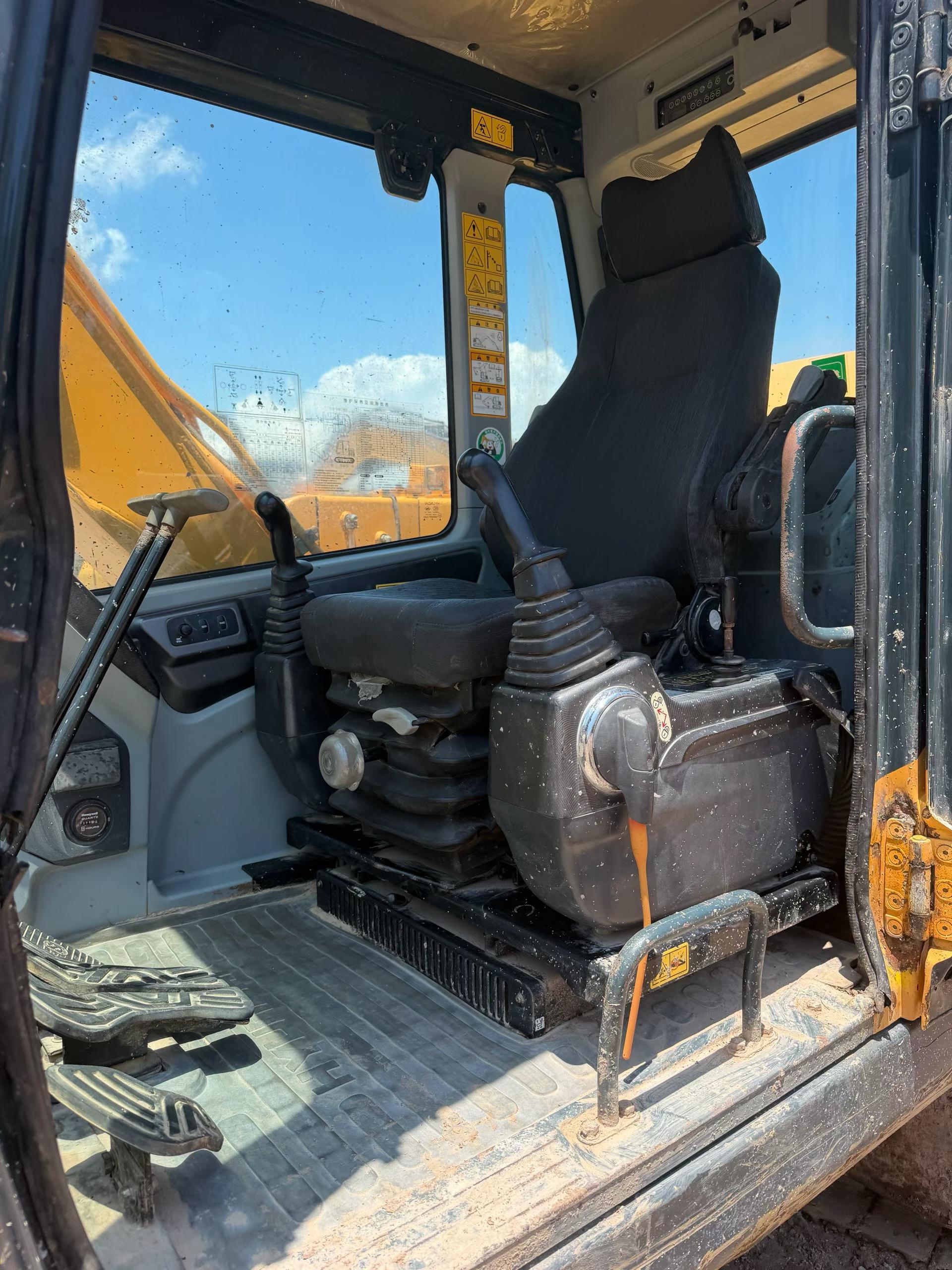

Buy Hyundai HX75 Used Excavator / 6

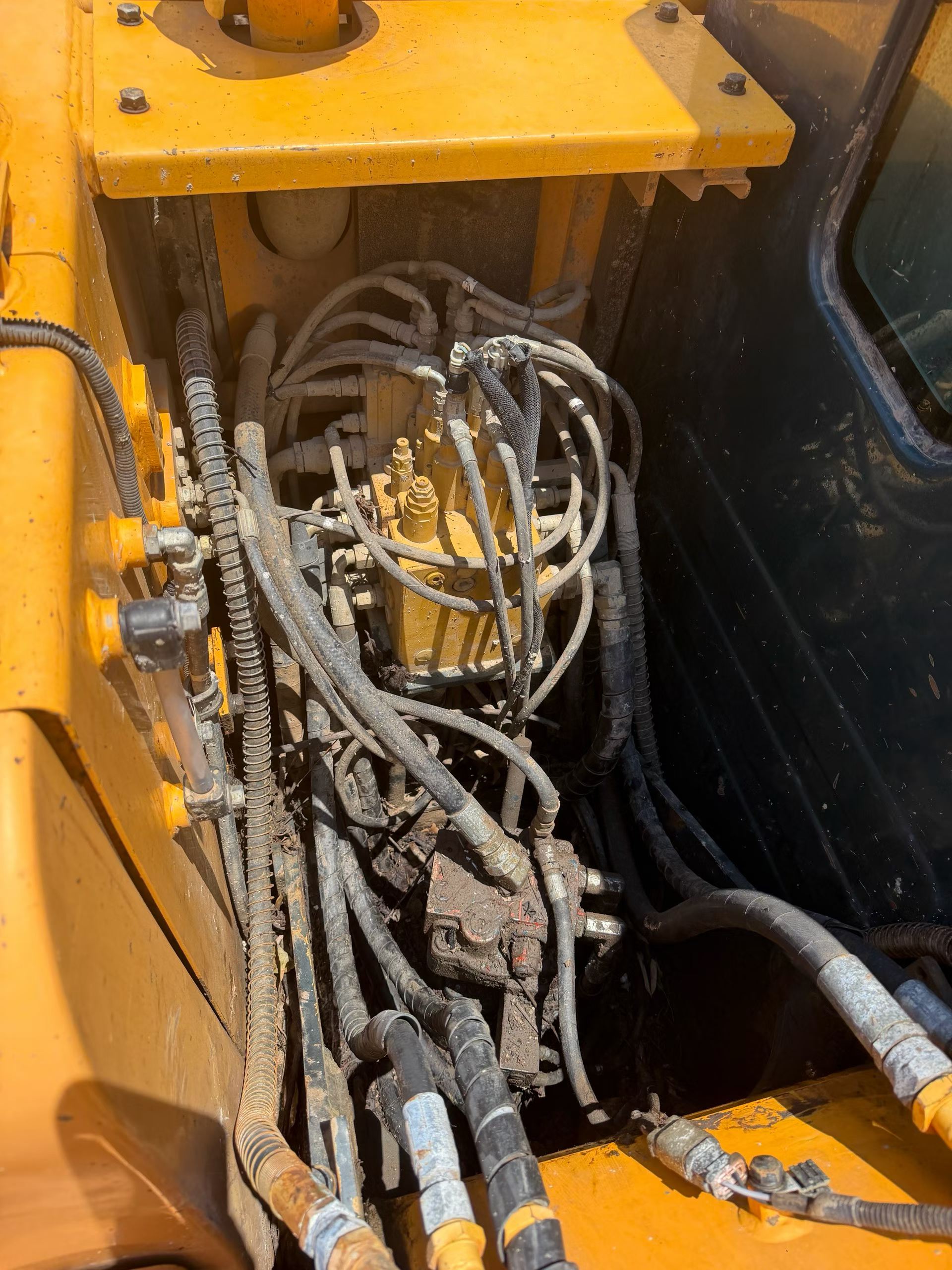

Buy Hyundai HX75 Used Excavator / 7

Product Description

This 2019 Hyundai HX75 excavator is currently located in Chongqing, China and available for immediate inspection and shipping. As a joint-venture brand model, this machine represents reliable Korean engineering adapted for the Asian market.

Key specifications:

  • Year of Manufacture: 2019
  • Brand: Hyundai
  • Model: HX75
  • Operating Weight Class: 7.5 ton
  • Current Location: Chongqing, China

This unit is priced competitively in the mid-range segment and is well-suited for contractors seeking a cost-effective solution. The seller welcomes on-site inspections and can arrange international shipping logistics. Ideal for buyers who prefer established joint-venture brands with proven service networks across Asia-Pacific regions.

Contact us for detailed pricing, additional photographs, and shipping arrangements to your destination port.

SpecificationsValue
No.1119536
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
