Product Description

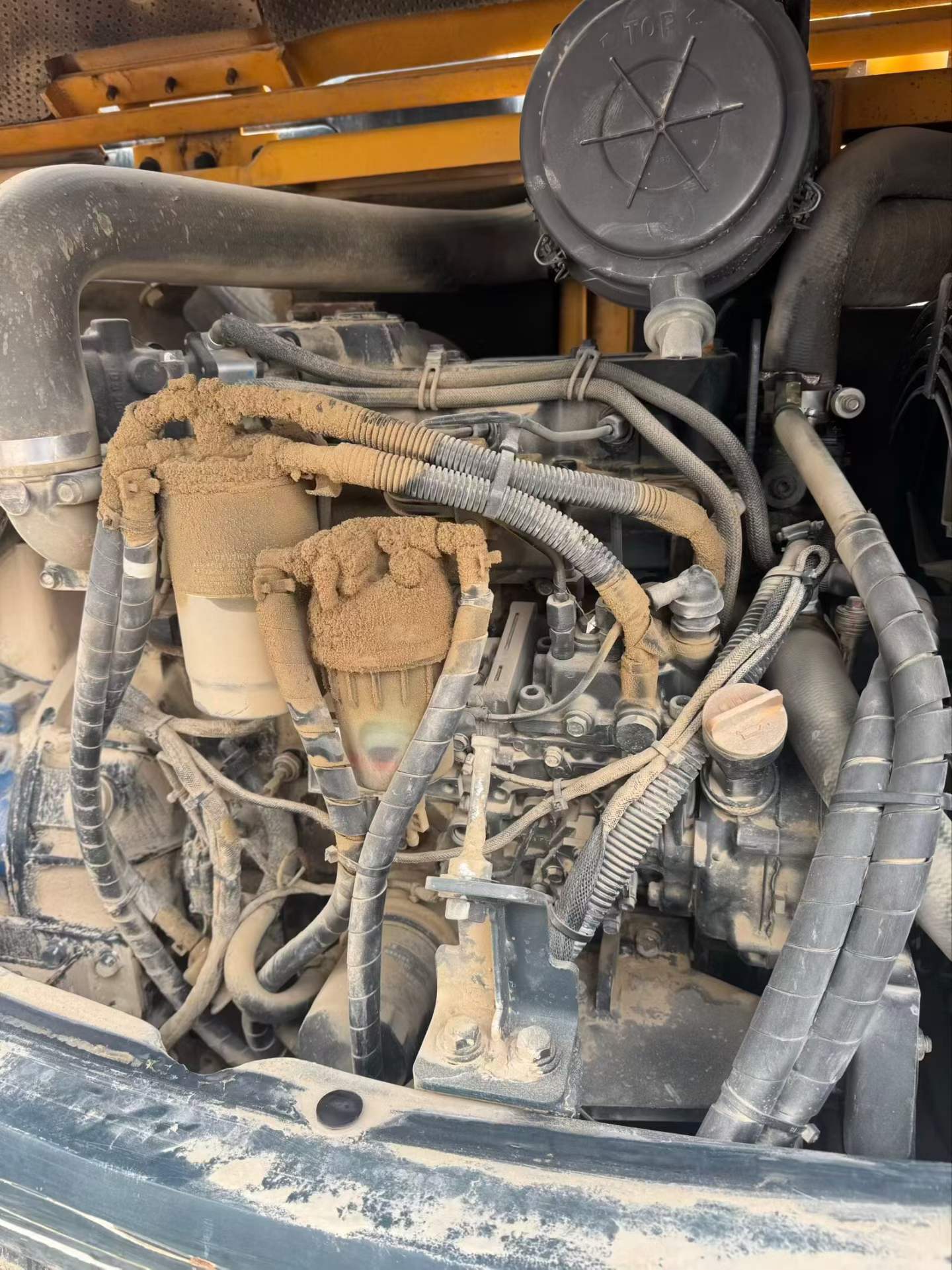

Maximize ROI with this 2020 Hyundai HX75, a compact 7-ton excavator delivering professional-grade performance at a fraction of new equipment cost. Powered by a reliable Yanmar 4TNV98-Z engine producing 44.4kW, this machine combines proven Japanese engineering with Hyundai's build quality. Its 0.32m³ bucket capacity and impressive 6,335mm maximum digging radius handle demanding excavation tasks efficiently, while the 158 L/min variable piston pump ensures responsive hydraulic performance across all functions.
Currently located in Heze, Shandong, this model offers substantial savings compared to new alternatives without compromising capability. Key specifications include:
- Working weight: 7,000kg with optimal stability for diverse terrain
- Digging forces: 55.9kN bucket / 43.9kN arm for tough ground conditions
- Compact dimensions: 6,080mm length enables work in confined spaces
- 70% grading ability with 12.5 rpm rotation speed for productivity
- Water-cooled system with generous 140L fuel capacity for extended operation
Smart buyers recognize value in low-hour, late-model equipment. Invest strategically—contact Fair Trade Machinery today for pricing and availability.
| Specifications | Value |
|---|---|
| No. | 1018898 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
