2020 Hyundai HX75

1/4

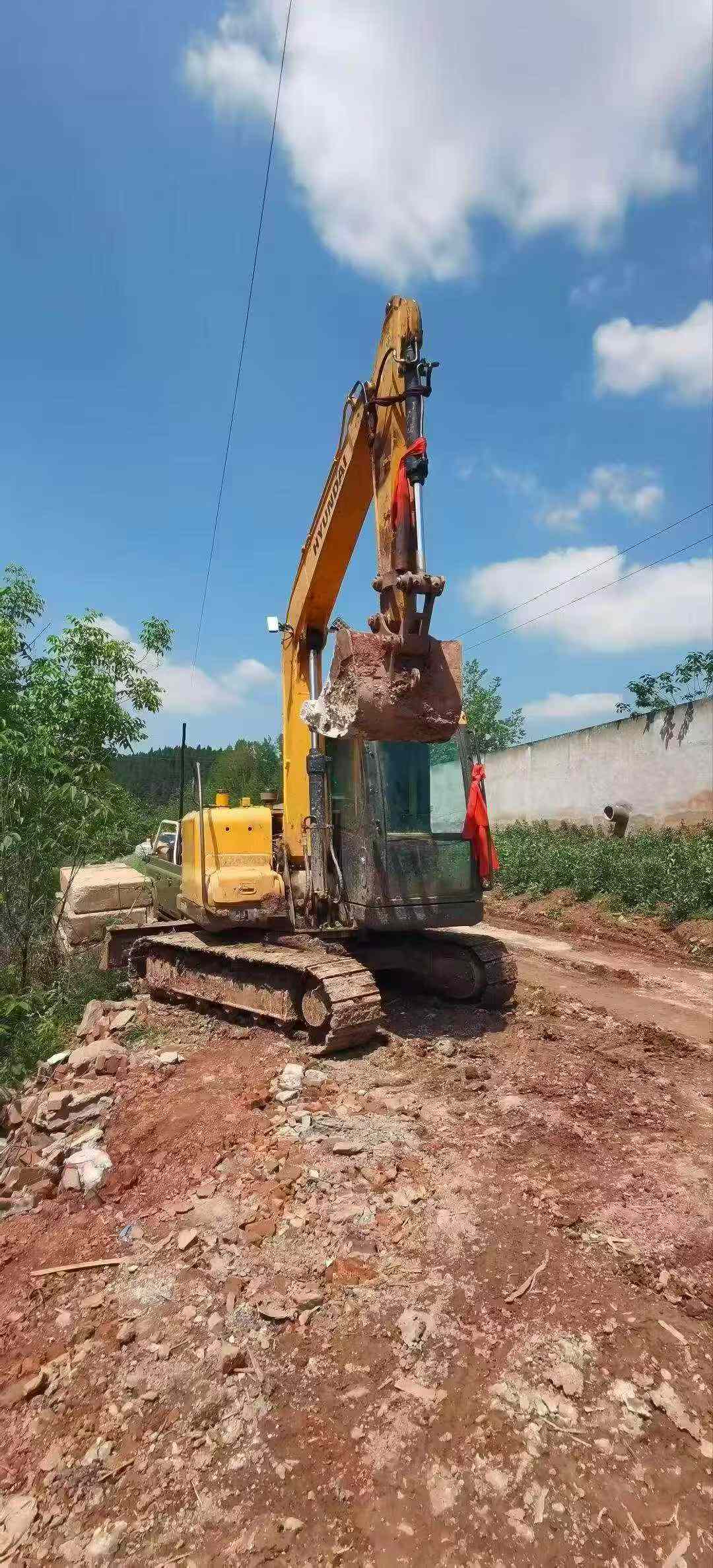

Buy Hyundai HX75 Used Excavator / 1

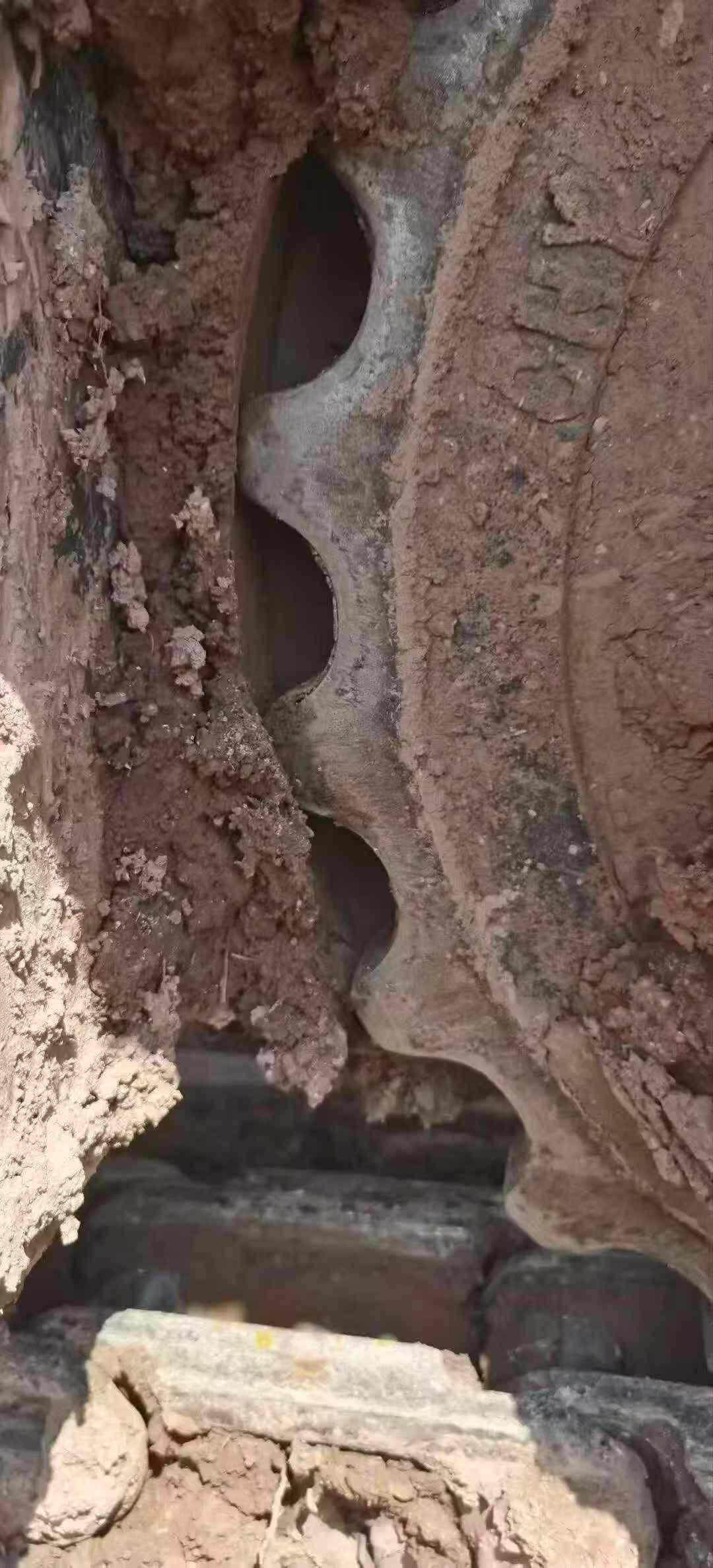

Buy Hyundai HX75 Used Excavator / 2

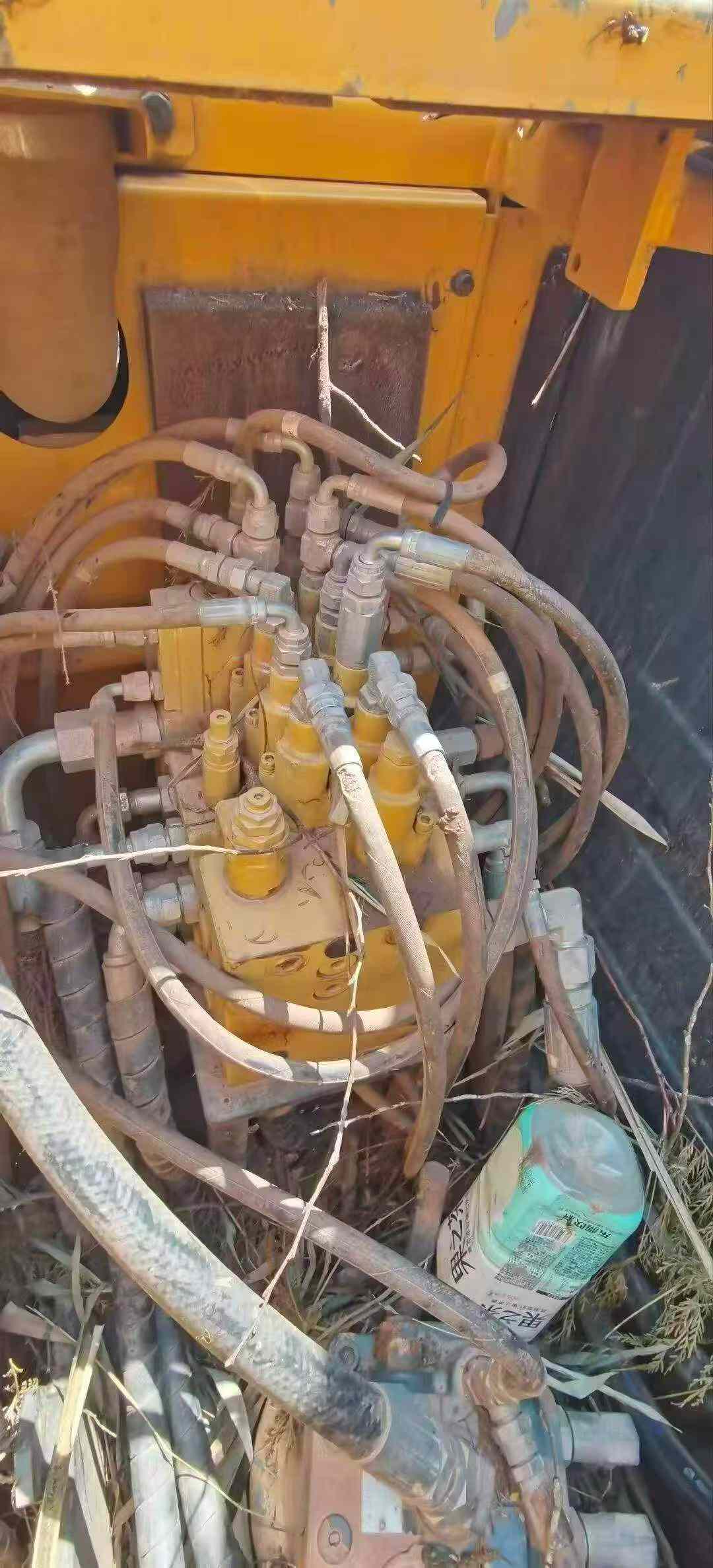

Buy Hyundai HX75 Used Excavator / 3

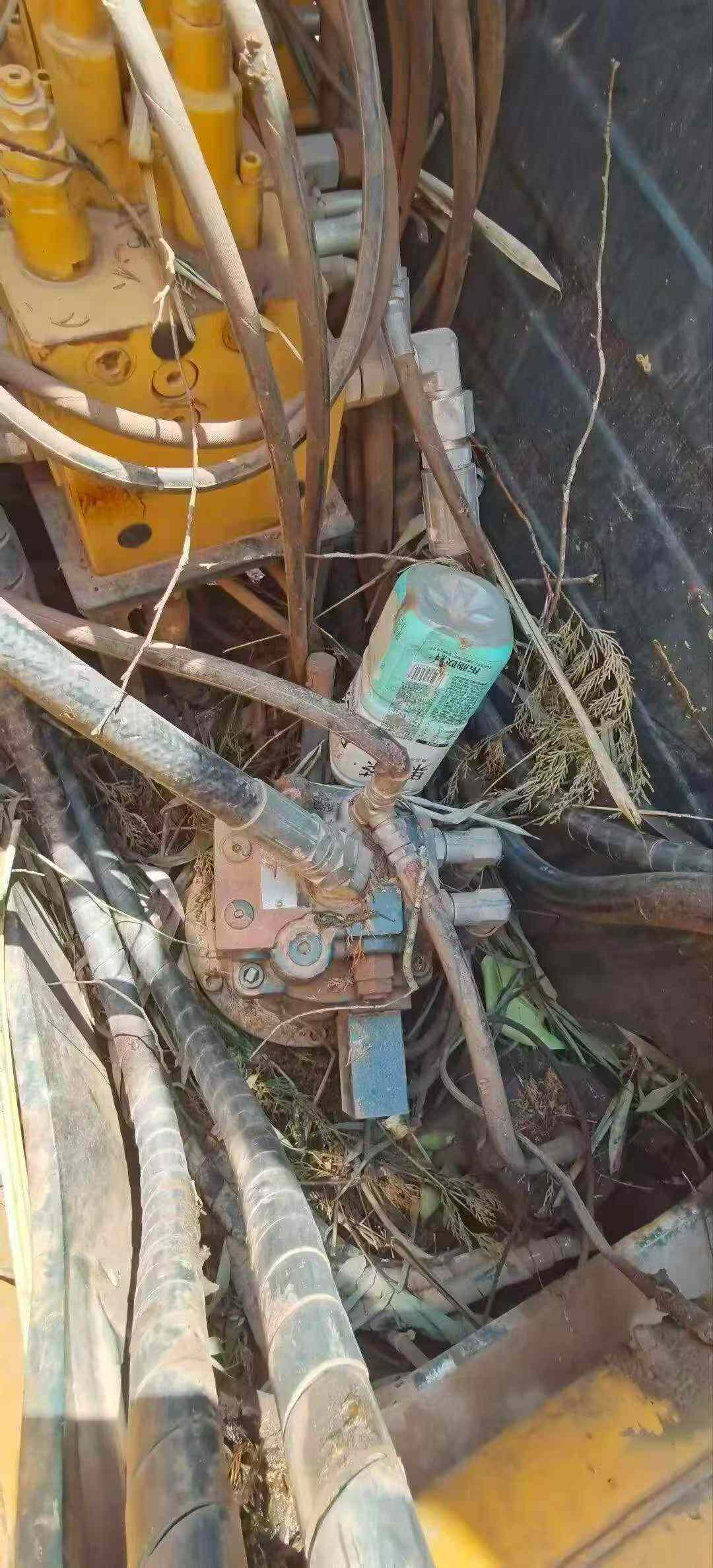

Buy Hyundai HX75 Used Excavator / 4

Product Description

This 2020 Hyundai HX75 excavator represents a solid investment for contractors seeking reliable performance in a compact package. Located in Sichuan, China, this 7.5-ton class machine offers excellent maneuverability for urban construction, utility work, and landscaping applications.

The HX75 combines Hyundai's proven hydraulic system with a fuel-efficient engine, delivering consistent productivity across diverse jobsite conditions. Its compact dimensions allow operation in confined spaces while maintaining sufficient digging depth and reach for standard excavation tasks.

  • Year of Manufacture: 2020
  • Operating Weight: Approximately 7.5 tons
  • Current Location: Sichuan Province, China
  • Competitive pricing for immediate acquisition

This unit is available for inspection and ready for deployment. Contact us for detailed specifications, inspection arrangements, and international shipping options.

SpecificationsValue
No.1091891
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
see more

Overview

No.1091891

Brand Name:

Hyundai

Model Number:

HX75

Year:

2020

Location:

Sichuan China
