Product Description

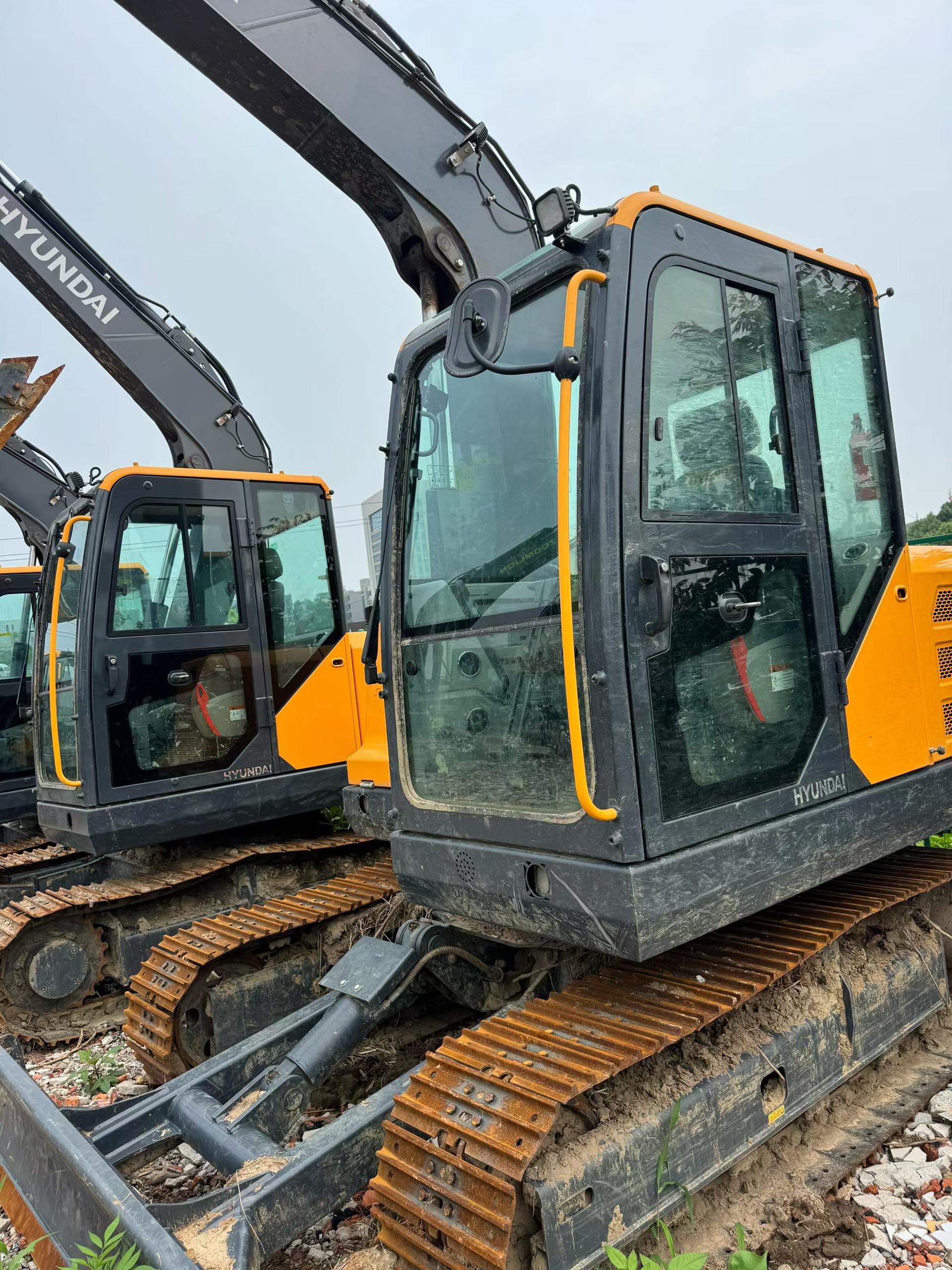

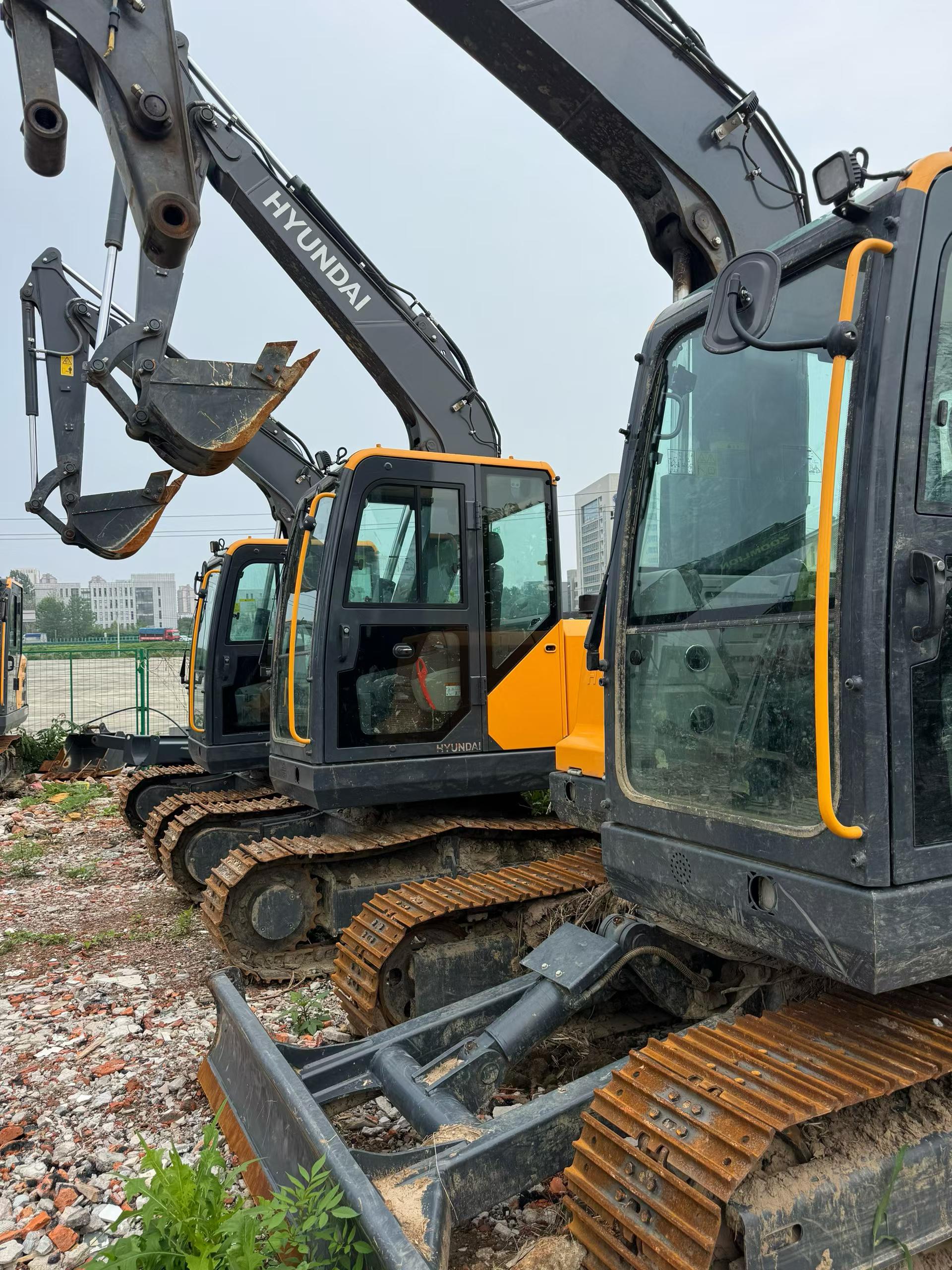

Built to endure the demands of real-world job sites, the Hyundai HX75 is a proven 7-ton compact excavator engineered for operators who need reliable performance day after day. Powered by a water-cooled Yanmar 4TNV98-Z 4-cylinder engine producing 44.4 kW at 2,100 RPM, this machine delivers consistent digging force without compromise. Sourced directly from Sichuan, China, this 2025 unit represents Hyundai's joint-venture manufacturing quality at its most dependable.
- Digging Performance: Bucket digging force of 55.9 kN and rod digging force of 43.9 kN — built to handle tough terrain consistently
- Reach & Depth: Maximum digging radius of 6,335 mm and digging depth of 4,015 mm for versatile excavation applications
- Hydraulic Muscle: Variable piston pump with a maximum main pump flow of 158 L/min for responsive, efficient operation
- Proven Mobility: 70% climbing ability and dual travel speeds (4.0 / 2.4 km/h) for confident movement across demanding terrain
- Compact Footprint: Transport dimensions of 6,080 × 2,260 × 2,550 mm — easy to haul, easy to position on tight sites
- Fuel Capacity: 140 L fuel tank designed to sustain long working cycles with minimal downtime
A workhorse built for longevity, the HX75 carries Hyundai's reputation for structural integrity into every hour of operation. Contact Fair Trade Machinery today for full inspection reports and shipping options.
| Specifications | Value |
|---|---|
| No. | 1093436 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
