Product Description

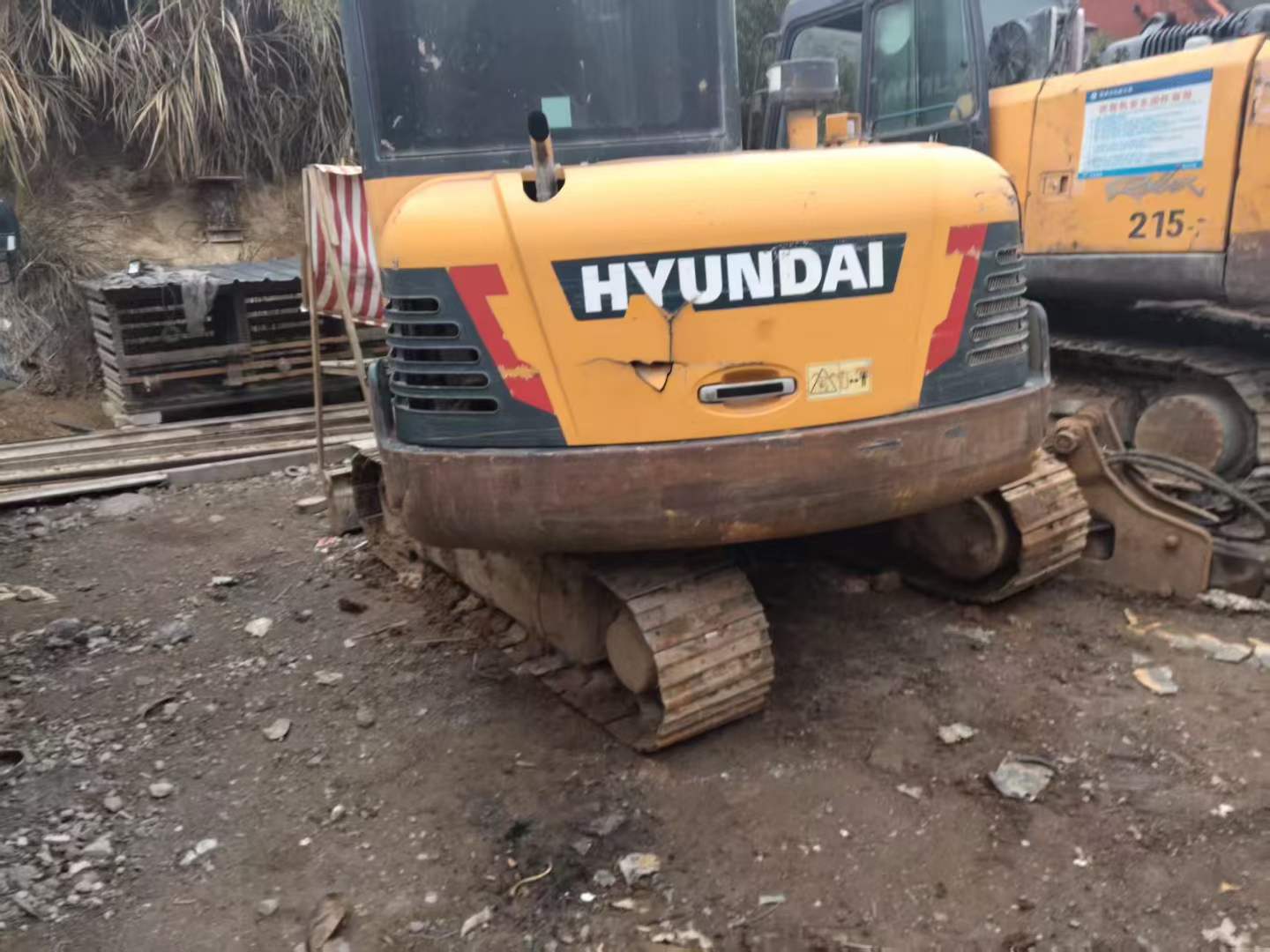

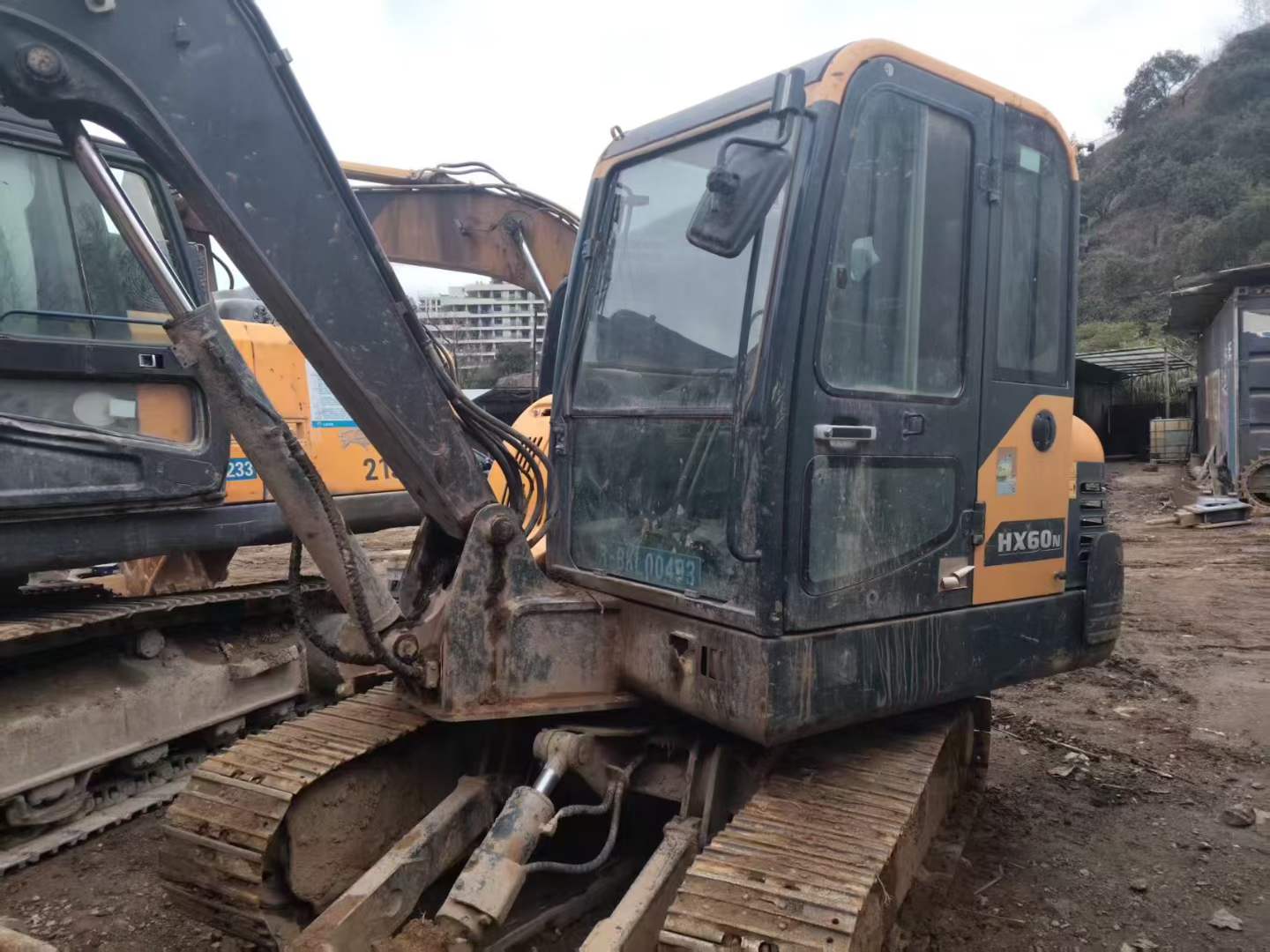

Engineered for reliability, this 2021 Hyundai R 60VS mini excavator delivers proven performance across demanding jobsites. Operating at 5,850 kg working weight with a robust 6-ton capacity, this machine combines compact dimensions with substantial digging power. The Yanmar 4TNV98 engine—rated at 54.3 kW—provides consistent output through water-cooled, direct-injection technology built for extended service life. With a maximum digging depth of 3,820 mm and reach extending to 6,150 mm, operators achieve precision in confined spaces without sacrificing capability.
Dual variable plunger pumps maintain 220 MPa across working, travel, and rotary circuits, ensuring responsive hydraulic performance. The 0.21 m³ bucket handles material efficiently while the 3,000 mm boom and 1,600 mm arm configuration optimize cycle times. Currently located in Lishui, Zhejiang, this joint-venture manufactured excavator represents proven construction-grade equipment ready for immediate deployment.

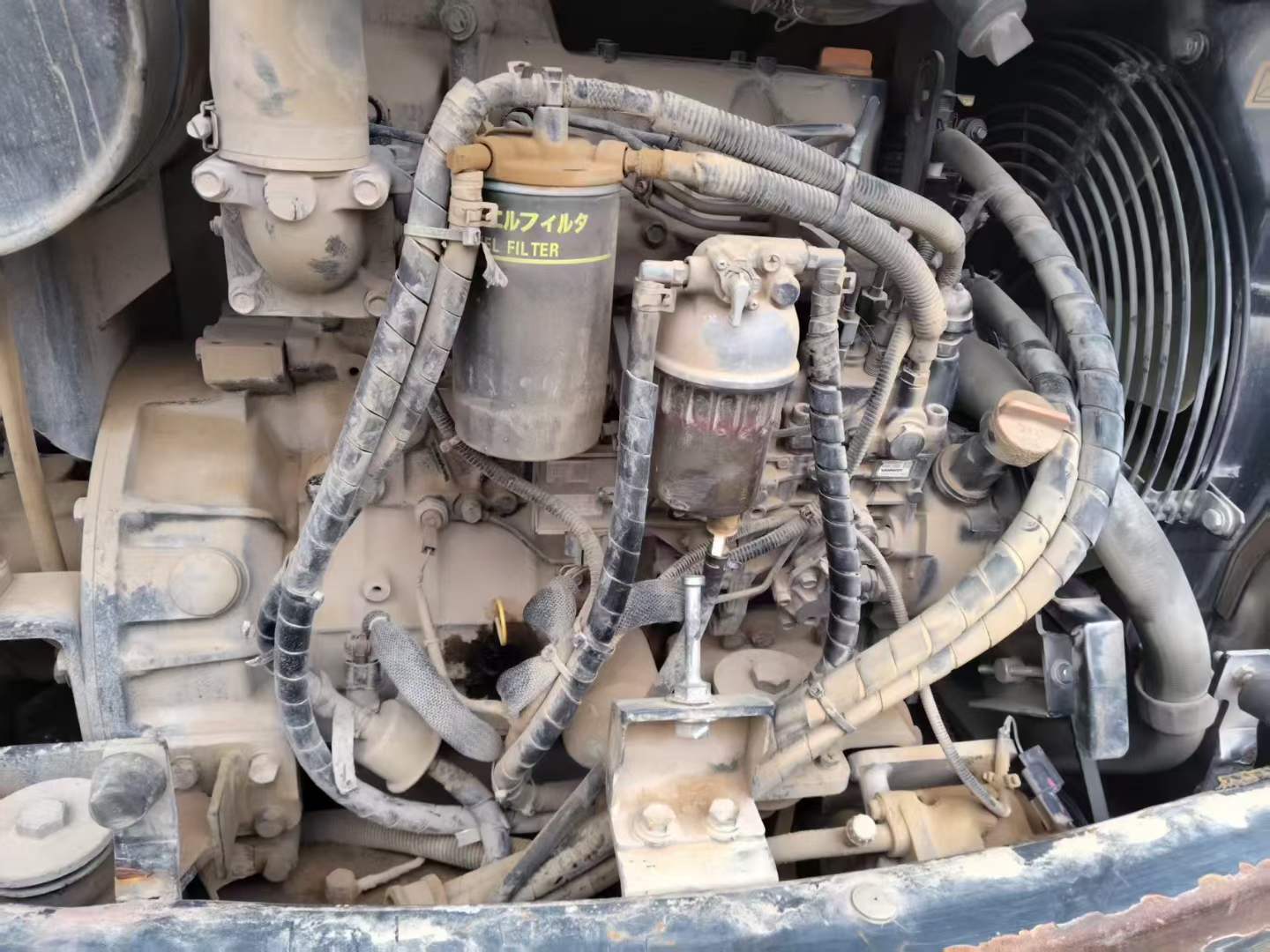

- Yanmar 4TNV98 four-cylinder engine: 54.3 kW @ 2,400 rpm
- Maximum digging reach: 6,150 mm | Depth: 3,820 mm
- Compact transport: 5,900 mm (L) × 1,920 mm (W) × 2,550 mm (H)
- Dual 55 L/min variable pumps with 220 MPa working
| Specifications | Value |
|---|---|
| No. | 1019430 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 |
| Rated power (kw/rpm) | 54.3 / 2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 (3.86 ") x 110 (4.33 "). |
| Maximum torque (N.m) | 20.6 / 1800 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.0 / 2.2 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 220 |

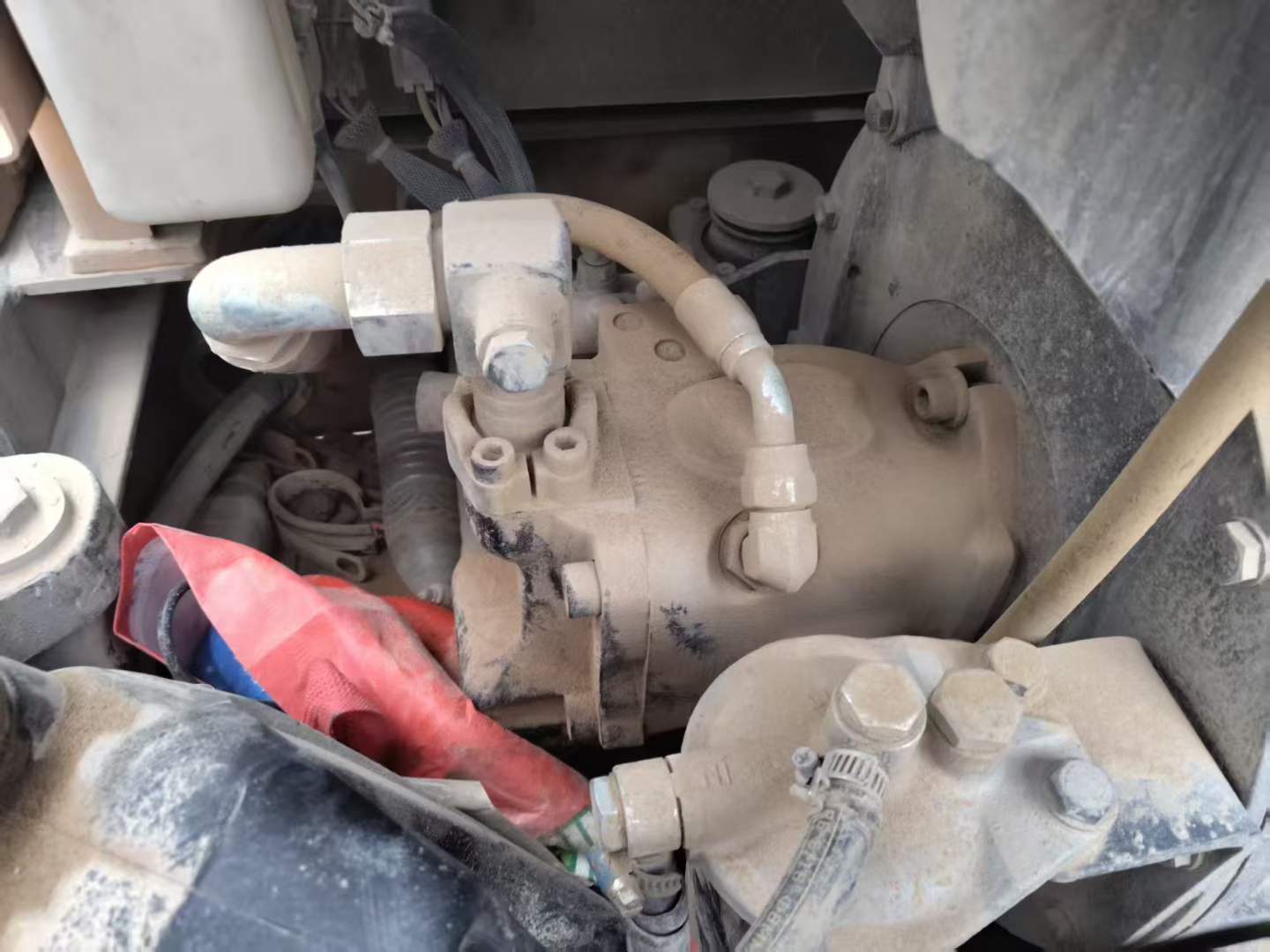

| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 220 |
| Pilot Oil Circuit (MPa) | 30 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 50 x 660 (3.1 "x 26.0") |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90×55×850 (3.5 "×33.5") |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110×65×715 (4.3 "×28.1") |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1830 |
| Total track length (mm) | 2530 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1990 |
| Maximum height at minimum turning radius (mm) | 2350 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
