2013 Hyundai R110-7

1/5

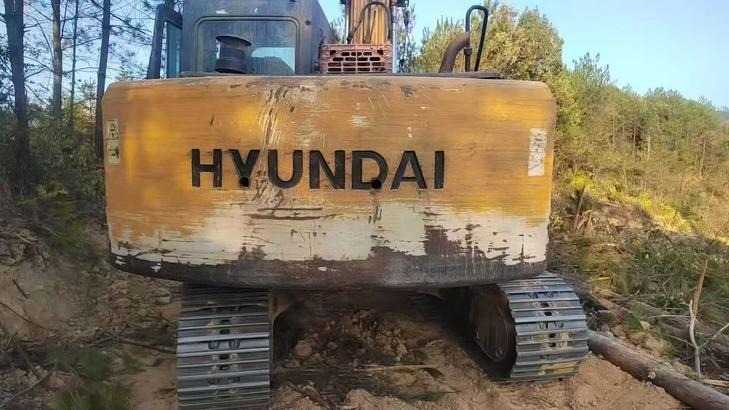

Buy Hyundai R110-7 Used Excavator / 1
Buy Hyundai R110-7 Used Excavator / 2
Buy Hyundai R110-7 Used Excavator / 3
Buy Hyundai R110-7 Used Excavator / 4
Buy Hyundai R110-7 Used Excavator / 5

Product Description

With a robust 11-ton working weight and powered by a Mitsubishi S4K-T engine, this 2013 Hyundai R110-7 excavator has proven its durability and reliability over the years. Featuring a 4-cylinder, four-stroke turbocharged direct injection diesel engine, it delivers a rated power of 70 kW at 1950 rpm, ensuring consistent performance on any job site. The machine boasts a maximum torque of 371.4 N.m, providing ample digging force with 78.5 kN for the bucket and 55.7 kN for the rod. Its travel speed ranges from 3.4 to 5.5 km/h, and it can handle steep inclines with a climbing ability of 70/35°. Equipped with a 0.30-0.59 m³ bucket capacity, this excavator is ideal for a variety of construction and excavation tasks. Built to last, this Hyundai model is a testament to the brand's commitment to quality and longevity.

SpecificationsValue
No.1050868
Tonnage (tons)11
Working weight (kg)11200
Bucket capacity (m³)0.30-0.59
Boom length (mm)4300
Rod length (mm)2260
Country of originPeking
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi S4K-T
Rated power (kw/rpm)70/1950
Cooling modewater-cooling
Maximum torque (N.m/rpm)371.4
Number of cylinders (PCS)4
Displacement (L)4.2
Working formFour-cylinder, four-stroke turbocharged direct injection diesel engine
Rotation speed (rpm)13
Climbing ability (%)70/35 °
Bucket digging force (kN)78.5
Rod digging force (kN)55.7
Travel speed (km/h)3.4-5.5
Rotary hydraulic motor typeQuantitative swash plate plunger motor
Type of walking hydraulic motorVariable swash plate plunger motor
Maximum flow of main pump (l/min)2 x 112
Traveling Hydraulic Circuit (Mpa)33
Rotary Hydraulic Circuit (Mpa)24
Hydraulic crushing pipeline is standardno
Main pump type2× variable axial piston pump
Working Hydraulic Circuit (Mpa)33
Pilot Oil Circuit (MPa)3.5
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Total transport length (mm)7270
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2380
Back end turning radius (mm)2130
Onboard width (mm)2800
Total track length (mm)3340
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2610
Maximum digging radius (mm)7740
Maximum digging depth (mm)5090
Maximum excavation height (mm)8070
Maximum unloading height (mm)5710
Maximum vertical digging depth (mm)4430
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)7610
Maximum effective digging depth (mm)4870
see more

Overview

No.1050868

Brand Name:

Hyundai

Model Number:

R110-7

Year:

2013

Location:

Zhejiang China
