2020 Hyundai R110-7

1/5
Buy Hyundai R110-7 Used Excavator / 1
Buy Hyundai R110-7 Used Excavator / 2

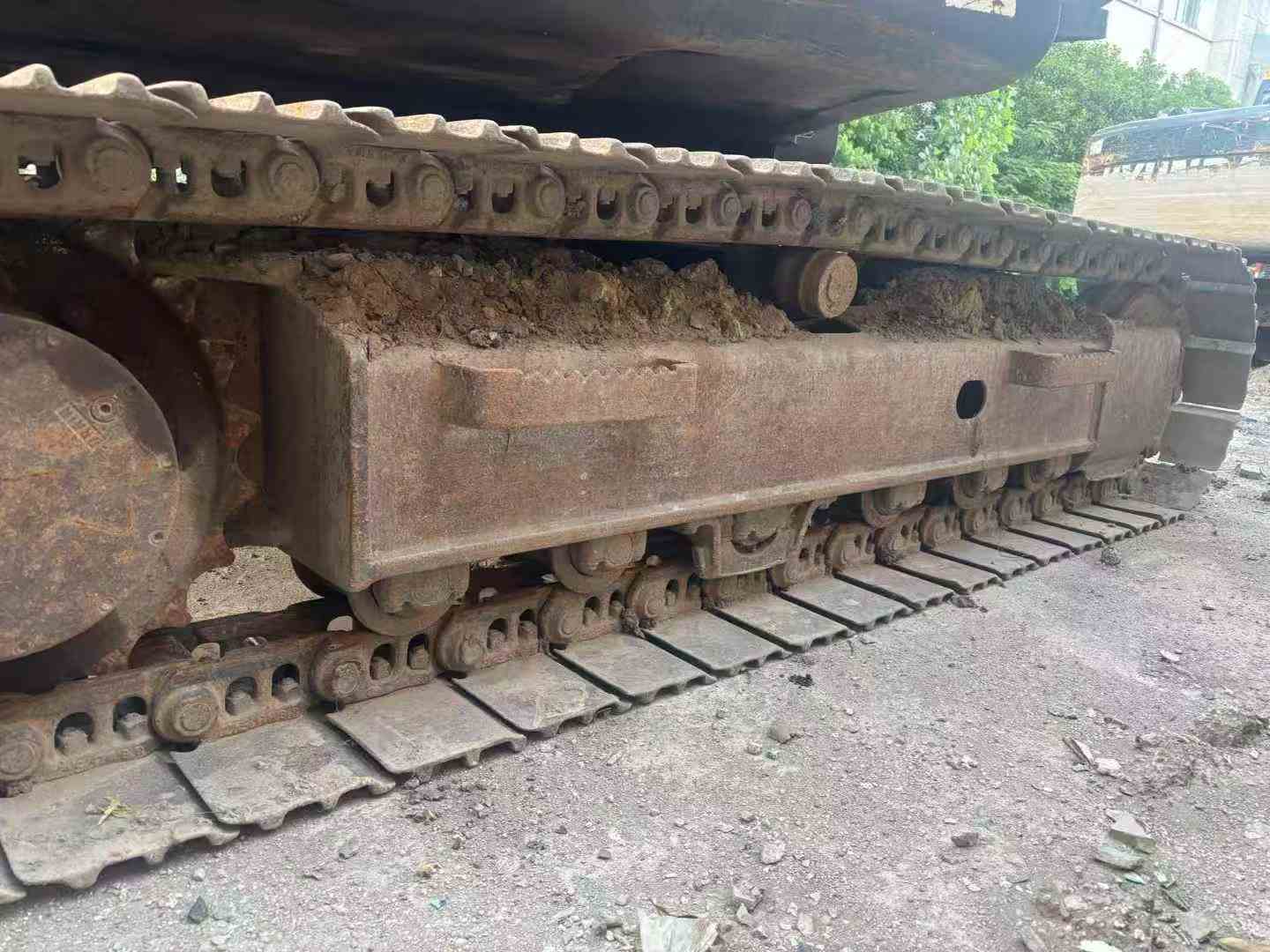

Buy Hyundai R110-7 Used Excavator / 3

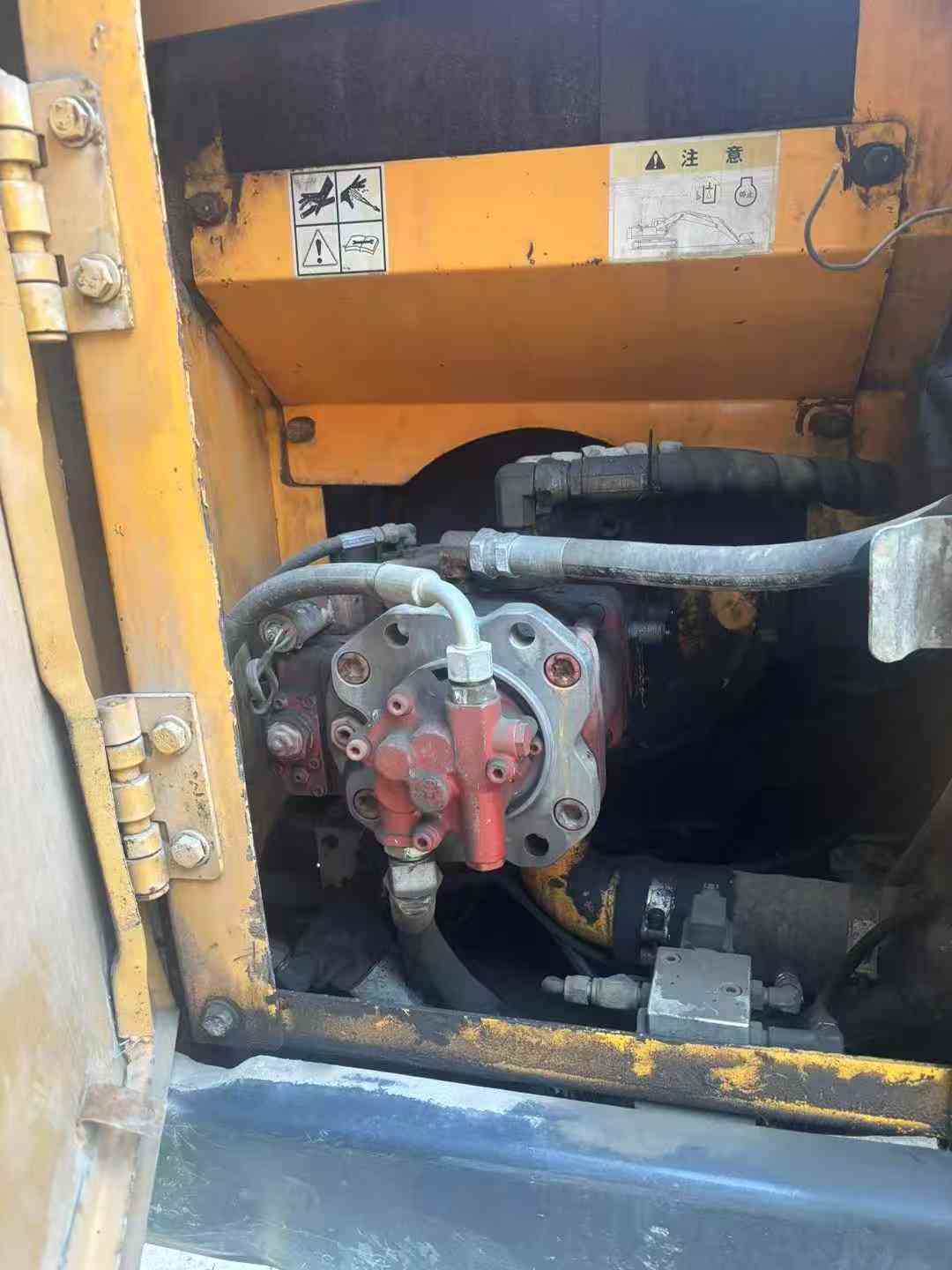

Buy Hyundai R110-7 Used Excavator / 4
Buy Hyundai R110-7 Used Excavator / 5

Product Description

Well-maintained 2020 Hyundai R110-7 excavator available in Shanghai, China. This 11-ton class machine has been operated by a single owner who maintained it with exceptional care throughout its service life. The attention to detail is evident in the machine's overall condition, making it an attractive option for contractors seeking reliable performance without the premium of new equipment.

Key highlights:

  • Single-owner operation with documented maintenance history
  • Hyundai's proven R-7 series hydraulic system
  • 11-ton operating weight suitable for mid-range excavation work
  • Located in Shanghai with inspection available by appointment
  • Strong value proposition for budget-conscious operations

The R110-7 offers a practical balance of digging force, fuel efficiency, and cab comfort for general construction, utility work, and landscaping applications. Immediate availability. Serious inquiries only.

SpecificationsValue
No.1075643
Tonnage (tons)11
Working weight (kg)11200
Bucket capacity (m³)0.30-0.59
Boom length (mm)4300
Rod length (mm)2260
Country of originPeking
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi S4K-T
Rated power (kw/rpm)70/1950
Cooling modewater-cooling
Maximum torque (N.m/rpm)371.4
Number of cylinders (PCS)4
Displacement (L)4.2
Working formFour-cylinder, four-stroke turbocharged direct injection diesel engine
Rotation speed (rpm)13
Climbing ability (%)70/35 °
Bucket digging force (kN)78.5
Rod digging force (kN)55.7
Travel speed (km/h)3.4-5.5
Rotary hydraulic motor typeQuantitative swash plate plunger motor
Type of walking hydraulic motorVariable swash plate plunger motor
Maximum flow of main pump (l/min)2 x 112
Traveling Hydraulic Circuit (Mpa)33
Rotary Hydraulic Circuit (Mpa)24
Hydraulic crushing pipeline is standardno
Main pump type2× variable axial piston pump
Working Hydraulic Circuit (Mpa)33
Pilot Oil Circuit (MPa)3.5
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Total transport length (mm)7270
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2380
Back end turning radius (mm)2130
Onboard width (mm)2800
Total track length (mm)3340
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2610
Maximum digging radius (mm)7740
Maximum digging depth (mm)5090
Maximum excavation height (mm)8070
Maximum unloading height (mm)5710
Maximum vertical digging depth (mm)4430
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)7610
Maximum effective digging depth (mm)4870
see more

Overview

No.1075643

Brand Name:

Hyundai

Model Number:

R110-7

Year:

2020

Location:

Shanghai China

Pub Date
