Product Description

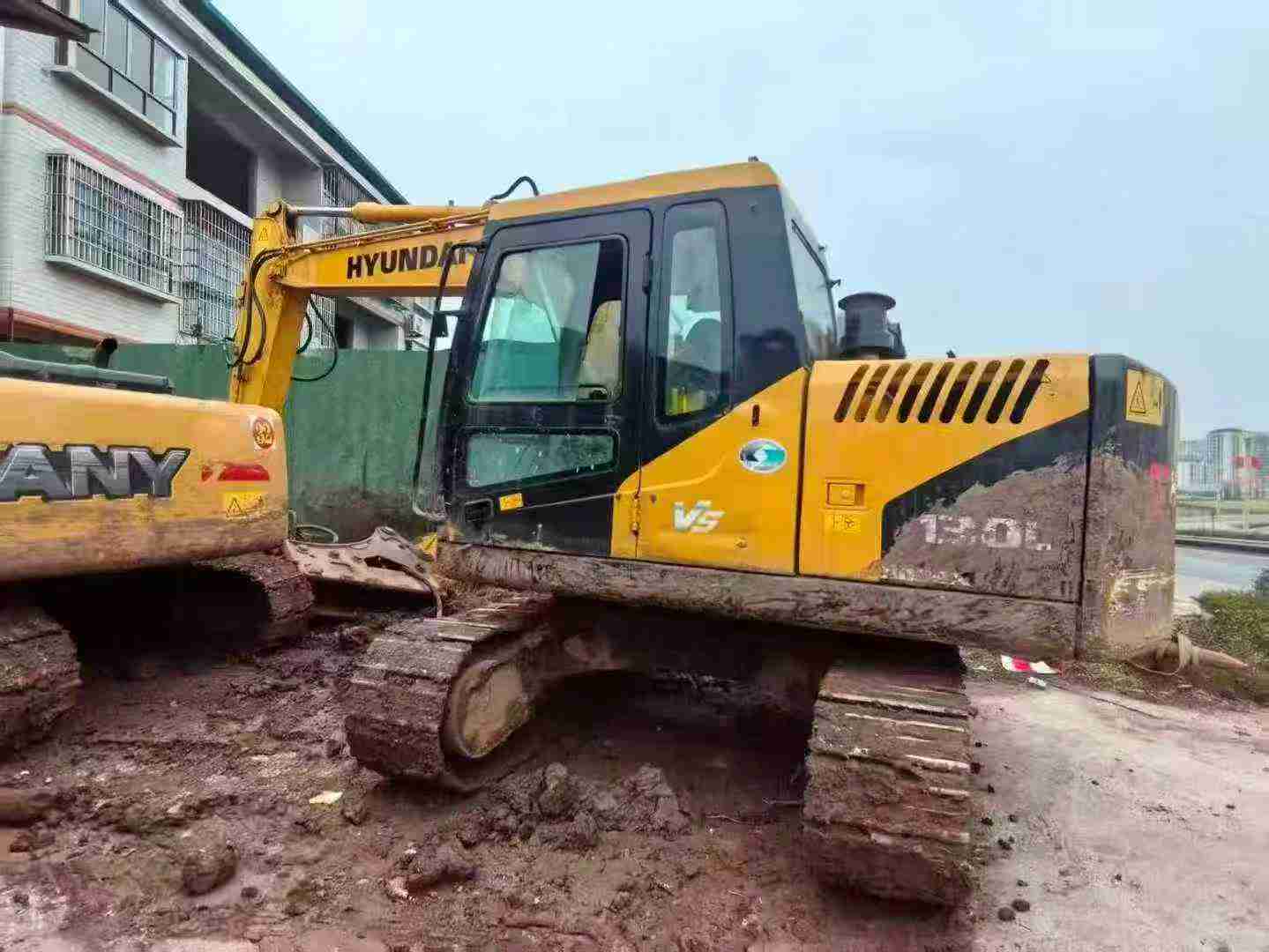

Available now in 四川泸州, this 2016 Hyundai R110VS excavator eliminates factory lead times and delivers immediate deployment to your worksite. Powered by a reliable Mitsubishi D04FRC-TAA engine producing 74kW at 2000rpm, this 11-ton machine combines proven joint venture engineering with practical performance specifications.
Key operational advantages include:
- Maximum digging depth of 5090mm with 7740mm reach radius

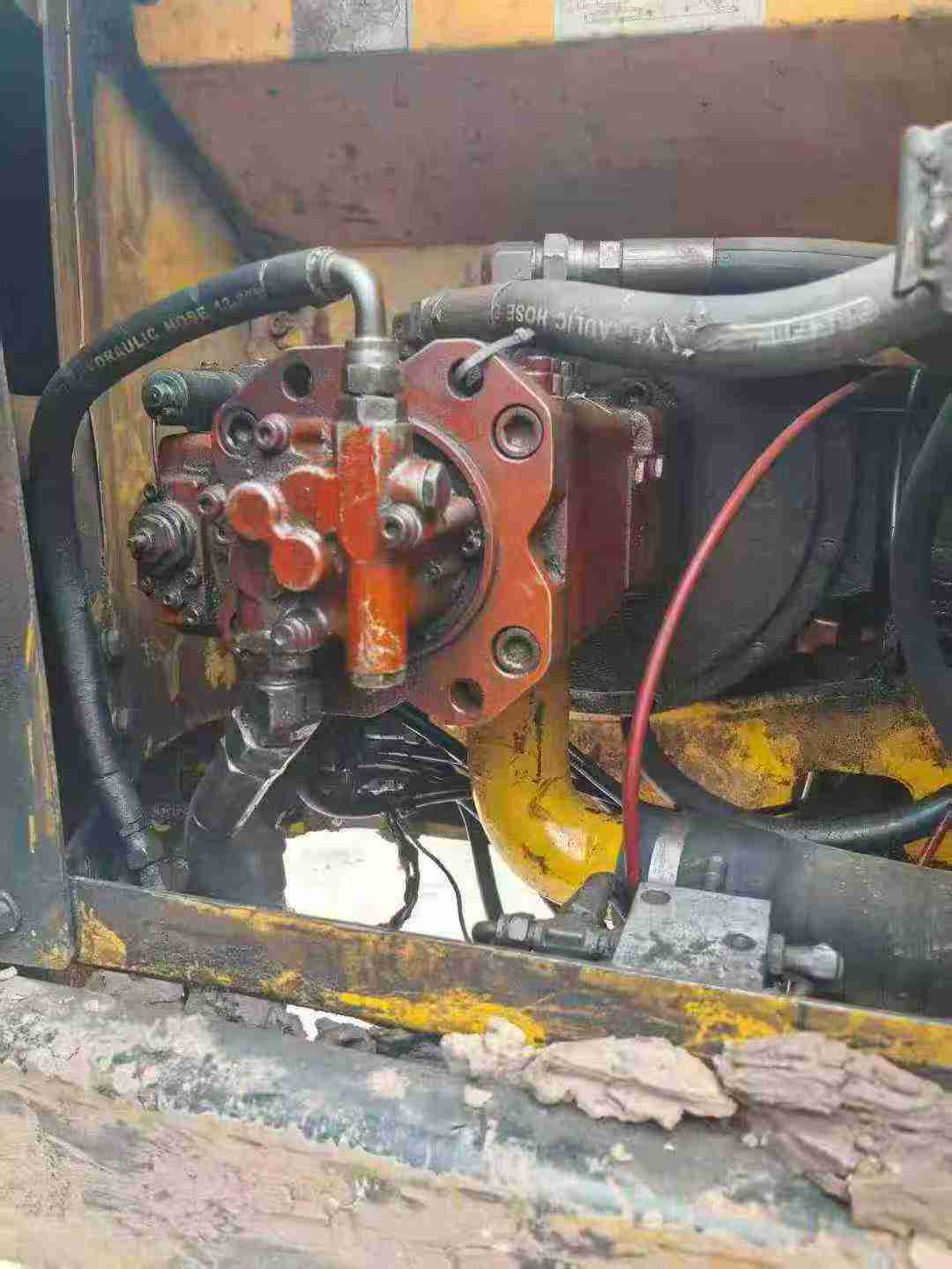

- Dual variable plunger pumps delivering 2×112 L/min flow capacity
- 0.45m³ bucket capacity with 4300mm boom and 2260mm arm configuration
- Water-cooled 4-cylinder engine with 4.249L displacement
- Travel speeds up to 5.5 km/h with 70% climbing capability
- 250L fuel tank and 210L hydraulic system for extended operation
Skip the waiting period. This ready-to-work excavator in 四川泸州 offers immediate availability with complete specifications verified. Fast deployment means your project timeline stays on track without procurement delays. Contact us today for rapid site delivery.
| Specifications | Value |
|---|---|
| No. | 996168 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 11200 |
| Bucket capacity (m³) | 0.45 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FRC-TAA |
| Rated power (kw/rpm) | 74/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Maximum torque (N.m) | 44.4 / 1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | 4 cylinder, 4 stroke, water cooled |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 / 3.4 |
| Maximum flow of main pump (l/min) | 2 x 112 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | Two variable plunger pump |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 95 x ø 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 110 x ø 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 95 x ø 70 x 1015 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 7270 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 2130 |
| Onboard width (mm) | 2475 |
| Track plate width (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8070 |
| Maximum unloading height (mm) | 5710 |
| Maximum vertical digging depth (mm) | 4430 |
| Maximum excavation radius of stop surface (mm) | 7610 |
