Product Description

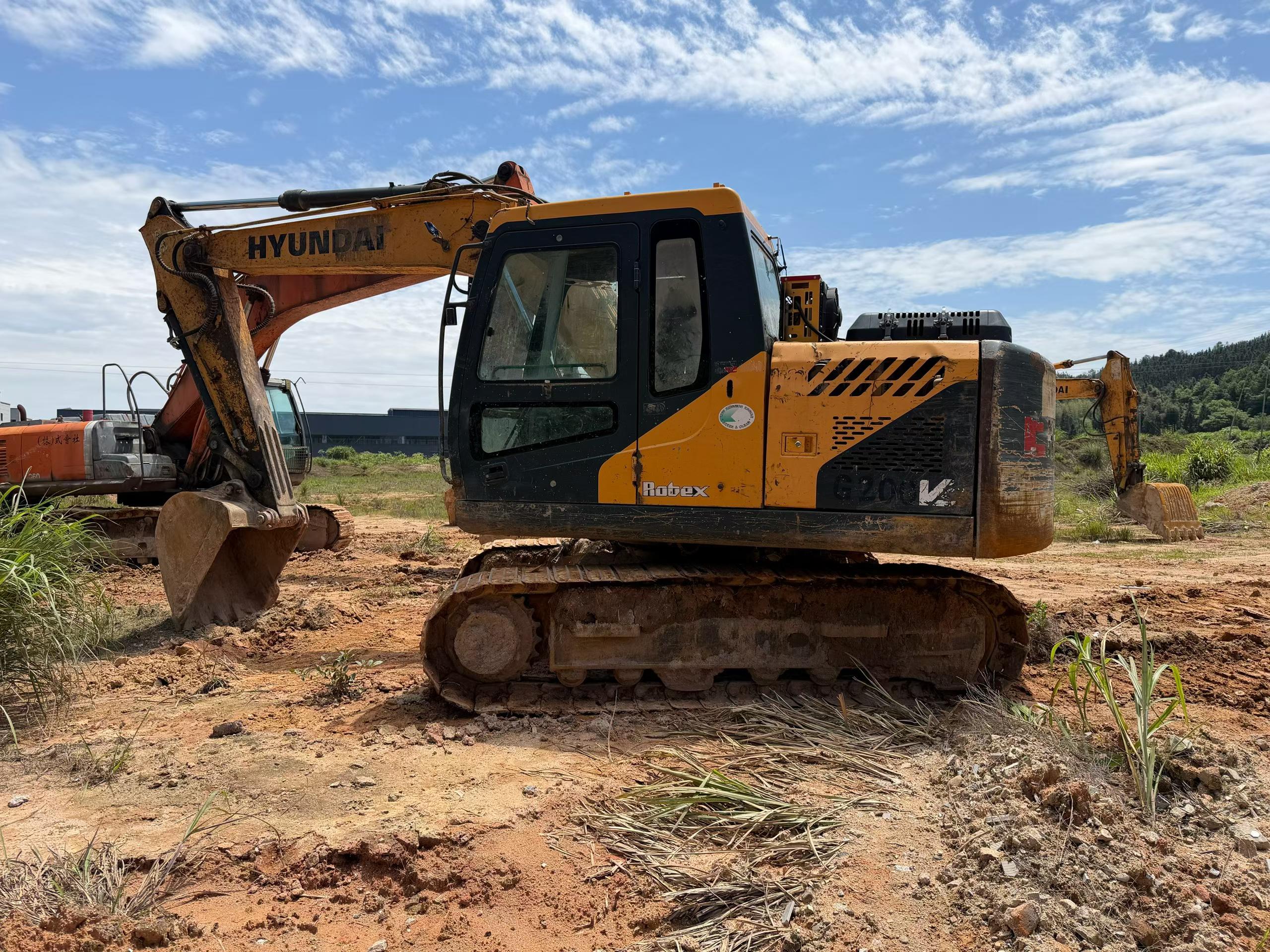

Discover the 2017 Hyundai R110VS, a robust and reliable excavator currently available in Zhejiang, China. This machine, with its proven performance and durability, is an excellent addition to any construction or excavation project. The R110VS is known for its efficient operation and ease of maintenance, making it a cost-effective solution for your heavy machinery needs.
- Year: 2017
- Brand: Hyundai

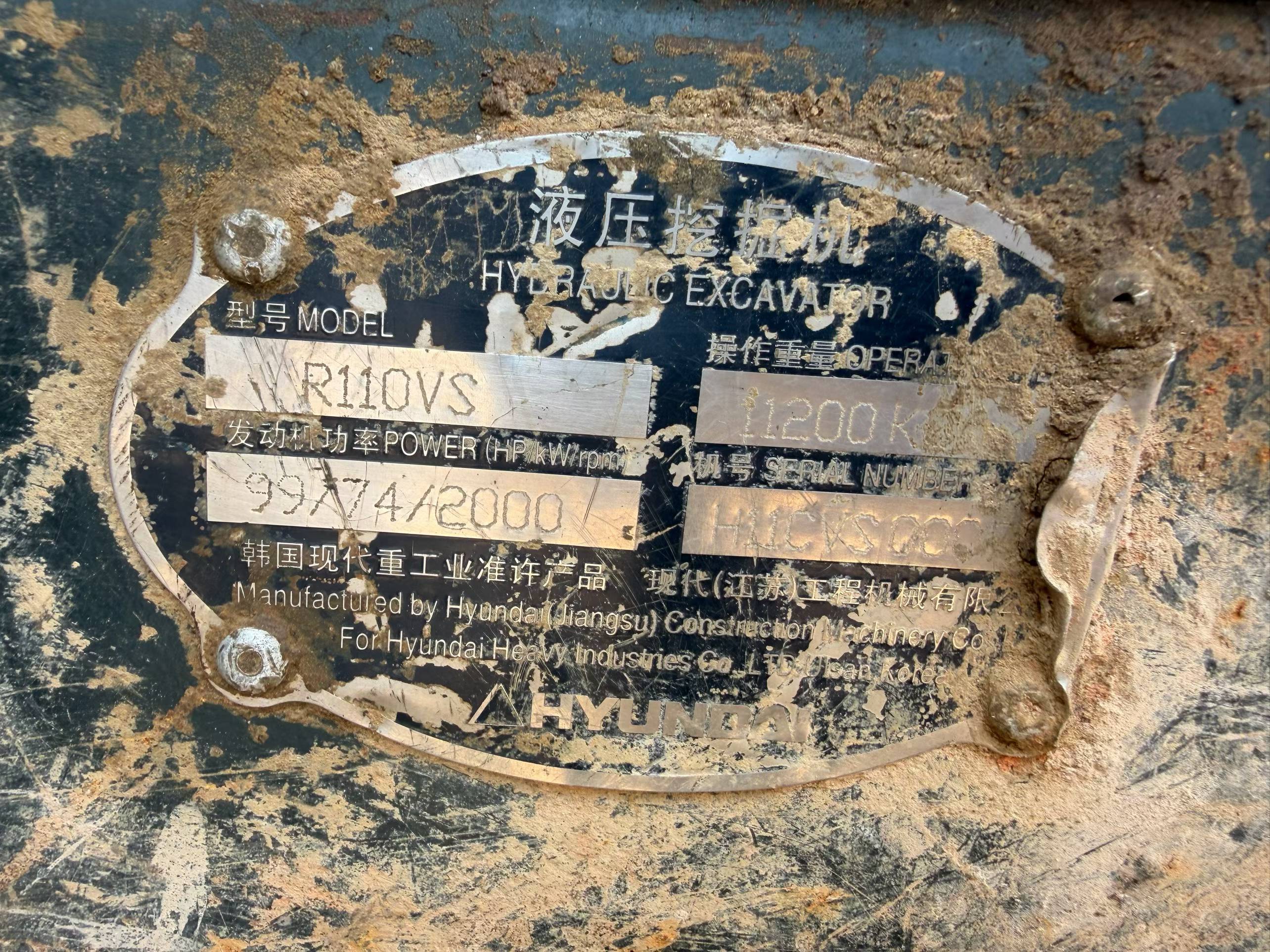

- Model: R110VS
- Location: Zhejiang, China
- Priced at 108,000 RMB, this unit is ready for immediate takeover
| Specifications | Value |
|---|---|
| No. | 1058130 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 11200 |
| Bucket capacity (m³) | 0.45 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

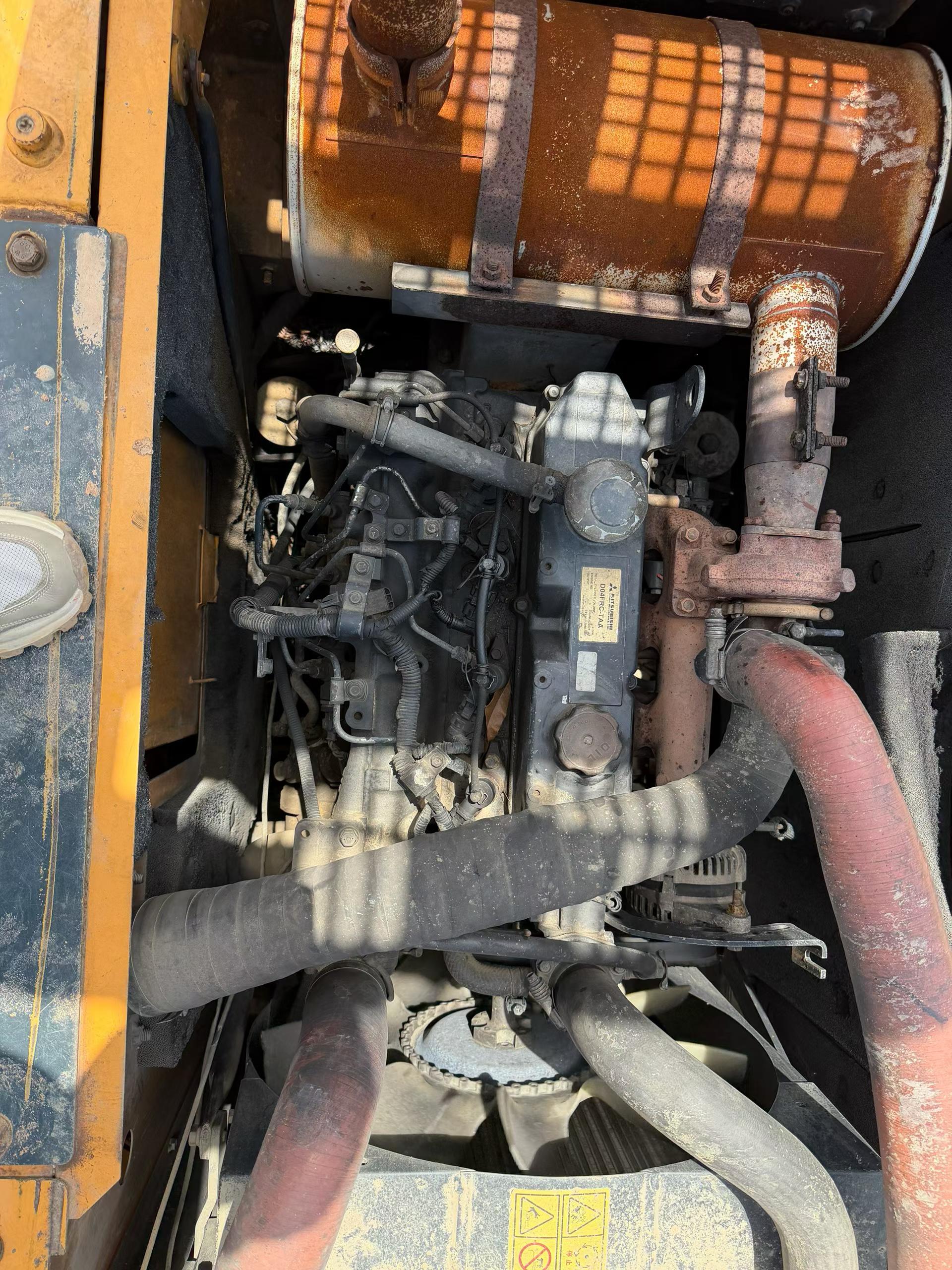

| Engine type | Mitsubishi D04FRC-TAA |
| Rated power (kw/rpm) | 74/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Maximum torque (N.m) | 44.4 / 1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | 4 cylinder, 4 stroke, water cooled |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 / 3.4 |
| Maximum flow of main pump (l/min) | 2 x 112 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |

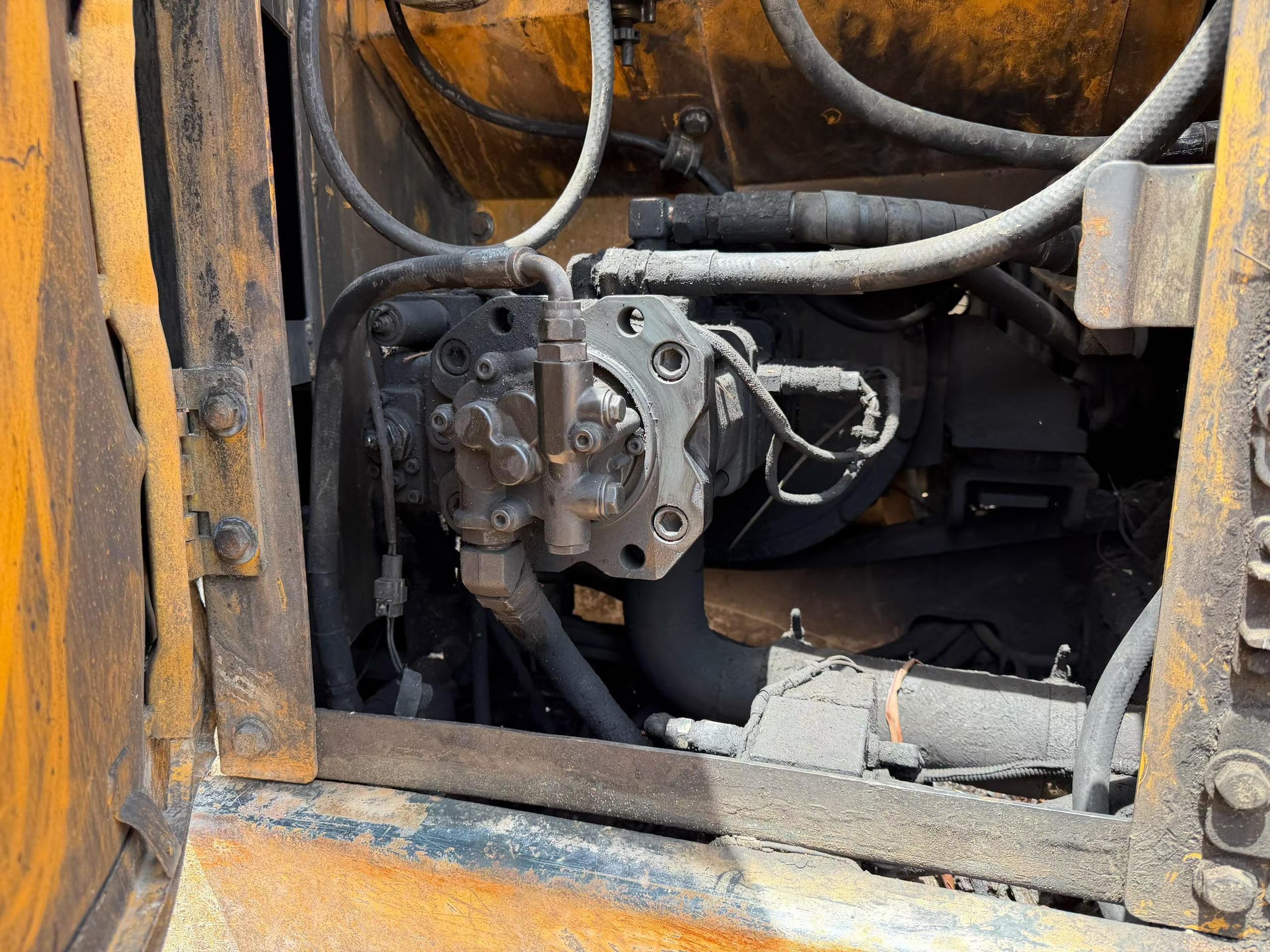

| Main pump type | Two variable plunger pump |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 95 x ø 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 110 x ø 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 95 x ø 70 x 1015 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 7270 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 2130 |
| Onboard width (mm) | 2475 |
| Track plate width (mm) | 500 |

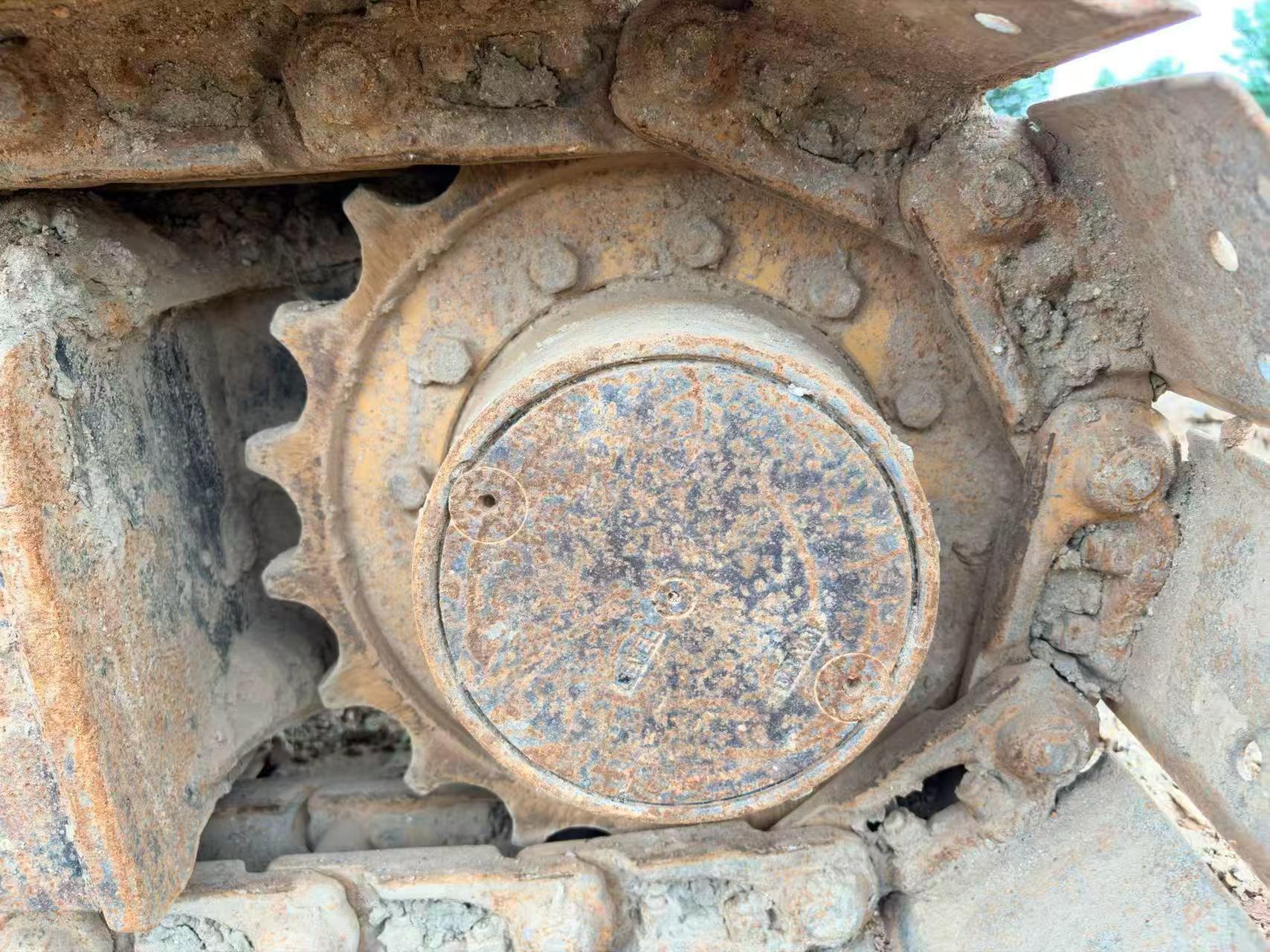

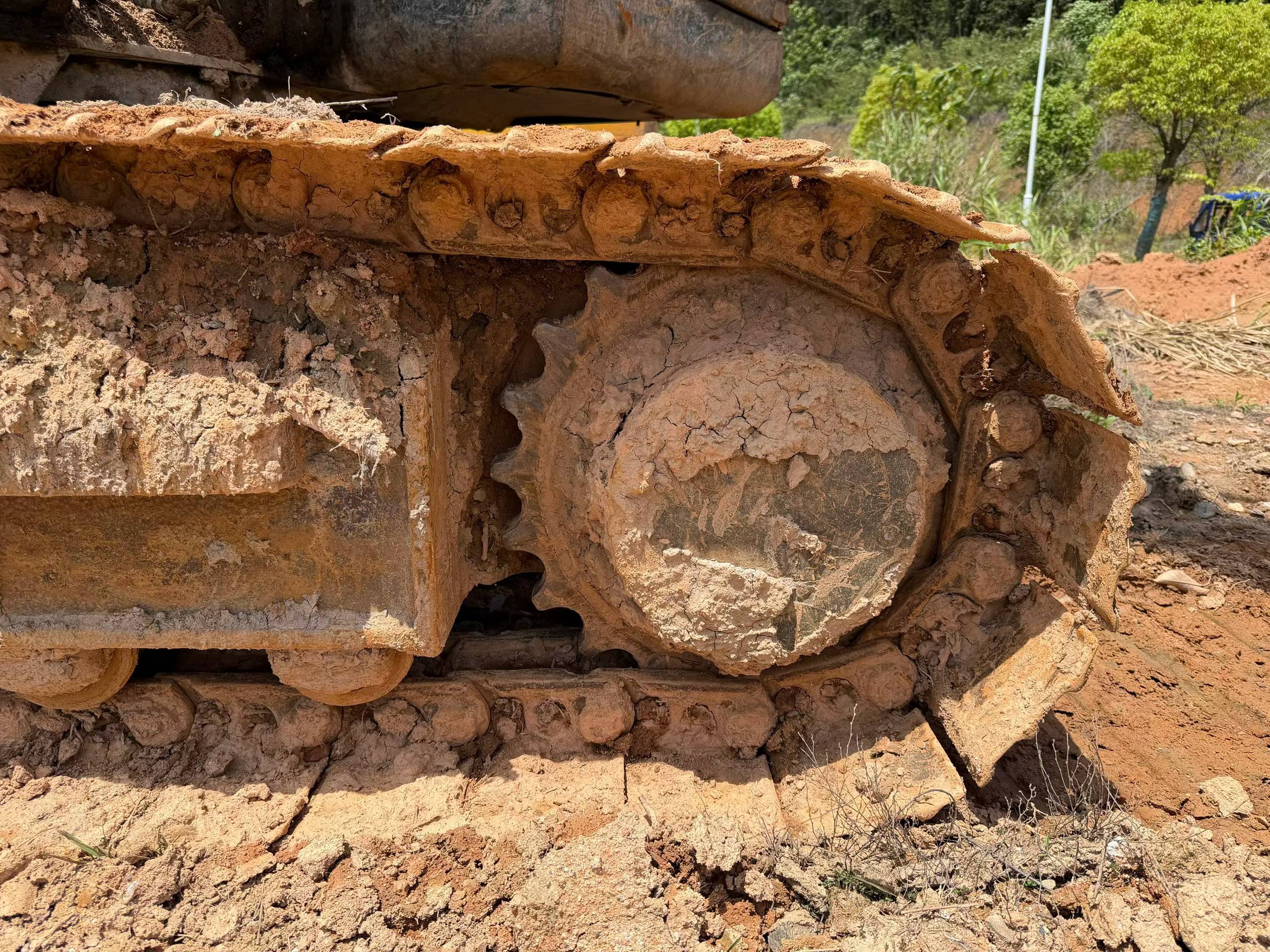

| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8070 |
| Maximum unloading height (mm) | 5710 |
| Maximum vertical digging depth (mm) | 4430 |
| Maximum excavation radius of stop surface (mm) | 7610 |
