Product Description

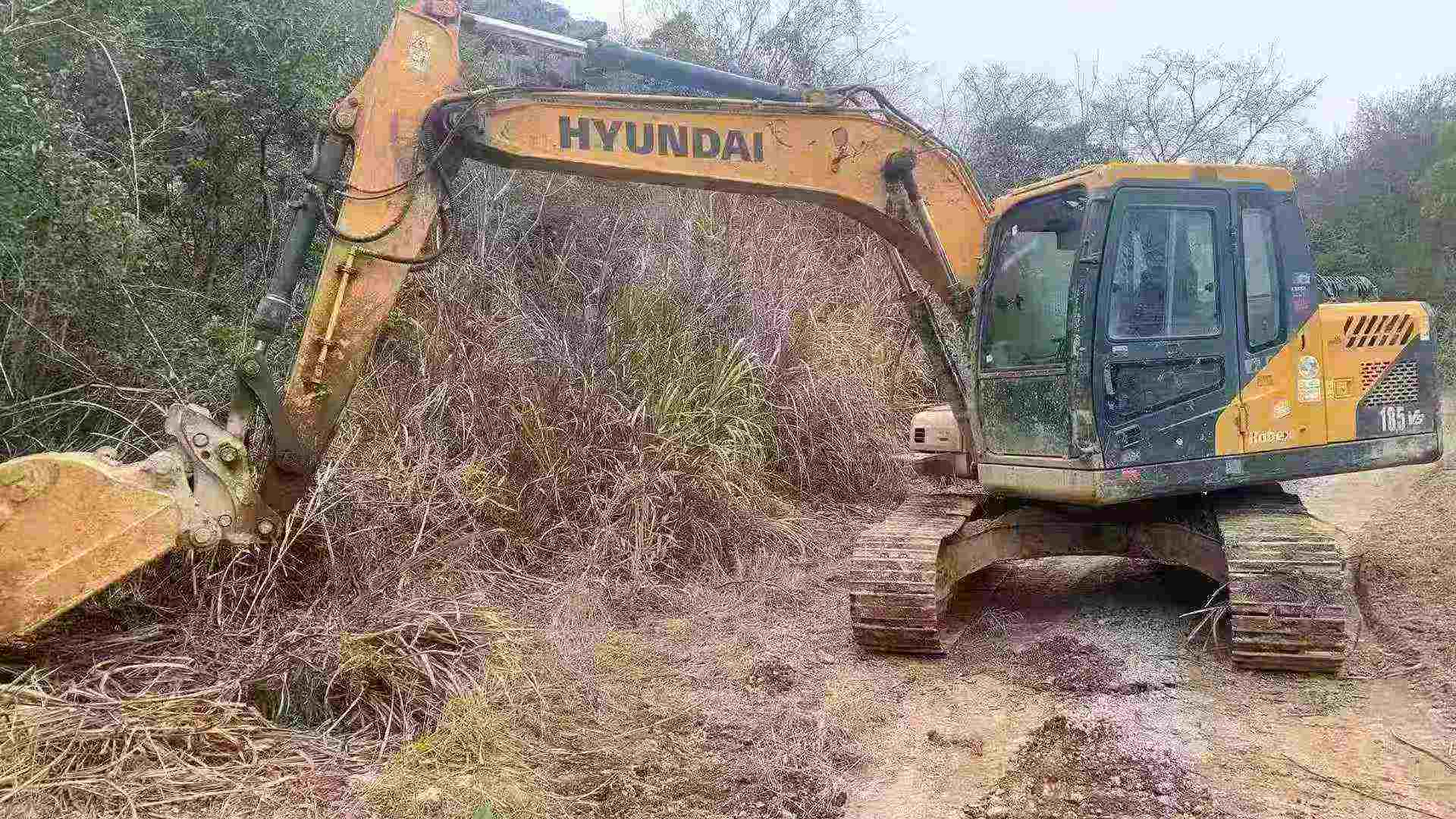

Engineered with precision for mid-size excavation projects, this 2018 Hyundai R110VS delivers 11 tons of proven Japanese-Korean joint venture technology. Powered by a Mitsubishi D04FRC-TAA engine producing 74kW at 2000rpm and 44.4 N.m maximum torque, this machine combines robust performance with reliable water-cooled efficiency across its 4.249L displacement.

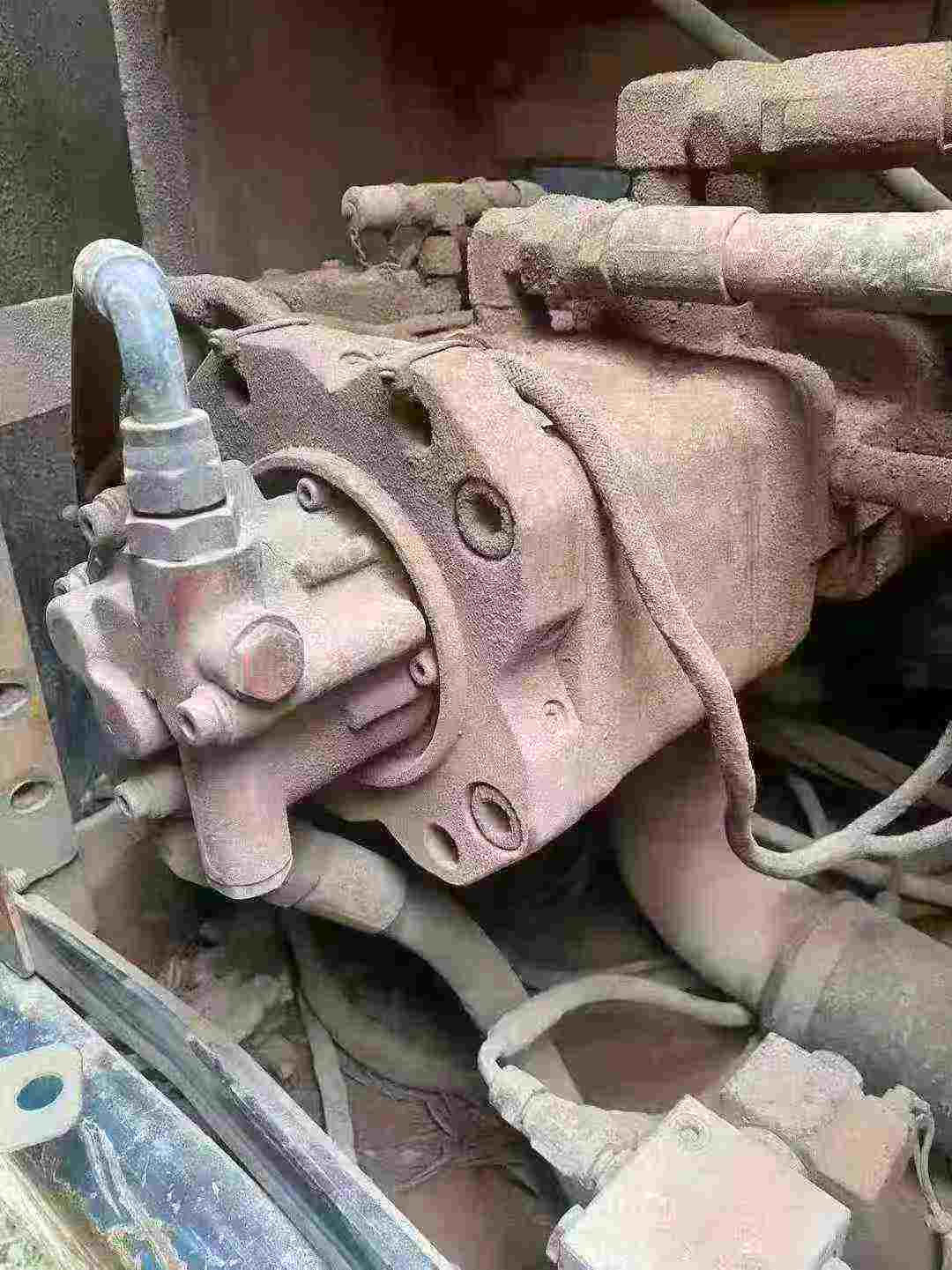

Hydraulic superiority defines this model. Twin variable plunger pumps supply 2×112 l/min flow capacity, while the system operates at 330 MPa for travel and 240 MPa for rotation. Working parameters include a maximum digging reach of 7,740mm, digging depth to 5,090mm, and dumping height of 5,710mm with a 0.45m³ backhoe bucket. The 4,300mm boom and 2,260mm arm provide exceptional versatility in tight spaces.
Key specifications include:
- Operating weight: 11,200kg with 500mm track plates
- Travel speed: 5.5/3.4 km/h with 70% grading ability
- Fuel capacity: 250L; Hydraulic reservoir: 100L
- Transport dimensions: 7,270mm × 2,490mm × 2,800mm
Currently located in Luzhou, Sichuan, this unit represents dependable hydraulic excavation capability backed by Mitsubishi powertrain engineering.
| Specifications | Value |
|---|---|
| No. | 1023586 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 11200 |
| Bucket capacity (m³) | 0.45 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

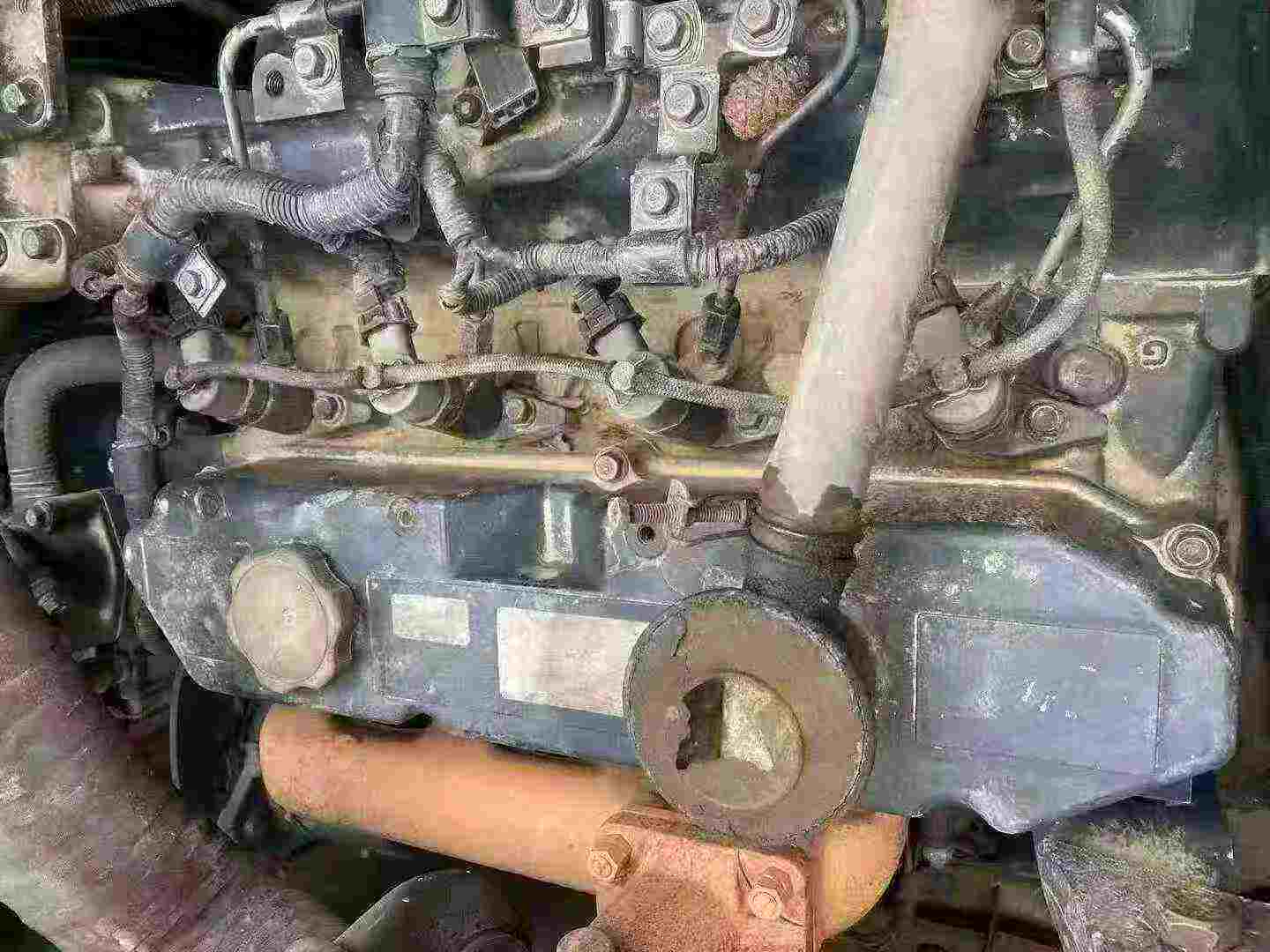

| Engine type | Mitsubishi D04FRC-TAA |
| Rated power (kw/rpm) | 74/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Maximum torque (N.m) | 44.4 / 1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | 4 cylinder, 4 stroke, water cooled |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 / 3.4 |
| Maximum flow of main pump (l/min) | 2 x 112 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |

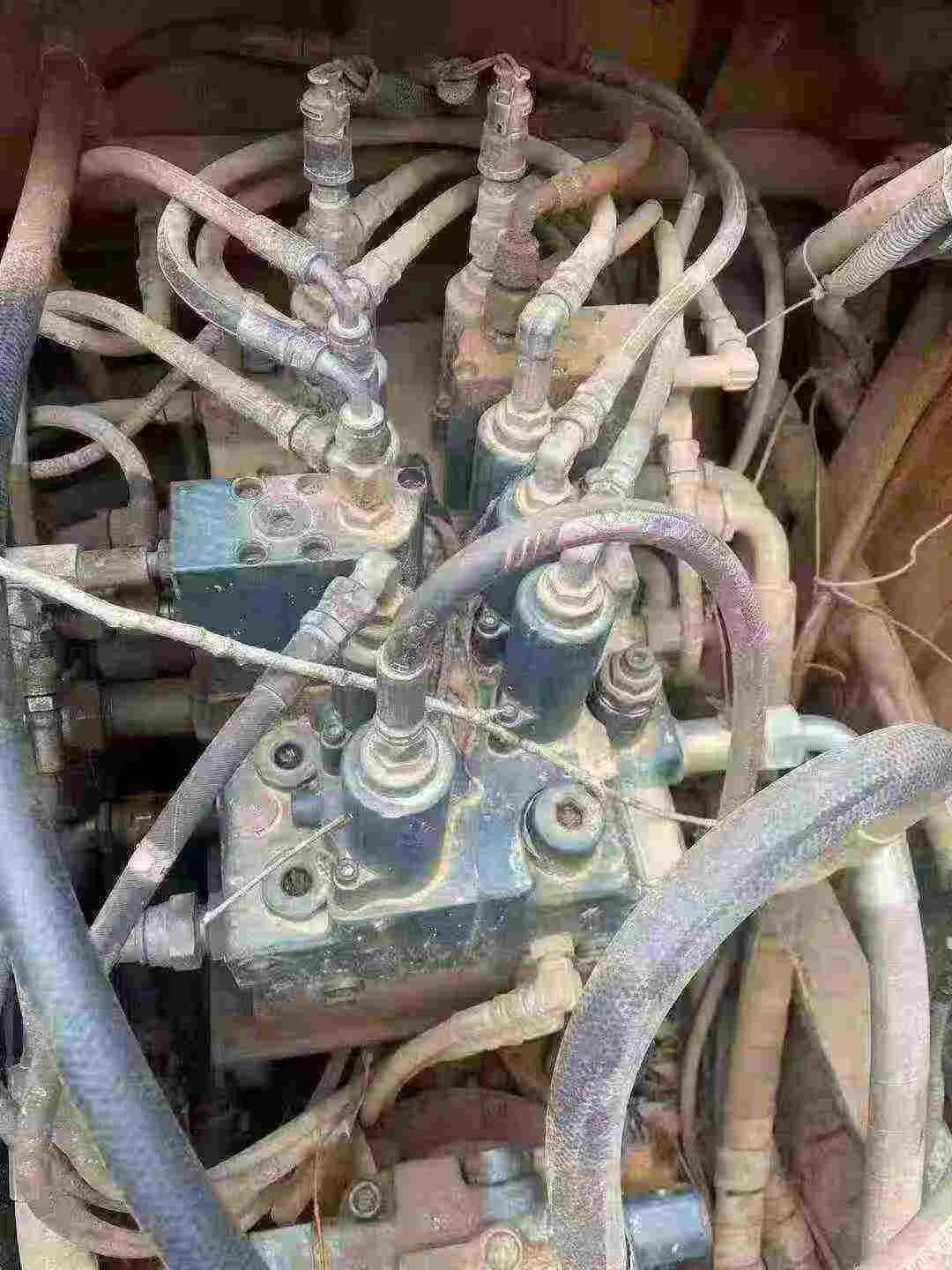

| Main pump type | Two variable plunger pump |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 95 x ø 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 110 x ø 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 95 x ø 70 x 1015 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 7270 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 2130 |
| Onboard width (mm) | 2475 |
| Track plate width (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8070 |
| Maximum unloading height (mm) | 5710 |
| Maximum vertical digging depth (mm) | 4430 |
| Maximum excavation radius of stop surface (mm) | 7610 |
