Product Description

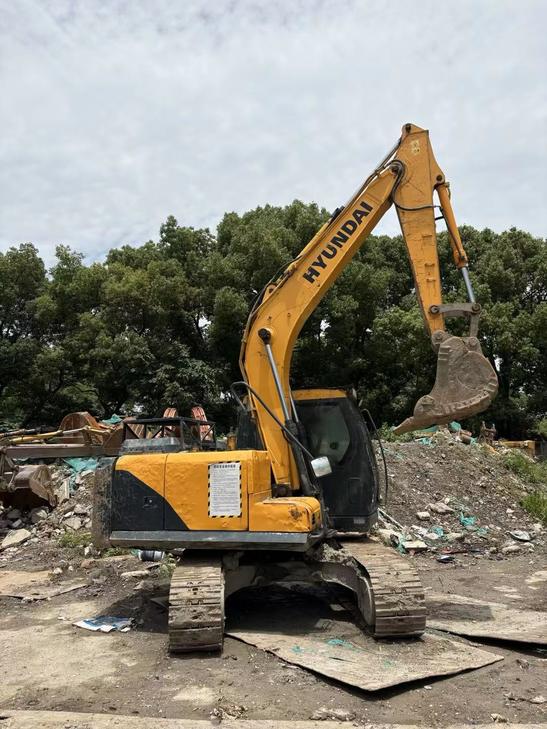

This 2019 Hyundai R110VS excavator represents an excellent value opportunity for contractors seeking reliable mid-sized earthmoving equipment. Currently available in Shanghai, China, this machine offers substantial cost savings while maintaining the quality standards expected from Hyundai's construction equipment division.
The R110VS model is designed for versatility across construction, demolition, and landscaping applications. With its compact footprint and efficient hydraulic system, this excavator delivers consistent performance in urban job sites and confined spaces where maneuverability is essential.
Key highlights include:
- 2019 model year with documented service history
- Hyundai R110VS configuration for balanced performance
- Currently located in Shanghai, China for inspection
- Competitively priced for immediate acquisition
- Suitable for rental fleets and contractor operations
This used excavator is ready for pre-purchase inspection and can facilitate international shipping arrangements to qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1089041 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 11200 |
| Bucket capacity (m³) | 0.45 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FRC-TAA |
| Rated power (kw/rpm) | 74/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Maximum torque (N.m) | 44.4 / 1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | 4 cylinder, 4 stroke, water cooled |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 / 3.4 |
| Maximum flow of main pump (l/min) | 2 x 112 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | Two variable plunger pump |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 95 x ø 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 110 x ø 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 95 x ø 70 x 1015 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 7270 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 2130 |
| Onboard width (mm) | 2475 |
| Track plate width (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8070 |
| Maximum unloading height (mm) | 5710 |
| Maximum vertical digging depth (mm) | 4430 |
| Maximum excavation radius of stop surface (mm) | 7610 |
