Product Description

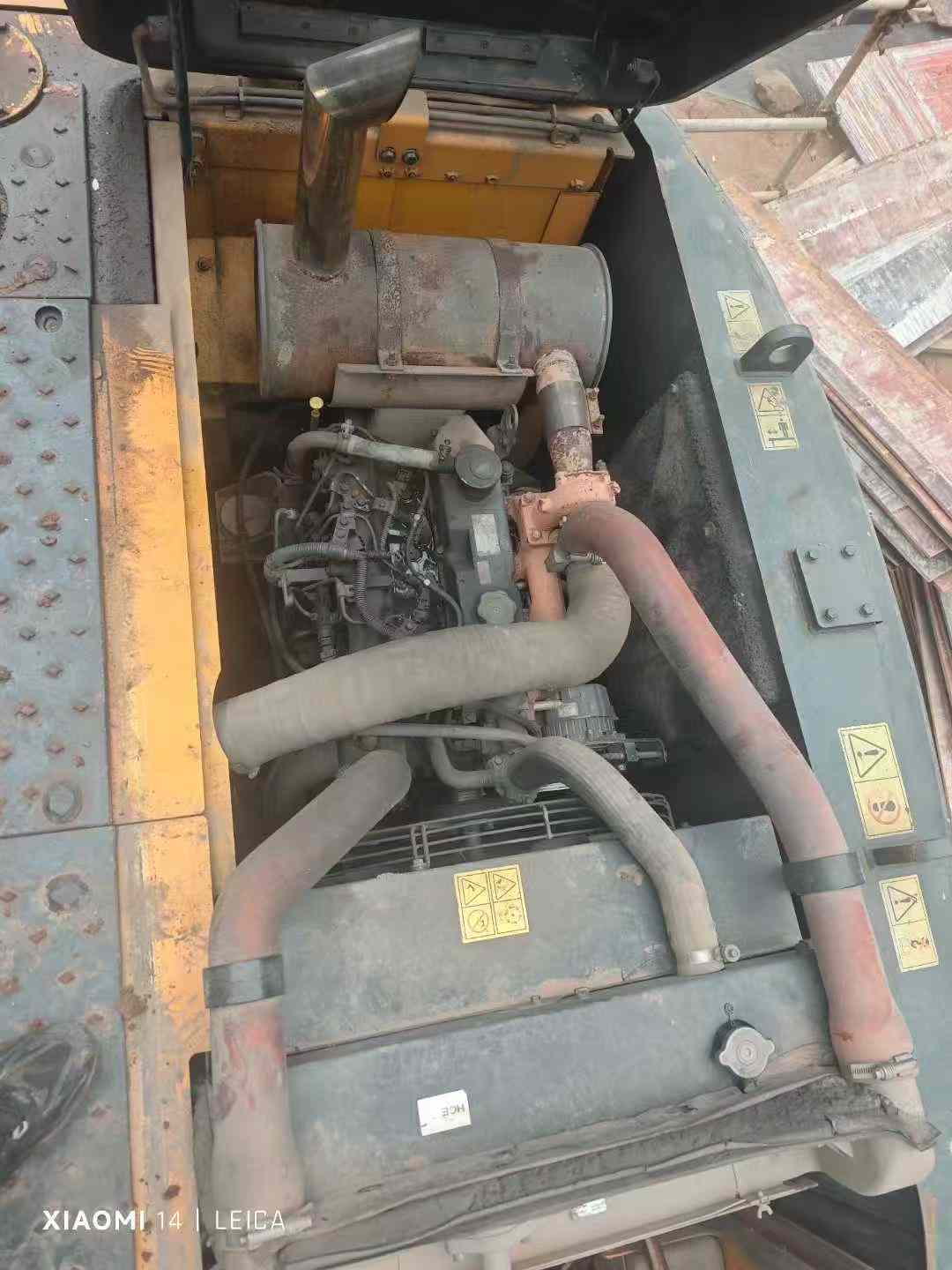

With a working weight of 13,000 kg and a bucket capacity of 0.52 m³, this 2020 Hyundai R130VS excavator is an ideal addition to any contractor's fleet. Located in Fujian Putian, it boasts a Mitsubishi D04FRC-TAA engine, delivering 98 kW at 2000 rpm, ensuring reliable performance and efficiency. Equipped with a 4-cylinder, 4-stroke, turbocharged air-to-air cooled engine, this machine is designed for durability and long-term use.
- Maximum digging depth: 5550 mm
- Travel speed: 5.5 km/h (high) / 3.2 km/h (low)
- Fuel tank capacity: 270 L
- Hydraulic system capacity: 210 L
- Boom length: 4600 mm; Rod length: 2500 mm
Featuring a robust axial piston motor with automatic braking and a two-speed axial plunger motor, the R130VS offers precise control and stability. Its compact design, with a total transport width of 2500 mm and height of 2780 mm, makes it easy to maneuver on site. This excavator is perfect for busy contractors looking to expand their fleet or have a reliable backup on hand.
| Specifications | Value |
|---|---|
| No. | 1023361 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13000 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FRC-TAA |
| Rated power (kw/rpm) | 98/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m) | 49.2/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | 4 cylinder, 4 stroke, turbocharged air-to-air cooled engine |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 / 3.2 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 100 x ø 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 115 x ø 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 105 x ø 75 x 1075 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 7820 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2780 |
| Full cab height (mm) | 2775 |
| Counterweight ground clearance (mm) | 940 |
| Back end turning radius (mm) | 2330 |
| Onboard width (mm) | 2476 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5330 |
| Maximum excavation radius of stop surface (mm) | 8180 |
