Product Description
Available now in Sichuan Luzhou, this 2016 Hyundai R150W-9 wheeled excavator eliminates factory lead times and accelerates your project timeline. Powered by a Cummins B5.9-C turbocharged engine delivering 112kW at 1950rpm, this 15-ton machine combines mobility with serious digging capability—101.9kN bucket force and 4850mm maximum digging depth handle demanding earthwork with precision.
Engineered for rapid deployment across mixed terrain, the R150W-9 reaches 37km/h road speed while maintaining 35% climbing ability. Hydraulic systems feature dual variable piston pumps (2×168 l/min) and 350bar main circuit pressure for responsive control. Compact 7760mm transport length and 2500mm width simplify logistics from Luzhou to your worksite.
- Working weight: 13,700kg with 0.23-0.71m³ bucket capacity
- Maximum digging radius: 7920mm; vertical depth: 4460mm
- Cummins 6-cylinder turbocharged engine: 613.48N·m torque, water-cooled
- 270L fuel tank, 126L hydraulic reservoir for extended operation
- Ready for immediate inspection and shipment
Skip months of factory waiting. Secure this proven Hyundai excavator and put it to work within days.
| Specifications | Value |
|---|---|
| No. | 1011598 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13700 |
| Bucket capacity (m³) | 0.23-0.71 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2100 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 112/1950 |
| Total displacement (L) | 5.9 |
| Cooling mode | water-cooling |
| remark | Six-cylinder four-stroke turbocharged direct injection engine |
| Maximum torque (N.m) | 613.48 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 37 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 101.9 |
| Rod digging force (kN) | 65.6 |
| Maximum tractive force (kN) | 83.3 |
| Driving form | Hydraulic motor |
| Main overflow set pressure (Mpa) | 350 |
| Rotary hydraulic motor type | Variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 168 |

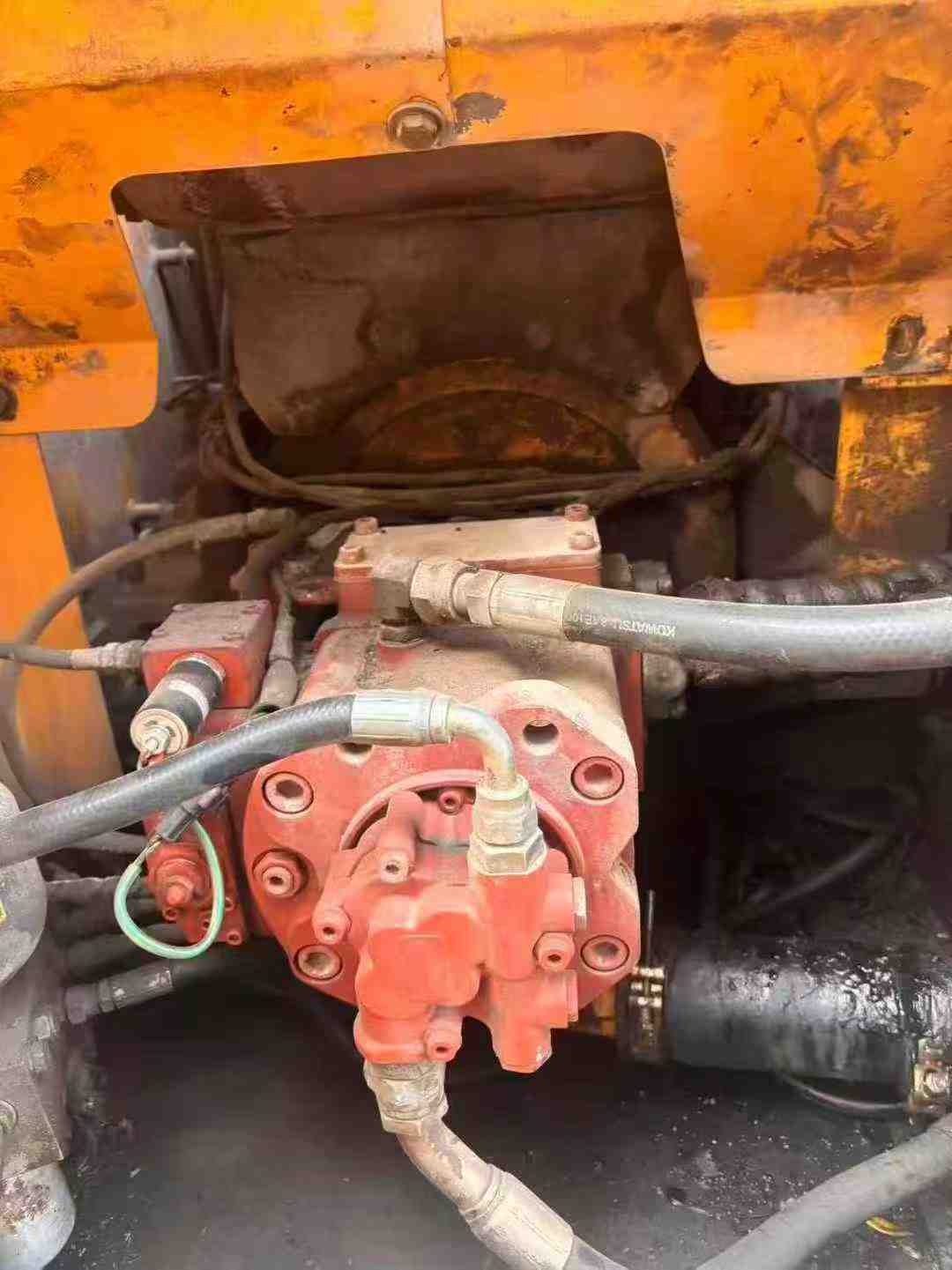

| Main pump type | Variable swash plate piston pump |
| Working Hydraulic Circuit (Mpa) | Quantitative swash plate plunger motor |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 126 |
| Total transport length (mm) | 7760 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3137 |
| Counterweight ground clearance (mm) | 1233 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 900×20-14PR |
| Total tire outside width (mm) | 2495 |
| Wheel base (mm) | 1944 |
| Minimum ground clearance (mm) | 365 |
| Onboard width (mm) | 2500 |
| Maximum digging radius (mm) | 7920 |
| Maximum excavation radius (mm) | 7700 |
| Maximum digging depth (mm) | 4850 |
| Maximum excavation height (mm) | 8470 |
| Maximum unloading height (mm) | 6040 |
| Maximum vertical digging depth (mm) | 4460 |
| Minimum turning radius (mm) | 2670 |
| Dodging plate width × height (mm) | 2490 x 559 |
