Product Description

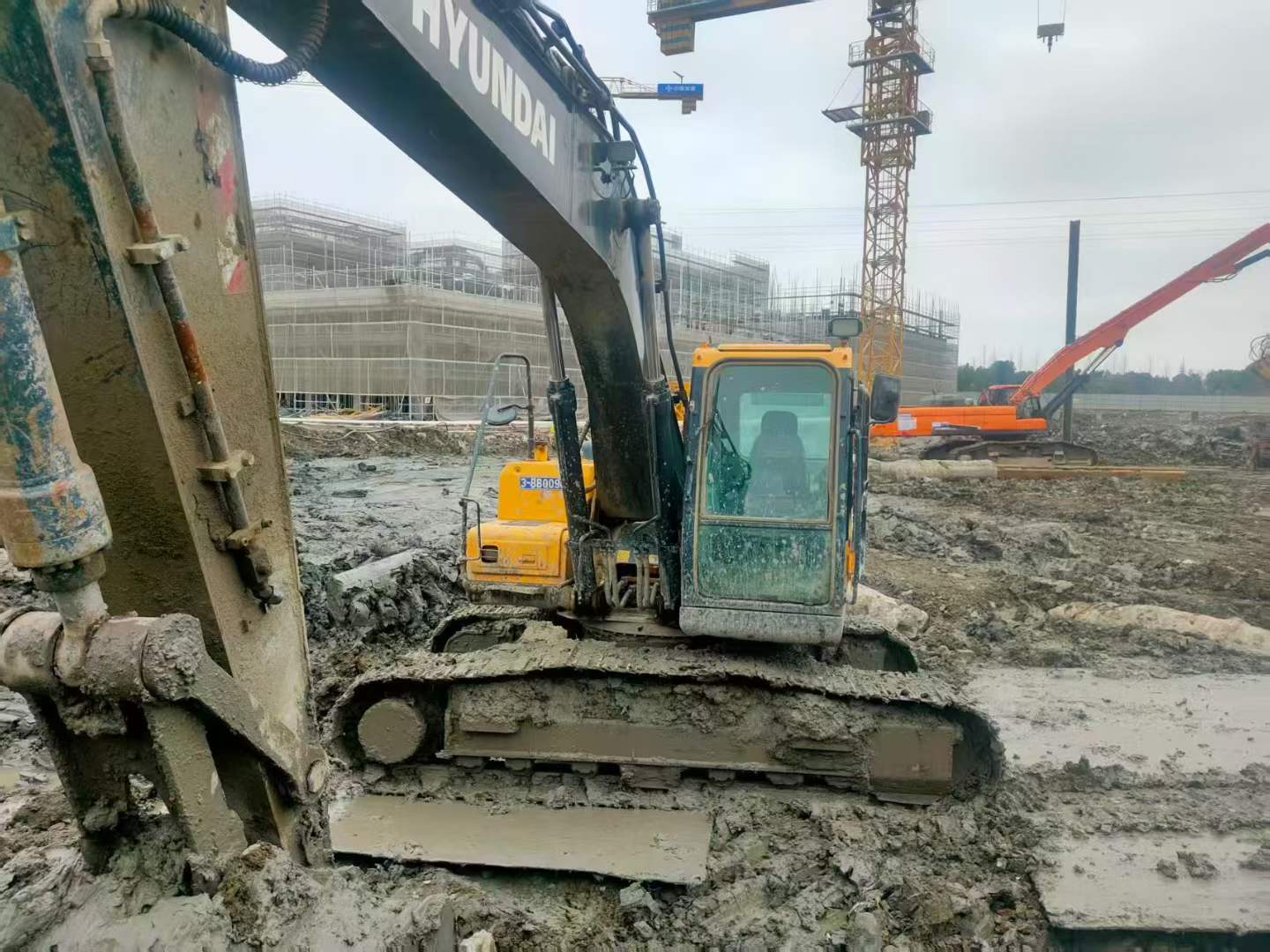

Secure proven performance without the premium price tag. This 2021 Hyundai R205VS delivers the power and reliability of near-new machinery at a fraction of replacement cost—an intelligent choice for budget-conscious operators demanding results.
Powered by a robust Cummins QSB7 engine producing 125kW at 1900rpm, this 20-ton excavator tackles demanding earthmoving tasks with confidence. The 0.9m³ bucket, combined with a maximum digging depth of 6,550mm and reach of 9,720mm, ensures exceptional productivity across diverse jobsites.
- Working Weight: 19,900kg
- Dual Variable Plunger Pumps: 2×222 L/min flow rate
- Boom/Arm Configuration: 5,650mm / 2,700mm
- Fuel Capacity: 340L for extended operation
- Maximum Torque: 670 N·m at 1,500rpm
- Current Location: Ningbo, Zhejiang
With minimal operating hours from 2021, you're acquiring joint-venture manufacturing quality with years of productive service remaining. Maximize your equipment budget while maintaining the performance standards your projects demand.
| Specifications | Value |
|---|---|
| No. | 1023764 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4160 |
| Track ground length (mm) | 3360 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
