2021 Hyundai R205VS

1/9

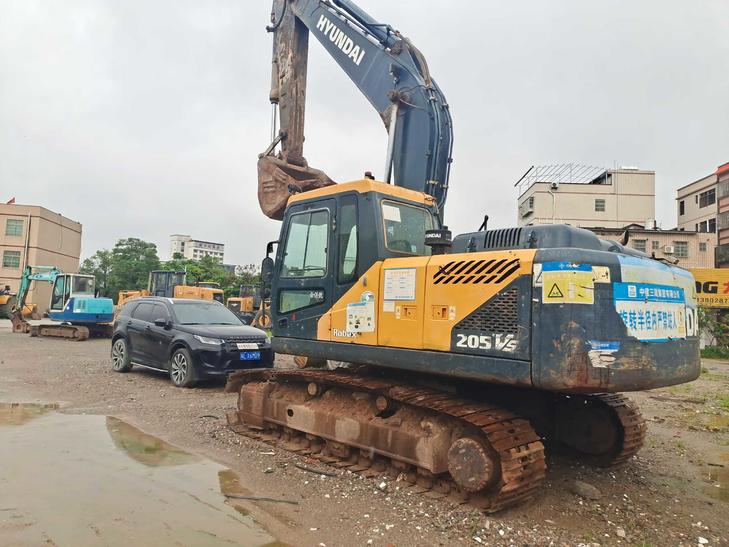

Buy Hyundai R205VS Used Excavator / 1
Buy Hyundai R205VS Used Excavator / 2
Buy Hyundai R205VS Used Excavator / 3
Buy Hyundai R205VS Used Excavator / 4
Buy Hyundai R205VS Used Excavator / 5
Buy Hyundai R205VS Used Excavator / 6
Buy Hyundai R205VS Used Excavator / 7
Buy Hyundai R205VS Used Excavator / 8
Buy Hyundai R205VS Used Excavator / 9

Product Description

Built for precision and control, this 2021 Hyundai R205VS delivers 20-ton performance with operator-centric engineering. Powered by a Cummins QSB7 engine producing 125 kW at 1900 rpm, it combines reliable joint-venture manufacturing with field-proven hydraulics. The spacious cab sits 3000 mm high, offering commanding sightlines across a 9720 mm maximum digging radius and 6550 mm digging depth—critical for complex excavation work.

  • Operator Advantage: Enhanced visibility from elevated cab position, dual joystick controls, and 360-degree monitoring capability
  • Hydraulic Precision: Twin variable plunger pumps deliver 2×222 L/min flow for smooth, responsive bucket and boom operation
  • Stability Profile: 2800 mm transport width and 4160 mm track base ensure balanced performance on uneven terrain
  • Working Capacity: 0.9 m³ backhoe bucket with 5650 mm boom and 2700 mm arm for versatile digging applications

Currently located in Guangdong, China. Full service records available. Contact Fair Trade Machinery for shipping quotes and technical specifications.

SpecificationsValue
No.1085027
Tonnage (tons)20
Working weight (kg)19900
Bucket capacity (m³)0.9
Boom length (mm)5650
Rod length (mm)2700
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125/1900
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)67/1500
Displacement (L)6.7
Rotation speed (rpm)11.2
Climbing ability (%)70
Travel speed (km/h)5.9/3.8
Maximum flow of main pump (l/min)2*222
Main pump typeTwo variable plunger pump
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9500
Total transport width (mm)2800
Total transport height (mm)2970
Full cab height (mm)3000
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3470
Back end turning radius (mm)2830
Onboard width (mm)2740
Total track length (mm)4160
Track ground length (mm)3360
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9720
Maximum digging depth (mm)6550
Maximum excavation height (mm)9640
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5920
Maximum excavation radius of stop surface (mm)9550
