2021 Hyundai R205VS

1/9
Buy Hyundai R205VS Used Excavator / 1
Buy Hyundai R205VS Used Excavator / 2

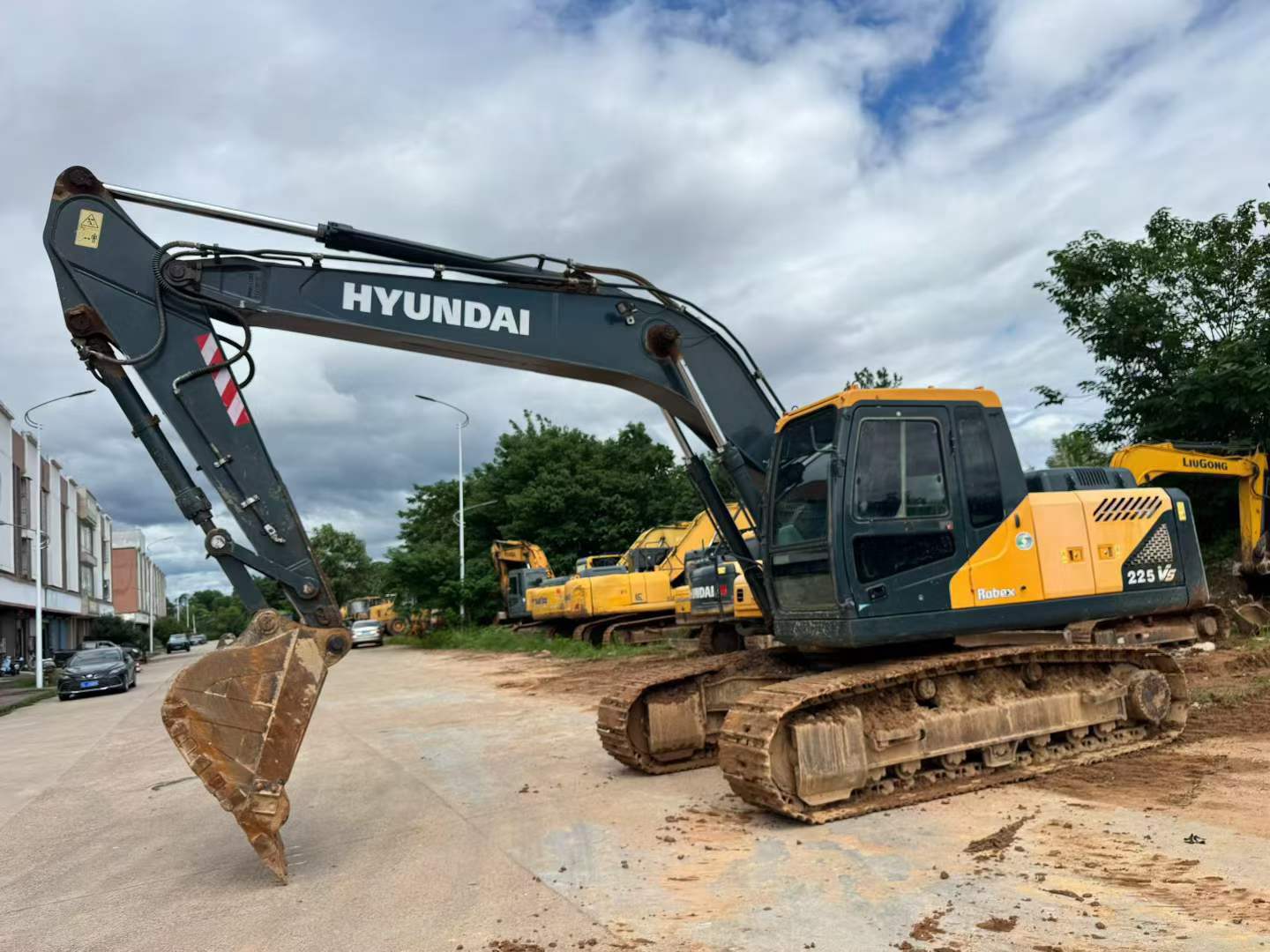

Buy Hyundai R205VS Used Excavator / 3

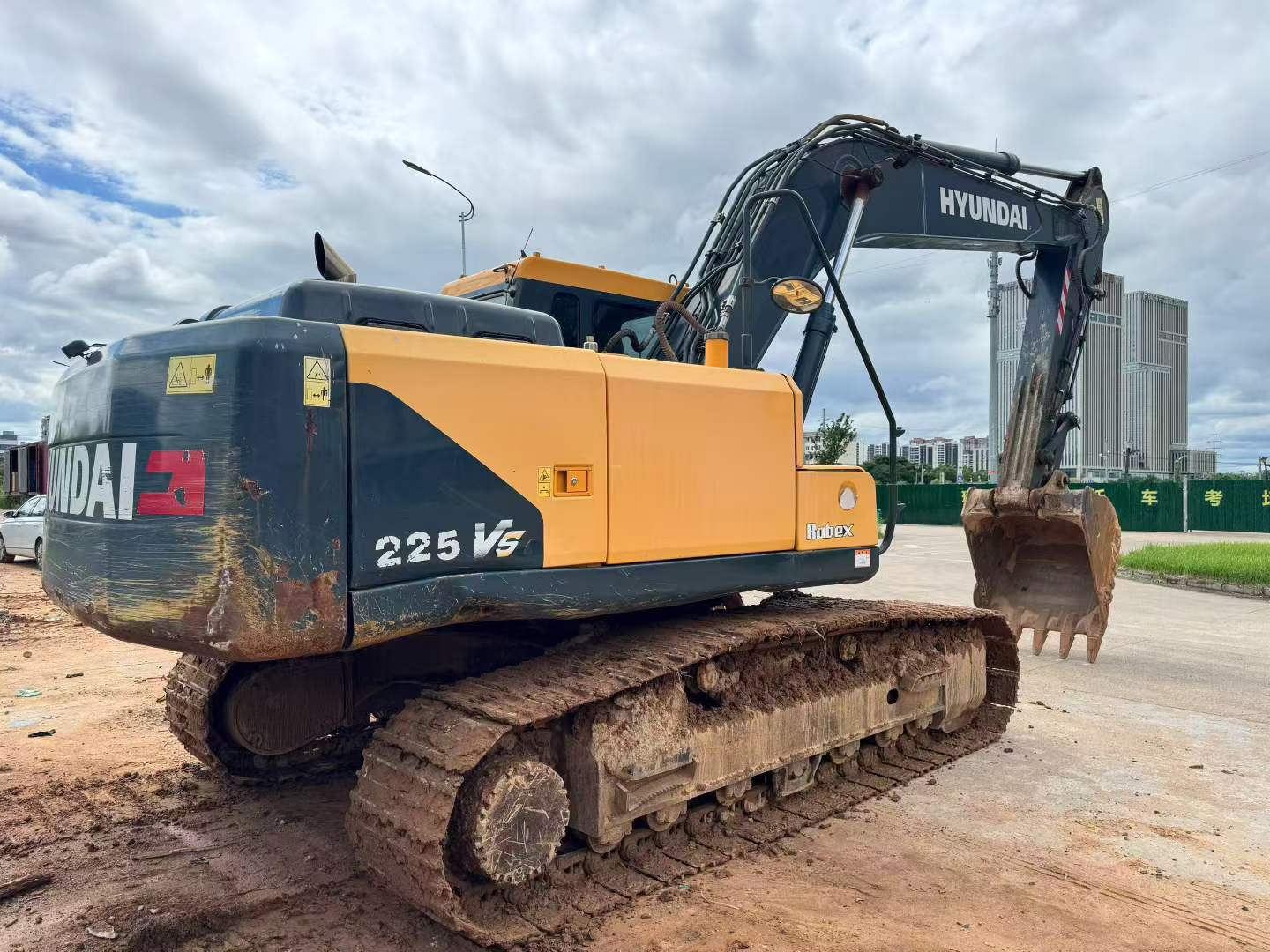

Buy Hyundai R205VS Used Excavator / 4

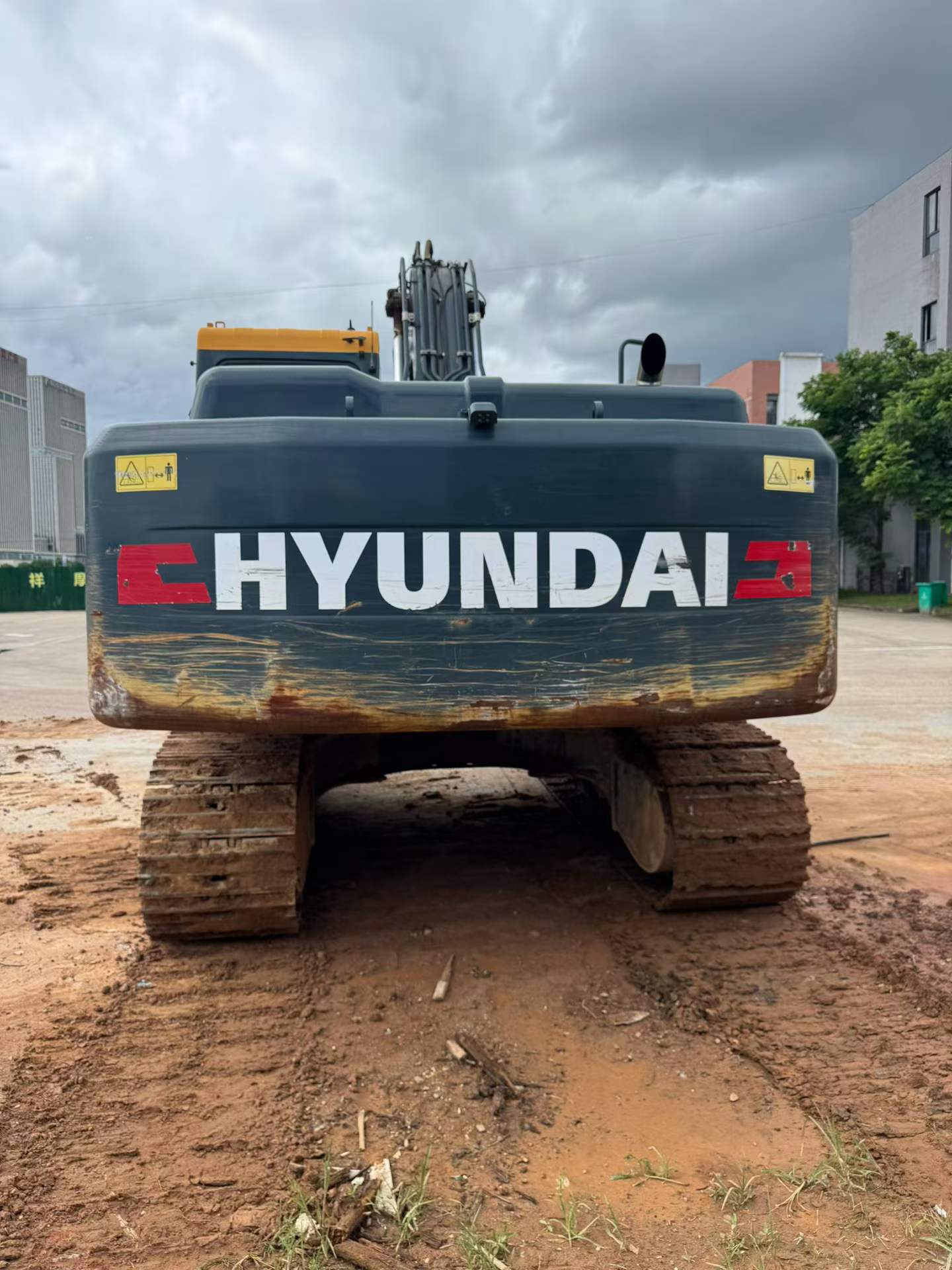

Buy Hyundai R205VS Used Excavator / 5

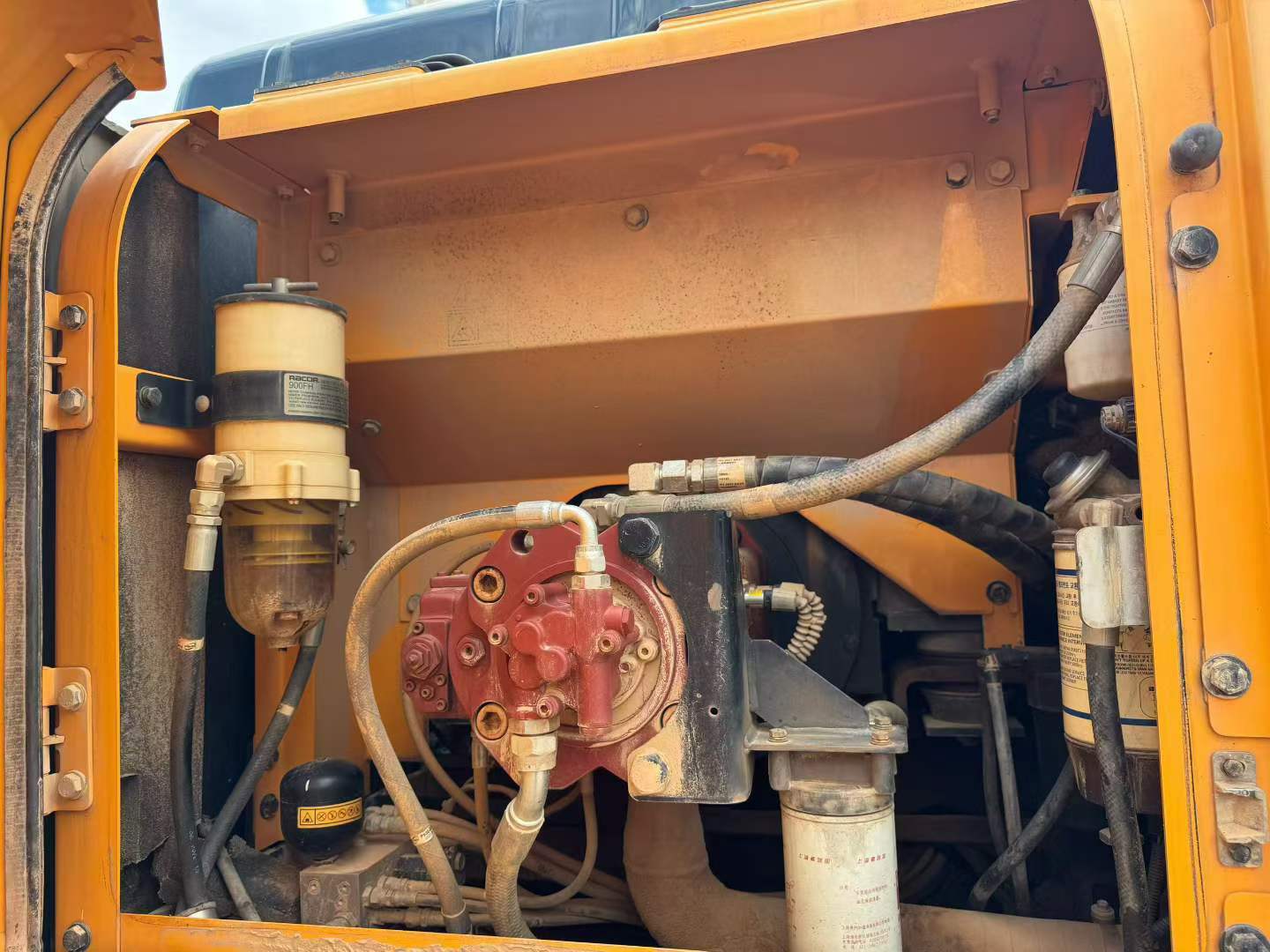

Buy Hyundai R205VS Used Excavator / 6

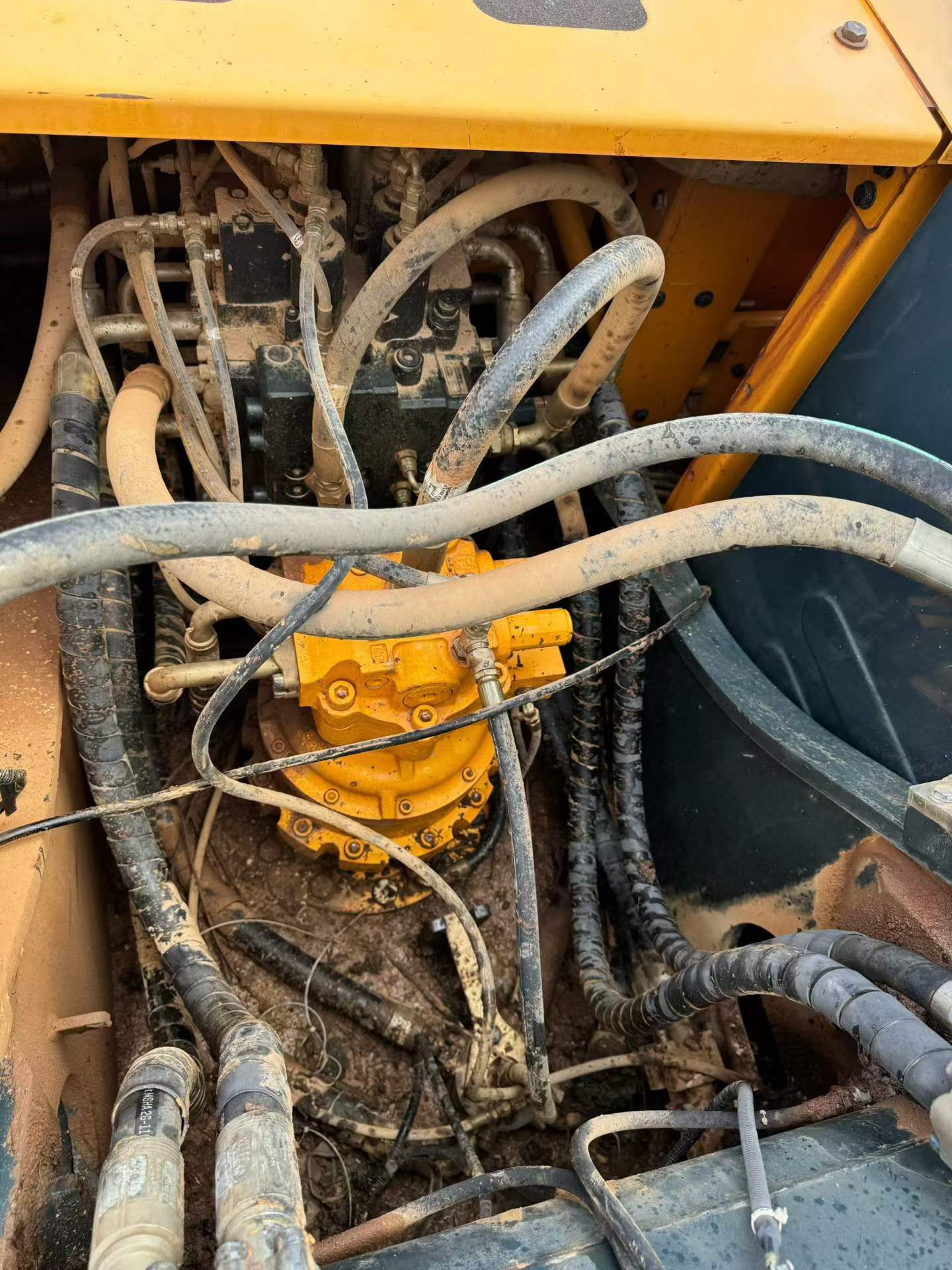

Buy Hyundai R205VS Used Excavator / 7

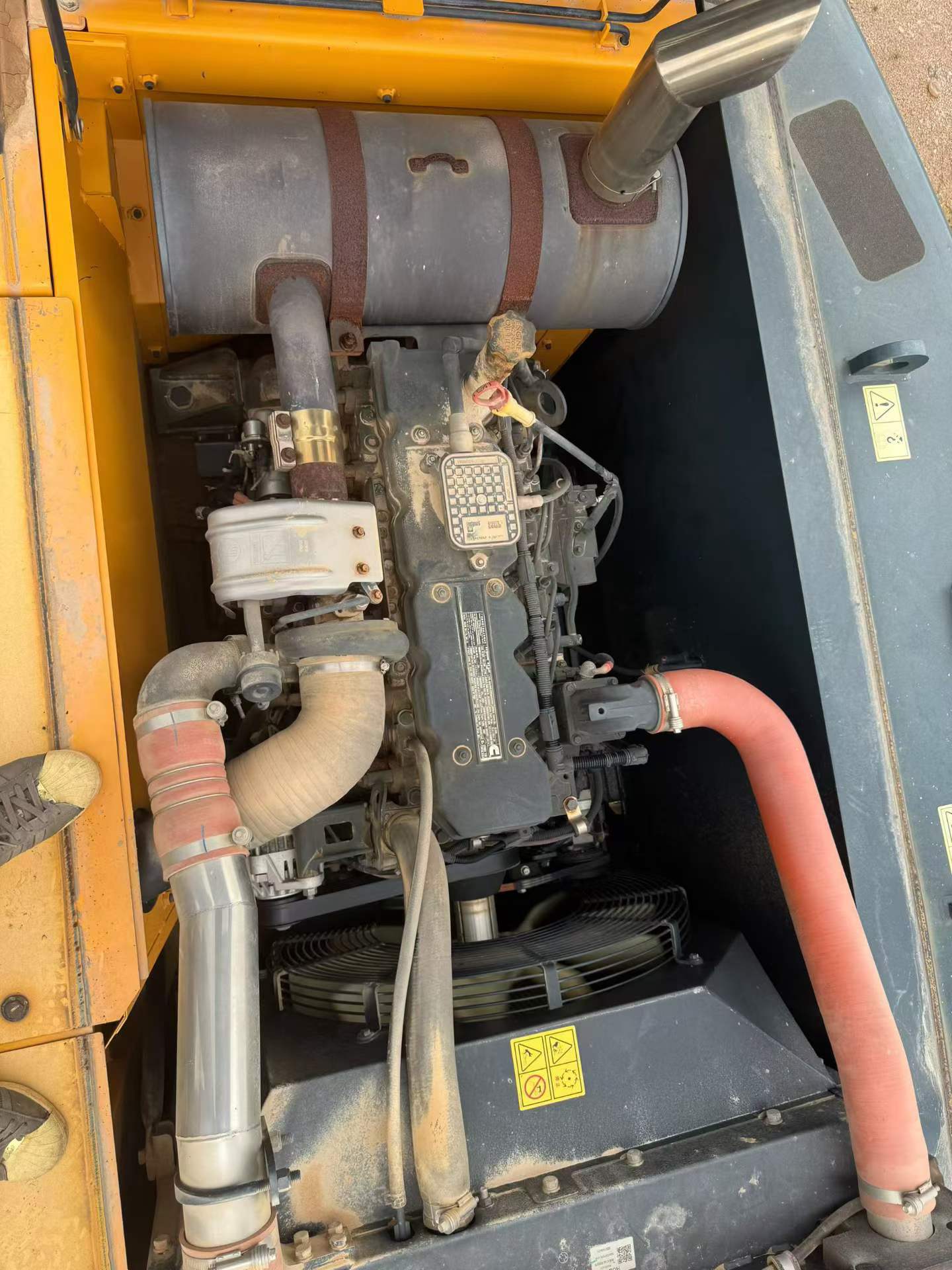

Buy Hyundai R205VS Used Excavator / 8

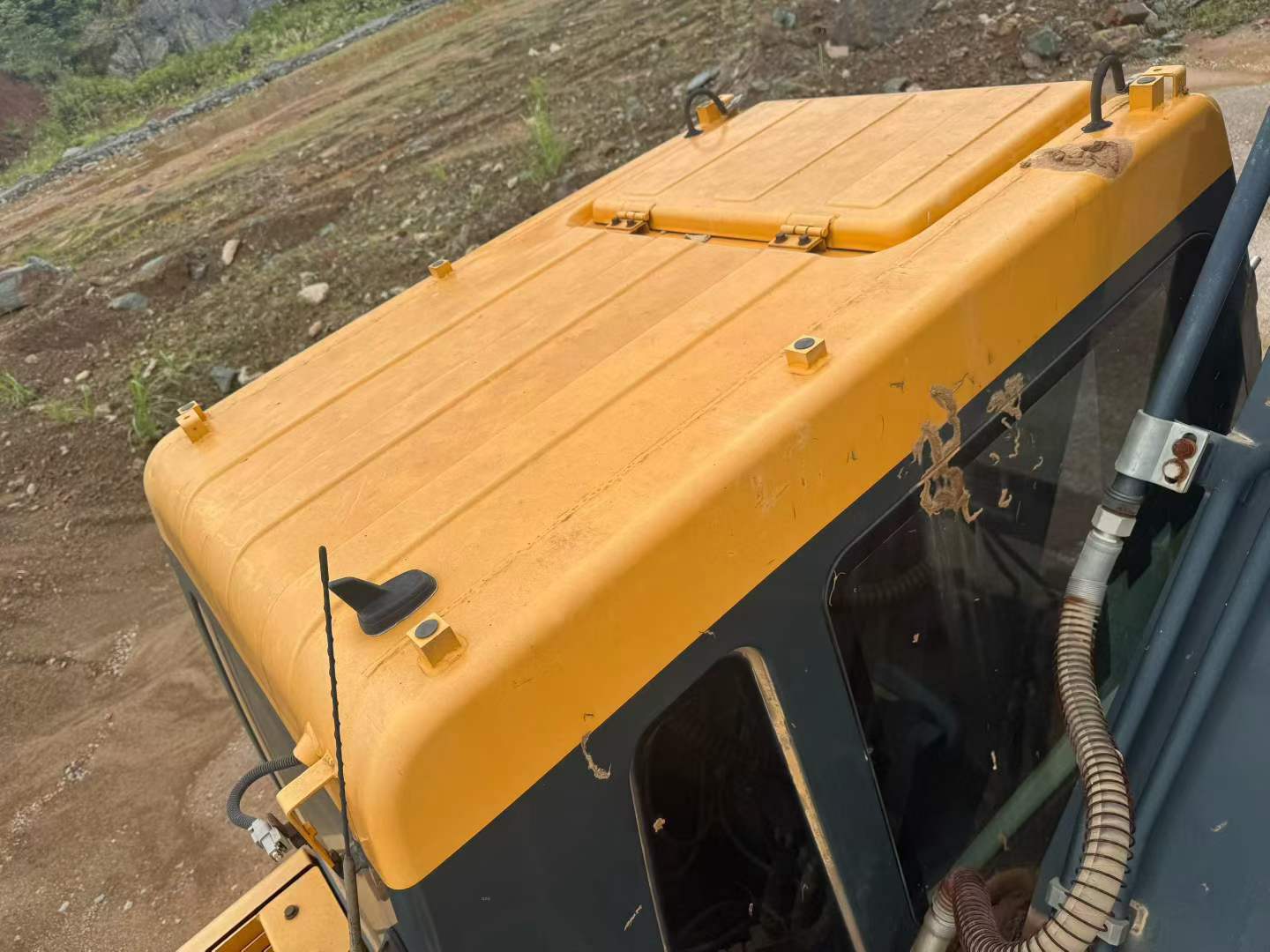

Buy Hyundai R205VS Used Excavator / 9

Product Description

FairTradeMachinery presents a 2021 Hyundai R205VS crawler excavator, currently located in Jiangxi, China. This well-maintained machine represents a reliable solution for medium to heavy-duty earthmoving applications, quarrying, and general construction projects.

The Hyundai R205VS is recognized in the industry for its robust undercarriage, efficient hydraulic system, and operator-focused cab design. With approximately 2-3 years of operational use, this excavator offers substantial remaining service life when properly maintained.

Key features include:

  • 20-ton operating weight class for versatile job site performance
  • Fuel-efficient engine meeting international emission standards
  • Advanced hydraulic flow control for precision work
  • Durable construction suitable for demanding environments

This unit is available for immediate inspection and purchase. Contact our sales team for detailed specifications, service records, and competitive export pricing to your destination.

SpecificationsValue
No.1094227
Tonnage (tons)20
Working weight (kg)19900
Bucket capacity (m³)0.9
Boom length (mm)5650
Rod length (mm)2700
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125/1900
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)67/1500
Displacement (L)6.7
Rotation speed (rpm)11.2
Climbing ability (%)70
Travel speed (km/h)5.9/3.8
Maximum flow of main pump (l/min)2*222
Main pump typeTwo variable plunger pump
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9500
Total transport width (mm)2800
Total transport height (mm)2970
Full cab height (mm)3000
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3470
Back end turning radius (mm)2830
Onboard width (mm)2740
Total track length (mm)4160
Track ground length (mm)3360
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9720
Maximum digging depth (mm)6550
Maximum excavation height (mm)9640
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5920
Maximum excavation radius of stop surface (mm)9550
see more

Overview

No.1094227

Brand Name:

Hyundai

Model Number:

R205VS

Year:

2021

Location:

Jiangxi China
