Product Description

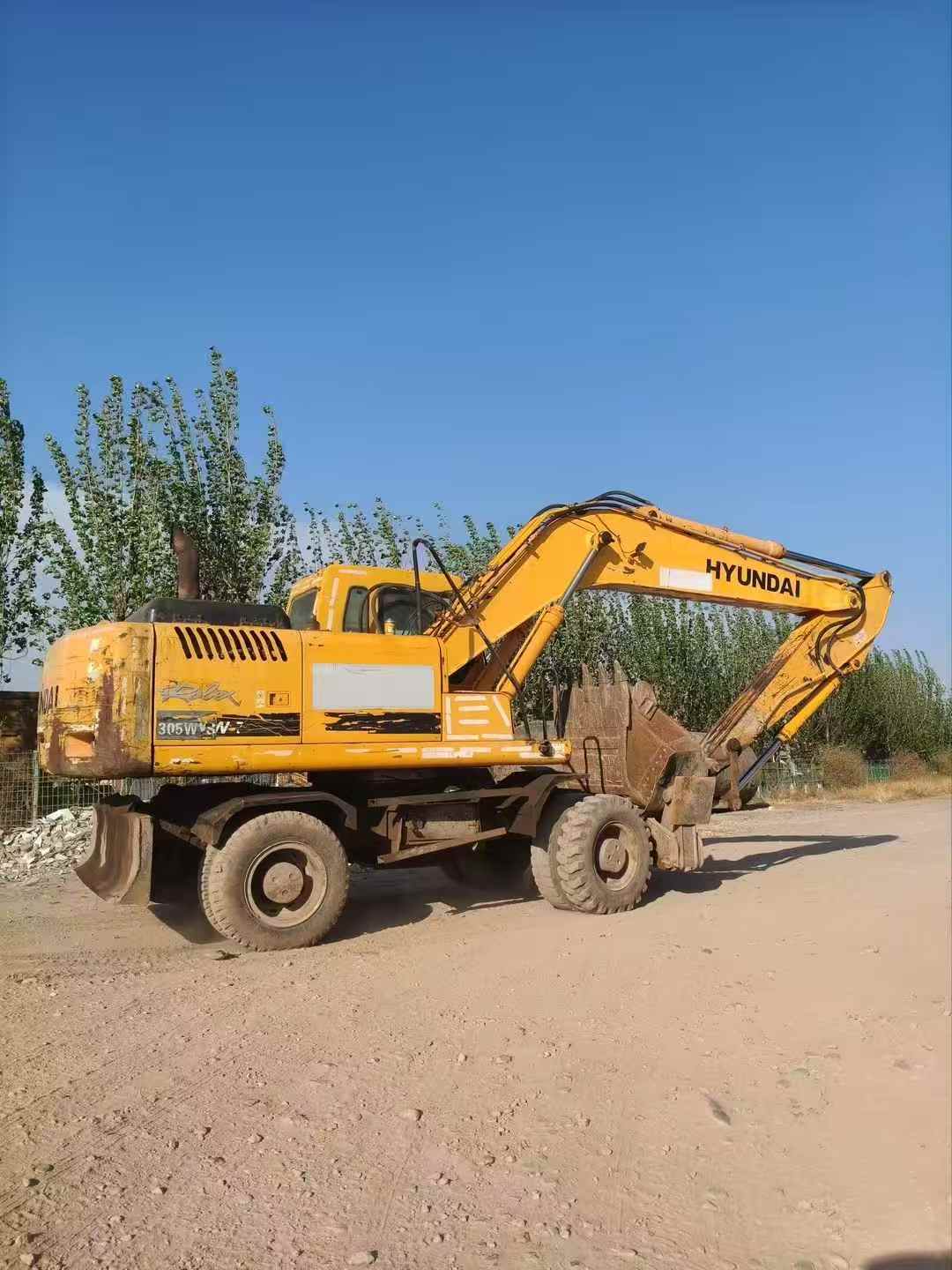

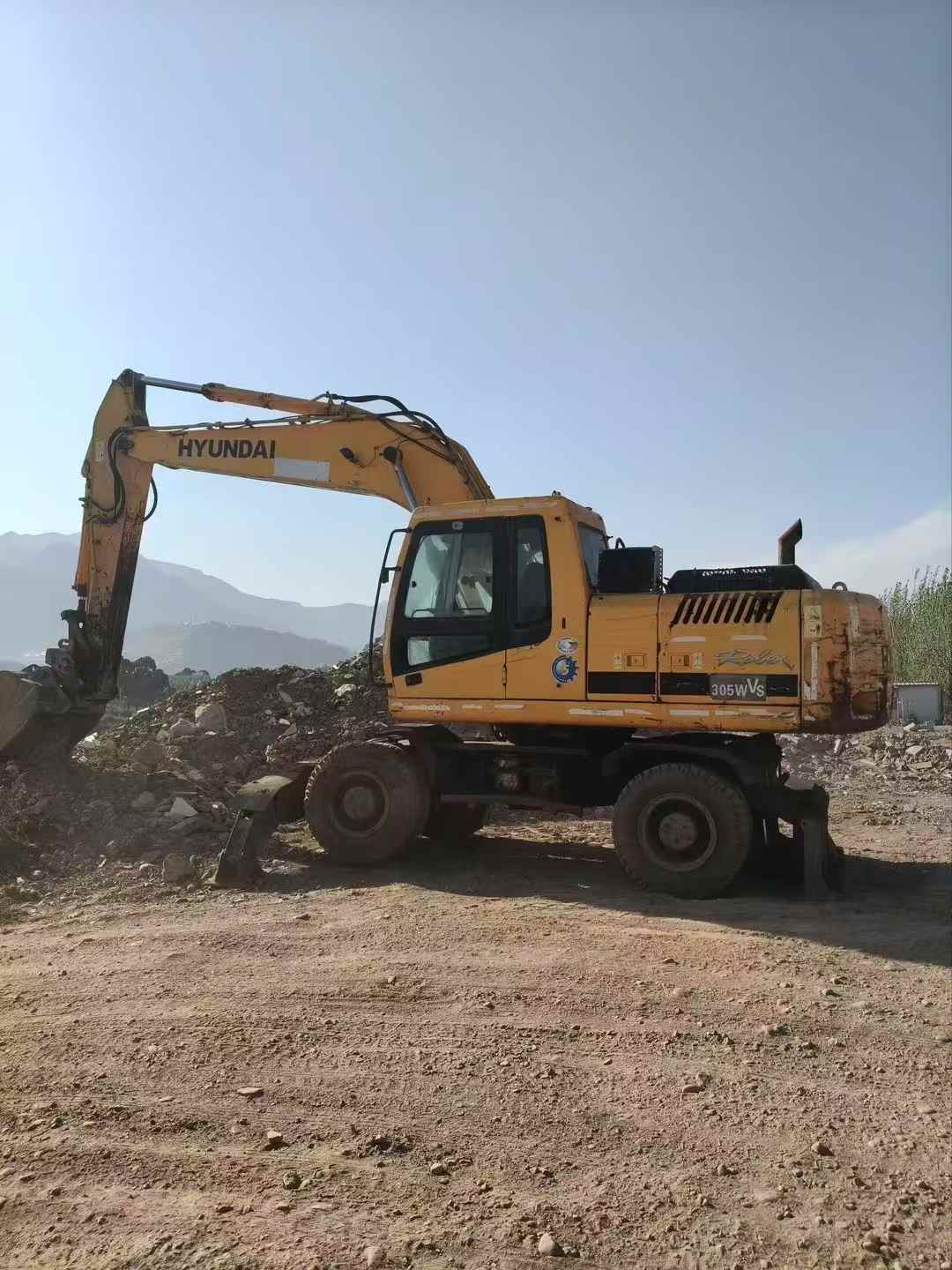

Maximize productivity without the premium price tag with this 2016 Hyundai R210W-7 wheeled excavator, now available from our Guizhou location. Powered by a reliable Cummins B5.9-C engine delivering 124 kW at 1950 rpm, this 21-ton workhorse combines exceptional mobility with robust digging performance. Equipped with dual axial variable piston pumps providing 2×222 l/min flow, it delivers 133 kN bucket digging force and reaches a maximum digging depth of 6,380 mm—ideal for infrastructure projects, utility work, and urban construction sites requiring frequent relocation.
Key Performance Specifications:
- Working weight: 20,500 kg with 0.51-1.34 m³ bucket capacity
- Maximum digging radius: 9,900 mm; maximum digging height: 9,870 mm
- Travel speed: 8.3-30 km/h for rapid site-to-site mobility
- Climbing ability: 31.5° on challenging terrain
- Fuel efficiency: 320 L tank with water-cooled engine technology
Acquiring quality used equipment from a joint venture manufacturer means accessing import-grade engineering at a fraction of new equipment costs. This model represents smart capital allocation for contractors seeking proven Hyundai reliability and Cummins powe
| Specifications | Value |
|---|---|
| No. | 1036104 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.51-1.34 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 124/1950 |
| Total displacement (L) | 5880 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 68.4/1950 |
| Forward speed (Km/h) | 8.3-30 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 31.5 ° |
| Bucket digging force (kN) | 133 |
| Rod digging force (kN) | 97 |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 33 |
| Rotary Hydraulic Circuit (Mpa) | 24 |

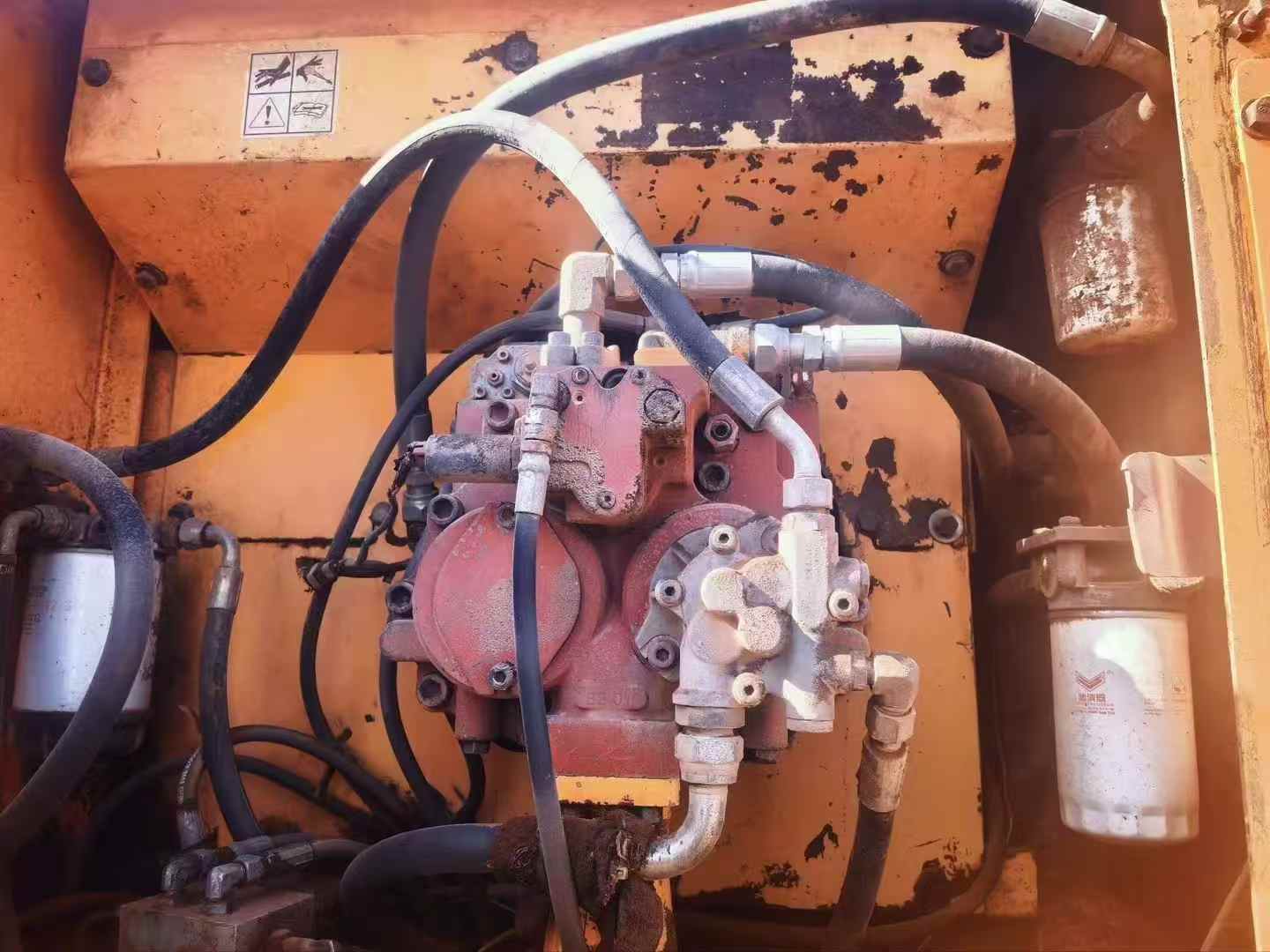

| Main pump type | 2× axial variable piston pump |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 18 |
| Total transport length (mm) | 9490 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3180 |
| Counterweight ground clearance (mm) | 1310 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1914 |
| Minimum ground clearance (mm) | 345 |
| Back end turning radius (mm) | 2800 |
| Onboard width (mm) | 2530 |
| Maximum digging radius (mm) | 9900 |
| Maximum excavation radius (mm) | 9690 |
| Maximum digging depth (mm) | 6380 |
| Maximum excavation height (mm) | 9870 |
| Maximum unloading height (mm) | 7050 |
| Maximum vertical digging depth (mm) | 5810 |
| Maximum digging depth (mm) | 6210 |
| Minimum turning radius (mm) | 3540 |
| Dodging plate width × height (mm) | 2490 wide |
